Maxsun Challenger H510M-H DDR4 Intel Motherboard #CHALLENGER H510M-H
Key Specification
Product Specification
|
Brand |
Maxsun |
|
Model |
Maxsun
MS-H610M 666 (Wi-Fi 6) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel H610 Sockets
Supported: LGA1700 Built-in
Processor: N/A Supported
CPU: 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors Generation:
12th/13th |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 3200(OC)/ 2933(OC)/ 2666(OC)/
2400(OC) MHz Memory Channel: Dual Memory Slot: 2 Memory Max: 64GB |
|
Storage
Info |
Storage
Interface: 6Gb/s, M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion: 1 x M.2 (M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4
mode)) |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCIe 4.0 x16 slot, 1 x
PCIe 3.0 x1 slot |
|
Audio
& Video |
Audio
Chipset: Realtek ALC897 Codec Audio
Channel – 5.1 |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111H 1G LAN LAN Speed (Mbps): 10/ 100/ 1000Mbps WiFi: Yes WiFi Technology: Intel WIFI 6 Bluetooth: Bluetooth 5.2 |
|
Ports Data |
USB
Port: 2 x USB 3.2 Gen1 Type A, 3 x USB 2.0 Type A VGA
Port: 1 HDMI
Port: 1 Display:
N/A SATA
Port: 4 TPM: 1 |
|
Technical Data |
Cable Management: Front Heatsink: Yes Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 ,11 Compatible
Products: Raptor Lake Refresh 14600K, Core i3 12100F, Core i3 13100F, Core i5
12400F, Core i5 13400F, Core i5 13500, Core i7 13700KF etc Intel Core
Processors, Pentium Gold and Celeron Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Maxsun
MS-H610M 666 (Wi-Fi 6) Micro-ATX Motherboard
The Maxsun MS-H610M 666 is a
versatile motherboard designed to support 12th and 13th Gen Intel Core
processors. With Wi-Fi 6 support and robust connectivity options,
this motherboard offers a solid foundation for users looking to build a
high-performance system.
Features
This motherboard supports DDR4
memory with speeds of up to 3200MHz (OC) and can accommodate up to 64GB
of RAM. Its dual-channel memory design ensures faster data transfer and
better multitasking performance, making it ideal for both professional work and
casual gaming.
Storage
and Expansion
The Maxsun MS-H610M 666
provides a 6Gb/s storage interface and includes 1 M.2 slot for
fast storage options such as SSDs, with support for PCIe 3.0 x4 mode.
The motherboard also has 4 SATA ports for additional storage devices,
providing flexibility for different configurations.
Graphics
and Expansion
For graphics, the Maxsun MS-H610M
666 features a PCIe 4.0 x16 slot for a dedicated graphics card, and
an additional PCIe 3.0 x1 slot for other expansion cards, enhancing
system versatility.
Networking
and Audio
The Realtek RTL8111H chipset
ensures 1Gbps Ethernet connectivity for reliable network performance.
Additionally, the motherboard supports Intel Wi-Fi 6 technology and Bluetooth
5.2, ensuring fast and stable wireless connections. The Realtek ALC897
audio chipset delivers 5.1-channel surround sound for an immersive audio
experience.
Ports
and Connectivity

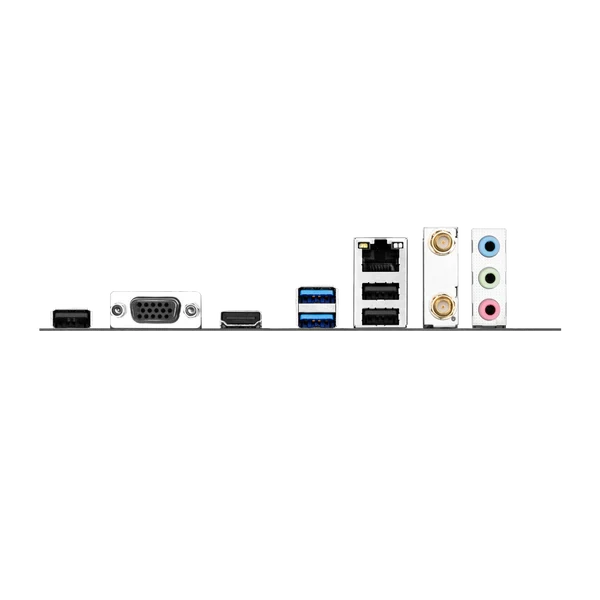

The motherboard includes 2 USB
3.2 Gen1 Type-A ports, 3 USB 2.0 Type-A ports, 1 VGA port,
and 1 HDMI port for display options. These ports provide a wide range of
connectivity for peripherals, displays, and external devices.
Build
and Design
The Maxsun MS-H610M 666
motherboard comes in a sleek black color and is built in the Micro-ATX
form factor, offering a compact and space-efficient design suitable for
small to medium-sized PC cases. It also features a heatsink for improved
cooling and longevity.
Compatibility
and Warranty
This motherboard supports Windows
10 and Windows 11 operating systems, and it is compatible with a
range of Intel Core processors from the 12th and 13th Gen series,
including popular models like Intel Core i3, i5, i7, and Pentium Gold
processors. The 3-year warranty provides long-term reliability for your
system.
Price
and Availability
The Maxsun MS-H610M 666
motherboard is available at Computer Village Agrabad, Chattogram,
Bangladesh. For pricing and availability details, please contact the
retailer directly.
