Maxsun B760M GAMING GANK (Wi-Fi 6E) DDR5 Intel Motherboard #B760M GAMING WIFI GANK
Key Specification
Product Specification
|
Brand |
Maxsun |
|
Model |
Maxsun
B760M GAMING GANK (Wi-Fi 6E) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Built-in
Processor: N/A Supported
CPU: 12th ,13th and 14th generation processors Generation:
12th ,13th and 14th |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 4800/ 5200/ 5600(OC)/ 6000(OC)/
6400(OC)+Mhz Memory Channel: Dual Memory Slot: 2 Memory Max: 128GB |
|
Storage
Info |
Storage
Interface: unmentioned M.2/SSD
Expansion Slot: 1 M.2/SSD
Expansion : 1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported
only) |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1x PCIE X16 4.0 slot |
|
Audio
& Video |
Audio
Chipset: Integrated REALTEK ALC 897 sound chip Audio
Channel – Unmentioned |
|
Network & Connectivity |
LAN Chipset: Realtek RTL8111H LAN Speed (Mbps): 0/100/1000 Mbps WiFi: Yes WiFi Technology: WIFI 6E Bluetooth: Bluetooth 5.2 |
|
Ports Data |
USB
Port: 2 x USB 3.2 Gen1 ports, 4 x USB 2.0 ports VGA
Port: 1 HDMI
Port: 1 Display:
N/A SATA
Port: 3 |
|
Technical Data |
Cable Management: Front RGB Support: ARGB RGB Connector: 2 x 5V ARGB pins Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10, Windows 11, Ubuntu Compatible
Products: Support for LGA1700 slots The 12th ,13th and 14th generation
processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|

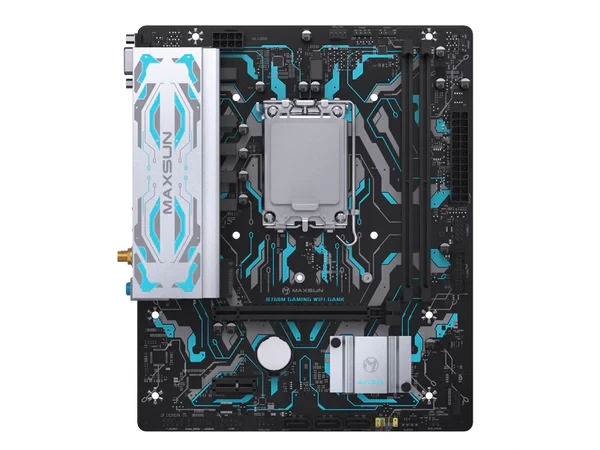

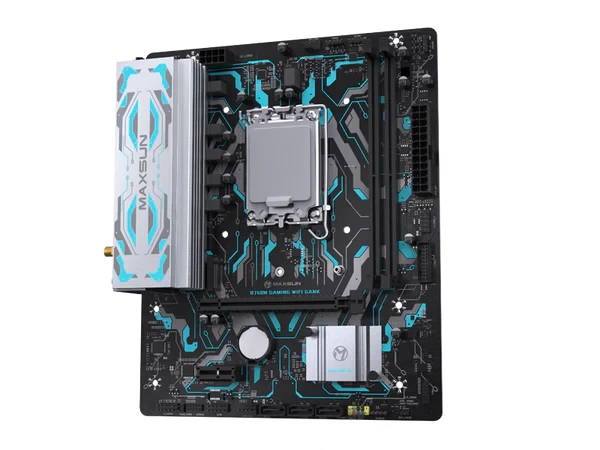

Product Details
Maxsun
B760M GAMING GANK (Wi-Fi 6E) Micro-ATX Motherboard
The Maxsun B760M GAMING GANK
(Wi-Fi 6E) motherboard is a high-performance solution for gaming and
content creation, supporting 12th, 13th, and 14th generation Intel
processors. With advanced features like Wi-Fi 6E, DDR5 memory
support, and customizable ARGB lighting, this motherboard is designed to
provide exceptional speed and connectivity for your gaming rig or workstations.
Features
The Maxsun B760M GAMING GANK
supports DDR5 memory with speeds up to 6400MHz (OC), offering
excellent bandwidth for high-end gaming, multitasking, and intensive applications.
With 2 memory slots and a maximum capacity of 128GB, users can
enjoy smooth, lag-free performance even with the most demanding workloads.
Storage
and Expansion
The motherboard provides an M.2
slot (2242/2280, PCIe x4/x2) for high-speed SSD expansion, enabling
faster system boot times and quick data transfers. The Maxsun B760M GAMING
GANK also features 3 SATA ports for additional storage devices.
Graphics
and Expansion
For graphics, the motherboard comes
with a PCIe x16 4.0 slot, allowing you to install a dedicated GPU
for powerful graphics performance in gaming, video editing, and other
GPU-intensive tasks. The motherboard does not support multi-GPU setups, but the
single x16 PCIe slot offers ample performance for modern GPUs.
Networking
and Audio
Equipped with Realtek RTL8111H
1GbE LAN, the motherboard ensures stable and reliable network connectivity. In
addition, it features Wi-Fi 6E technology for faster wireless speeds and
better efficiency, especially in high-traffic environments. Bluetooth 5.2
is also supported for seamless wireless peripheral connections. For audio, it
features the Realtek ALC 897 sound chip, providing high-quality sound
for immersive audio experiences in games and media.

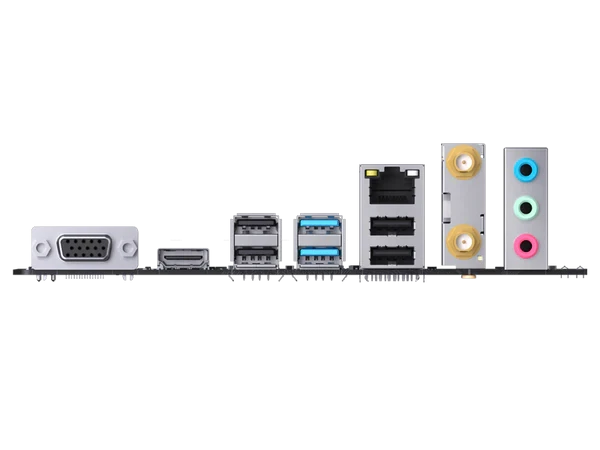

Ports
and Connectivity
The motherboard offers a diverse
selection of USB ports, including 2 x USB 3.2 Gen1 and 4 x USB
2.0 ports, ensuring fast data transfer and connectivity for external
devices. It also includes 1 VGA port and 1 HDMI port for video
output, providing flexible display options. Additionally, the board supports RGB
lighting, with 2 x 5V ARGB pins, allowing you to customize your
system’s lighting to match your personal style.
Build
and Design
The Maxsun B760M GAMING GANK
motherboard comes in a sleek black color and is built in the Micro-ATX
form factor, making it a great choice for compact gaming builds. The
motherboard also features front cable management for a clean and
organized setup. The ARGB support adds a stylish touch to your system’s
build, with flexible lighting options.
Compatibility
and Warranty
This motherboard supports Windows
10, Windows 11, and Ubuntu, offering versatility for various
operating systems. It is compatible with 12th, 13th, and 14th generation
Intel Core processors (LGA1700 socket), making it a future-proof option for
building or upgrading your system. With a 3-year warranty, the Maxsun
B760M GAMING GANK ensures durability and reliability.
Price
and Availability
The Maxsun B760M GAMING GANK
(Wi-Fi 6E) motherboard is available at Computer Village Agrabad, Chattogram,
Bangladesh. For pricing and availability, please contact the retailer.
