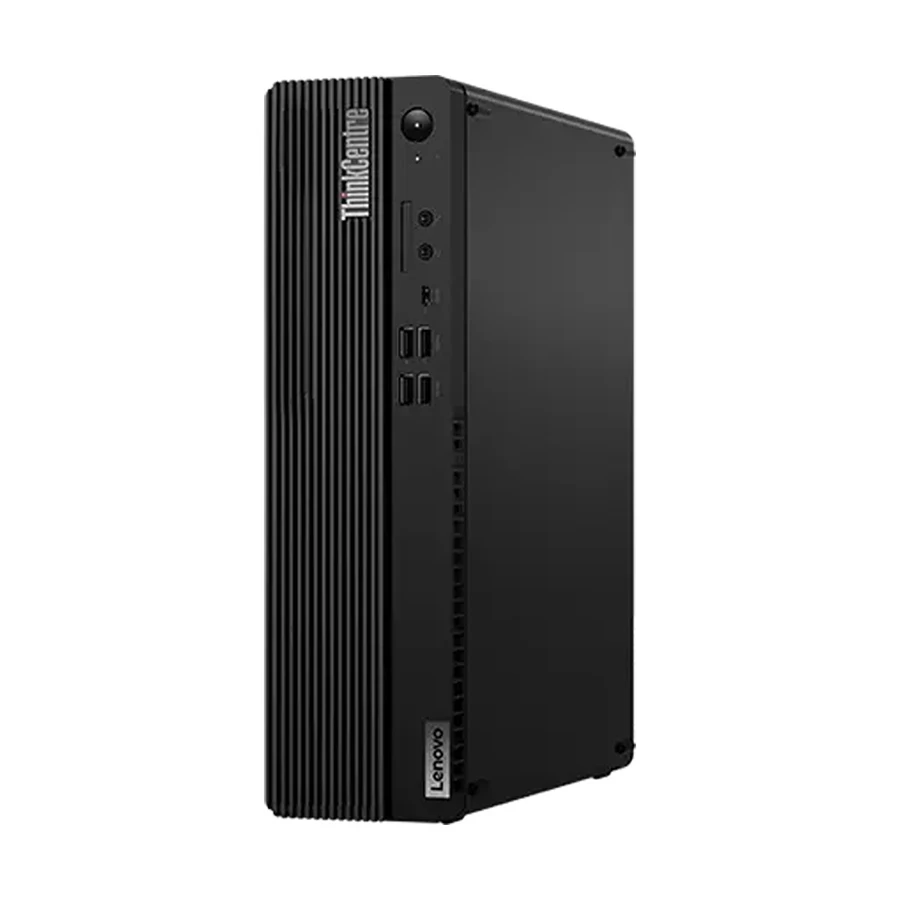

Lenovo ThinkCentre M70s Gen 3 SFF – Versatile Small Form Factor Desktop

The Lenovo ThinkCentre M70s Gen 3 SFF is a compact, powerful desktop designed to deliver high performance and expandability for professional users. Powered by the 12th Gen Intel Core i7-12700 processor, this machine offers smooth multitasking and efficient processing in a space-saving form factor. With 8GB of RAM, a 512GB NVMe SSD, and expandability options, it’s well-suited for business, office environments, and tasks requiring higher performance.

Processor and Performance

• Intel Core i7-12700 (12th Gen)
• 12 Cores, 20 Threads – Excellent for multi-tasking and processing.
• Base Clock: 2.10GHz | Max Turbo: 4.90GHz – High-speed performance for demanding tasks.
• 25MB Smart Cache – Speeds up data retrieval and task execution.

Memory (RAM)

• 8GB DDR4 RAM (3200MHz) – Efficient for regular office applications and multitasking.
• Expandable up to 128GB (4 RAM slots, 3 empty) – Future-proof with ample upgrade potential.

Storage

• 512GB NVMe PCIe SSD – Fast boot times and application launches.
• HDD Expansion:
• 1 x 2.5” Bay – For additional storage.
• 1 x 3.5” Bay – Additional capacity for larger storage.
• No HDD pre-installed, but additional HDD expansion options are available.

Graphics

• Intel UHD Graphics 770 (Integrated) – Perfect for general office tasks, light media editing, and web browsing.

Ports and Connectivity

• USB Ports:
• Front: 2 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 1 (15W charging).
• Rear: 4 x USB 2.0.
• Display Outputs:
• 1 x HDMI – For connecting to high-resolution displays.
• 2 x DisplayPort (DP) – Allows dual display setups for enhanced productivity.
• No VGA/D-Sub or DVI Port.
• Expansion Slots:
• 1 x PCIe 4.0 x16 (low-profile).
• 2 x PCIe 3.0 x1 (low-profile).
• 2 x M.2 slots (one for WLAN and one for SSD).

Network & Connectivity

• LAN (Ethernet) – Reliable, wired connection.
• Wi-Fi – Wireless network connectivity.
• Bluetooth 5.1 – For wireless peripherals.

Audio

• Audio Chipset: Realtek ALC897Q-CG codec, High Definition (HD) Audio – Delivers high-quality sound.
• Built-in Speaker – For basic audio output.
• Audio Ports:
• 1 x Combo Audio Jack (Front).
• 1 x Microphone (Front), 1 x Audio Out (Rear).

Security & Software

• TPM 2.0 – Ensures hardware-based security.
• Operating System: Free-DOS (Ready for installing Windows or other OS).

Physical Attributes & Power

• Form Factor: Small Tower – Compact and space-efficient for office use.
• Power Supply: 180W PSU – Low power consumption for cost-efficient operation.
• Dimensions: 92.5 x 297.7 x 339.5mm – Compact size for easy placement in limited spaces.
• Weight: 5.3kg – Moderate weight for desktop stability.
• Body Color: Black – Professional and sleek design.

Included in Package

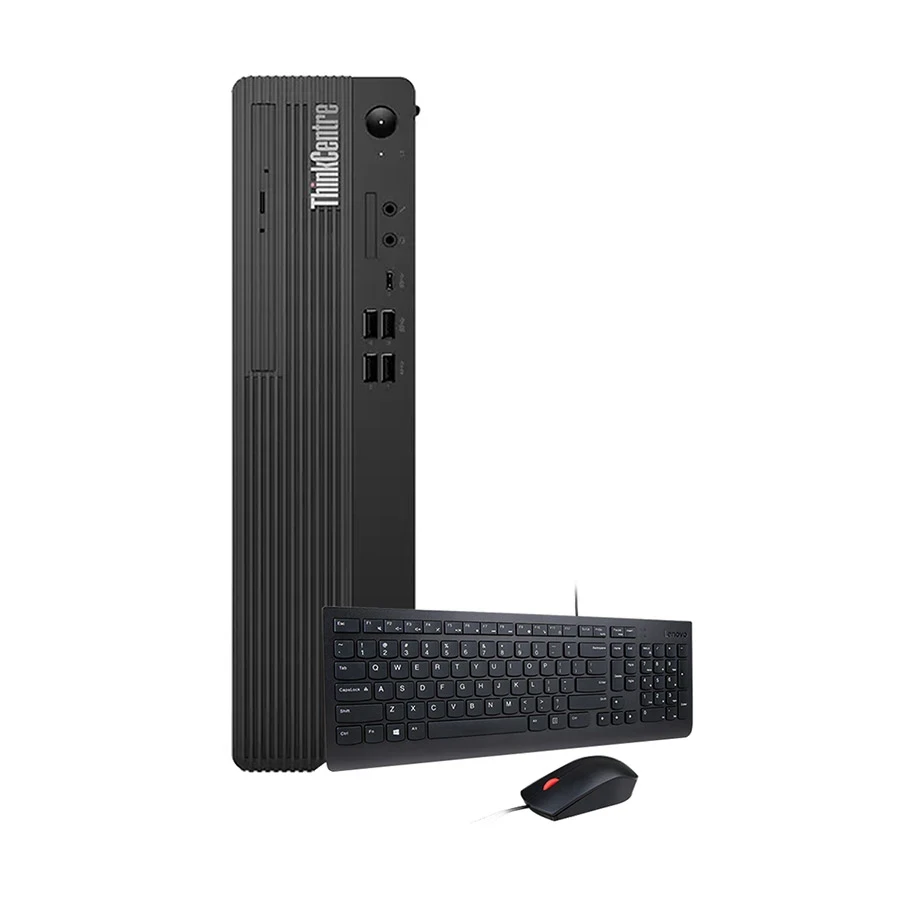

• ThinkCentre M70s Gen 3 SFF Desktop.
• Wired Keyboard and Wired Mouse.

Warranty

• 3-Year Warranty (Box required for warranty claims).
