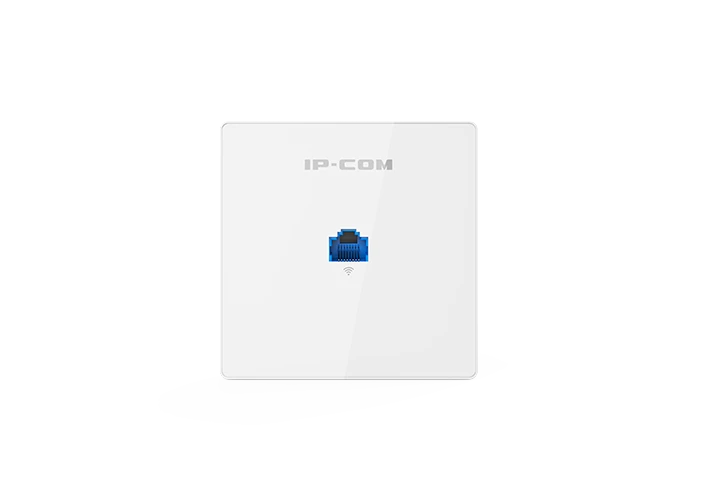

IP-Com W36AP AC1200 Dual Band Gigabit In-Wall Access Point
Key Specification
‣ Connectivity – Dual Band
‣ Network Standards - IEEE 802.11a/b/g/n/ac
‣ Data Transfer Rates - 1200
Mbps
‣ Interface(s) - 2 x
10/100/1000 Base TX ports
‣ Antenna (Type & Qty)
- 4 x Internal
Product Specification
|
Brand |
IP-Com |
|
Model |
IP-Com W36AP |
|
Components* |
Network Standards: IEEE 802.11a/b/g/n/ac Data Transfer Rates: 1200 Mbps LAN Network Standard :10/100/1000 Processor :No |
|
Interface |
Interface(s):
2 x 10/100/1000 Base TX ports Number
of WAN Port: 1 Number
of LAN Port: 1 USB
Sharing Support: No |
|
Wireless |
Security Protocols: WPA-PSK: AES/TKIP,
WPA2-PSK: AES/TKI Band: Dual Frequency: 2.4GHz - 5GHz Bluetooth: No Antenna (Type & Qty): 4 x Internal Antenna Gain :4 dBi Antenna Placement :Internal MU-MIMO Support: Yes Multi-User
MIMO :Yes |
|
Management |
Throughput:
1-300Mbp/s 2.4 GHz : 6-867Mbp/s 5 GHz Max.
Concurrent Clients :128 Operating
Mode: AP, Client + AP |
|
Performance |
Protection: No Waterproof Level/Grade: No IP Rating: No |
|
Technical
Info |
Ideal
Use: Business and Home users. |
|
Security |
Wireless Security |
|
Power
Attributes |
Max.
Power Consumption: Pa 7.8 W(Full load) Passive
PoE Power Supply: IEEE 802.3af |
|
Environmental |
Operating Temperature: -10 - 45 degree C Operating Humidity: 10% to 90%
Non-Condensing Storing/Storage Temperature: -30 - 70 degree
C Storing/Storage Humidity: 10% to 90% RH
Non-Condensing |
|
Physical
Attributes |
Button:
Reset LED
Indicators: 1 x SYS LED indicator and 1 x LAN LED indicator Mounting:
Yes Mount
Options: Ceiling /Wall Mounting Dimensions:
86 x 86 x 32 mm Color:
White Packet
Contents: IP-Com W36AP Access Point, User Manual |
|
Warranty |
1 year (Without Adapter) |
|
* Product
may vary with different Kit or Version |
|
Product Details
IP-Com
W36AP Dual-Band Wireless Access Point
The IP-Com W36AP is a high-performance
wireless access point designed for seamless connectivity in business and
home environments. Supporting dual-band operation with speeds of up to
1200 Mbps, this device ensures fast, reliable, and stable wireless
connections. With MU-MIMO technology, secure encryption protocols,
and multiple operating modes, the W36AP is an ideal solution for
expanding and optimizing Wi-Fi coverage in offices, homes, and commercial
spaces.
Features
- Dual-Band Wi-Fi (2.4GHz & 5GHz) for optimized performance and reduced network
congestion
- Maximum Data Transfer Rate of 1200 Mbps ensures smooth browsing, streaming, and online
gaming
- Supports up to 128 Concurrent Clients, making it ideal for dense user environments
- Multiple Operating Modes: AP and Client + AP for flexible network setups
- MU-MIMO Technology
improves network efficiency and speed by allowing multiple users
to connect simultaneously
- Advanced Wireless Security with WPA-PSK and WPA2-PSK encryption for data
protection
- Passive PoE (IEEE 802.3af) support allows flexible and convenient installation
- Compact and Sleek Design with easy ceiling/wall mounting for discreet
deployment
Design
& Build
The IP-Com W36AP features a compact
and modern design, making it easy to integrate into various environments.
- Mounting Options:
Ceiling / Wall Mounting for flexible installation
- LED Indicators:
1× SYS LED Indicator and 1× LAN LED Indicator for status
monitoring
- Antenna:
4× Internal Antennas with 4 dBi gain for stronger signal
coverage
- Color:
White, blending seamlessly into any environment
- Dimensions:
86 × 86 × 32 mm, making it a small yet powerful networking
solution
Performance
& Connectivity
With dual-band Wi-Fi and Gigabit
Ethernet ports, the W36AP ensures fast, stable, and reliable
network performance.
- Network Standards:
IEEE 802.11a/b/g/n/ac
- Maximum Speed:
1200 Mbps
- 2.4 GHz:
1-300 Mbps
- 5 GHz:
6-867 Mbps
- Ports:
- 1× WAN Port
(10/100/1000 Mbps)
- 1× LAN Port
(10/100/1000 Mbps)
- Security Protocols:
WPA-PSK (AES/TKIP), WPA2-PSK (AES/TKIP)
Power
& Environmental Conditions
Built for efficiency and
durability, the IP-Com W36AP operates smoothly in various
environmental conditions.
- Power Supply:
Passive PoE (IEEE 802.3af) for easy installation without extra
power cables
- Maximum Power Consumption: 7.8W (Full Load)
- Operating Temperature:
-10°C to 45°C
- Operating Humidity:
10% to 90% RH (Non-Condensing)
- Storage Temperature:
-30°C to 70°C
- Storage Humidity:
10% to 90% RH (Non-Condensing)
Package
Contents
- 1× IP-Com W36AP Access Point
- 1× User Manual
for easy setup and configuration
Warranty
- 1-Year Warranty (Without Adapter)
