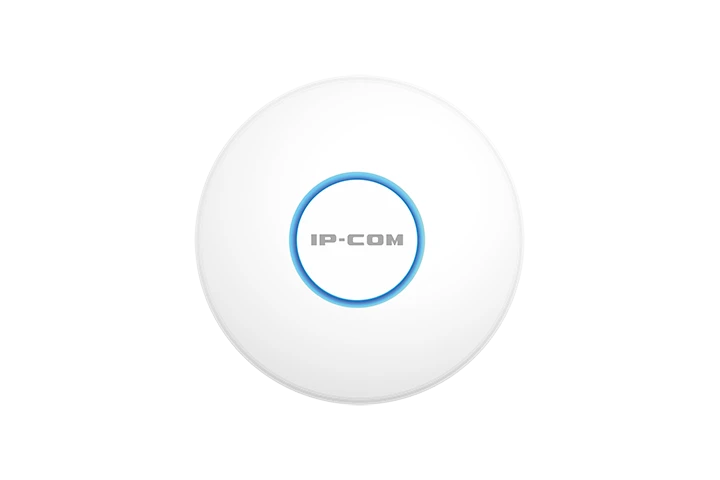

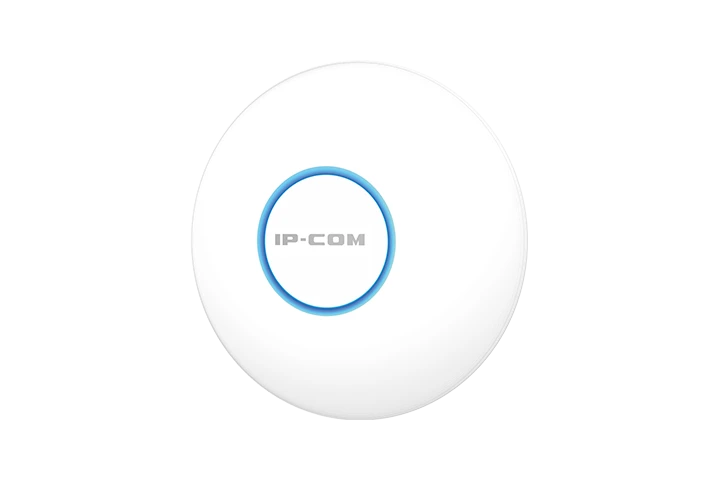

IP-Com iUAP-AC-LITE 1167Mbps Dual-Band Wireless Access Point
Key Specification
‣ Connectivity – Dual Band
‣ Network Standards - IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE
802.11n, IEEE 802.11ac
‣ Data Transfer Rates - 1167
Mbps
‣ Interface(s) - 1 x
10/100/1000 Base TX ports
‣ Antenna (Type & Qty)
- 2 x Internal
Product Specification
|
Brand |
IP-Com |
|
Model |
IP-Com iUAP-AC-LITE |
|
Components* |
Network Standards: EEE 802.11a, IEEE
802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Data Transfer Rates: 1167 Mbps Outdoor Range: 150 Meter WAN Network Standard: No LAN Network Standard: 10/100/1000 |
|
Interface |
Interface(s):
1 x 10/100/1000 Base TX ports Number
of WAN Port: No Number
of LAN Port: 1 USB
Sharing Support : No |
|
Wireless |
Security Protocols: WEP, WPA-PSK, WPA2-PSK,
WPA, WPA2 Band: Dual Frequency: 2.4GHz - 5GHz Bluetooth: No Antenna (Type & Qty): 2 x Internal Antenna Gain :4 dBi Antenna Placement ; Internal MU-MIMO Support: Yes Multi-User MIMO: Yes Transmission Power: Adjustable power by 1dBm Wireless Modes: Access Point |
|
Management |
Max.
Concurrent Clients :256 Wireless
Users Capacity : 256 SSID
Numbers :4 Management:
Web UI Operating
Mode: AP, Client + AP |
|
Performance |
Protection: No Waterproof Level/Grade: No IP Rating: No |
|
Technical
Info |
Ideal
Use: Business and Home users. |
|
Security |
Guest Network Support : No |
|
Power
Attributes |
Power
Method : IEEE 802.3af/at&24V0.5A Passive PoE Max.
Power Consumption: 11.5W Passive
PoE Power Supply: 24V 0.5A Passive PoE |
|
Environmental |
Operating Temperature: -10 - 45 degree C Operating Humidity: 10% to 90%
Non-Condensing Storing/Storage Temperature: -30 - 70 degree
C Storing/Storage Humidity: 10% to 90% RH
Non-Condensing |
|
Physical
Attributes |
Button:
Reset LED
Indicators: Power Mounting:
Yes Mount
Options: Ceiling Dimensions:
176 x 176 x 43.5mm Color:
White Packet
Contents: IP-Com iUAP-AC-LITE Access Point, User Manual |
|
Warranty |
1 year (Without Adapter) |
|
* Product
may vary with different Kit or Version |
|
Product Details
IP-Com
iUAP-AC-LITE Dual-Band Wireless Access Point
The IP-Com iUAP-AC-LITE is a high-performance
wireless access point designed for business and home users. With dual-band
Wi-Fi supporting speeds up to 1167 Mbps, this device ensures seamless
connectivity for multiple users. Featuring MU-MIMO technology, adjustable
transmission power, and 256 concurrent client support, the iUAP-AC-LITE
is ideal for expanding and optimizing wireless coverage in offices, homes,
and public spaces.
Features
- Dual-Band Wi-Fi (2.4GHz & 5GHz) for optimized performance and reduced network
congestion
- Maximum Data Transfer Rate of 1167 Mbps ensures fast and reliable connections
- Supports up to 256 Concurrent Clients, making it suitable for high-density environments
- MU-MIMO Technology
enables multiple devices to connect simultaneously without
performance loss
- Web UI Management
for easy configuration and monitoring
- Multiple Operating Modes: AP, Client + AP for flexible network setups
- Secure Wireless Encryption with WEP, WPA-PSK, WPA2-PSK, WPA, and WPA2
protocols
- Passive PoE (IEEE 802.3af/at & 24V 0.5A) for convenient installation without additional
power cables
- Ceiling Mounting Option for discreet and space-saving deployment
Design
& Build
The IP-Com iUAP-AC-LITE is
designed with a sleek and compact form factor, making it ideal for office
and home environments.

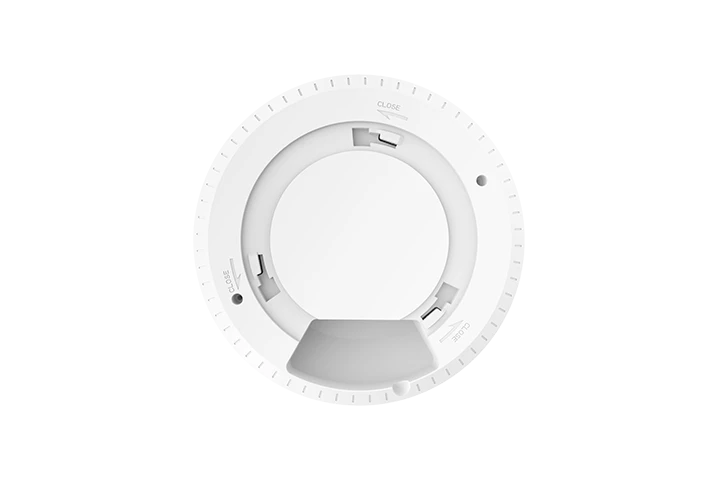

- Mounting Options:
Ceiling mounting for seamless integration
- LED Indicators:
Power LED for status monitoring
- Antenna:
2× Internal Antennas with 4 dBi gain for enhanced
coverage
- Color:
White, blending with modern interiors
- Dimensions:
176 × 176 × 43.5 mm for compact installation
Performance
& Connectivity
Equipped with advanced wireless
technology, the iUAP-AC-LITE delivers fast, stable, and secure
network performance.
- Network Standards:
IEEE 802.11a/b/g/n/ac
- Maximum Speed:
1167 Mbps
- Wireless Range:
Up to 150 meters (outdoor use)
- Transmission Power:
Adjustable by 1 dBm
- Wireless Users Capacity: 256 devices
- SSID Numbers:
4
- Ports:
- 1× LAN Port
(10/100/1000 Mbps)
Power
& Environmental Conditions
The IP-Com iUAP-AC-LITE is
designed for efficient operation in various environmental conditions.
- Power Supply:
IEEE 802.3af/at & 24V 0.5A Passive PoE
- Maximum Power Consumption: 11.5W
- Operating Temperature:
-10°C to 45°C
- Operating Humidity:
10% to 90% RH (Non-Condensing)
- Storage Temperature:
-30°C to 70°C
- Storage Humidity:
10% to 90% RH (Non-Condensing)
Package
Contents
- 1× IP-Com iUAP-AC-LITE Access Point
- 1× User Manual
for easy setup and configuration
Warranty
- 1-Year Warranty (Without Adapter)
