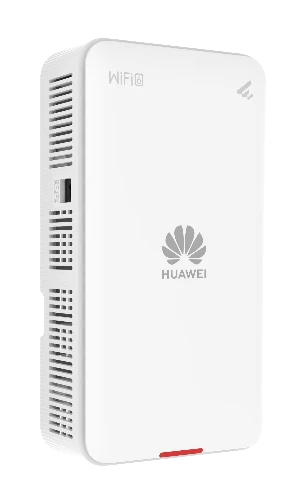

Huawei AP363 Wi-Fi 6 Access Point

The Huawei AP363 is a high-performance dual-band Wi-Fi 6 access point designed to deliver high-speed, low-latency, and stable network performance for enterprise environments, offices, retail spaces, and high-density areas. It supports the latest Wi-Fi 6 (802.11ax) technology, offering improved efficiency, increased capacity, and better network optimization. The device features 2×2 MU-MIMO, internal antennas, and PoE support, making it an ideal choice for modern wireless networking solutions.

Features

• Wi-Fi 6 (802.11ax) support provides faster speeds, reduced latency, and better efficiency
• Dual-band operation (2.4GHz & 5GHz) enables optimized performance with minimal interference
• Supports 2×2 MU-MIMO, allowing multiple users to transmit data simultaneously without delays
• Gigabit Ethernet connectivity with 1x WAN and 1x LAN port, ensuring fast wired networking
• Maximum transmission power of 23dBm on both 2.4GHz and 5GHz for strong and stable signal coverage
• Supports Bluetooth Low Energy (BLE) with a max power of <10dBm, making it suitable for IoT applications
• PoE (Power over Ethernet) support allows flexible deployment without additional power adapters
• Low power consumption (Max 12W) ensures energy efficiency and cost savings
• USB 2.0 Type-A port for connectivity with external devices and future expandability
• Various mounting options, including desk, wall, ceiling, and junction box for convenient installation
• LED system indicators and reset button for easy network monitoring and troubleshooting
• Durable design with a high Mean Time Between Failures (MTBF) of 69.7 years, ensuring long-term reliability
• Complies with security protection standards, including PoE port protection (6kV common mode protection, 0.5kV differential mode protection)

Design & Build

The Huawei AP363 is built for both durability and aesthetics, making it suitable for business environments, offices, and retail stores. With a compact and lightweight design, it can be installed in various ways, including ceiling, wall, or desk mounting, for seamless network deployment.

• Antenna Type: 4 internal antennas optimized for high signal efficiency
• Mounting Options: Desk, Wall, Ceiling, and Junction Box mounting for versatile installation
• Antenna Gain (2.4GHz Band): 2 dBi/chain (peak), 1 dBi (combined gain)
• Antenna Gain (5GHz Band): 3 dBi/chain (peak), 1 dBi (combined gain)
• Transmission Power (2.4GHz Band): 20dBm per chain, 23dBm combined
• Transmission Power (5GHz Band): 20dBm per chain, 23dBm combined
• Color: White, blending into modern environments
• Dimensions: 160 x 86 x 38mm (without packaging), ensuring compact deployment
• Weight: 320g, making it lightweight and easy to install

Performance & Connectivity

With dual-band 2.4GHz and 5GHz support, the Huawei AP363 provides high-speed internet access with reduced congestion and interference. The 2×2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology enhances multi-device connectivity, making it ideal for environments with many concurrent users.

• Network Standards: 802.11b/g/n/ax, 802.11a/n/ac/ac Wave 2/ax, supporting both legacy and modern devices
• Frequency Bands: 2.4GHz & 5GHz for optimized performance across different applications
• Gigabit Ethernet: 1× WAN Port (PoE-IN supported) for fast data transmission
• Gigabit Ethernet: 1× LAN Port for wired connectivity expansion
• USB 2.0 Type-A port for future peripheral support
• PoE (Power over Ethernet) 802.3af/at, allowing power and data transmission over a single cable
• Signal Radio Transmission Power (2.4GHz Band): -10dBm to 20dBm per chain
• Signal Radio Transmission Power (5GHz Band): -10dBm to 20dBm per chain
• Frequency Stability: ±20ppm, ensuring consistent signal performance

Power & Environmental Conditions

The Huawei AP363 is designed to withstand various environmental conditions, ensuring consistent performance even in challenging indoor environments.

• Power Supply: DC 12V or PoE (802.3af/at) for flexible installation
• Maximum Power Consumption: 12W, making it energy-efficient
• Operating Temperature: 0°C to 40°C, suitable for indoor environments
• Storage Temperature: -40°C to +70°C, ensuring durability during transportation and storage
• Operating Humidity: 5% to 95% RH, preventing moisture-related damage
• MTBF (Mean Time Between Failures): 69.7 years, ensuring long-term operational stability

Package Contents

• 1× Huawei AP363 Wi-Fi 6 Access Point
• 1× User Manual for quick setup and guidance

Warranty

• 1-Year Warranty (Without Adapter)
