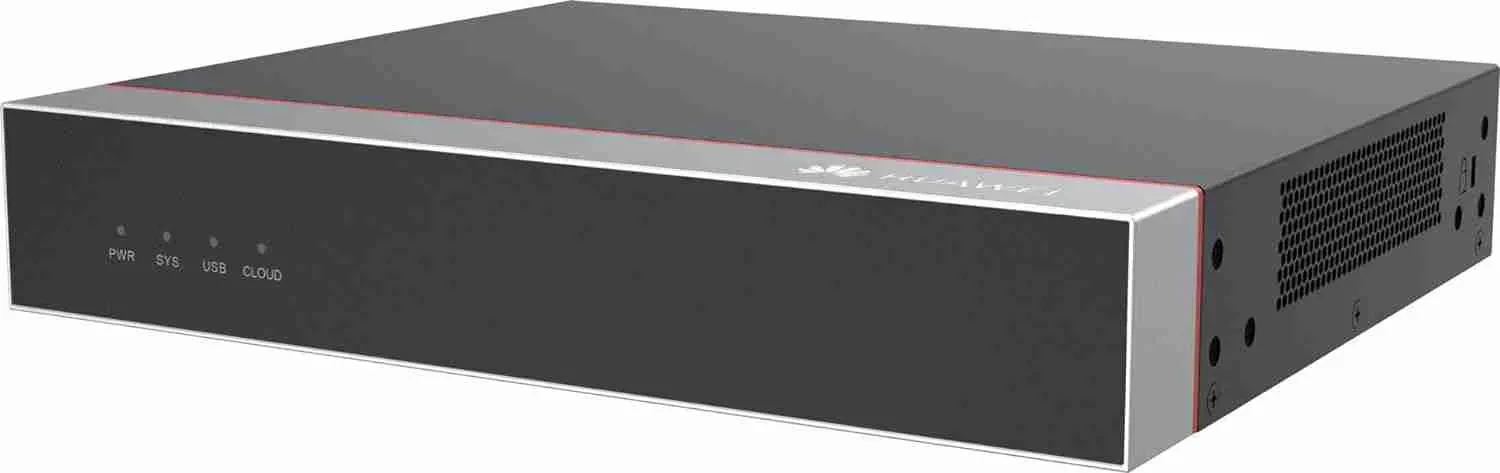

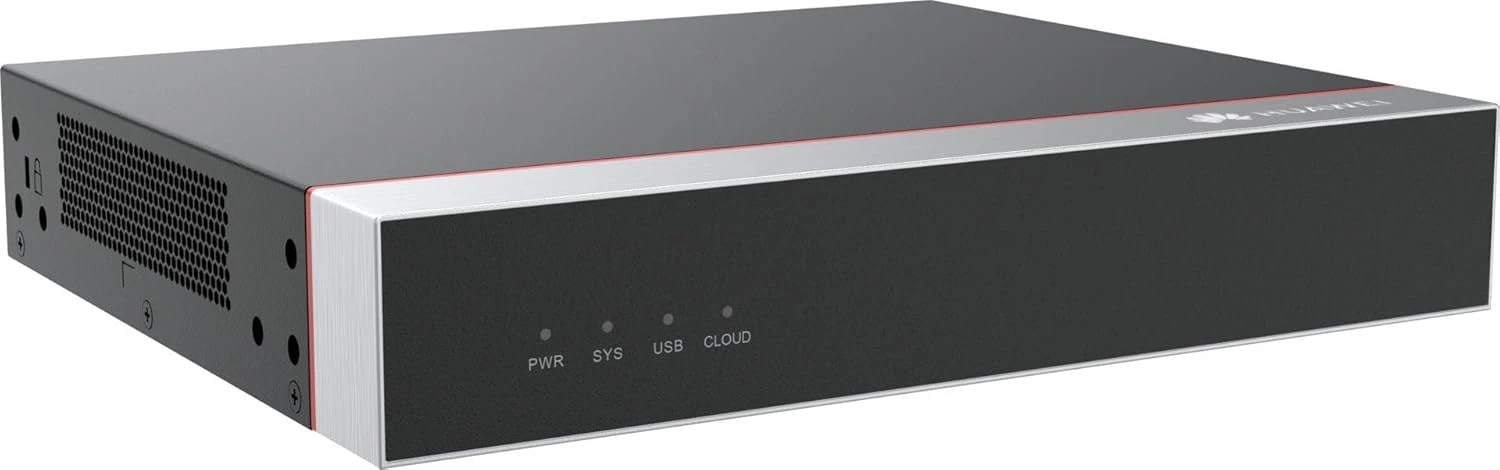

Huawei AC650-256AP Access Controller

The Huawei AC650-256AP is a high-capacity access controller designed to efficiently manage and optimize wireless networks in large-scale enterprises, universities, shopping malls, and business environments. Supporting up to 256 access points (APs), this powerful and scalable solution ensures seamless connectivity, centralized management, and high-speed network performance. With Gigabit and 10-Gigabit Ethernet ports, enterprise-grade security, and intelligent network optimization, the AC650-256AP is ideal for organizations requiring reliable and efficient wireless network management.

Features

• Supports up to 256 Access Points (APs) for scalable and efficient network expansion
• High-Speed Connectivity with 10× Gigabit Ethernet ports and 2× 10-Gigabit SFP+ ports
• Advanced Access Control and Traffic Management for optimized network performance
• Flexible Mounting Options including Rack, Desk, and Wall Mounting for easy deployment

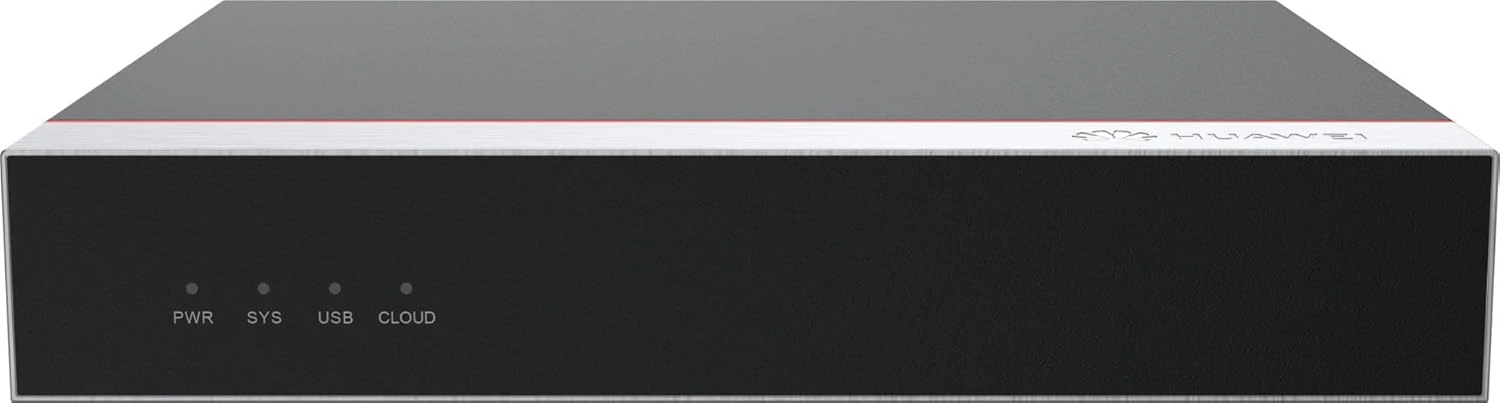

• Comprehensive LED Indicators for real-time system monitoring
• Energy-Efficient Operation with a maximum power consumption of only 23.58W
• Robust and Compact Design for long-lasting durability and stability

Design & Build

The Huawei AC650-256AP is built to handle the demands of enterprise networking environments, offering efficient management, strong connectivity, and a user-friendly design.

• Mounting Options: Rack, Desk, and Wall Mount for versatile installation
• LED Indicators: Power Module, System Status, USB, Cloud, GE Electrical Service Port, 10GE Optical Service Port
• Color: Black & Gray, providing a sleek and professional appearance
• Dimensions: 43.6 × 250 × 210mm, ensuring a compact and efficient build
• Weight: 1900g, making it sturdy and secure for installation

Performance & Connectivity

The Huawei AC650-256AP is engineered for high-speed, uninterrupted networking, with powerful connectivity features to support large enterprise infrastructures.

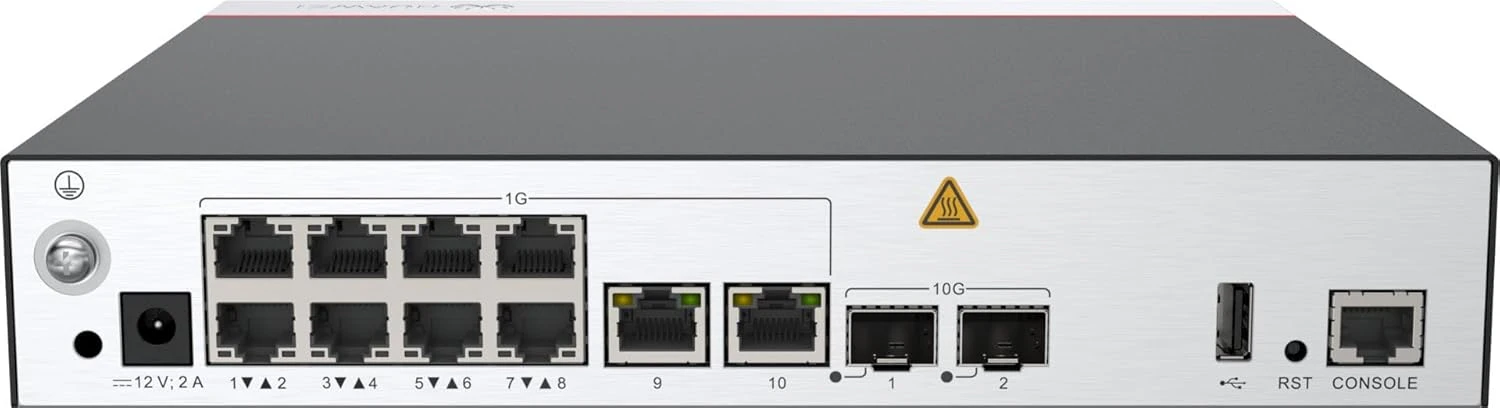

• LAN Ports: 10× 10/100/1000Mbps Ethernet Ports for fast wired connections
• Uplink Ports: 2× 10GE SFP+ Ports for high-speed uplinks
• Access Point Management: Supports up to 256 APs, making it ideal for high-density networks
• Reset Button: 1× Reset Button for quick troubleshooting and network resetting

Power & Environmental Conditions

Designed to operate reliably in various environmental conditions, the Huawei AC650-256AP is built with energy efficiency and durability in mind.

• Power Method: 12V DC
• Maximum Power Consumption: 23.58W, ensuring low energy usage
• Operating Temperature: 0°C to 45°C, suitable for indoor networking setups
• Storage Temperature: -40°C to +70°C, ensuring durability in transport and storage
• Humidity Tolerance: 5% to 95% RH (Non-Condensing)

Package Contents

• 1× Huawei AC650-256AP Access Controller
• 1× User Manual for easy setup and operation

Warranty

• 1-Year Warranty (Without Adapter)
