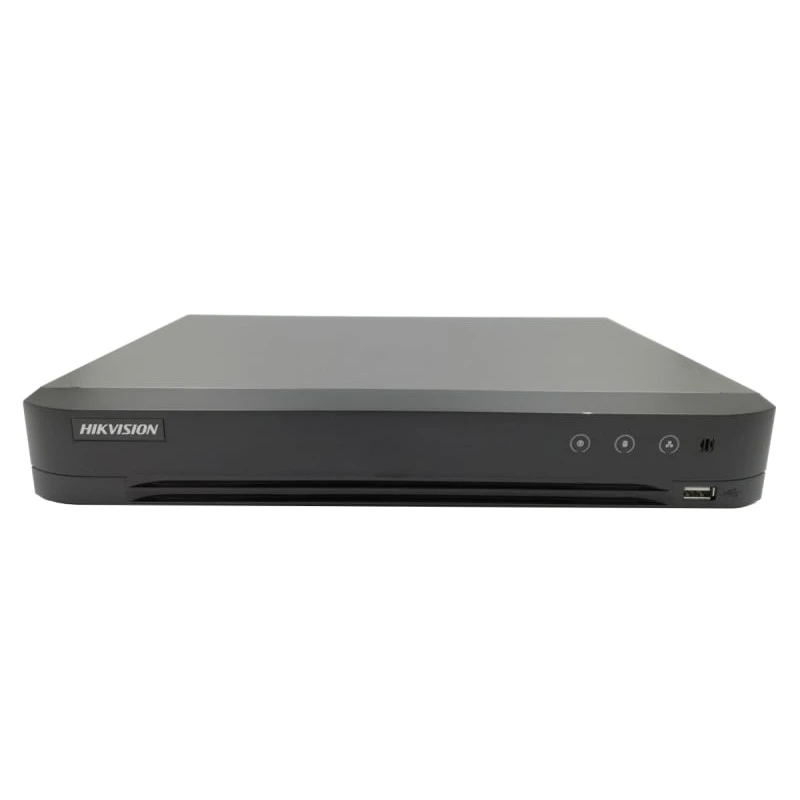

Hikvision IDS-7232HQHI-M2/XT 32 Channel 1080p 1U H.265 AcuSense DVR
Key Specification
‣ Number of Input Channel
- 32 Channel
‣ Dual Stream Support - Yes
‣ Number HDD Interface
(SATA) - 2 SATA
‣ Max. Storage Support - 12TB
Product Specification
|
Brand |
Hikvision |
|
Model |
Hikvision
IDS-7232HQHI-M2/XT |
|
Type |
DVR |
|
Video
Data |
Number
of Input Channel: 32 Channel Video
Input Channel (BNC): 1.0 Vp-p, 75 ohm, supporting coaxitron connection Video
Compression/Format: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Video
Output (VGA): 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
HDMI/VGA simultaneous output Video
Output (HDMI): 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x
1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz Video
Recording Res.: 1920 x 1080 Max.
Video Recording Res.: 1080p Video
Bit Rate: 32 Kbps to 10 Mbps IP
Video Input: 8-ch (up to 40-ch), each up to 6 MP resolution Analog
& HD-TVI Video Input: 5 MP(2560 × 1944)@20fps, 4 MP(2560 × 1440)@25/30
fps,1080P@25/30 fps, 720P@25/30fps 3K(2960
x 1665)@25/20fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 ×
1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
|
Audio Data |
Audio Input Channel (RCA): 1-ch Audio Compression: G.711u Audio Output Channel: 1-ch, RCA (Linear, 1 K
ohm) Two way Audio: 1-ch, RCA (2.0 Vp-p, 1 K ohm)
(using the audio input) Audio Bit Rate: 64 Kbps |
|
Recording
& Decoding |
Frame
Rate: Mainstream: When 1080p Lite mode is not enabled: For 3K stream access:
3K lite@12fps; 4 MP, lite@15fps/1080p Lite@20fps;
720p/WD1/4CIF/VGA/CIF@20fps, For 5 MP stream access: 5 MP lite@12fps; 4 MP,
lite@15fps/1080p Lite@20fps; 720p/WD1/4CIF/VGA/CIF@20fps, For 4 MP stream
access: 4 MP Lite @ 15 fps/1080p Lite @ 25 fps (P)/30 fps, (N);
720p/WD1/4CIF/VGA/CIF @ 25 fps (P)/30 fps (N), For 1080p stream access:
1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), For 720p stream
access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N), When 1080p Lite mode is
enabled: 3K lite/5 MP lite @ 12 fps; 4 MP lite @ 15 fps; 1080p lite/720p,
lite/VGA/WD1/4CIF/CIF @ 25 fps (P)/30 fps (N), Sub-stream: WD1/4CIF@12fps;
CIF@25fps (P)/30fps (N) Stream
Type: Main stream, Sub stream Dual
Stream Support: Yes Decoding
Capability: Up to 24-ch 1080P@30fps Synchronous
Playback: 16-ch |
|
Network |
Network Protocol: TCP/IP, PPPoE, DHCP,
Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, ISUP Wi-Fi: No Network Interface (RJ45): 1, RJ45
10/100/1000 Mbps self-adaptive Ethernet interface Remote Connections: 128 |
|
Auxiliary
Interface |
Number
HDD Interface (SATA): 2 SATA Max HDD
Support (GB,TB): 6TB Max.
Storage Support: 12TB Serial Interface:
RS-485 (half-duplex) USB
Port: Front panel: 1 x USB 2.0, Rear panel: 2 x USB 3.0 |
|
Technical Data |
CVBS Input: PAL/NTSC Incoming Bandwidth: 256Mbps Video Detection: Motion Detection 2.0,
Facial Detection |
|
Power |
Power
Supply: 12 VDC, 5 A Approx.
Power Consumption: 60W |
|
Physical Attributes |
Color: Black Dimensions: 384 x 313 x 52mm Weight (Kg): 2.1 kg |
|
Warranty |
1 Year
(Without Adapter) |
|
* Product may vary with different Kit or
Version |
|
Product Details
Hikvision
iDS-7232HQHI-M2/XT DVR
The Hikvision iDS-7232HQHI-M2/XT
is a high-performance 32-channel DVR that offers superior video
compression, advanced audio features, and versatile connectivity options. It is
suitable for large-scale surveillance systems requiring high-definition video
recording and multiple channel support.
Features
- Video Input:
- BNC Video Input:
32 channels, 1.0 Vp-p, 75 ohm, supporting coaxitron connection
- Video Compression/Format: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Video Output:
- HDMI Output:
Up to 4K (3840 × 2160) at 30Hz, 2K (2560 × 1440) at 60Hz,
1080p at 60Hz, 1280 × 1024 at 60Hz, 1280 ×
720 at 60Hz
- VGA Output:
Up to 1920 × 1080 at 60Hz, 1280 × 1024 at 60Hz,
1280 × 720 at 60Hz
- Simultaneous HDMI/VGA Output
- Video Recording Resolution:
- Max Video Recording Resolution: 1080p
Audio
- Audio Input:
1-channel RCA (2.0 Vp-p, 1 KΩ)
- Audio Output:
1-channel RCA (Linear, 1 KΩ)
- Two-way Audio:
1-channel RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Audio Compression:
G.711u
- Audio Bitrate:
64 Kbps
Recording
& Decoding
- Frame Rate:
- Mainstream:
- For 3K stream access: 3K lite@12fps; 4
MP lite@15fps; 1080p Lite@20fps
- For 5 MP stream access: 5 MP lite@12fps;
4 MP lite@15fps; 1080p Lite@20fps
- For 4 MP stream access: 4 MP Lite @ 15 fps,
1080p Lite @ 25 fps (P)/30 fps (N), 720p/WD1/4CIF/VGA/CIF
@ 25 fps (P)/30 fps (N)
- For 1080p stream access: 1080p/720p@15fps,
VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- When 1080p Lite mode enabled:
- 3K lite/5 MP lite @ 12 fps; 4 MP lite @ 15 fps; 1080p lite/720p
lite/VGA/WD1/4CIF/CIF @ 25 fps (P)/30 fps (N)
- Sub-stream:
WD1/4CIF@12fps, CIF@25fps (P)/30fps (N)
- Dual-stream support
- Decoding Capability:
Up to 24-ch 1080P@30fps
- Synchronous Playback:
16-ch
Network
& Connectivity
- Remote Connections:
Up to 128 remote connections
- Network Protocols:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI,
UPnP, HTTPS, ONVIF, ISUP
- Network Interface:
1 RJ45 10/100/1000 Mbps self-adaptive Ethernet port
- Wi-Fi:
Not supported
Storage
& Ports
- SATA Interfaces:
2 SATA interfaces, supporting up to 6 TB capacity for each
disk
- Max. Storage Support:
12 TB
- USB Ports:
- Front panel:
1 x USB 2.0
- Rear panel:
2 x USB 3.0
- RS-485 Serial Interface (half-duplex)
- Alarm In/Out:
Optional (not included)
Power
& Consumption
- Power Supply:
12 VDC, 5 A
- Approximate Power Consumption: 60W
Physical
Attributes
- Color:
Black
- Dimensions:
384 x 313 x 52 mm
- Weight:
2.1 kg
Warranty
- 1-year warranty
(without adapter)
Package
Contents
- Hikvision iDS-7232HQHI-M2/XT DVR
- Power adapter
(if included)
- User manual
- HDD installation screws (if included)
