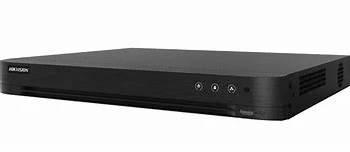

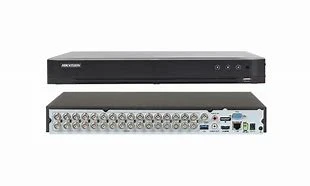

Hikvision IDS-7232HQHI-M2-S 32 Channel 1080p 1U H.265 AcuSense DVR
Key Specification
‣ Number of Input Channel
- 32 Channel
‣ Dual Stream Support - Yes
‣ Number HDD Interface
(SATA) - 2 SATA
‣ Max. Storage Support - 10TB
Product Specification
|
Brand |
Hikvision |
|
Model |
Hikvision IDS-7232HQHI-M2-S |
|
Type |
DVR |
|
Video
Data |
AHD
Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
|
Audio Data |
Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)，32-ch
via coaxial cable |
|
Recording
& Decoding |
Frame
Rate: Main stream: When
1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps;
1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3
MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream
access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For
720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3
MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
|
Network |
Remote Connection: 128 |
|
Auxiliary
Interface |
SATA: 2
SATA interfaces Capacity:
Up to 10 TB capacity for each disk Serial
Interface: RS-485 (half-duplex) USB Interface:
Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 Alarm
In/Out: N/A (optional to support) |
|
Technical Data |
CVBS Input: PAL/NTSC |
|
Power |
Power
Supply: 12 VDC, 5 A Approx.
Power Consumption: ≤ 40 W |
|
Physical Attributes |
Color: Black Dimensions: 380 × 320 × 48 mm Weight (Kg): ≤ 2.1 kg |
|
Warranty |
1 Year |
|
* Product may vary with different Kit or
Version |
|
Product Details
Hikvision
iDS-7232HQHI-M2-S DVR
The Hikvision iDS-7232HQHI-M2-S
is a versatile 32-channel DVR that supports multiple video formats and
offers high-definition video recording. Ideal for large-scale surveillance
systems, this model provides excellent video quality, robust performance, and
flexible storage options.
Features
- Video Input:
- AHD Input:
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps,
720p@30 fps
- HDCVI Input:
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps,
720p@30 fps
- CVBS Input:
PAL/NTSC
- Video Output:
- HDMI Output:
Up to 4K (3840 × 2160) at 30Hz, 2K (2560 × 1440) at 60Hz,
1080p at 60Hz, 1280 × 1024 at 60Hz, 1280 ×
720 at 60Hz
- VGA Output:
Up to 1920 × 1080 at 60Hz, 1280 × 1024 at 60Hz,
1280 × 720 at 60Hz
- HDMI/VGA simultaneous output
Audio
- Audio Input:
1-channel RCA (2.0 Vp-p, 1 KΩ), 32-ch via coaxial cable
- Audio Output:
1-channel RCA (Linear, 1 KΩ)
- Two-way Audio:
1-channel RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Audio Compression:
G.711u
- Audio Bitrate:
64 Kbps
Recording
& Decoding
- Frame Rate:
- Main stream:
- For 4 MP stream access: 4 MP lite@15 fps,
1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- For 3 MP stream access: 3
MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
- For 1080p stream access: 1080p/720p@15 fps,
VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25
fps (P)/30 fps (N)
- When 1080p Lite mode enabled:
- 4 MP lite/3 MP@15 fps, 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps
(P)/30 fps (N)
- Sub-stream:
WD1/4CIF@12 fps, CIF@25 fps (P)/30 fps (N)
- Dual-stream support
- Stream Type:
Video, Video & Audio
Network
& Connectivity
- Remote Connections:
Up to 128 remote connections
- Network Protocols:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI,
UPnP™, HTTPS, ONVIF
- Network Interface:
1 RJ45 10/100/1000 Mbps self-adaptive Ethernet port
- Wi-Fi:
Wi-Fi connectable via USB dongle (not included)
Storage
& Ports
- SATA Interfaces:
2 SATA interfaces, supporting up to 10 TB capacity for each
disk
- USB Interface:
- Front panel:
1 x USB 2.0
- Rear panel:
1 x USB 3.0
- RS-485 Serial Interface (half-duplex)
- Alarm In/Out:
Optional (not included)
Power
& Consumption
- Power Supply:
12 VDC, 5 A
- Approximate Power Consumption: ≤ 40 W
Physical
Attributes
- Color:
Black
- Dimensions:
380 × 320 × 48 mm
- Weight:
≤ 2.1 kg
Warranty
- 1-year warranty
Package
Contents
- Hikvision iDS-7232HQHI-M2-S DVR
- Power adapter
(if included)
- User manual
- HDD installation screws (if included)
