Brand

Hikvision

Model

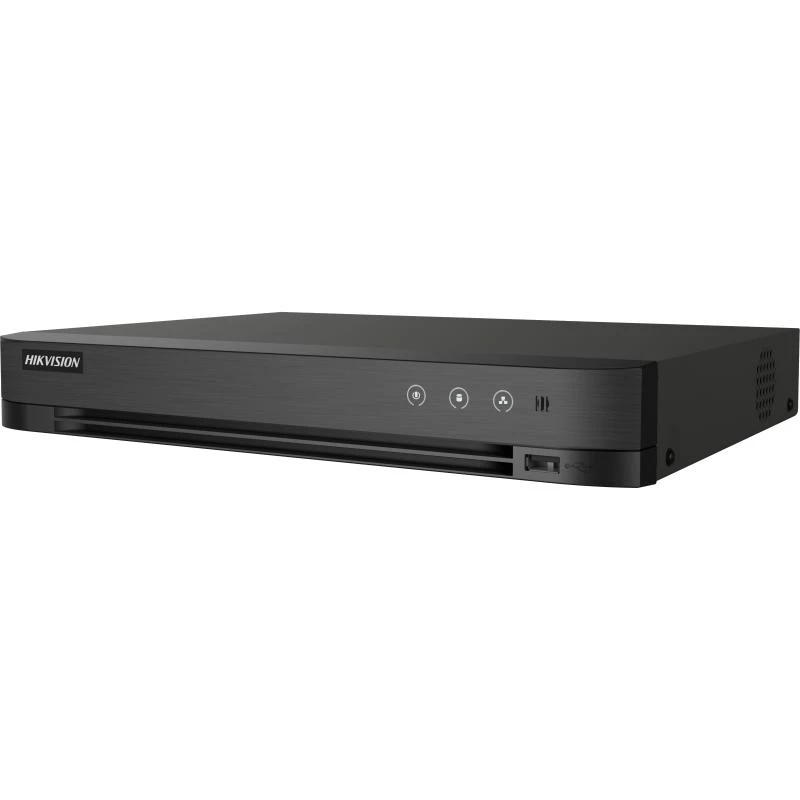

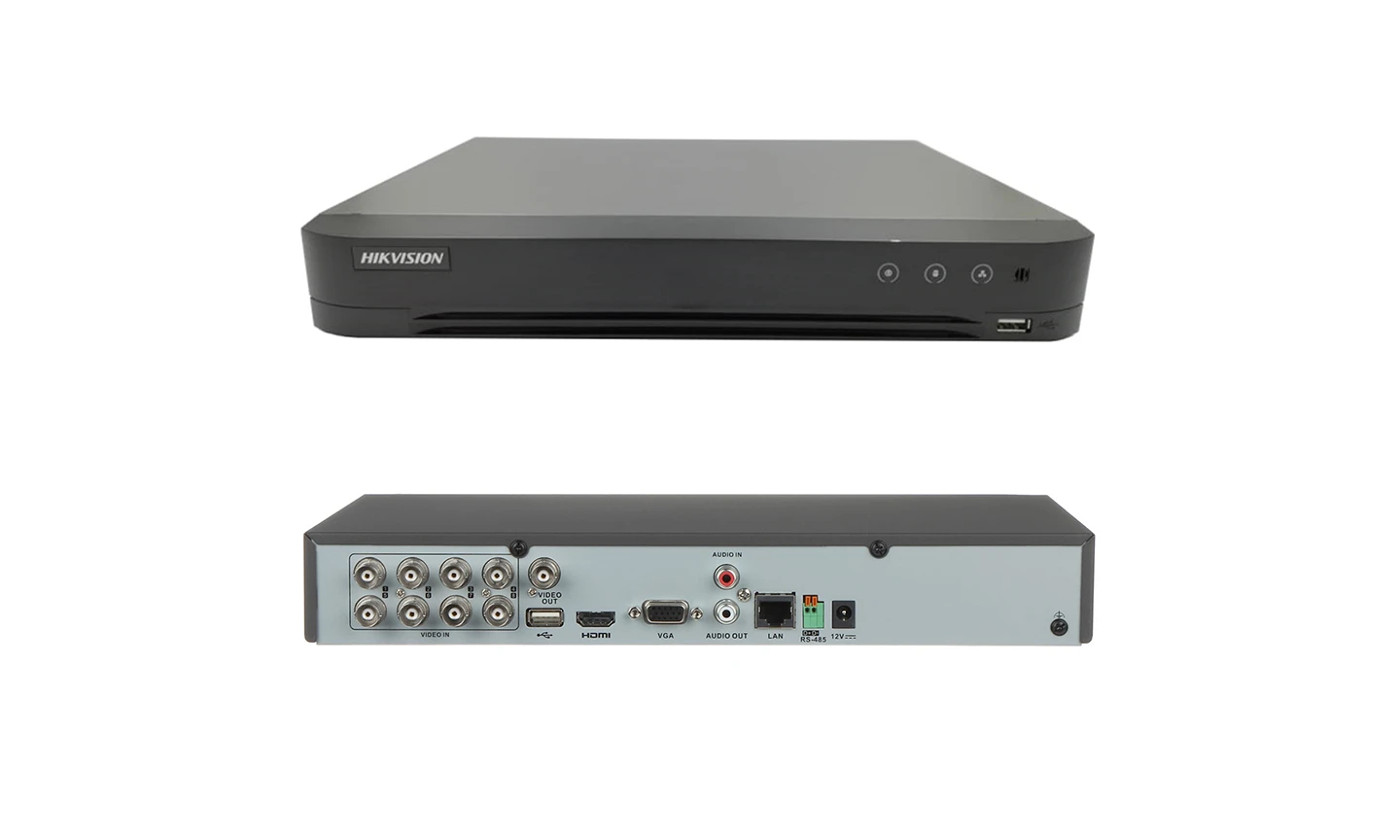

Hikvision IDS-7208HQHI-M1-S

Type

 DVR

Video Data

Number of Input Channel: 8 Channel

Video Input Channel (BNC): 8-ch BNC interface (1.0 Vp-p, 75 ohm) , supporting coaxitron connection

Video Compression/Format: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Video Output (VGA): 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output (HDMI): 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz , HDMI/VGA simultaneous output

 Max. Video Recording Res: 1080p

Video Bit Rate: 32 Kbps to 6 Mbps

IP Video Input: 2-ch (up to 10-ch) Up to 6 MP resolution Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras

Analog & HD-TVI Video Input: 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

Audio Data

Audio Input Channel (RCA): 1-ch, RCA (2.0 Vp-p, 1 KΩ),8-ch via coaxial cable

Audio Compression: G.711u

Audio Output Channel: 1-ch, RCA (Linear, 1 K ohm)

Two way Audio: 1-ch, RCA (2.0 Vp-p, 1 K ohm) (using the first audio input)

Audio Bit Rate: 64 Kbps

Recording &Decoding

Frame Rate - Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Stream Type: Video, Video & Audio

Dual Stream Support: Yes

Synchronous Playback: 8-ch

Network

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS ,ONVIF

Wi-Fi: N/A

Wi-Fi Details: Not Applicable

Wi-Fi Coverage (Approximate): Not Applicable

Network Interface (RJ45): 1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Remote Connections: 64

Auxiliary Interface

Number HDD Interface (SATA): 1 SATA

Max HDD Support (GB,TB): Up to 10 TB capacity for each disk

Max. Storage Support: 10 TB

eSATA: N/A

Serial Interface :RS-485 (half-duplex)

USB Port: Rear panel: 2 × USB 2.0

Technical Data

CVBS Input: PAL/NTSC

Power

Power Supply: 12 VDC ,1.5A

Approx. Power Consumption: ≤ 18 W

Physical Attributes

Color: Black

Dimensions: 319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch)

Weight (Kg): =<  1.78 kg (3.9 lb)

Warranty

1 Year (Without Adapter)

* Product may vary with different Kit or Version
