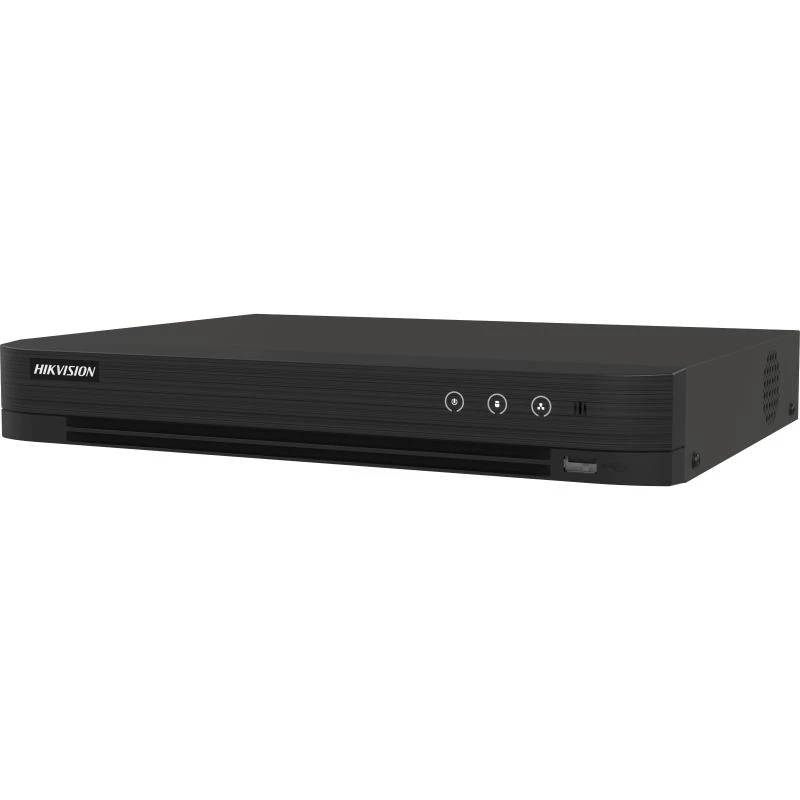

Hikvision IDS-7204HQHI-M1/S 4 Channel FHD 1 HDD 1U AcuSense DVR
Key Specification
‣ Number of Input Channel
- 4 Channel
‣ Dual Stream Support – Yes
‣ Number HDD Interface
(SATA) – 1 SATA
‣ Max. Storage Support – 10
TB
Product Specification
|
Brand |
Hikvision |
|
Model |
iDS-7204HQHI-M1/S |
|
Type |
DVR |
|
Video
Data |
Number
of Input Channel: 4 Channel Video
Input Channel (BNC): 4-ch BNC interface (1.0 Vp-p, 75 ohm) , supporting
coaxitron connection Video
Compression/Format: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Video
Output (VGA): 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video
Output (HDMI): 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz , HDMI/VGA
simultaneous output Max. Video Recording Res: 1080p Video
Bit Rate: 32 Kbps to 6 Mbps IP
Video Input: 1-ch (up to 5-ch）Up to 6 MP resolution Enhanced
IP mode on: 2-ch
(up to 6-ch), each up to 4 Mbps Support
H.265+/H.265/H.264+/H.264 IP cameras Analog
& HD-TVI Video Input: 5
MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,
1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20
fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps,
1080p@25 fps,720p@30 fps, 720p@25 fps
|
|
Audio Data |
Audio Input Channel (RCA): 1-ch, RCA (2.0
Vp-p, 1 KΩ),4-ch via coaxial cable Audio Compression: G.711u Audio Output Channel: 1-ch, RCA (Linear, 1 K
ohm) Two way Audio: 1-ch, RCA (2.0 Vp-p, 1 K ohm)
(using the first audio input) Audio Bit Rate: 64 Kbps |
|
Recording
&Decoding |
Frame
Rate - Main stream: When 1080p Lite mode not enabled: For 4
MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps
(P)/30 fps (N) For 3
MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For
1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30fps (N)
For
720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When
1080p Lite mode enabled: 4 MP
lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream:
WD1/4CIF@12
fps; CIF@25 fps (P)/30 fps (N)
Stream
Type: Video, Video & Audio Dual
Stream Support: Yes Synchronous
Playback: 4-ch |
|
Network |
Network Protocol: TCP/IP, PPPoE, DHCP,
Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS ,ONVIF Wi-Fi: Connectable to Wi-Fi network by Wi-Fi
dongle through USB interface Wi-Fi Details: Not Applicable Wi-Fi Coverage (Approximate): Not Applicable Network Interface (RJ45): 1, RJ45 10/100
Mbps self-adaptive Ethernet interface Remote Connections: 32 |
|
Auxiliary
Interface |
Number
HDD Interface (SATA): 1 SATA Max HDD
Support (GB,TB): Up to 10 TB capacity for each disk Max.
Storage Support: 10 TB eSATA:
N/A USB
Port: Rear panel: 2 × USB 2.0 |
|
Technical Data |
CVBS Input: PAL/NTSC |
|
Power |
Power
Supply: 12 VDC ,1.5A Approx.
Power Consumption: ≤ 18 W |
|
Physical Attributes |
Color: Black Dimensions: 315 × 242 × 45 mm (12.4 × 9.5 ×
1.8 inch) Weight (Kg): =< 1.16 kg (without HDD, 2.6 lb.) |
|
Warranty |
1 Year
(Without Adapter) |
|
* Product may vary with different Kit or
Version |
|
Product Details
Hikvision
iDS-7204HQHI-M1/S DVR
The Hikvision iDS-7204HQHI-M1/S
is a 4-channel DVR equipped with advanced video compression and multiple
video input options, making it an ideal choice for both small and medium-sized
surveillance systems. With support for H.265+/H.264 compression, it
ensures optimized storage without sacrificing video quality. This DVR allows
for flexible analog, HD-TVI, and IP camera connections while
delivering high-definition output for both local and remote monitoring.
Features
- 4-channel BNC video input with coaxitron connection support
- Video compression formats: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 for
efficient bandwidth and storage management
- Video output options:
- HDMI & VGA
(maximum resolution: 1080p)
- Simultaneous HDMI/VGA output
- Max. video recording resolution: 1080p
- IP video input:
- 1 channel (up to 5 channels) with support for up to 6 MP resolution
- Enhanced IP mode:
supports 2 channels (up to 6 channels), each at up to 4 Mbps
- Compatible with H.265+/H.265/H.264+/H.264 IP
cameras
- Analog & HD-TVI input:
- Supports 5 MP (2592 × 1944), 4 MP (2560 ×
1440), 1080p, and 720p resolutions
- Recording at up to 30 fps
Design
& Build
- Color:
Black
- Dimensions:
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inches)
- Weight:
≤ 1.16 kg (without HDD, 2.6 lb.)
Audio
- Audio input:
1 channel RCA (2.0 Vp-p, 1 KΩ), with 4 channels via coaxial
cable
- Audio compression:
G.711u
- Audio output:
1 channel RCA (Linear, 1 KΩ)
- Two-way audio:
1 channel using the first audio input
- Audio bit rate:
64 Kbps
Recording
& Decoding
- Main stream frame rate options:
- Without 1080p Lite mode enabled:
- For 4 MP stream access: 4 MP lite@15 fps, 1080p
lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- For 1080p stream access: 1080p/720p@15 fps, VGA/WD1/4CIF/CIF@25
fps (P)/30 fps (N)
- With 1080p Lite mode enabled:
- 4 MP lite/3 MP@15 fps, 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps
(P)/30 fps (N)
- Sub-stream:
- WD1/4CIF@12 fps,
CIF@25 fps (P)/30 fps (N)
Network
& Connectivity
- Network protocols:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™,
HTTPS, ONVIF
- Wi-Fi connectivity:
Connectable via Wi-Fi dongle through USB interface
- 1 RJ45 Ethernet port
(10/100 Mbps self-adaptive)
- Supports up to 32 remote connections
Storage
& Ports
- 1 SATA HDD interface
supporting up to 10 TB
- Rear panel
includes 2 × USB 2.0 ports
- eSATA:
Not supported
Power
& Consumption
- Power supply:
12V DC, 1.5A
- Power consumption:
≤ 18W (without HDD)
Package
Contents
- Hikvision iDS-7204HQHI-M1/S DVR
- Power adapter
(if included)
- User manual
- HDD installation screws
Warranty
- 1-year warranty
(excluding power adapter)
