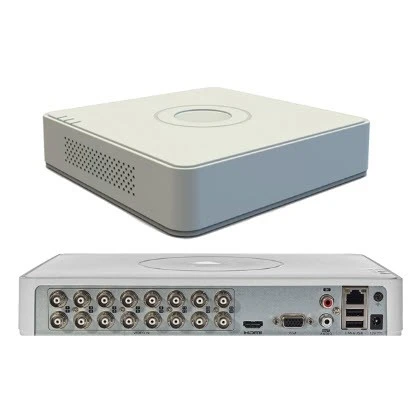

Hikvision iDS-7116HQHI-M1/S 16 Channel AcuSense DVR
Key Specification
‣ Number of Input Channel –
16 Channel
‣ Dual Stream Support - Yes
‣ Number HDD Interface
(SATA) - 1 SATA
‣ Max. Storage Support - 10TB
Product Specification
|
Brand |
Hikvision |
|
Model |
Hikvision
iDS-7116HQHI-M1/S |
|
Type |
DVR |
|
Video
Data |
Number
of Input Channel: 16 Channel Video
Compression/Format: H.265 Pro+/H.265 Pro/H.265 Video
Output (VGA): 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz Video
Output (HDMI): 1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x
1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz Video
Recording Res.: When 1080p Lite mode is not enabled: 3K lite/5 MP lite/ 4 MP
lite/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF; When 1080p Lite mode is enabled: 3K
lite/ 5 MP lite/ 4 MP lite/ 1080p lite/ 720p lite/ VGA/ WD1/ 4CIF/ CIF Max.
Video Recording Res.: 1080p Video
Bit Rate: 32 Kbps to 6 Mbps IP
Video Input: 2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each
up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP
cameras Analog
& HD-TVI Video Input: 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps,
4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25
fps 3K(2960
x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560
× 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
|
Audio Data |
Audio Input Channel (RCA): 1-ch, RCA (2.0
Vp-p, 1 K) 16-ch via coaxial cable Audio Compression: G.711u Audio Output Channel: 1-ch, RCA (Linear, 1
K) Two way Audio: 1-ch, RCA (2.0 Vp-p, 1 K)
(using the first audio input) Audio Bit Rate: 64 Kbps |
|
Recording
& Decoding |
Frame Rate:
Main stream: When 1080p Lite mode not enabled: For 3K stream access: 3K
lite@12fps;4 MP lite/ 1080p@15fps;720p/ WD1/ 4CIF/ VGA/ CIF@20fps For 5 MP
stream access: 5 MP lite@12fps;4 MP lite/ 1080p@15fps; 720p/ WD1/ 4CIF/ VGA/
CIF@20fps For 4 MP stream access: 4 MP lite/ 1080p@15fps; 720p/ WD1/ 4CIF/
VGA/ CIF@25fps (P)/ 30fps (N) For 1080p stream access: 1080p/ 720p@15fps;
VGA/ WD1/ 4CIF/ CIF@25fps (P)/ 30fps (N) For 720p stream access: 720p/ VGA/
WD1/ 4CIF/ CIF@25fps (P)/ 30fps (N) When 1080p Lite mode enabled: 3K lite/ 5
MP lite@12fps; 4 MP lite@15fps;1080p lite/ 720p lite/ VGA/ WD1/ 4CIF/
CIF@25fps (P)/ 30fps (N) Sub-stream: WD1/ 4CIF@12fps; CIF@25fps (P)/ 30fps
(N) Stream
Type: Video/Video & Audio Dual
Stream Support: Yes Synchronous
Playback: 16-channel |
|
Network |
Network Protocol:TCP/IP, PPPoE, DHCP,
Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF Wi-Fi: No Wi-Fi Details: Not Applicable Wi-Fi Coverage (Approximate): Not Applicable Network Interface (RJ45): 1, RJ45 10M/100M/1000M
self-adaptive Ethernet interface Remote Connections: 128 |
|
Auxiliary
Interface |
Number
HDD Interface (SATA): 1 SATA Max HDD
Support (GB,TB): Up to 10TB capacity for each disk Max.
Storage Support: 10TB USB
Port:2 x USB2.0 |
|
Technical Data |
CVBS Input: PAL/NTSC Incoming Bandwidth: 96 Mbps Video Detection: Motion Detection 2.0 |
|
Power |
Power
Supply: 12 VDC, 1.9 A Approx.
Power Consumption: 15W |
|
Physical Attributes |
Color: White Dimensions: 285 x 210 x 45 mm Weight (Kg): 1 kg |
|
Warranty |
1 Year |
|
* Product may vary with different Kit or
Version |
|
Product Details
Hikvision
iDS-7116HQHI-M1/S DVR
The Hikvision iDS-7116HQHI-M1/S
is a high-performance 16-channel DVR offering advanced video
compression, high-definition video recording, and robust network connectivity.
Designed for medium to large-scale surveillance systems, this DVR is perfect
for enhancing security with its superior video quality and reliable performance.
Features
- 16-channel video input
- Video compression formats: H.265 Pro+/H.265 Pro/H.265
- Video output:
- HDMI:
Up to 4K (3840 x 2160) at 30Hz, 2K (2560 x 1440) at 60Hz,
1080p at 60Hz
- VGA:
Up to 1920 x 1080 at 60Hz
- Max video recording resolution: 1080p
- Video bit rate:
32 Kbps to 6 Mbps
- IP video input:
- 2-ch (up to 18-ch),
up to 6 MP resolution
- Enhanced IP mode:
8-ch (up to 24-ch), supporting H.265+/H.265/H.264+/H.264 IP
cameras
- Analog & HD-TVI video input:
- 5 MP (2592 × 1944) at 20 fps, 4 MP (2560 × 1440) at 30 fps, 1080p at 30
fps, etc.
Design
& Build
- Color:
White
- Dimensions:
285 x 210 x 45 mm
- Weight:
1 kg
Audio
- Audio input:
1 channel RCA (2.0 Vp-p, 1 KΩ), 16 channels via coaxial cable
- Audio compression:
G.711u
- Audio output:
1 channel RCA (Linear, 1 KΩ)
- Two-way audio:
1 channel RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Audio bit rate:
64 Kbps
Recording
& Decoding
- Frame rate:
- Main stream:
- For 5 MP stream access: 5 MP Lite@12 fps, 4 MP Lite/1080p@15 fps, 720p/WD1/4CIF/VGA/CIF@20
fps
- For 4 MP stream access: 4 MP Lite/1080p@15 fps, 720p/WD1/4CIF/VGA/CIF@25
fps (P)/30 fps (N)
- For 1080p stream access: 1080p/720p@15 fps, VGA/WD1/4CIF/CIF@25 fps (P)/30
fps (N)
- When 1080p Lite mode enabled: 3K Lite/5 MP Lite@12 fps, 4 MP Lite@15 fps, 1080p
Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Stream types:
Video, Video & Audio
- Dual stream support:
Yes
- Synchronous playback:
Supports 16 channels simultaneously
Network
& Connectivity
- Network protocols:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI,
UPnP, HTTPS, ONVIF
- Wi-Fi:
Not applicable
- 1 RJ45 Ethernet port
(10/100/1000 Mbps)
- Remote connections:
128 remote connections
Storage
& Ports
- 1 SATA HDD interface,
supporting up to 10 TB
- 2 x USB 2.0 ports
- CVBS input:
Yes
- Incoming bandwidth:
96 Mbps
- RS-485 serial interface (half-duplex)
Power
& Consumption
- Power supply:
12V DC, 1.9A
- Approximate power consumption: 15W
Warranty
- 1-year warranty
Package
Contents
- Hikvision iDS-7116HQHI-M1/S DVR
- Power adapter
(if included)
- User manual
- HDD installation screws
