Brand

Hikvision

Model

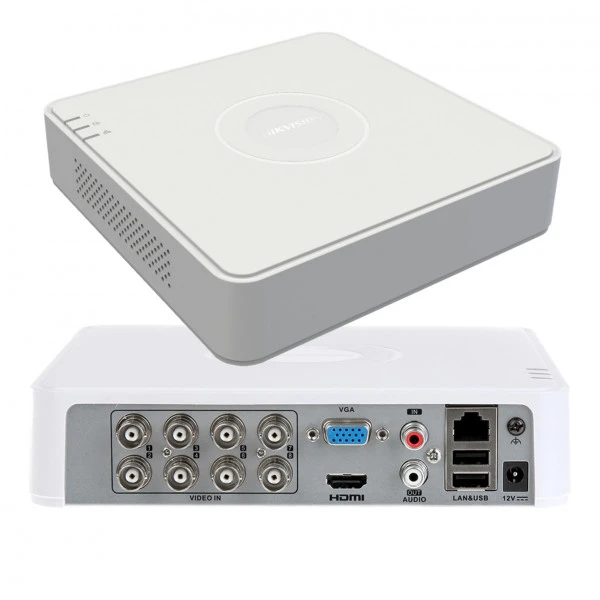

Hikvision iDS-7108HQHI-M1/S

Type

DVR

Video Data

Number of Input Channel: 08 Channel

Video Input Channel (BNC): 8 channel, BNC interface (1.0 Vp-p, 75 ohm)

Video Compression/Format: H.265 Pro+/H.265 Pro/H.265

Video Output (VGA): 1 channel, Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Output (HDMI): 1 channel, Resolution: 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz

Video Recording Res.: 1920 x 1080

Max. Video Recording Res.: 1080p

Video Bit Rate: 32 Kbps to 6 Mbps

IP Video Input: 2-ch (up to 10-ch) Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Up to 6 MP resolution (Support H.265+/H.265/H.264+/H.264 IP cameras)

Analog & HD-TVI Video Input: 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60

Audio Data

Audio Input Channel (RCA): 1 Channel, RCA (2.0 Vp-p, 1 K ohm)

Audio Compression: G.711u

Audio Output Channel: 1 channel, RCA (Linear, 1 K ohm)

Two way Audio: 1 channel, RCA (2.0 Vp-p, 1 K ohm)

Audio Bit Rate: 64 Kbps

Recording & Decoding

Frame Rate: Main stream: When 1080p Lite mode is not enabled: For 4 MP stream access: 4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode is enabled: 4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N), Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Stream Type: Video, Video & Audio

Dual Stream Support: Yes

Synchronous Playback: 8 Channel

Network

Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

Wi-Fi: No

Wi-Fi Details: Not Applicable

Wi-Fi Coverage (Approximate): Not Applicable

Network Interface (RJ45): 1 RJ-45 10 /100 /1000Mbps self-adaptive Ethernet interface

Remote Connections: 64

Auxiliary Interface

Number HDD Interface (SATA): 1 SATA

Max HDD Support (GB,TB): 10TB

Max. Storage Support: 10TB

eSATA: No

USB Port: 2 x USB 2.0

Technical Data

Main Processor: No

Display Split: No

CVBS Input: Yes

Video Detection: Motion Detection

Power

Power Supply: 12VDC, 1.33A

Approx. Power Consumption: 12 W

Physical Attributes

Color: White

Dimensions: 200 x 200 x 45mm

Weight (Kg): 1 kg

Warranty

1 Year

* Product may vary with different Kit or Version
