Hikvision IDS-7104HQHI-M1-S 4 Channel 1080P Mini 1U H.265 AcuSense DVR
Key Specification
‣ Number of Input Channel
- 4 Channel
‣ Dual Stream Support – Yes
‣ Number HDD Interface
(SATA) – 1 SATA
‣ Max. Storage Support – 10
TB
Product Specification
|
Brand |
Hikvision |
|
Model |
iDS-7104HQHI-M1-S |
|
Type |
Mini DVR |
|
Video
Data |
Number
of Input Channel: 4 Channel Video
Input Channel (BNC): 4-ch BNC interface (1.0 Vp-p, 75 ohm) Video
Compression/Format: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Video
Output (VGA): 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video
Output (HDMI): 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz , Max. Video Recording Res: 1080p Video
Bit Rate: 32 Kbps to 6 Mbps IP
Video Input: Up to 960p resolution Analog
& HD-TVI Video Input: 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps,
4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25
fps 3K(2960
x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560
× 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps |
|
Audio Data |
Audio Input Channel (RCA): 1-ch, RCA (2.0
Vp-p, 1 k ohm) Audio Compression: G.711u Audio Output Channel: 1-ch, RCA (Linear, 1 K
ohm) Two way Audio: 1-ch, RCA (2.0 Vp-p, 1 K ohm)
(using the first audio input) Audio Bit Rate: 64 Kbps |
|
Recording
&Decoding |
Frame
Rate - Main stream: When
1080p Lite mode not enabled: For 3K stream access: 3K lite@12fps;4 MP
lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP
lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps For 4 MP stream
access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For
1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p
Lite mode enabled: 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p
lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps;
CIF@25fps (P)/30fps (N) Stream
Type: Video, Video & Audio Dual
Stream Support: Yes Synchronous
Playback: 4-ch |
|
Network |
Network Protocol: TCP/IP, PPPoE, DHCP,
Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS ,ONVIF Wi-Fi: Connectable to Wi-Fi network by Wi-Fi
dongle through USB interface Wi-Fi Details: Not Applicable Wi-Fi Coverage (Approximate): Not Applicable Network Interface (RJ45): 1, RJ45 10/100
Mbps self-adaptive Ethernet interface Remote Connections: 32 |
|
Auxiliary
Interface |
Number
HDD Interface (SATA): 1 SATA Max HDD
Support (GB,TB): Up to 10 TB capacity for each disk Max.
Storage Support: 10 TB eSATA:
N/A USB
Port: Rear panel: 2 × USB 2.0 |
|
Technical Data |
CVBS Input: Support |
|
Power |
Power
Supply: 12 VDC ,1.5A Approx.
Power Consumption: ≤ 8 W (without HDD) |
|
Physical Attributes |
Color: White Dimensions: 200 × 200 × 48 mm (7.9 × 7.9 ×
1.9 inch) Weight (Kg): =< 1 kg (without HDD, 2.2 lb.) |
|
Warranty |
1 Year (Without
Adapter) |
|
* Product may vary with different Kit or
Version |
|
Product Details
Hikvision
iDS-7104HQHI-M1-S Mini DVR

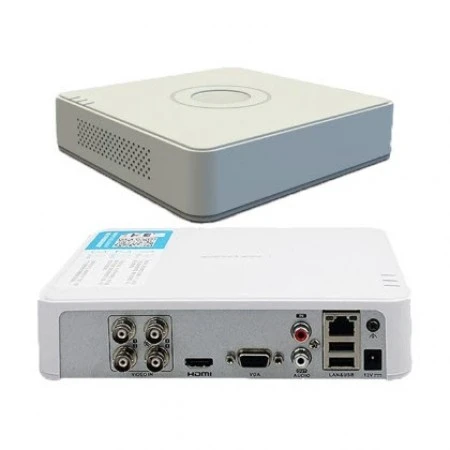

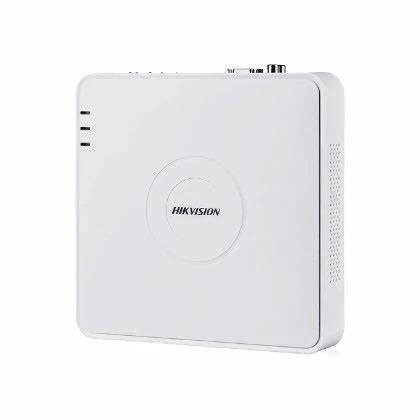

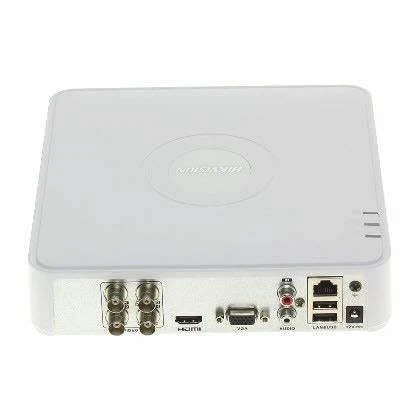

The Hikvision iDS-7104HQHI-M1-S
is a mini DVR designed for effective surveillance in compact spaces.
With its support for 4 video input channels and H.265+/H.264
compression, it ensures efficient storage without compromising on video
quality. This DVR supports high-definition video input from analog,
HD-TVI, and IP cameras, providing a flexible and reliable surveillance solution
for small to medium-sized applications.
Features
- 4-channel BNC video input with support for coaxitron connection
- Video compression:
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 for optimized storage
and bandwidth usage
- Video output options:
- HDMI & VGA
(maximum resolution: 1080p)
- Supported resolutions: 1920 × 1080, 1280 × 1024, 1280 ×
720
- IP camera support:
Up to 960p resolution
- Analog & HD-TVI input:
- Supports 3K (2960 x 1665), 5 MP (2592 ×
1944), 4 MP (2560 × 1440), 1080p, and 720p
resolutions
- Recording at up to 30 fps depending on resolution
- Dual stream support
for efficient bandwidth management
- Synchronous playback
for up to 4 channels
Design
& Build
- Color:
White
- Dimensions:
200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inches)
- Weight:
≤ 1 kg (without HDD, 2.2 lb.)
Video
& Recording
- 4 BNC video input channels for analog & HD-TVI cameras
- Video bit rate:
32 Kbps to 6 Mbps
- Maximum video recording resolution: 1080p
- Frame rate options:
- Without 1080p Lite mode:
- 3K
stream access: 3K lite@12fps, 4 MP lite/1080p@15fps, 720p/WD1/4CIF/VGA/CIF@20fps
- 5 MP
stream access: 5 MP lite@12fps, 4 MP lite/1080p@15fps, 720p/WD1/4CIF/VGA/CIF@20fps
- 4 MP
stream access: 4 MP lite/1080p@15fps, 720p/WD1/4CIF/VGA/CIF@25fps
(P)/30fps (N)
- With 1080p Lite mode enabled:
- 3K lite/5 MP lite@12fps, 4 MP lite@15fps, 1080p lite/720p
lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
- Sub-stream options:
- WD1/4CIF@12fps
- CIF@25fps (P)/30fps (N)
Audio
- One RCA audio input
(2.0 Vp-p, 1 kΩ)
- One RCA audio output
(Linear, 1 kΩ)
- Two-way audio
support using the first audio input
- Audio compression:
G.711u
Network
& Connectivity
- Supports multiple network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP,
SMTP, UPnP™, HTTPS, ONVIF
- Connectable to Wi-Fi
via a Wi-Fi dongle using the USB interface
- One RJ45 10/100 Mbps self-adaptive Ethernet interface
- Supports up to 32 remote connections
Storage
& Ports
- One SATA HDD interface supporting up to 10 TB storage capacity
- Two USB 2.0 ports
on the rear panel
Power
& Consumption
- Power supply:
12V DC, 1.5A
- Power consumption:
≤ 8W (without HDD)
Package
Contents
- Hikvision iDS-7104HQHI-M1-S DVR
- Power adapter
(if included in the package)
- User manual
- Screws for HDD installation
Warranty
- One-year warranty
(excluding the power adapter)
