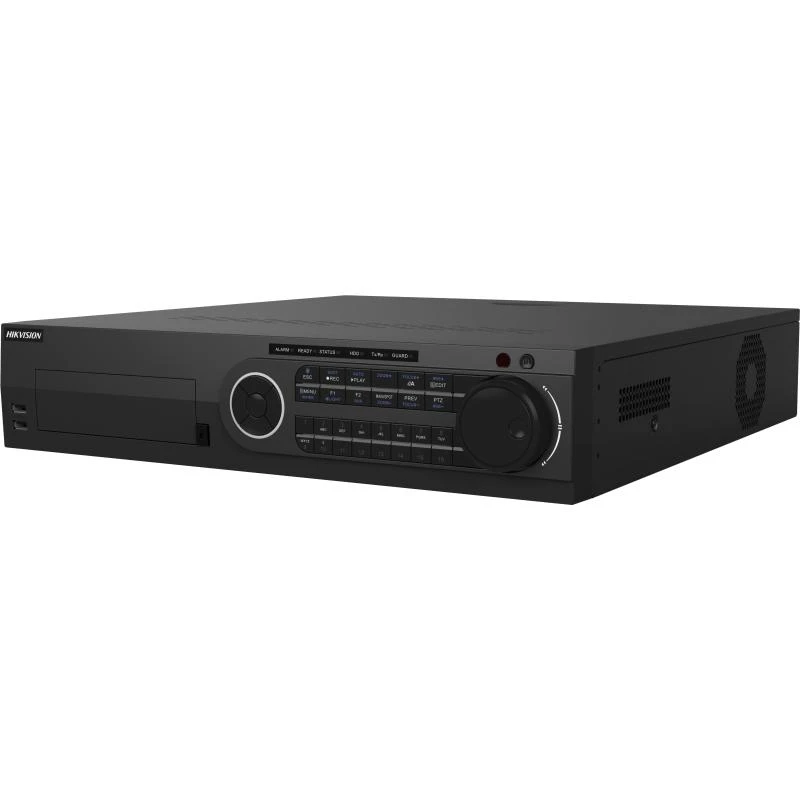

Hikvision DS-8116HQHI-K8 DVR

The Hikvision DS-8116HQHI-K8 is a high-performance 16-channel DVR designed for efficient video compression, multi-channel support, and reliable audio features. It is ideal for medium-scale surveillance systems requiring a combination of analog, HD-TVI, and IP camera inputs, along with comprehensive video output options.

Features

• Video Input:
• BNC Video Input: 16 channels, 1.0 Vp-p, 75 ohm
• Video Compression/Format: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• IP Video Input: 8-ch (expandable up to 24-ch), supporting up to 6 MP resolution
• Analog & HD-TVI Video Input: Supports 16 channels including 4 MP, 3 MP, 1080p, 720p at various frame rates
• Video Output:
• HDMI Output: Up to 4K (3840 x 2160) at 30Hz, 2K (2560 x 1440) at 60Hz, 1080p at 60Hz, 1280 x 1024 at 60Hz, 1280 x 720 at 60Hz
• VGA Output: Up to 1920 x 1080 at 60Hz, 1280 x 1024 at 60Hz, 1280 x 720 at 60Hz, 1024 x 768 at 60Hz
• Simultaneous HDMI/VGA Output
• Video Recording Resolution:
• Max. Video Recording Resolution: 1080p
• Video Bit Rate: 32 Kbps to 6 Mbps

Audio

• Audio Input: 16-channel RCA (2.0 Vp-p, 1 KΩ)
• Audio Output: 2-channel RCA (Linear, 1 KΩ)
• Two-way Audio: 1-channel RCA (2.0 Vp-p, 1 KΩ) (independent)
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Recording & Decoding

• Frame Rate:
• Mainstream:
• For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF @ 25fps (P)/30fps (N)
• For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF @ 15fps
• For 1080p stream access: 1080p/720p @ 15fps, WD1/4CIF/VGA/CIF @ 25fps (P)/30fps (N)
• For 720p stream access: 720p/WD1/4CIF/VGA/CIF @ 25fps (P)/30fps (N)
• When 1080p Lite mode enabled:
• 4 MP lite @ 15fps, 1080p lite/720p lite/WD1/4CIF/VGA/CIF @ 25fps (P)/30fps (N)
• Dual-stream support
• Synchronous Playback: 16-ch

Network & Connectivity

• Remote Connections: Up to 128
• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
• Network Interface: 2 x RJ45 10M/100M/1000M self-adaptive Ethernet interfaces
• Wi-Fi: Not supported

Storage & Ports

• SATA Interfaces: 8 SATA interfaces, supporting up to 10 TB for a single HDD
• Max. Storage Support: 80 TB
• eSATA: Supported
• USB Ports:
• Front panel: 2 x USB 2.0
• Rear panel: 1 x USB 3.0
• RS-232 and RS-485 Serial Interfaces (full-duplex)
• Keyboard Interface: Supported

Power & Consumption

• Power Supply: 100 to 240 VAC, 50 to 60 Hz, 1.3 A
• Approximate Power Consumption: ≤ 45 W

Physical Attributes

• Color: Black
• Dimensions: 440 x 470 x 90 mm
• Weight: ≤ 10 kg

Warranty

• 1-year warranty (without adapter)

Package Contents

• Hikvision DS-8116HQHI-K8 DVR
• Power adapter (if included)
• User manual
• HDD installation screws (if included)
