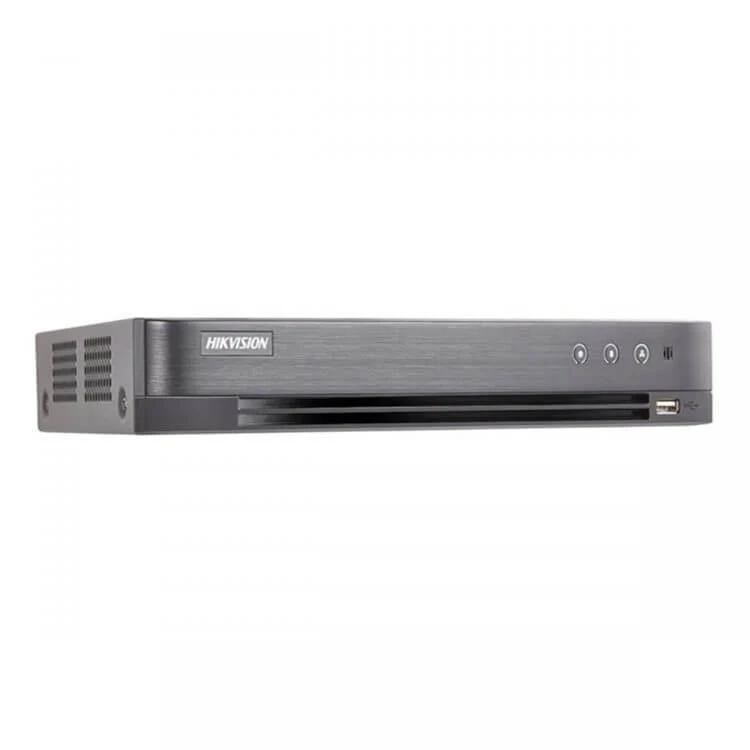

Hikvision DS-7216HGHI-K1 Turbo HD DVR

The Hikvision DS-7216HGHI-K1 is a 16-channel Turbo HD DVR designed to provide high-quality video surveillance for residential, commercial, and industrial spaces. Supporting a range of video formats, it delivers exceptional video clarity and network performance, making it a versatile and reliable solution for various security needs.

Features

• 16-channel BNC video input
• Video compression formats: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Video output:
• HDMI & VGA resolutions up to 1080p
• Max video recording resolution: 1080p
• Video bit rate: 32 Kbps to 4 Mbps
• IP video input:
• 2-channel (up to 18-ch)
• Analog & HD-TVI video input:
• 1080p25, 1080p30, 720p25, 720p30

Design & Build

• Color: Black
• Dimensions: 260 x 222 x 45 mm
• Weight: 1.10 kg

Audio

• Audio input: 1 channel RCA (2.0 Vp-p, 1 KΩ)
• Audio compression: G.711u
• Audio output: 1 channel RCA (Linear, 1 KΩ)
• Two-way audio: 1 channel RCA (2.0 Vp-p, 1 KΩ)
• Audio bit rate: 64 Kbps

Recording & Decoding

• Frame rate:
• Main stream:
• For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA@15 fps, CIF@25 fps (P)/30 fps (N)
• For 720p stream access: 720p/WD1/4CIF/VGA@15 fps, CIF@25 fps (P)/30 fps (N)
• For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
• Stream types: Video, Video & Audio
• Dual stream support: Yes
• Synchronous playback: Supports 16 channels simultaneously

Network & Connectivity

• Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
• Wi-Fi: Not applicable
• 1 RJ45 Ethernet port (10/100Mbps)
• Remote connections: 128 remote connections

Storage & Ports

• 1 SATA HDD interface, supporting up to 10 TB
• 2 x USB 2.0 ports
• CVBS input: Yes
• Video detection: Motion detection 2.0

Power & Consumption

• Power supply: 12V DC
• Approximate power consumption: <10W

Warranty

• 1-year warranty

Package Contents

• Hikvision DS-7216HGHI-K1 DVR
• Power adapter (if included)
• User manual
• HDD installation screws
