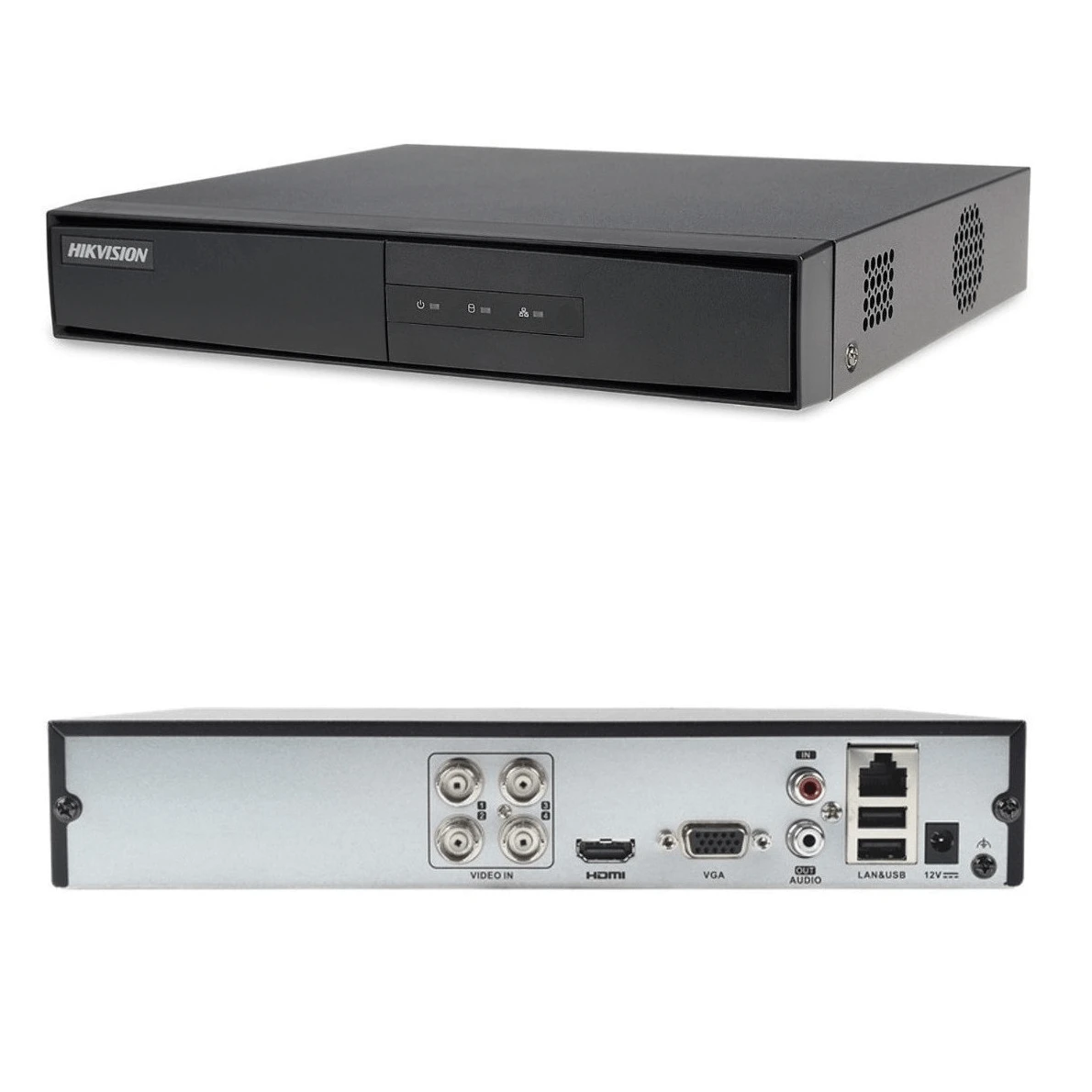

HIKVISION DS-7204HGHI-F1 4-CH Turbo HD 720P DVR
Key Specification
‣ Number of Input Channel
- 4 Channel
‣ Dual Stream Support – Yes
‣ Number HDD Interface
(SATA) – 1 SATA
‣ Max. Storage Support – 6
TB
Product Specification
|
Brand |
Hikvision |
|
Model |
DS-7204HGHI-F1 |
|
Type |
DVR |
|
Video
Data |
Number
of Input Channel: 4 Channel Video
Input Channel (BNC): 4-ch BNC interface (1.0 Vp-p, 75 ohm) , supporting
coaxitron connection Video
Compression/Format: H.264+/H.264 Video
Output (VGA): 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz Video
Output (HDMI): 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz ,
1024 × 768/60Hz Max. Video Recording Res: 1080p Video
Bit Rate: 32 Kbps to 4 Mbps IP
Video Input: 1-ch (up to 5-ch) Up to 960p resolution Support H.264+/H.264 IP
cameras Analog
& HD-TVI Video Input: 1080p25, 1080p30, 720p25, 720p30 |
|
Audio Data |
Audio Input Channel (RCA): 1-ch, RCA (2.0
Vp-p, 1 k ohm) Audio Compression: G.711u Audio Output Channel: 1-ch, RCA (Linear, 1 K
ohm) Two way Audio: Reuse the first audio input Audio Bit Rate: 64 Kbps |
|
Recording
&Decoding |
Frame
Rate - Main stream: When
1080p Lite mode not enabled: ,For 720p stream access:
720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p
lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps;
CIF/QVGA/QCIF@ 25fps (P)/30fps (N), When
1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode
enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF Stream
Type: Video, Video & Audio Dual
Stream Support: Yes Synchronous
Playback: 4-ch |
|
Network |
Network Protocol: TCP/IP, PPPoE, DHCP,
Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS Wi-Fi: No Wi-Fi Details: Not Applicable Wi-Fi Coverage (Approximate): Not Applicable Network Interface (RJ45): 1, RJ45 10/100
Mbps self-adaptive Ethernet interface Remote Connections: 32 |
|
Auxiliary
Interface |
Number
HDD Interface (SATA): 1 SATA Max HDD
Support (GB,TB): Up to 6 TB capacity for each disk Max.
Storage Support: 4 TB eSATA:
N/A USB
Port: Rear panel: 2 × USB 2.0 |
|
Technical Data |
CVBS Input: Support |
|
Power |
Power
Supply: 12 VDC Approx.
Power Consumption: ≤ 8 W (without HDD) |
|
Physical Attributes |
Color: Black Dimensions: 260 × 222 × 45 mm (10.2 × 8.7 ×
1.8 inch) Weight (Kg): =< 1 kg (without HDD, 2.2 lb.) |
|
Warranty |
1 Year
(Without Adapter) |
|
* Product may vary with different Kit or
Version |
|
Product Details
Hikvision
DS-7204HGHI-F1 DVR
The Hikvision DS-7204HGHI-F1
is a 4-channel digital video recorder (DVR) designed for efficient
and reliable surveillance solutions. With H.264+ video compression, 1080p
recording, and dual-stream support, it offers optimized storage
and smooth video playback. The device is compatible with analog, HD-TVI,
and IP cameras, making it a versatile choice for home, office, and
business security systems.
Features
- 4-channel BNC video input, supporting coaxitron connection
- Supports H.264+/H.264 video compression for efficient storage
- HDMI and VGA video output with a maximum resolution of 1080p
- IP camera support (1 channel, expandable to 5 channels)
with resolutions up to 960p
- Analog & HD-TVI video input: 1080p, 720p at various frame rates
- 4-channel synchronous playback for simultaneous video review
- Dual-stream support for optimized bandwidth usage
- Remote monitoring with up to 32 connections
Design
& Build
- Compact and durable design
- Sleek black casing
for a professional appearance
- Dimensions:
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inches)
- Weight:
≤ 1 kg (without HDD, 2.2 lb.)
Video
& Recording
- 4 BNC video input channels for analog & HD-TVI cameras
- Video bit rate:
32 Kbps to 4 Mbps
- Maximum video recording resolution: 1080p
- Frame rate options:
- Without 1080p Lite mode: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
- With 1080p Lite mode: 1080p Lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps
(N)
- Sub-stream options:
- 2CIF@6fps, CIF/QVGA/QCIF@25fps (P)/30fps (N)
Audio
- One RCA audio input
(2.0 Vp-p, 1 kΩ)
- One RCA audio output
(Linear, 1 kΩ)
- Two-way audio communication support
- Audio compression:
G.711u
Network
& Connectivity
- Supports multiple network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP,
SADP, SMTP, UPnP™, HTTPS
- One RJ45 10M/100M self-adaptive Ethernet interface
- No built-in Wi-Fi support
- Supports up to 32 remote connections
Storage
& Ports
- One SATA HDD interface supporting up to 6 TB storage capacity
- Two USB 2.0 ports
on the rear panel
Power
& Consumption
- Power supply:
12V DC
- Power consumption:
≤ 8W (without HDD)
Package
Contents
- Hikvision DS-7204HGHI-F1 DVR
- Power adapter
(if included in the package)
- User manual
- Screws for HDD installation
Warranty
- One-year warranty
(excluding the power adapter)
