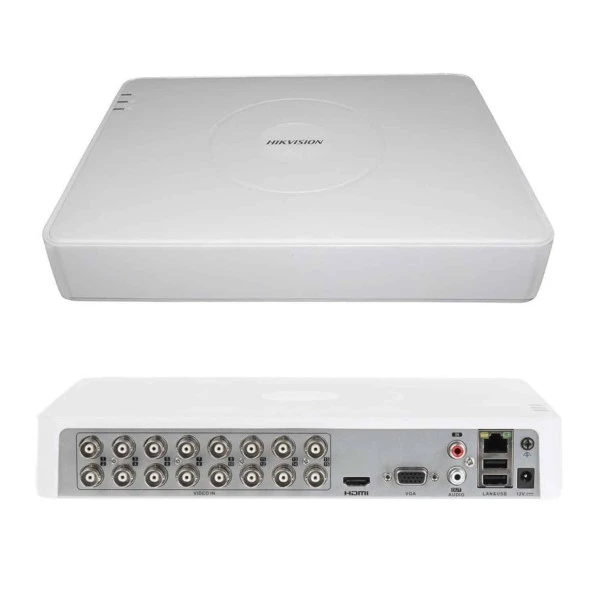

Hikvision DS-7116HGHI-M1 TURBO HD DVR

The Hikvision DS-7116HGHI-M1 is a 16-channel TURBO HD DVR designed to offer robust surveillance for large-scale setups. It supports the advanced H.265 Pro+ compression format, ensuring efficient bandwidth usage and extended storage capacity. With 16 analog HD-TVI channels, and IP video input support for up to 18 channels, this DVR is ideal for environments requiring extensive monitoring capabilities.

Features

• 16-channel BNC video input
• Video compression formats: H.265 Pro+/H.265 Pro/H.265 for optimized video storage
• Video output options:
• HDMI & VGA with resolutions of up to 1080p
• Max. video recording resolution: 1080p
• IP video input:
• 2 channels (up to 18 channels)
• Analog & HD-TVI video input:
• 16 channels, supporting up to 1080p resolution
• Video bit rate: 32 Kbps to 4 Mbps

Design & Build

• Color: White
• Dimensions: 285 x 210 x 45 mm
• Weight: < 1.8 kg (without HDD)

Audio

• Audio input: 1 channel RCA
• Audio compression: G.711u
• Audio output: 1 channel RCA (Linear, 1 KΩ)
• Two-way audio: 1 channel using the first audio input
• Audio bit rate: 64 Kbps

Recording & Decoding

• Frame rate: 30 FPS for optimal recording
• Stream types:
• Main stream and sub-stream
• Dual stream support: Yes
• Synchronous playback: Supports up to 16 channels simultaneously

Network & Connectivity

• Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP, HTTPS, ONVIF
• Wi-Fi: Not applicable
• 1 RJ45 Ethernet port (10M/100M self-adaptive)
• Remote connections: 128 remote connections

Storage & Ports

• 1 SATA HDD interface supporting up to 10 TB
• 2 × USB 2.0 ports
• CVBS input: PAL/NTSC

Power & Consumption

• Power supply: 12V DC, 1.6A
• Approximate power consumption: < 7W (without HDD)

Warranty

• 1-year warranty (without adapter)

Package Contents

• Hikvision DS-7116HGHI-M1 DVR
• Power adapter (if included)
• User manual
• HDD installation screws
