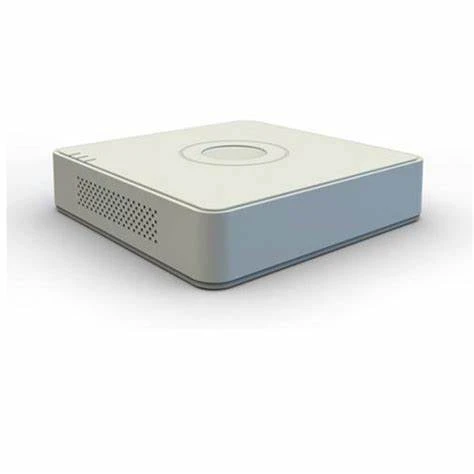

Hikvision DS-7116HGHI-K1 16 Channel HD 1080p Turbo HD DVR
Key Specification
‣ Number of Input Channel
- 16 Channel
‣ Dual Stream Support - Yes
‣ Number HDD Interface
(SATA) - 1 SATA
‣ Max. Storage Support - 10TB
Product Specification
|
Brand |
Hikvision |
|
Model |
Hikvision
DS-7116HGHI-K1 |
|
Type |
16 Channel DVR |
|
Video
Data |
Number
of Input Channel: 16 Channel Video
Input Channel (BNC): 16-ch BNC interface (1.0 Vp-p, 75 ) Video
Compression/Format: H.265 Pro+/ H.265 Pro/ H.265/ H.264+/ H.264 Video
Output (VGA): 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024
x 768/60Hz Video
Output (HDMI): 1-ch, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz,
1024 x 768/60Hz Video
Recording Res.: 1080p lite, 720p, VGA, WD1, 4CIF, CIF Max.
Video Recording Res.: 1080p Video
Bit Rate: 32 Kbps to 4 Mbps IP
Video Input: 2-Channel (up to 18-ch), Up to 5MP Analog
& HD-TVI Video Input: 1080p25, 1080p30, 720p25, 720p30 |
|
Audio Data |
Audio Input Channel (RCA): 1 Channel RCA Audio Compression: G.711u Audio Output Channel: 1 Channel, RCA Two way Audio: 1-ch, RCA (2.0 Vp-p, 1 K) Audio Bit Rate: 64 Kbps
|
|
Recording
& Decoding |
Frame
Rate: Main stream: For 1080p stream access: 1080p Lite/720p
Lite/WD1/4CIF/VGA/CIF@15 fps For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15
fps For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream:
For 1080p and 720p stream access CIF/QVGA@15 fps For SD stream access:
CIF/QVGA@25 fps (P)/30 fps (N) Stream
Type: Video, Video & Audio Dual
Stream Support: Yes Synchronous
Playback: 16-ch |
|
Network |
Network Protocol: TCP/IP, PPPoE, DHCP,
Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF Wi-Fi: No Wi-Fi Details: Not Applicable Wi-Fi Coverage (Approximate): Not Applicable Network Interface (RJ45): 1, RJ45
10M/100M/1000M self-adaptive Ethernet interface Remote Connections: 128 |
|
Auxiliary
Interface |
Number
HDD Interface (SATA): 1 SATA Max HDD
Support (GB,TB): Up to 10 TB capacity for each disk Max.
Storage Support: 10TB USB
Port: 2 x USB 2.0 |
|
Technical Data |
CVBS Input: PAL/NTSC Video Detection: Motion Detection 2.0 |
|
Power |
Power
Supply: 12 VDC, 1.6 A Approx.
Power Consumption: 7 W |
|
Physical Attributes |
Color: White Dimensions: 285 x 210 x 45mm Weight (Kg): 1.8 kg |
|
Warranty |
1 Year |
|
* Product may vary with different Kit or
Version |
|
Product Details
Hikvision
DS-7116HGHI-K1 16-Channel DVR
The Hikvision DS-7116HGHI-K1
is a powerful 16-channel DVR designed for high-definition video
surveillance, supporting a variety of video formats and compression methods
like H.265 Pro+, H.265 Pro, and H.264. This DVR offers
flexibility in terms of video input/output, storage capacity, and
network capabilities, making it an ideal solution for large-scale
security systems.
Features
- 16-channel BNC video input
- Video compression formats: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Video output options:
- HDMI & VGA,
supporting resolutions of up to 1080p
- Max video recording resolution: 1080p
- IP video input:
- 2 channels (up to 18 channels), supporting up to 5MP resolution
- Analog & HD-TVI video input:
- 1080p @ 25/30 fps,
720p @ 25/30 fps
- Video bit rate:
32 Kbps to 4 Mbps
Design
& Build
- Color:
White
- Dimensions:
285 x 210 x 45 mm
- Weight:
1.8 kg
Audio
- Audio input:
1 channel RCA
- Audio compression:
G.711u
- Audio output:
1 channel RCA (Linear, 1 KΩ)
- Two-way audio:
1 channel using the first audio input
- Audio bit rate:
64 Kbps
Recording
& Decoding
- Frame rate:
- Main stream:
- For 1080p stream access: 1080p Lite/720p
Lite/WD1/4CIF/VGA/CIF @ 15 fps
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF
@ 15 fps
- For SD stream access: WD1/4CIF/VGA/CIF @ 25
fps (P)/30 fps (N)
- Sub-stream:
- For 1080p and 720p stream access: CIF/QVGA @
15 fps
- For SD stream access: CIF/QVGA @ 25 fps (P)/30
fps (N)
- Stream types:
Video, Video & Audio
- Dual stream support:
Yes
- Synchronous playback:
Supports up to 16 channels simultaneously
Network
& Connectivity
- Network protocols:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI,
UPnP, HTTPS, ONVIF
- Wi-Fi:
Not applicable
- 1 RJ45 Ethernet port
(10M/100M/1000M self-adaptive)
- Remote connections:
128 remote connections
Storage
& Ports
- 1 SATA HDD interface
supporting up to 10 TB
- 2 × USB 2.0 ports
- CVBS input:
PAL/NTSC
Power
& Consumption
- Power supply:
12V DC, 1.6A
- Approximate power consumption: 7W
Warranty
- 1-year warranty
Package
Contents
- Hikvision DS-7116HGHI-K1 DVR
- Power adapter
(if included)
- User manual
- HDD installation screws
