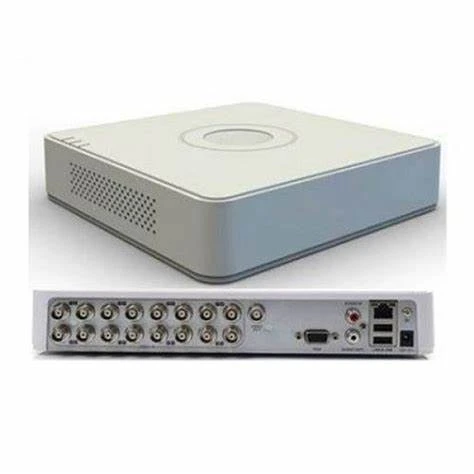

Hikvision DS-7116HGHI-F1 Turbo HD DVR

The Hikvision DS-7116HGHI-F1 is a 16-channel DVR designed for high-definition video surveillance, offering multiple video formats and compression methods like H.264+ and H.264. It allows up to 16-channel video input, making it a robust solution for large-scale security installations.

Features

• 16-channel BNC video input
• Video compression formats: H.264+/H.264
• Video output options:
• HDMI & VGA, supporting resolutions up to 1080p
• Max video recording resolution: 1080p
• IP video input:
• Up to 16 channels, supporting 1080p resolution
• Compatible with H.264+/H.264 IP cameras
• Analog & HD-TVI video input:
• 16-ch BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
• Video bit rate: 32 Kbps to 4 Mbps

Design & Build

• Color: White
• Dimensions: 285 x 210 x 45 mm
• Weight: <1.2 kg

Audio

• Audio input: 1 channel RCA (2.0 Vp-p, 1 KΩ)
• Audio compression: G.711u
• Audio output: 1 channel RCA (Linear, 1 KΩ)
• Two-way audio: Reuse of the first audio input
• Audio bit rate: 64 Kbps

Recording & Decoding

• Frame rate: 1 to 16 fps - Real-time frame rate
• Stream types: Video, Video & Audio
• Dual stream support: Yes
• Synchronous playback: Supports up to 16 channels simultaneously

Network & Connectivity

• Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
• Wi-Fi: Not applicable
• 1 RJ45 Ethernet port (10M/100M self-adaptive)
• Remote connections: 128 remote connections

Storage & Ports

• 1 SATA HDD interface supporting up to 6 TB
• 2 x USB 2.0 ports
• CVBS input: Yes

Power & Consumption

• Power supply: 12V DC
• Approximate power consumption: < 20W

Warranty

• 1-year warranty

Package Contents

• Hikvision DS-7116HGHI-F1 DVR
• Power adapter (if included)
• User manual
• HDD installation screws
