Hikvision DS-7108HGHI-F1/N 8 CH 1MP (720P) Turbo HD DVR
Key Specification
‣ Number of Input Channel
- 4 Channel
‣ Dual Stream Support – Yes
‣ Number HDD Interface
(SATA) – 1 SATA
‣ Max. Storage Support – 6
TB
Product Specification
|
Brand |
Hikvision |
|
Model |
DS-7108HGHI-F1/N |
|
Type |
Mini DVR |
|
Video
Data |
Number
of Input Channel: 8 Channel Video
Input Channel (BNC): 8-ch BNC interface (1.0 Vp-p, 75 ohm) Video
Compression/Format: H.264+/H.264 Video
Output (VGA): 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz 1024
× 768/60Hz, Video
Output (HDMI): 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz ,
1024 × 768/60Hz Max. Video Recording Res: 1080p Video
Bit Rate: 32 Kbps to 4 Mbps IP
Video Input: Up to 960p resolution Analog
& HD-TVI Video Input: 1080p25, 1080p30, 720p25, 720p30 |
|
Audio Data |
Audio Input Channel (RCA): 1-ch, RCA (2.0
Vp-p, 1 k ohm) Audio Compression: G.711u Audio Output Channel: 1-ch, RCA (Linear, 1 K
ohm) Two way Audio: Reuse the first audio input Audio Bit Rate: 64 Kbps |
|
Recording
&Decoding |
Frame
Rate - Main stream: When
1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps;
CIF@25fps (P)/30fps (N) When 1080p lite mode not enabled: For 720p stream
access: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N) For SD stream
access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: CIF/QVGA/QCIF@25fps
(P)/30fps (N) Stream
Type: Video, Video & Audio Dual
Stream Support: Yes Synchronous
Playback: 8-ch |
|
Network |
Network Protocol: TCP/IP, PPPoE, DHCP,
Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS Wi-Fi: No Wi-Fi Details: Not Applicable Wi-Fi Coverage (Approximate): Not Applicable Network Interface (RJ45): 1, RJ45 10/100
Mbps self-adaptive Ethernet interface Remote Connections: 128 |
|
Auxiliary
Interface |
Number
HDD Interface (SATA): 1 SATA Max HDD
Support (GB,TB): Up to 6 TB capacity for each disk Max.
Storage Support: 6 TB eSATA:
N/A USB
Port: Rear panel: 2 × USB 2.0 |
|
Technical Data |
CVBS Input: Support |
|
Power |
Power
Supply: 12 VDC Approx.
Power Consumption: ≤ 8 W (without HDD) |
|
Physical Attributes |
Color: Black Dimensions: 260 × 222 × 45 mm (10.2 × 8.7 ×
1.8 inch) Weight (Kg): =< 1 kg (without HDD, 2.2 lb.) |
|
Warranty |
1 Year
(Without Adapter) |
|
* Product may vary with different Kit or
Version |
|
Product Details

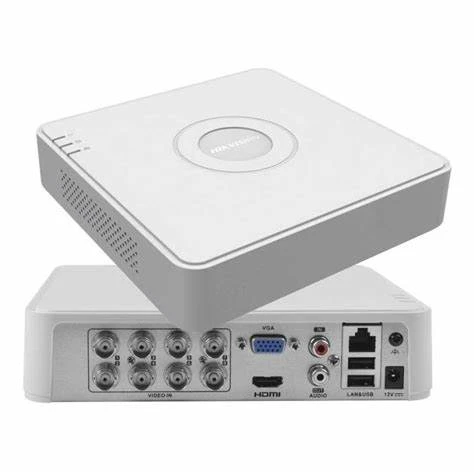

Hikvision
DS-7108HGHI-F1/N Mini DVR
The Hikvision DS-7108HGHI-F1/N
is a mini DVR designed to provide a compact and efficient
surveillance solution for both home and business security systems. With
support for 8 video input channels and H.264+ video compression,
this device ensures high-quality recording and efficient storage
management. The DVR supports multiple video formats, including analog,
HD-TVI, and IP cameras, making it a versatile and adaptable choice
for various surveillance setups.
Features
- 8-channel BNC video input with support for coaxitron connection
- H.264+/H.264 video compression for optimized storage and bandwidth
- Video output:
- HDMI & VGA
(maximum resolution of 1080p)
- Multiple resolutions supported: 1920 × 1080, 1280 × 1024, 1280 ×
720, 1024 × 768
- IP camera support:
Up to 960p resolution
- Analog & HD-TVI video input with 1080p, 720p, and SD resolution options
- Dual-stream support
for efficient bandwidth usage
- Synchronous playback
for up to 8 channels
- Up to 128 remote connections for easy and flexible remote monitoring
Design
& Build
- Sleek and compact black casing
- Dimensions:
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inches)
- Weight:
≤ 1 kg (without HDD, 2.2 lb.)
Video
& Recording
- 8 BNC video input channels for analog & HD-TVI cameras
- Video bit rate:
32 Kbps to 4 Mbps
- Maximum video recording resolution: 1080p
- Frame rate options:
- With 1080p Lite mode enabled: 1080p lite/720p lite/WD1/4CIF/VGA@12fps;
CIF@25fps (P)/30fps (N)
- Without 1080p Lite mode: 720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
- Sub-stream options:
- CIF/QVGA/QCIF@25fps (P)/30fps (N)
Audio
- One RCA audio input
(2.0 Vp-p, 1 kΩ)
- One RCA audio output
(Linear, 1 kΩ)
- Two-way audio communication support
- Audio compression:
G.711u
Network
& Connectivity
- Supports multiple network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP,
SADP, SMTP, UPnP™, HTTPS
- One RJ45 10M/100M self-adaptive Ethernet interface
- No built-in Wi-Fi support
- Supports up to 128 remote connections
Storage
& Ports
- One SATA HDD interface supporting up to 6 TB storage capacity
- Two USB 2.0 ports
on the rear panel
Power
& Consumption
- Power supply:
12V DC
- Power consumption:
≤ 8W (without HDD)
Package
Contents
- Hikvision DS-7108HGHI-F1/N DVR
- Power adapter
(if included in the package)
- User manual
- Screws for HDD installation
Warranty
- One-year warranty
(excluding the power adapter)
