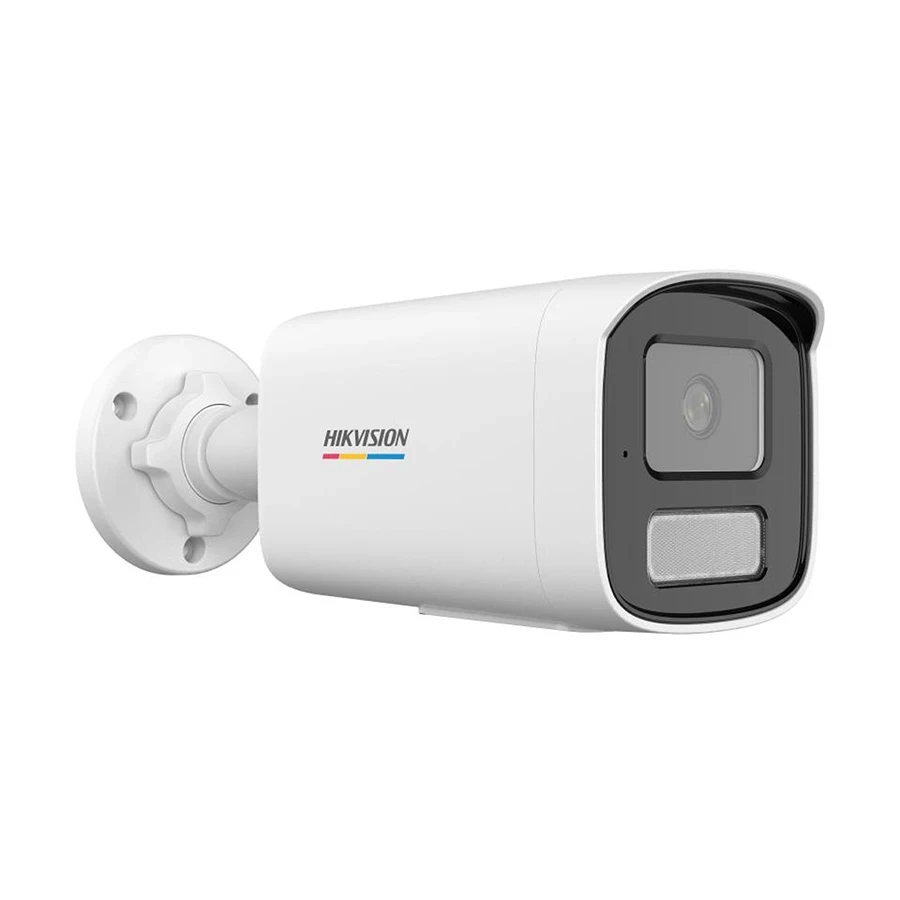

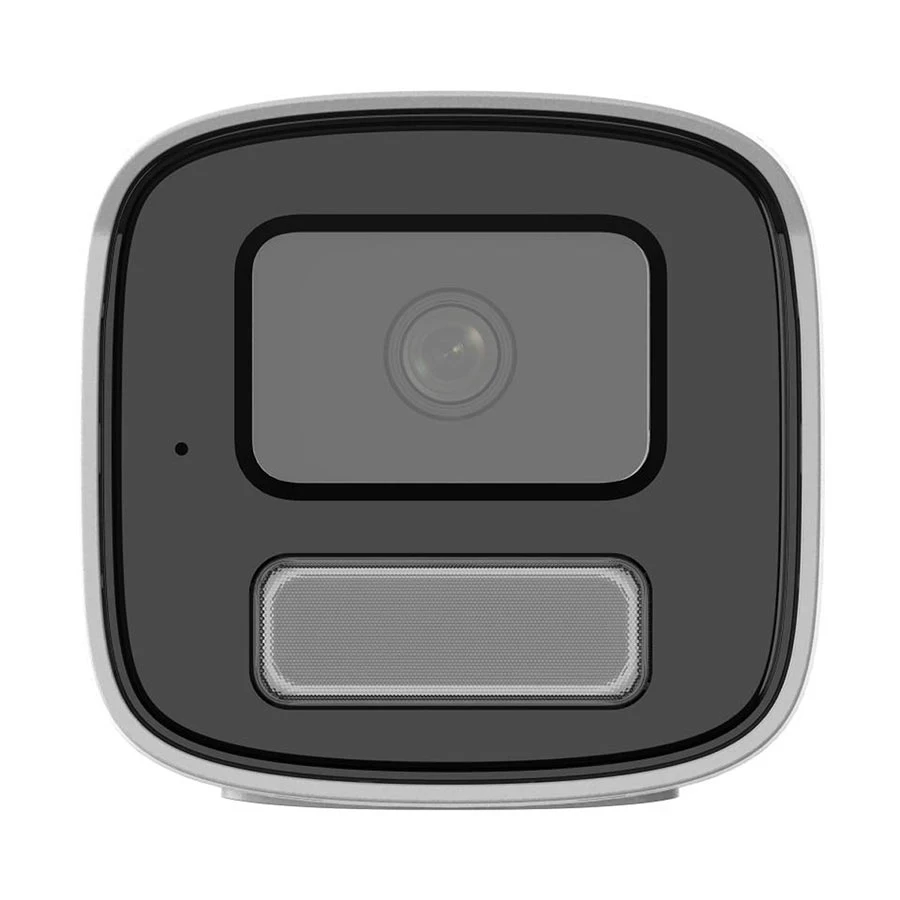

Hikvision DS-2CD1T27G2H-LIU(F) IP Camera

The Hikvision DS-2CD1T27G2H-LIU(F) is a high-performance outdoor IP camera designed to deliver reliable surveillance with 2.0MP resolution and a maximum resolution of 1920 x 1080. This camera features advanced functions such as motion detection, human detection, and wide dynamic range to enhance security coverage.

Camera Performance

• Sensor: 1/2.8 Inch Progressive Scan CMOS, ensuring high-quality video capture.
• Resolution:
• Main Stream: 50 Hz: 25 fps (1920 x 1080, 1280 x 720), 60 Hz: 30 fps (1920 x 1080, 1280 x 720).
• Sub-Stream: 50 Hz: 25 fps (1280 x 720, 640 x 480, 640 x 360), 60 Hz: 24 fps (1280 x 720, 640 x 480, 640 x 360).
• Shutter Speed: 1/3s to 1/100,000s, enabling detailed capture in various lighting conditions.
• Day & Night: IR cut filter for enhanced performance in low light conditions.
• Night Vision: Black and White mode for clear night-time surveillance.
• S/N Ratio: >52 dB, minimizing noise in the video.

Lens & Viewing Capabilities

• Lens: 4mm fixed lens.
• Focal Length: 4mm, providing optimal field of view.
• Viewing Angles:
• Horizontal FOV: 94°
• Vertical FOV: 50°
• Diagonal FOV: 110°
• PTZ: Yes (supports pan/tilt/zoom).

Image Quality

• Noise Reduction: 3D Digital Noise Reduction (DNR) for enhanced image clarity.
• Wide Dynamic Range (WDR): DWDR for clear image capture in scenes with varying light intensities.
• Frame Rate:
• Main Stream: 25 fps (50 Hz), 30 fps (60 Hz).
• Sub-Stream: 25 fps (50 Hz), 24 fps (60 Hz).

Network & Connectivity

• Ethernet Port: 1 x RJ45 10M/100M self-adaptive Ethernet port for reliable wired connection.
• Wi-Fi: Not supported.
• Protocols: Supports a wide range of protocols including IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP.

Security Features

• Password Protection: Strong password protocols to secure access.
• Watermark: Supports watermarking for video authenticity.
• Motion Detection: Alerts based on movement within the camera’s view.
• Human Detection: Identifies human figures for precise detection.
• Face Detection: Not mentioned.

Storage

• Storage Type: FTP for remote storage options.
• Card Slot: No card slot available.
• Storage Supported: Unmentioned.

Physical Build & Power

• Form Factor: Bullet design for straightforward outdoor installation.
• Body Material: Metal (camera body), Plastic (bottom base) for durable construction.
• Color: White.
• Dimensions: 81 x 83.7 x 201.96 mm.
• Weight: 550 gm.
• Power Consumption: 7.5W max. (via PoE).
• Power Supply: 12V DC or PoE (IEEE 802.3af).
• Power Input: 12 VDC +/- 25%, 0.52A, max. 6.2W (via power plug).

Operating Conditions

• Operating Temperature: -30°C to 65°C, ensuring functionality in extreme weather conditions.
• Operating Humidity: Up to 90% (non-condensing) for high-humidity environments.

Warranty

• 1-year warranty (without adapter).
