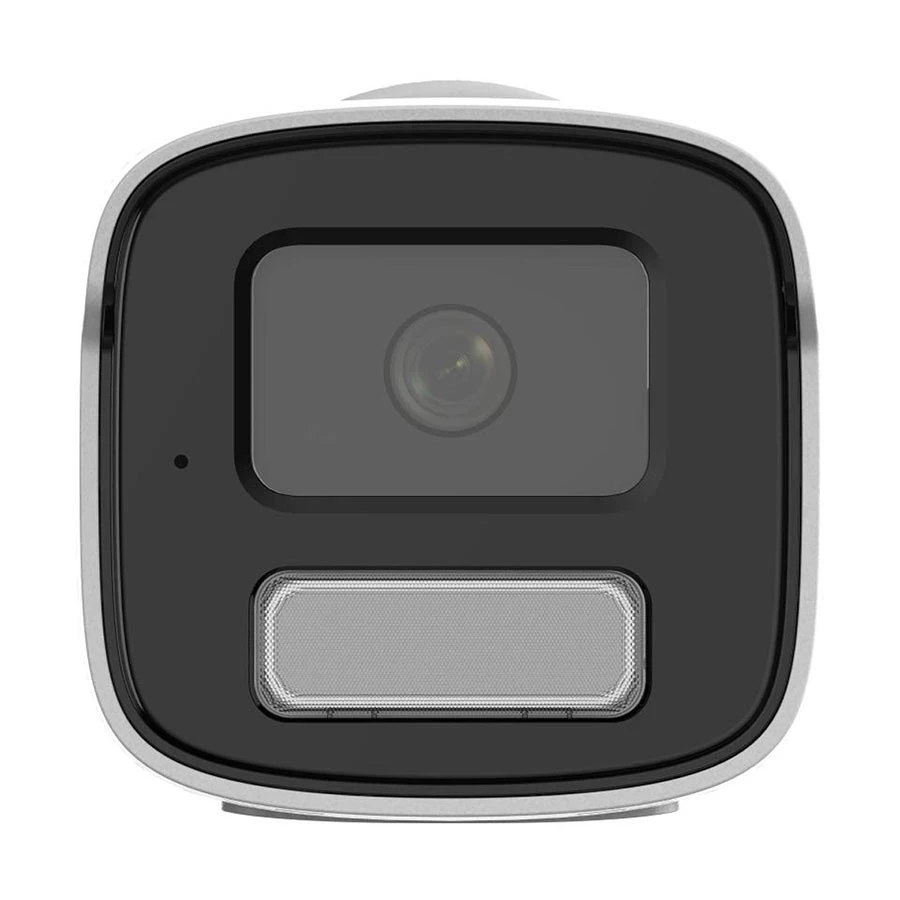

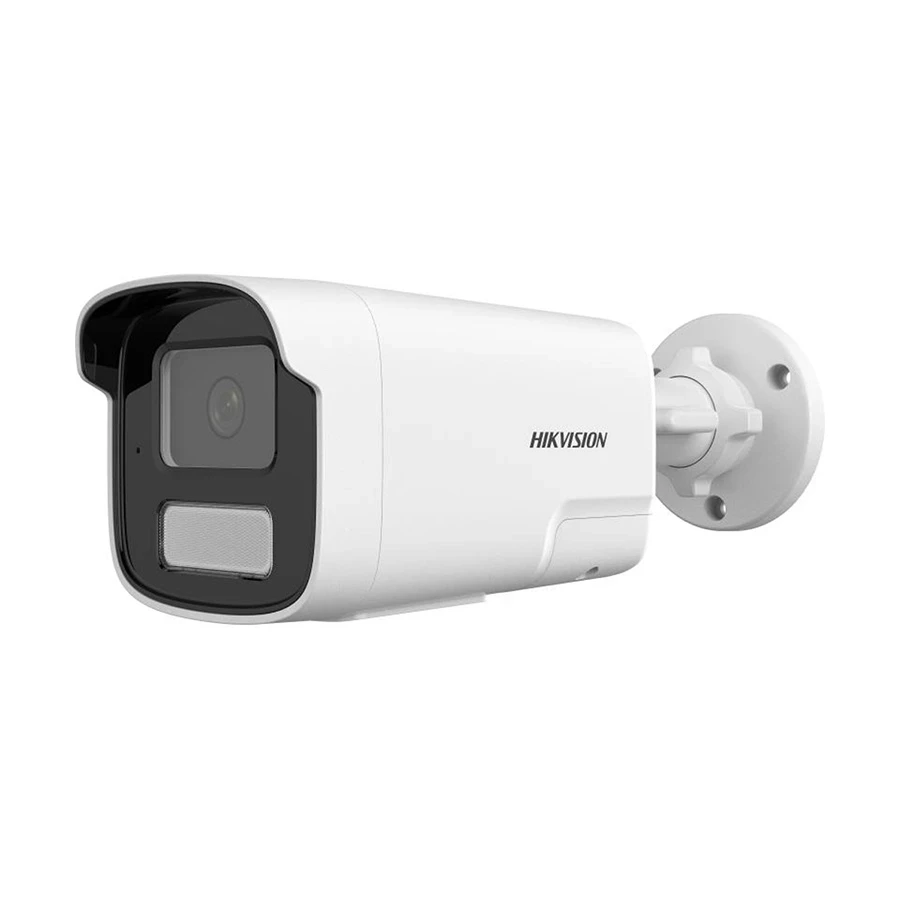

Hikvision DS-2CD1T63G2-LIUF/SL Outdoor & Indoor IP Camera

The Hikvision DS-2CD1T63G2-LIUF/SL is a 6.0MP high-resolution indoor and outdoor bullet IP camera designed to deliver high-definition video monitoring. With features such as motion detection, human detection, face detection, and color night vision, it’s a reliable choice for both home and professional security setups.

Camera Performance

• Sensor: 1/2.4 Inch Progressive Scan CMOS for clear and detailed imaging.
• Resolution: 3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720, 640 x 480, 640 x 360.
• Frame Rate:
• 20 fps at full resolution.
• Shutter Speed: 1/3s to 1/100,000s.
• Slow Shutter: Yes.
• Day & Night: IR cut filter for automatic switching.
• Night Vision: Yes.
• Night Vision Mode: Full Color for superior visibility in low-light conditions.
• S/N Ratio: >= 52 dB, providing clear images even in low-light environments.

Lens & Viewing Capabilities

• Lens: 4mm.
• Focal Length: Horizontal FOV 78°, Vertical FOV 38°, Diagonal FOV 96°.
• PTZ (Pan-Tilt-Zoom): No.
• Zoom: Unmentioned.
• Viewing Angle: Bullet: 96° Diagonal.

Image & Video Quality

• Noise Reduction: 3D Digital Noise Reduction (DNR).
• Wide Dynamic Range (WDR): 120 dB, ensuring performance in high-contrast lighting.
• Triple-Stream: Unmentioned.

Network & Connectivity

• Ethernet Port: 1 x RJ45 10M/100M self-adaptive Ethernet port.
• Wi-Fi: No.
• Supported Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP.

Security Features

• Password Protection: Yes.
• Security Protocols: Watermark, authentication for HTTP, WSSE & Open Network Video Interface, security audit log, MAC address authentication.
• Motion Detection: Yes.
• Human Detection: Yes.
• Face Detection: Yes.
• Simultaneous Live View: Up to 6 channels.

Storage & Audio

• Card Slot: Yes.
• Storage Type: MicroSD.
• Storage Supported: Up to 512GB.
• Mic & Speaker: Both Mic and Speaker.
• Audio Communication: Two-Way Audio for interactive communication.
• Input Trigger: Unmentioned.
• Working Distance: 115 meters.

Physical Build & Power

• Form Factor: Bullet, ideal for both indoor and outdoor installations.
• Body Material: Metal + Plastic.
• Color: Black & White.
• Dimensions: 83.7 x 80.7 x 221.1mm.
• Weight: 410 gm.
• Relevant Accessories: Unmentioned.

Power & Environmental Conditions

• Power Supply:
• 12VDC ± 25%, 0.71 A, max. 8.5W.
• Approx. Power Consumption: 9W (Max.).
• Operating Temperature: -30°C to 60°C.
• Operating Humidity: Up to 95% (non-condensing).

Warranty

• 1 Year Warranty (without adapter).
