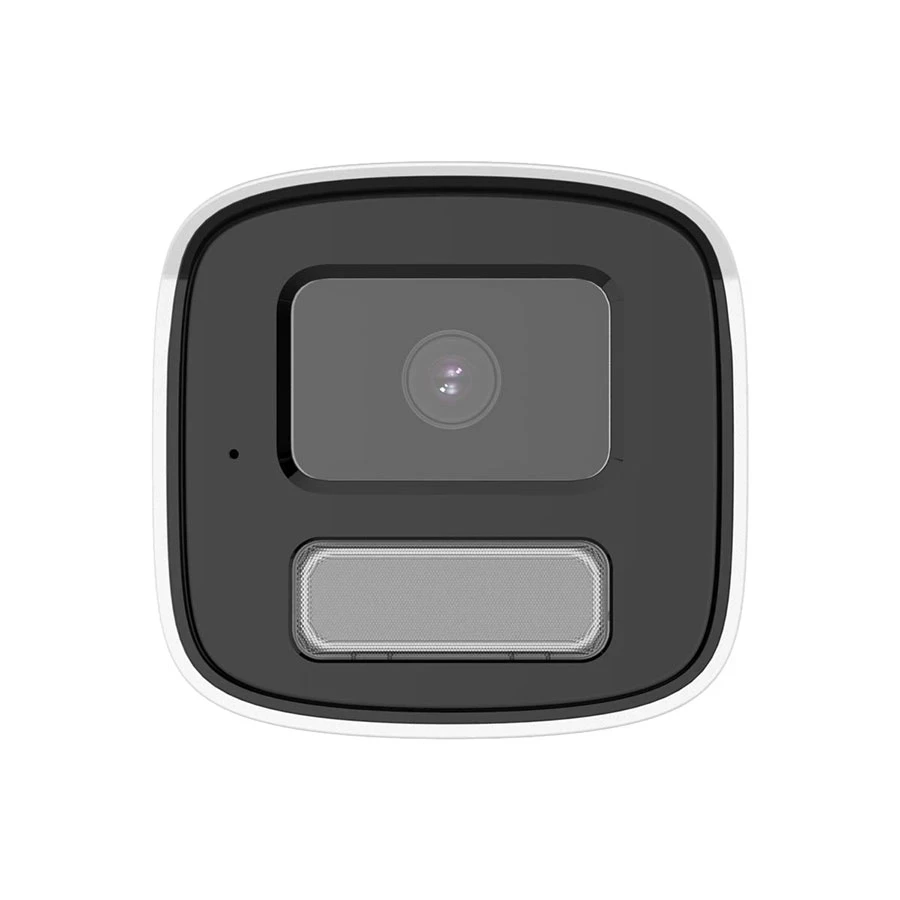

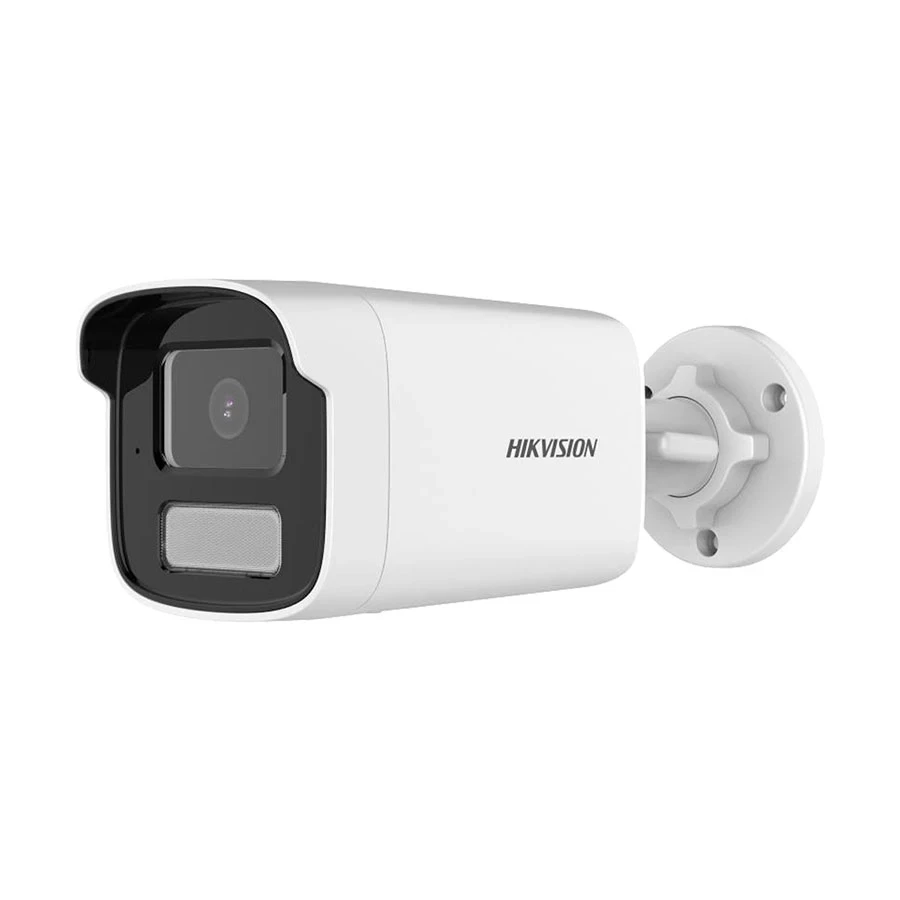

Hikvision DS-2CD1T43G2-LIU IP Camera

The Hikvision DS-2CD1T43G2-LIU is a versatile indoor and outdoor IP camera designed to provide excellent surveillance with a 4.0MP resolution and a maximum resolution of 2560 x 1440. It features a robust design, ideal for a variety of environments, and comes equipped with advanced technologies such as motion detection and face detection.

Camera Performance

• Sensor: 1/3 Inch Progressive Scan CMOS, delivering high-definition video performance.
• Resolution: 2560 x 1440, providing sharp, detailed images.
• Shutter Speed: 1s to 1/100,000s, ensuring clear capture in varying light conditions.
• Day & Night: IR cut filter for automatic day/night switching.
• Night Vision: Black and White mode for clear visibility even in low-light environments.
• S/N Ratio: Not specified.

Lens & Viewing Capabilities

• Lens: 4mm fixed lens.
• Focal Length: 4mm, optimized for wide viewing angles.
• Viewing Angles:
• Horizontal: 78°
• Vertical: 42°
• Diagonal: 93°
• PTZ: No, this model does not support pan/tilt/zoom functions.
• Zoom: Not specified.

Image Quality

• Noise Reduction: 3D Digital Noise Reduction (DNR) to minimize video noise and enhance image quality.
• Wide Dynamic Range (WDR): 120 dB, providing clear imaging in scenes with both bright and dark areas.
• Frame Rate: 20-25fps, offering smooth video playback.
• Triple-Stream: Supports triple-stream video encoding for flexible configuration.

Network & Connectivity

• Ethernet Port: 1 x RJ45 10M/100M self-adaptive Ethernet port for stable network connections.
• Wi-Fi: Not supported.
• Protocols: Supports multiple network protocols such as TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP.

Security Features

• Password Protection: Yes, with advanced password protocols for securing access.
• Watermark: Yes, for ensuring video integrity.
• Motion Detection: Yes, for motion-based alerts.
• Human Detection: Yes, for improved accuracy in identifying people.
• Face Detection: Yes, enabling identification of human faces in the video feed.

Storage

• Card Slot: No card slot available.
• Storage Type: No built-in storage supported.

Physical Build & Power

• Form Factor: Bullet style, suitable for both indoor and outdoor use.
• Body Material: Metal construction for durability.
• Color: Black & White design for a sleek look.
• Dimensions: 83.7 x 80.7 x 205.6 mm.
• Weight: 3000 gm (Note: This weight seems unusually high, possibly due to the inclusion of accessories or kit).
• Power Supply: 12 VDC or PoE (IEEE 802.3af, Class 3), max. 7W power consumption.
• Approx. Power Consumption: 7W.

Operating Conditions

• Operating Temperature: -30°C to 65°C, ensuring functionality in various environmental conditions.
• Operating Humidity: Up to 95% (non-condensing).

Warranty

• 1 Year Warranty (without adapter).
