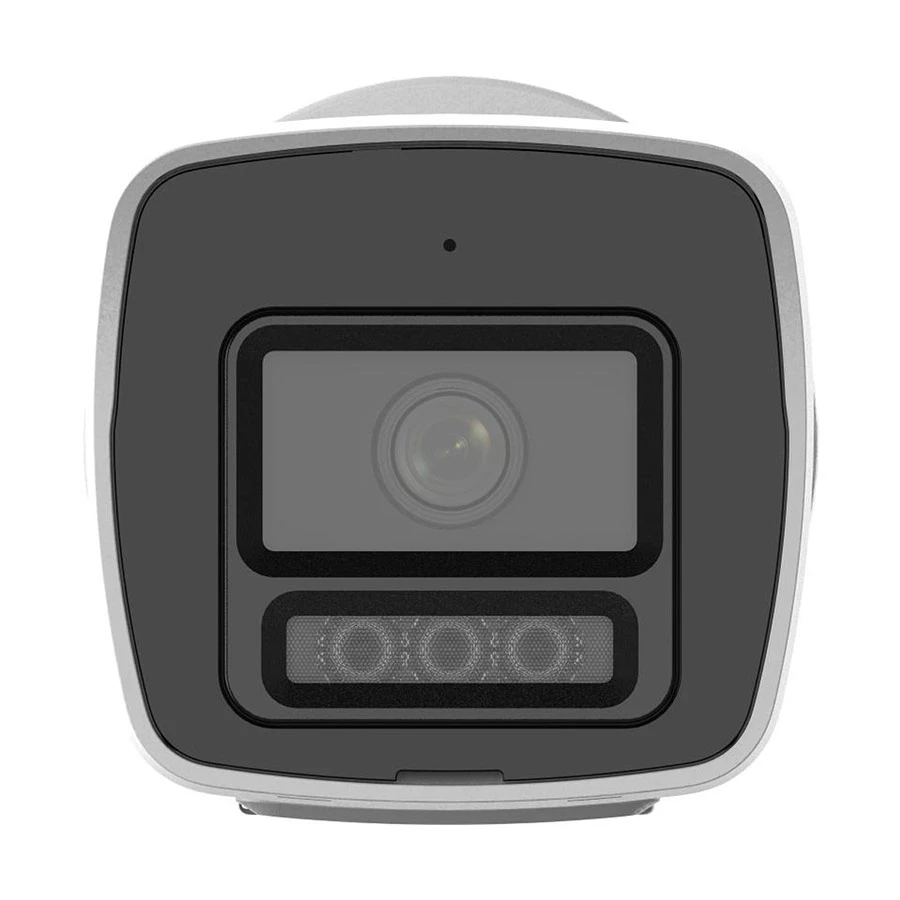

Hikvision DS-2CD1027G2H-LIU IP Camera

The Hikvision DS-2CD1027G2H-LIU is a high-performance outdoor IP camera designed to provide clear, high-quality video surveillance in various environments. With 2.0MP resolution, this camera ensures 1080p video quality, offering reliability in both daylight and low-light conditions.

Camera Performance

• Sensor: 1/2.8 Inch Progressive Scan CMOS
• Resolution: 1920 x 1080 for main video feed.
• Shutter Speed: From 1/3 s to 1/100,000 s for clear images in fast or slow-moving environments.
• IR Cut Filter: Ensures accurate color reproduction during the day and optimal night vision at night.
• Night Vision: Color night vision provides clear footage in low-light or night conditions.
• S/N Ratio: >52 dB, ensuring high-quality video with minimal noise.

Lens & Viewing Capabilities

• Lens: 4 mm lens for capturing clear footage.
• Viewing Angles:
• Horizontal FOV: 94°
• Vertical FOV: 50°
• Diagonal FOV: 110°

The wide viewing angle helps to cover a large area with minimal blind spots.

Network & Connectivity

• Ethernet Port: 1 x RJ45 10M/100M self-adaptive Ethernet port for a stable wired network connection.
• Wi-Fi: Not supported.
• Protocols: Supports IPv4, IPv6, TCP/IP, HTTP, FTP, SMTP, UDP, and more for seamless network integration.
• Simultaneous Live View: Supports up to 6 live views at once, ideal for large surveillance systems.

Security Features

• Password Protection: Ensures device security with password protection and complicated password enforcement.
• Watermark: Adds a watermark to the video for additional security.
• Motion Detection: Detects movement within the camera’s field of view and sends alerts accordingly.
• Human Detection: Recognizes human forms for more accurate detection and response.
• Authentication: Supports basic and digest authentication for HTTP and Open Network Video Interface.

Storage

• Storage Type: Not explicitly mentioned, but no built-in storage options listed.
• Card Slot: Not included for local storage via SD card.

Physical Build & Power

• Form Factor: Bullet style, providing a rugged, compact design.
• Body Material: Made of metal + plastic, offering durability for outdoor use.
• Color: White.
• Dimensions: 69.8 x 67.9 x 172.9 mm.
• Weight: 550 gm.
• Power Consumption: 6.5W maximum, powered by 12V DC.

Operating Conditions

• Operating Temperature: -30°C to 65°C, making it suitable for extreme outdoor conditions.
• Operating Humidity: Supports humidity up to 95% (non-condensing).

Warranty

• Comes with a 1-year warranty (without adapter).
