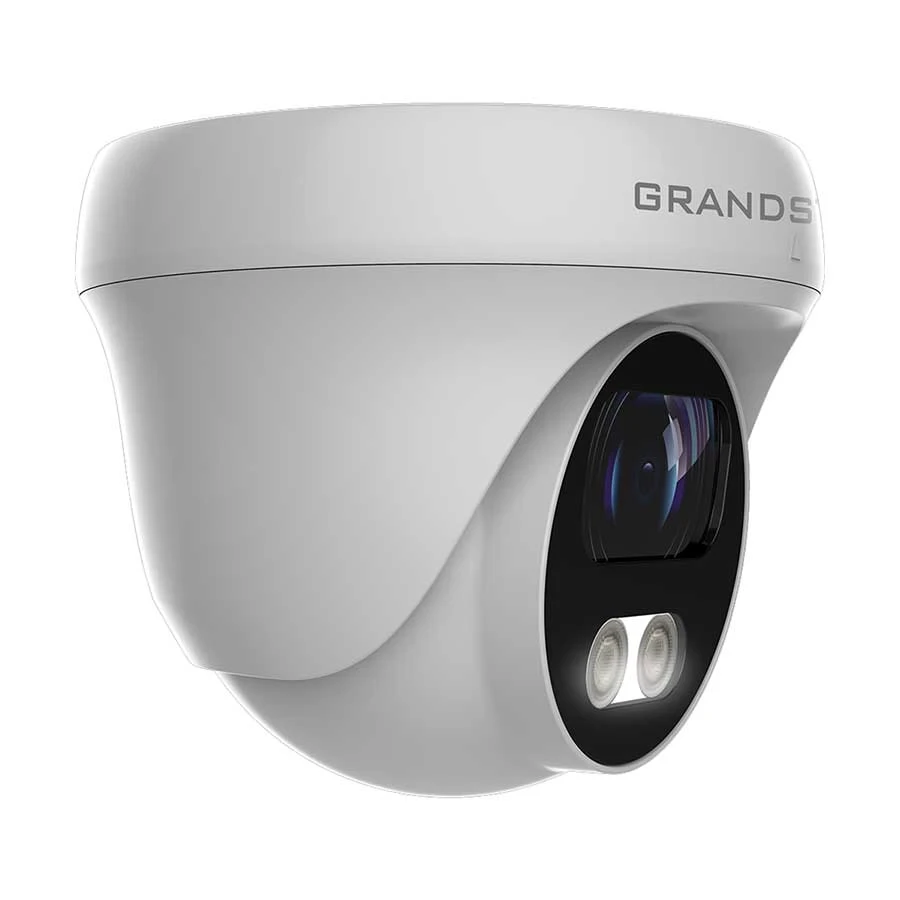

Grandstream GSC3610 (3.6mm) Weatherproof Infrared Dome IP Camera
Key Specification
‣ Usage - Outdoor
‣ Form-Factor - Dome
‣ Mega Pixels (MP) - 2.0
‣ Night Vision Mode - Black
and White
‣ Working Distance -
Unmentioned
Product Specification
|
Brand |
Grandstream |
|
Model |
Grandstream
GSC3610 |
|
Usage |
Outdoor |
|
Type |
Dome IP
Camera |
|
Camera |
Number of Camera: 1 Camera Type: Fixed Mega Pixels (MP): 2.0 Max. Camera Resolution: 1920 x 1080 Secondary Camera Type: Not Applicable Secondary Camera Mega Pixel (MP): Not
Applicable Secondary Camera Max Resolution: Not
Applicable Sensor Type: 1/2.9 Inch Progressive CMOS
Sensor Resolution: Primary Stream: 1920 x 1080;
1280 x 960; 1280 x 720 Secondary Stream: 1280 x 720; 704 x 576; 640 x 480;
352 x 288; 320 x 240 Shutter Speed: Unmentioned Slow Shutter: Unmentioned Day & Night: IR cut Night Vision: Yes Night Vision Mode: Black and White S/N Ratio: Unmentioned |
|
Lens |
Number
of Lens: Single Lens (Primary) Lens: 3.6mm Focal
Length: 3.6mm PTZ: No Zoom: Unmentioned Viewing
Angle: 55 Degree to 2.4 Degree (wide-tele) (H), 33 Degree to 1.4 Degree
(wide-tele) (V), 61.5 Degree to 2.8 Degree (wide-tele) (D) |
|
Image |
Triple-Stream: Yes Frame Rate - Unmentioned Noise Reduction: No Digital Noise Reduction (DNR): Unmentioned Wide Dynamic Range (WDR): No |
|
Network
& Connectivity |
Sim
Supported: No Sim
Network Type: Not Applicable Interface(s):
1 x RJ45 10M/100M self-adaptive Ethernet port Wi-Fi: No Wi-Fi
Details: No |
|
Security |
Security: Unmentioned Password Protection: No Watermark: No Motion Detection: Yes Human Detection: No Face Detection: No Lightning Protection: No Surge Protection: No Voltage Transient Protection: No Simultaneous Live View: No |
|
Technical
Data |
Video
Type: H.264/H.265/JPEG/MJPEG Mic
& Speaker: No Audio
Communication: Line-In: 1 x 3.5mm, 1-50mVpp; Line-Out: 1 x 3.5mm, 560ohm,
4.0Vpp Input
Trigger: Unmentioned Working
Distance: Unmentioned Protocols:
Network Protocol : SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP,
DNS (A record, SRV, NAPTR), DHCP, SSH, TFTP, NTP, STUN, LLDP-MED, TLS, SRTP |
|
Physical Attributes |
Form-Factor: Dome Card Slot: No Storage Type: No Storage Supported: N/A Body Material: Metal Color: Silver Dimensions: 109 x 93mm Weight (gm): 390 gm Relevant Accessories (Not Included): Unmentioned |
|
Power |
Power: 12V
DC Battery
Capacity: Not Applicable Battery
Backup: No Battery
Backup Time: Not Applicable Power
Supply: 12V DC + - 10%, 1 A Approx.
Power Consumption: Unmentioned Operating
Temperature: -20 Degree C - 50 Degree C Operating
Humidity: RH95% Max |
|
Warranty |
1 Year (Without Adapter) |
|
* Product may vary with different
Kit or Version |
|
Product Details
Grandstream
GSC3610 Outdoor Dome IP Camera
The Grandstream GSC3610 is a dome-style
IP camera designed for outdoor surveillance. With a 2.0MP
resolution, this camera provides clear video footage at 1920 x 1080
resolution, making it a reliable option for security purposes in various
environments.
Camera
Performance
The Grandstream GSC3610
features a 1/2.9 Inch Progressive CMOS Sensor to deliver 1080p
resolution. It supports dual video streams, with the primary stream
offering resolutions of 1920 x 1080, 1280 x 960, and 1280 x
720, while the secondary stream supports 1280 x 720, 704 x
576, 640 x 480, 352 x 288, and 320 x 240.
The camera also includes IR-cut
day and night functionality, ensuring clear black-and-white night vision.
However, wide dynamic range (WDR) is not supported, and noise
reduction features are absent.
Lens
& Viewing Capabilities
The camera comes with a 3.6mm
lens, offering a 55° to 2.4° horizontal viewing angle, 33° to
1.4° vertical viewing angle, and a 61.5° to 2.8° diagonal viewing angle.
These ranges provide a broad field of view, making it suitable for various
outdoor surveillance scenarios.
Network
& Connectivity
The Grandstream GSC3610 is
equipped with a 10M/100M self-adaptive Ethernet port (RJ45) for network
connectivity. It does not support Wi-Fi or SIM cards.
Security
Features
Basic motion detection is
supported, but features like human detection, face detection, or
other advanced security functions are not available. Additionally, there is no
support for password protection, watermarking, or encryption.
Video
& Image Quality
The camera supports H.264, H.265,
JPEG, and MJPEG video types. It allows for triple-stream
capabilities, which provides flexibility in video management, but lacks digital
noise reduction and wide dynamic range.
Physical
Build & Power
The camera has a dome form
factor with a metal body and comes in a silver color. It measures
109 x 93mm and weighs approximately 390g. It operates on 12V
DC power, requiring a 12V DC ±10%, 1A power supply.
Storage
This model does not support internal
storage or memory cards and does not have a storage option for local footage.
Operating
Conditions
The Grandstream GSC3610 can
operate in a range of -20°C to 50°C and withstand humidity up to 95%
(non-condensing), making it suitable for outdoor use in various weather
conditions.
Warranty
& Additional Information
The camera is backed by a 1-year
warranty (excluding the adapter). Please note that the product may vary
based on the kit or version.
