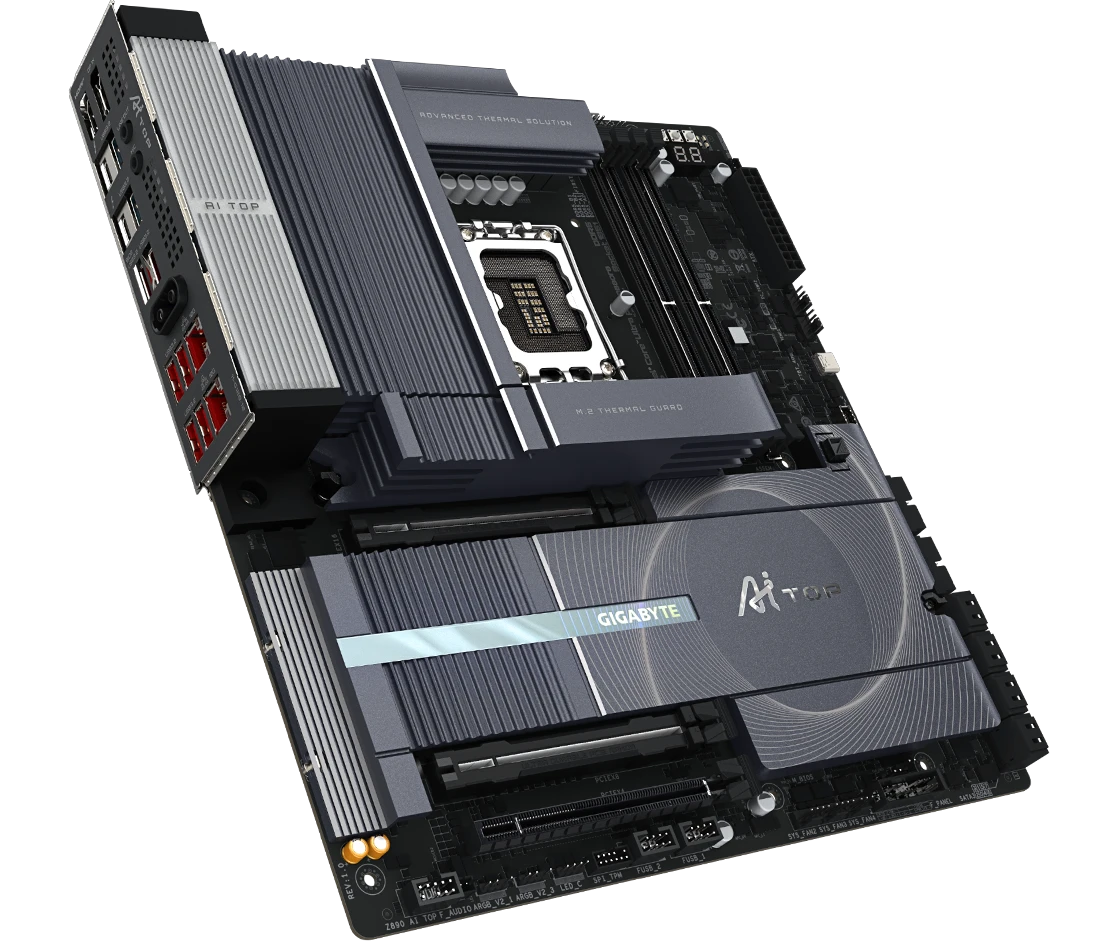

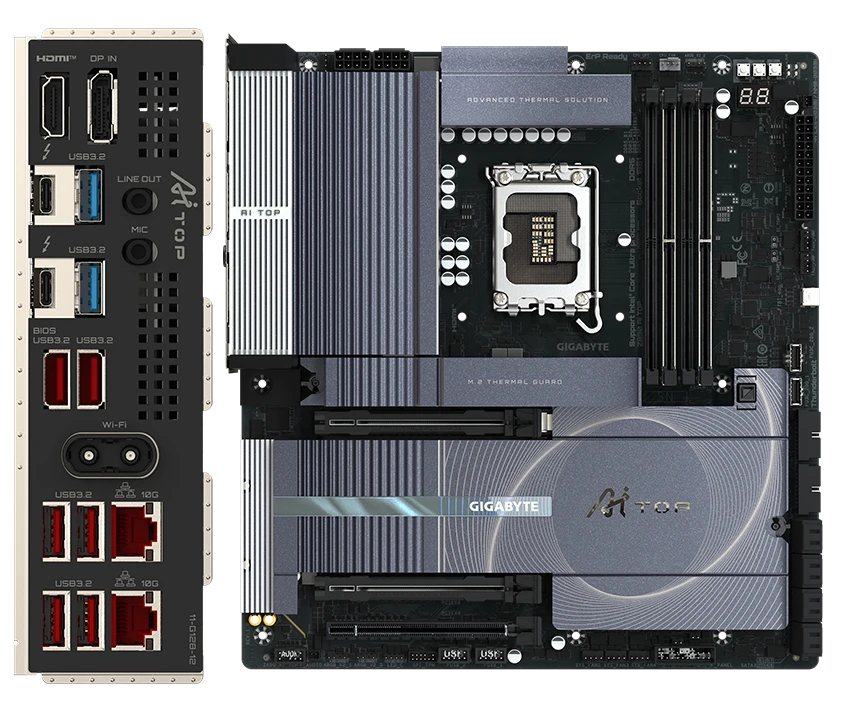

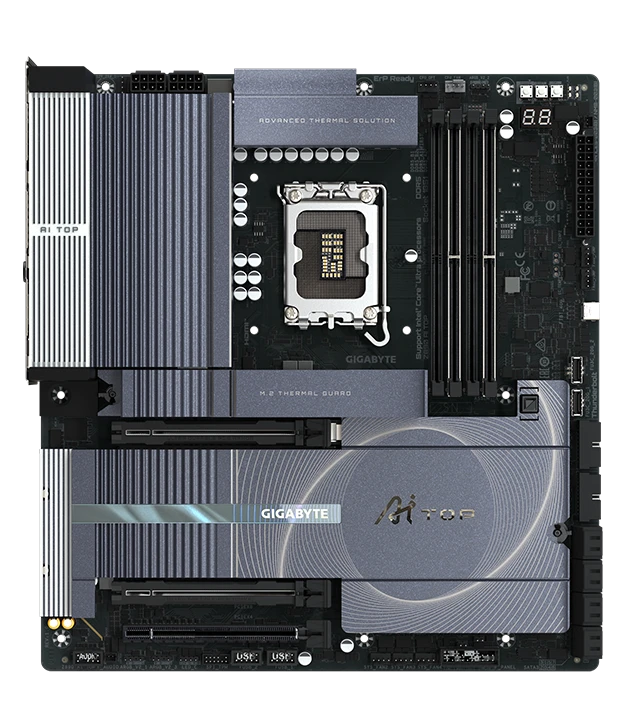

Gigabyte Z890 AI TOP (Wi-Fi 7) DDR5 E-ATX Motherboard

The Gigabyte Z890 AI TOP (Wi-Fi 7) motherboard is a cutting-edge solution for users looking to build a powerful, future-proof system. It features the Intel B860 chipset and supports the latest Intel Core Ultra processors, making it ideal for demanding applications like gaming, content creation, and AI-driven workloads.

Features

With DDR5 memory support, the Gigabyte Z890 AI TOP can handle up to 256GB of RAM across 4 DIMM slots. It offers overclocking capabilities with speeds up to 9500MHz (OC), ensuring that users can push their system to its maximum performance potential. The motherboard supports dual-channel memory architecture, providing faster data transfer speeds and improved system responsiveness.

Storage and Expansion

The Gigabyte Z890 AI TOP provides 4 M.2 slots for expanded storage options, with support for PCIe 5.0 and PCIe 4.0 standards. These high-speed connections ensure ultra-fast data transfer for SSDs. The motherboard also includes a 6Gb/s storage interface, offering versatility for additional SATA devices.

Graphics and Expansion

Equipped with 1 PCIe 5.0 x16 slot and additional PCIe 5.0 x8 and PCIe 4.0 x4 slots, this motherboard provides excellent expansion options for multi-GPU setups or other PCIe-based expansion cards. It ensures that users have enough bandwidth for modern GPUs and high-performance peripherals.

Networking and Audio

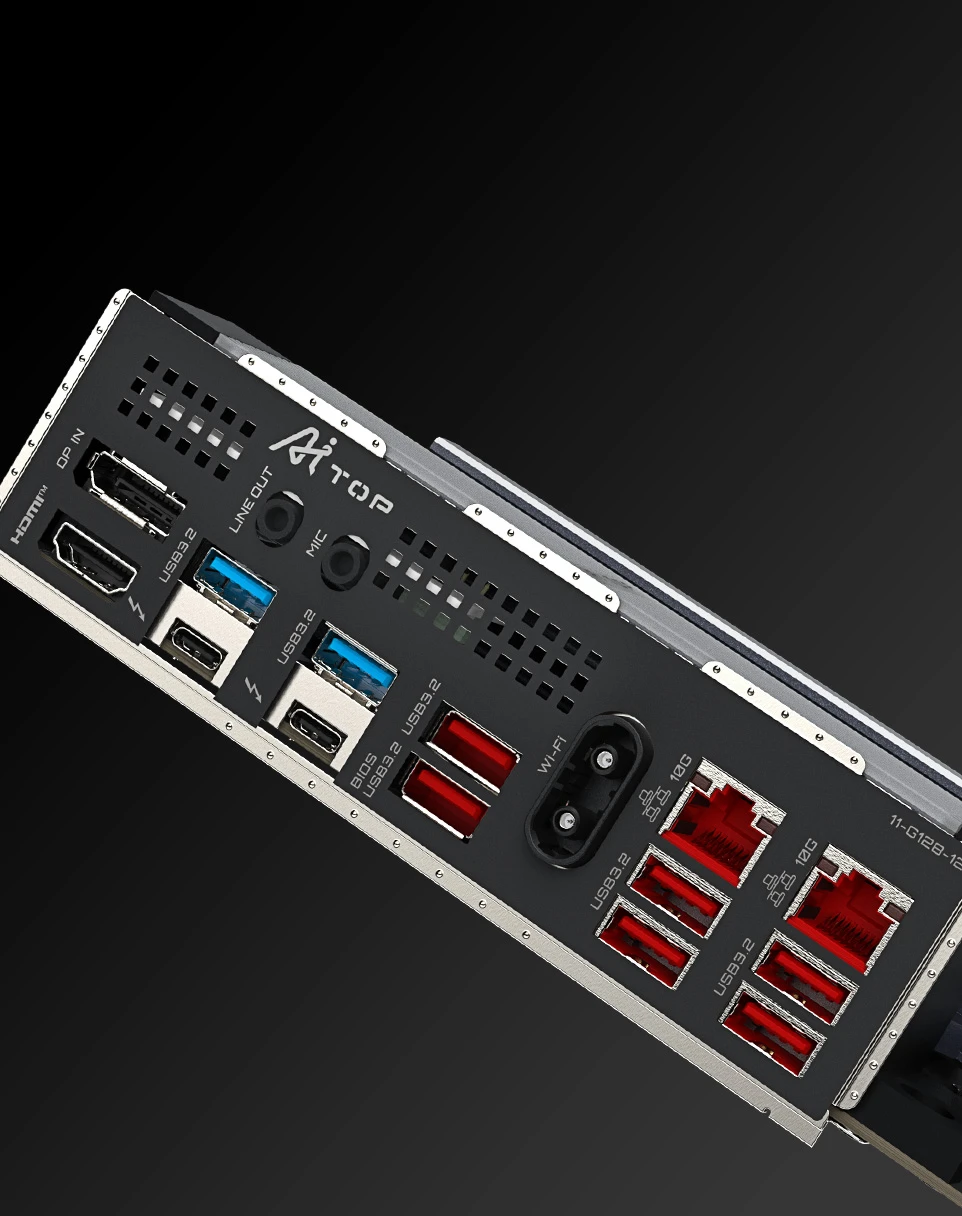

The Gigabyte Z890 AI TOP stands out with its dual 10GbE LAN via Marvell AQtion AQC113C chips, providing unmatched wired network speeds suitable for high-bandwidth applications like gaming, video editing, and data-heavy transfers. It also supports Wi-Fi 7 BE200 for the fastest wireless internet experience and Bluetooth 5.4 for connecting wireless peripherals with ease.

For audio, the motherboard integrates ESS ES9260 CODEC for rear panel audio and Realtek ALC897 CODEC for front panel audio, ensuring high-quality sound for immersive gaming and multimedia experiences.

Build and Design

With a sleek black design, the Gigabyte Z890 AI TOP is crafted to look as powerful as it performs. The motherboard features ARGB lighting, offering customizable lighting with 1 RGB LED strip header and 3 addressable RGB Gen2 LED strip headers. It also includes efficient heatsinks for cooling, ensuring stable performance even under heavy loads.

Compatibility and Warranty

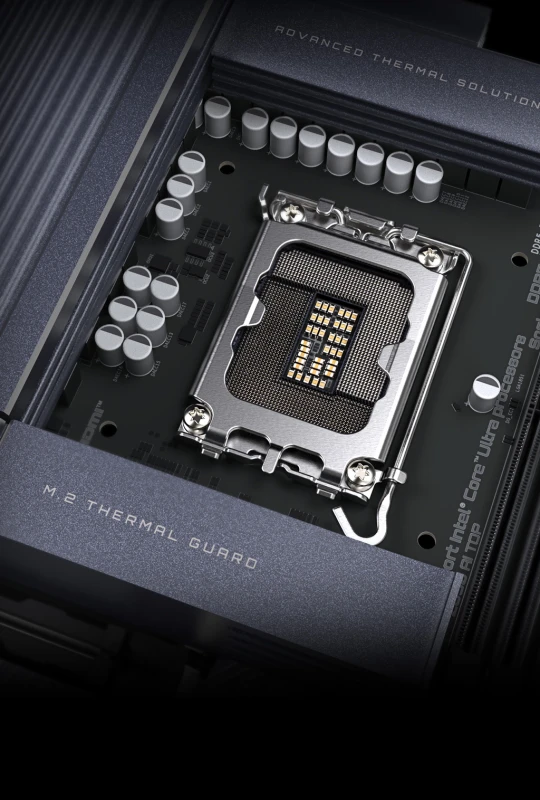

This motherboard is fully compatible with Windows 11, and designed specifically for Intel Core Ultra processors using the LGA1851 socket. With a 3-year warranty, users can expect long-term reliability from this high-performance board.

Price and Availability

The Gigabyte Z890 AI TOP (Wi-Fi 7) motherboard is available at Computer Village Agrabad, Chattogram, Bangladesh. For current pricing and availability, please check with the retailer.
