Gigabyte H610M K V2 Intel LGA 1700 12th, 13th & 14th Gen Micro ATX Motherboard
Key Specification
§ Intel®
H510 Express Chipset
§ 12th
13th & 14th Gen CPU Support
§ 2x
DDR5- 5600MHz Support (Maximum 128GB)
§ 1x
HDMI & 1x Display Port Output
§ Micro
ATX From Factor
Product Specification
|
Model |
H610M K V2 |
|
CPU Support |
LGA1700 socket: Support
for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and
Celeron® Processors |
|
Chipset |
Intel® H610 Express Chipset |
|
Form Factor |
Micro ATX Form
Factor; 22.6cm x 18.5cm |
|
Memory Support |
14th and 13th
Generation Intel® Core™ i9/i7 Pocessors: - Support for DDR5
5600/5200/4800/4400 MT/s memory modules 13th Generation
Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and
Celeron® Processors: - Support for DDR5
4800/4400 MT/s memory modules 2 x DDR5 DIMM
sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory
architecture Support for ECC
Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered
DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme
Memory Profile (XMP) memory modules |
|
Storage Support |
1 x M.2 connector
(Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s
connectors |
|
M.2 Socket |
1 x M.2 connector
(Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) |
|
Graphics |
1 x HDMI port,
supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort,
supporting a maximum resolution of 4096x2304@60 Hz |
|
Network |
Realtek® GbE LAN
chip (1 Gbps/100 Gbps/10 Mbps) |
|
PCI |
1 x PCI Express x16
slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x1
slot, supporting PCIe 3.0 and running at x1 |
|
Internal
Connectors |
1 x 24-pin ATX main
power connector 1 x 8-pin ATX 12V
power connector 1 x CPU fan header 1 x system fan
header 1 x M.2 Socket 3
connector 2 x SATA 6Gb/s
connectors 1 x front panel
header 1 x front panel
audio header 1 x USB 3.2 Gen 1
header 1 x USB 2.0/1.1
header 1 x Trusted Platform
Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2
module only) 1 x Clear CMOS
jumper |
|

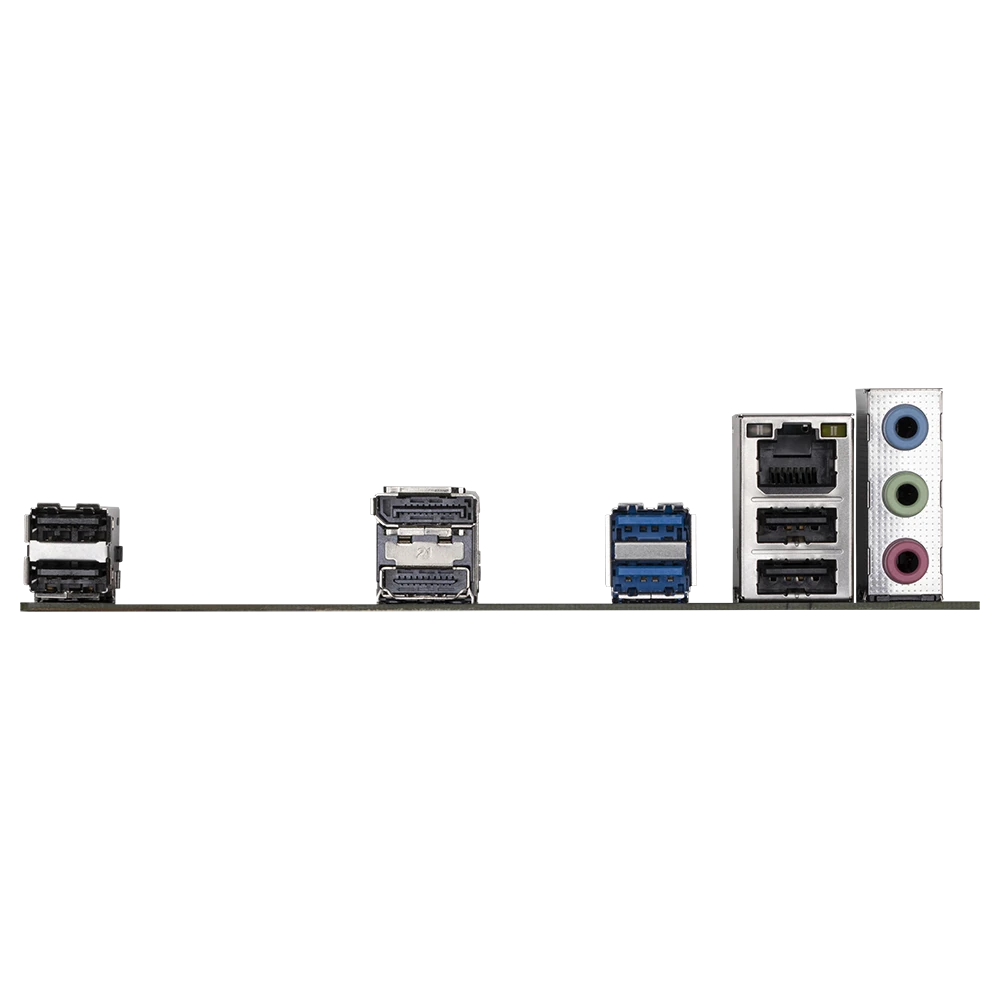

Back Panel Ports |
1 x HDMI port 1 x DisplayPort 2 x USB 3.2 Gen 1
ports 4 x USB 2.0/1.1
ports 1 x RJ-45 port 3 x audio jacks |
|
Audio |
Realtek® Audio CODEC High-Definition
Audio 2/4/5.1/7.1-channel |
|
USB |
4 x USB 3.2 Gen 1
ports (2 ports on the back panel, 2 ports available through the internal USB
header) - 6 x USB 2.0/1.1
ports (4 ports on the back panel, 2 ports available through the internal USB
header) |
|
BIOS |
1 x 128 Mbit flash Use of licensed AMI
UEFI BIOS PnP 1.0a, DMI 2.7,
WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Special Features |
iTE® I/O Controller
Chip |
|
Software
Features |
APP Center Q-Flash Norton® Internet
Security (OEM version) LAN bandwidth
management software |
|
Warranty |
3 Years |
Product Details
Gigabyte H610M K V2 motherboard is an exceptional choice for users seeking a
compact yet powerful foundation for their computing needs. Designed with
cutting-edge technology, this Micro ATX motherboard supports the latest Intel®
processors and high-speed DDR5 memory, ensuring optimal performance and
versatility for a variety of applications.
Processor
Compatibility
Equipped with the LGA1700 socket,
the H610M K V2 is compatible with 14th, 13th, and 12th Generation Intel®
Core™, Pentium® Gold, and Celeron® processors. This wide-ranging
support allows for scalable performance, making it suitable for tasks ranging
from everyday computing to demanding workloads.
High-Speed
Memory Support
With 2 DDR5 DIMM slots, the
motherboard supports up to 128GB of system memory with speeds reaching 5600
MT/s for 14th and 13th Generation Intel® Core™ i9/i7 processors. The
board also supports Extreme Memory Profile (XMP), enabling users to
optimize memory performance with ease.
Enhanced
Storage Options
The H610M K V2 features 1 M.2
connector (Socket 3, M key, PCIe 3.0 x4/x2) for ultra-fast SSDs, alongside 2
SATA 6Gb/s connectors for traditional storage solutions. This ensures ample
flexibility for both speed-focused and high-capacity storage setups.
Advanced
Display Capabilities
The motherboard offers versatile
display outputs, including 1 HDMI port with a maximum resolution of 4096x2160@60Hz
and 1 DisplayPort supporting up to 4096x2304@60Hz. These options
make it ideal for high-definition video, gaming, or professional multimedia
tasks.
Robust
Connectivity
For seamless networking, the board
integrates Realtek® GbE LAN, providing fast and reliable wired
connections. It includes an array of USB ports: 4 USB 3.2 Gen 1 ports
and 6 USB 2.0/1.1 ports, accommodating multiple peripherals with ease.
Expansion
and Versatility
With 1 PCIe 4.0 x16 slot and 1
PCIe 3.0 x1 slot, the motherboard supports high-performance GPUs and
additional expansion cards. Internal connectors include headers for USB 3.2,
USB 2.0, TPM, and front-panel audio, ensuring comprehensive customization
options.
User-Friendly
Features
The H610M K V2 includes APP
Center, allowing for convenient system management, and Q-Flash for
hassle-free BIOS updates. Preloaded software like Norton® Internet Security
adds an extra layer of protection.
Reliable
Audio
Featuring Realtek® Audio CODEC,
the motherboard delivers high-definition audio with support for 7.1-channel
surround sound, providing an immersive experience for gaming and
entertainment.
Durable
Design and Warranty
Built to last, the Gigabyte H610M K
V2 is backed by a 3-year warranty, ensuring long-term reliability and
peace of mind.
In summary, the Gigabyte H610M K
V2 is a versatile and dependable motherboard that combines performance,
scalability, and advanced features in a compact form factor. Whether you're
building a budget-friendly system or a high-performance rig, it’s a perfect fit
for any build.
