Gigabyte H510M H Intel LGA 1200 10th & 11th Gen Micro ATX Motherboard
Key Specification
§ Intel®
H510 Express Chipset
§ 10th
& 11th Gen CPU Support
§ 2x
DDR4- 3200MHz Support (Maximum 64GB)
§ 1x
HDMI & 1x D-Sub Output
§ Micro
ATX From Factor
Product Specification
|
Model |
H510M H |
|
CPU Support |
11th Generation
Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5
processors 10th Generation
Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5
processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®
Celeron® processors |
|
Chipset |
Intel® H510 Express Chipset |
|
Form Factor |
Micro ATX Form
Factor; 24.4cm x 21.0cm |
|
Memory Support |
11th Generation
Intel® Core™ i9/i7/i5 processors: Support for DDR4
3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation
Intel® Core™ i9/i7 processors: Support for DDR4
2933/2666/2400/2133 MHz memory modules 10th Generation
Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4
2666/2400/2133 MHz memory modules 2 x DDR4 DIMM
sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory
architecture Support for ECC
Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC
Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme
Memory Profile (XMP) memory modules |
|
Storage Support |
1 x M.2 connector
(Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s
connectors |
|
M.2 Socket |
M.2 connector
(Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) |
|
Graphics |
1 x D-Sub port,
supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port,
supporting a maximum resolution of 4096x2160@30 Hz |
|
Network |
Realtek® GbE LAN
chip (10/100/1000 Mbit) |
|
PCI |
1 x PCI Express x16
slot, running at x16 (PCIEX16) 1 x PCI Express x1
slot (PCIEX1_1) |
|
Internal
Connectors |
1 x 24-pin ATX main
power connector 1 x 8-pin ATX 12V
power connector 1 x CPU fan header 1 x system fan
header 1 x RGB LED strip
header 1 x M.2 Socket 3
connector 4 x SATA 6Gb/s connectors 1 x front panel
header 1 x front panel
audio header 1 x USB 3.2 Gen 1
header 1 x USB 2.0/1.1
header 1 x Trusted Platform
Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port
header 1 x Clear CMOS
jumper |
|

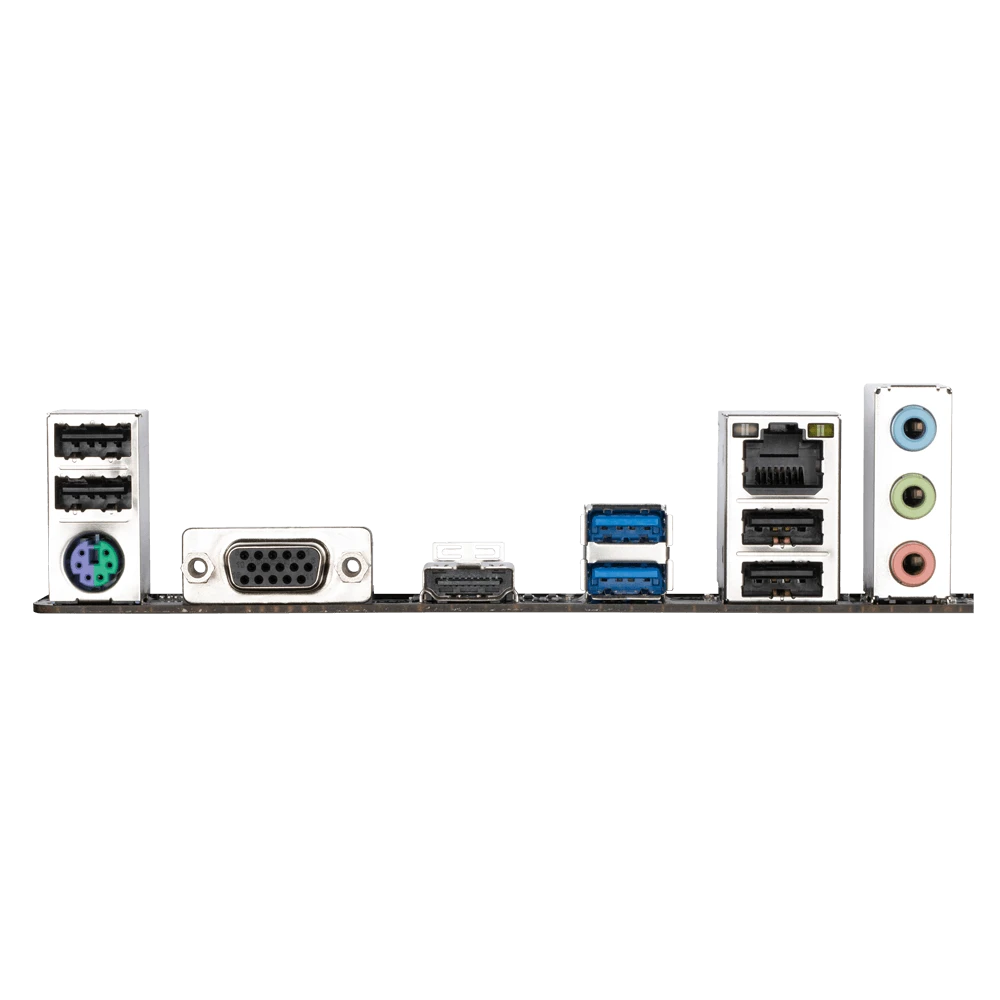

Back Panel Ports |
1 x PS/2
keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1
ports 4 x USB 2.0/1.1
ports 1 x RJ-45 port 3 x audio jacks |
|
Audio |
Realtek® Audio CODEC High-Definition
Audio 2/4/5.1/7.1-channel |
|
USB |
4 x USB 3.2 Gen 1
ports (2 ports on the back panel, 2 ports available through the internal USB
header) 6 x USB 2.0/1.1
ports (4 ports on the back panel, 2 ports available through the internal USB
header) |
|
BIOS |
1 x 256 Mbit flash Use of licensed AMI
UEFI BIOS PnP 1.0a, DMI 2.7,
WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Special Features |
iTE® I/O Controller
Chip |
|
Software
Features |
APP Center Q-Flash Xpress Install Norton® Internet
Security (OEM version) LAN bandwidth
management software |
|
Warranty |
3 Years |
Product Details

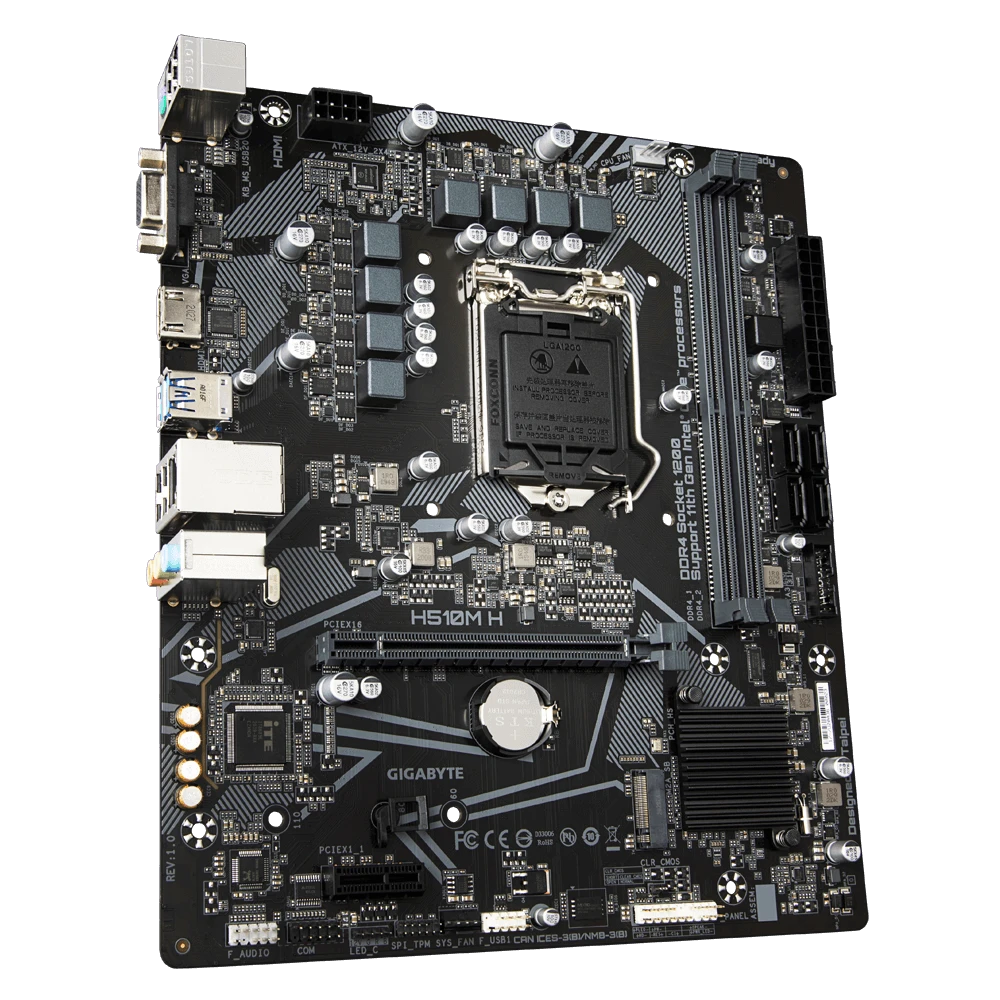

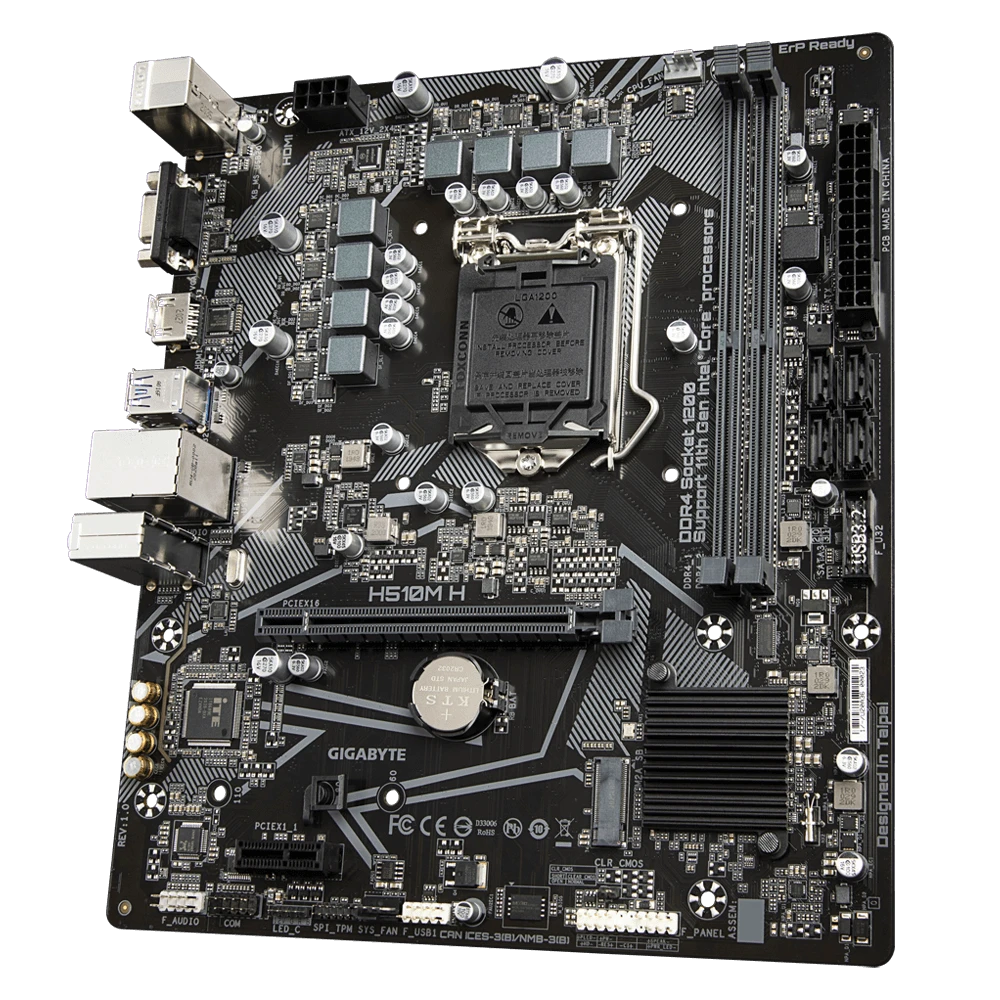

The Gigabyte H510M H
motherboard delivers reliable performance, robust features, and excellent
compatibility, making it an ideal choice for home, office, or entry-level
gaming systems. Its efficient design and advanced capabilities cater to users
seeking an affordable yet powerful platform for their computing needs.
Processor Compatibility:
The H510M H supports 11th and 10th Generation Intel® Core™ processors,
including i9, i7, i5, i3, Pentium®, and Celeron® models, via the Intel® H510
Express Chipset. This wide compatibility ensures the motherboard can handle
a variety of tasks with optimal performance.
Compact and Efficient Design:
With a Micro ATX form factor measuring 24.4cm x 21.0cm, this motherboard
is compact yet versatile, fitting easily into most PC cases without compromising
on functionality.
Memory Support:
Equipped with 2x DDR4 DIMM slots, the H510M H supports up to 64GB of
system memory. It accommodates various memory speeds (up to DDR4 3200 MHz
with 11th Gen processors) and supports Dual Channel Architecture,
ensuring smooth multitasking and improved system performance.
Storage Flexibility:
This motherboard features 1x M.2 connector (PCIe 3.0 x4/x2 and SATA
support) and 4x SATA 6Gb/s connectors, allowing for fast and versatile
storage options to meet the demands of modern applications and games.
Graphics and Display:
The H510M H provides excellent visual output through its HDMI port (supporting
4K resolution at 30Hz) and D-Sub port (supporting up to 1920x1200 at
60Hz), ensuring crisp and clear display quality for work or entertainment.
Network and Connectivity:
The Realtek® GbE LAN chip delivers a fast and stable wired network
connection (up to 1 Gbps). The board also features a range of USB ports,
including 2x USB 3.2 Gen 1 and 4x USB 2.0/1.1 on the back panel,
with additional internal headers for expanded connectivity.
Expansion Slots:
The motherboard includes 1x PCI Express x16 slot for high-performance
GPUs and 1x PCI Express x1 slot for additional peripherals, offering
customization options for various user needs.
Audio Excellence:
Powered by the Realtek® Audio CODEC, it supports 7.1-channel
high-definition audio, delivering immersive sound for a superior media
experience.
User-Friendly Features:
The APP Center software simplifies system customization and
optimization, while Q-Flash enables easy BIOS updates. Additional
features like RGB LED headers and TPM support enhance functionality and
security.
Warranty:
Enjoy reliable performance backed by a 3-year warranty, ensuring
long-term support and peace of mind.
The Gigabyte H510M H motherboard
combines affordability, quality, and performance, making it a perfect
foundation for your next PC build.
