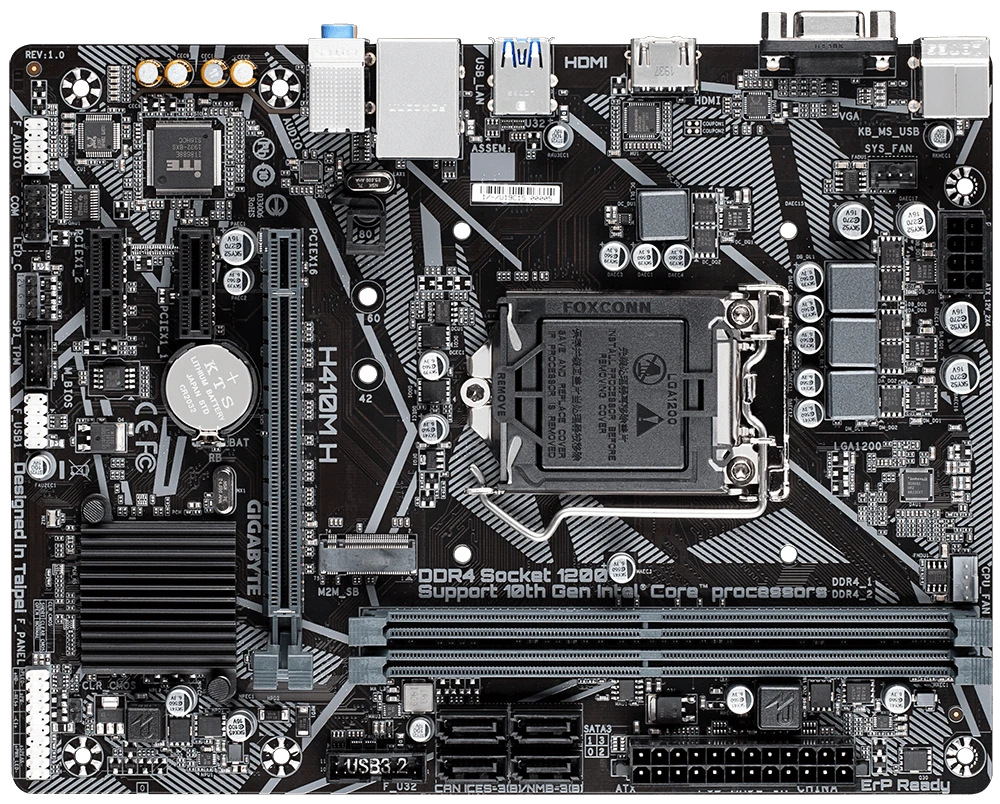

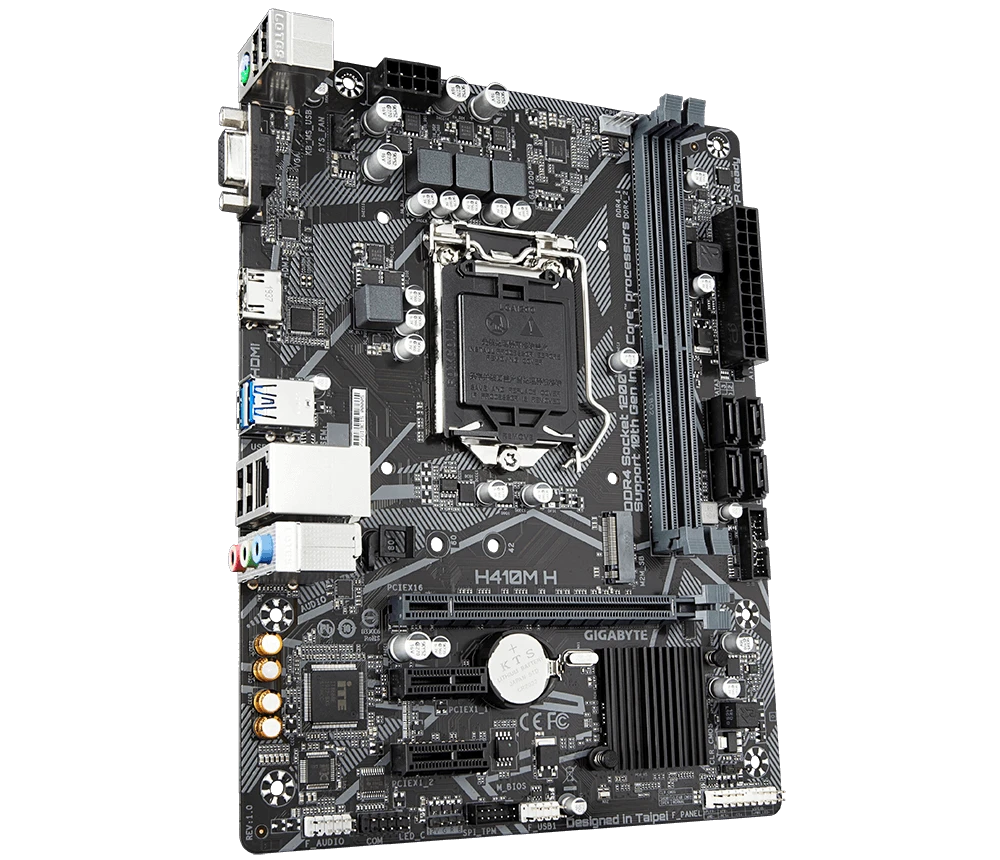

Gigabyte H410M H Intel LGA 1200 10th Gen Micro ATX Motherboard
Key Specification
§ Intel®
H410 Express Chipset
§ 10th
Gen CPU Support
§ 2x
DDR4- 2933MHz Support (Maximum 64GB)
§ 1x
HDMI & 1x D-Sub Output
§ Micro
ATX From Factor
Product Specification
|
Model |
H410M H |
|
CPU Support |
Support for 10th Generation
Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5
processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®
Celeron® processors in the LGA1200 package |
|
Chipset |
Intel® H410 Express Chipset |
|
Form Factor |
Micro ATX Form
Factor; 22.6cm x 17.4cm |
|
Memory Support |
Intel® Core™ i9/i7
processors: Support for DDR4
2933/2666/2400/2133 MHz memory modules Intel® Core™
i5/i3/Pentium®/Celeron® processors: Support for DDR4
2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets
supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory
architecture Support for ECC
Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC
Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme
Memory Profile (XMP) memory modules |
|
Storage Support |
1 x M.2 connector
(Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s
connectors |
|
M.2 Socket |
1 x M.2 connector
(Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) |
|
Graphics |
1 x D-Sub port,
supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI ports,
supporting a maximum resolution of 4096x2160@30 Hz |
|
Network |
Realtek® GbE LAN
chip (1000 Mbit/100 Mbit) |
|
PCI |
1 x PCI Express x16
slot, running at x16 2 x PCI Express x1
slots |
|
Internal
Connectors |
1 x 24-pin ATX main
power connector 1 x 8-pin ATX 12V
power connector 1 x CPU fan header 1 x system fan
header 1 x RGB LED strip
header 4 x SATA 6Gb/s
connectors 1 x M.2 Socket 3
connector 1 x front panel
header 1 x front panel
audio header 1 x USB 3.2 Gen 1
header 1 x USB 2.0/1.1
header 1 x Trusted Platform
Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port
header 1 x Clear CMOS
jumper |
|
Back Panel Ports |
1 x PS/2
keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.2 Gen 1
ports 4 x USB 2.0/1.1
ports 1 x RJ-45 port 3 x audio jacks |
|
Audio |
Realtek® audio codec High-Definition
Audio 2/4/5.1/7.1-channel |
|
USB |
4 x USB 3.2 Gen 1
ports (2 ports on the back panel, 2 ports available through the internal USB
header) 6 x USB 2.0/1.1
ports (4 ports on the back panel, 2 ports available through the internal USB
header) |
|
BIOS |
1 x 128 Mbit flash Use of licensed AMI
UEFI BIOS PnP 1.0a, DMI 2.7, WfM
2.0, SM BIOS 2.7, ACPI 5.0 |
|
Special Features |
iTE® I/O Controller
Chip |
|
Software
Features |
APP Center Q-Flash Norton® Internet
Security (OEM version) Realtek® 8118 Gaming
LAN Bandwidth Control Utility |
|
Warranty |
3 Years |
Product Details
Gigabyte H410M H is a robust and versatile Micro ATX motherboard designed
for users seeking reliable performance for everyday computing or light gaming.
Powered by the Intel® H410 Express Chipset, it supports 10th
Generation Intel® Core™, Pentium®, and Celeron® processors in the LGA1200
socket, delivering a balance of performance and efficiency.
Processor
and Memory Support
This motherboard is compatible with 10th
Generation Intel® Core™ i9, i7, i5, and i3 processors, offering a powerful
platform for multitasking and productivity. It supports DDR4 memory modules
at speeds up to 2933 MHz with i9/i7 processors and 2666 MHz for
other models. With 2 DIMM sockets, it accommodates up to 64 GB of
dual-channel memory, making it future-proof for memory-intensive applications.
Additional support for Extreme Memory Profile (XMP) ensures enhanced
overclocking capabilities.
Storage
Options
The H410M H features 1 M.2 slot
(supporting SATA and PCIe x2 SSDs) and 4 SATA 6Gb/s ports, enabling
users to combine high-speed SSDs with traditional HDDs for flexible storage
configurations.
Graphics
and Display
The board supports integrated
graphics with connectivity options including 1 HDMI port (max
resolution: 4096x2160@30Hz) and 1 D-Sub port (max resolution: 1920x1200@60Hz),
ensuring compatibility with modern and legacy display devices.
Network
and Audio
Equipped with the Realtek® GbE
LAN chip, the motherboard ensures stable and fast network connectivity. The
Realtek® audio codec delivers immersive, high-definition sound with
support for 2/4/5.1/7.1-channel configurations, making it ideal for
multimedia experiences.
Expansion
and Connectivity
The H410M H offers expandability
through 1 PCIe x16 slot (running at x16) and 2 PCIe x1 slots for
additional cards. Its USB configuration includes 2 USB 3.2 Gen 1 ports
and 4 USB 2.0/1.1 ports on the back panel, with more available via
internal headers.
User-Friendly
Features
The board integrates RGB LED
strip support, allowing users to customize their system aesthetics. The APP
Center software simplifies system management, while Q-Flash ensures
easy BIOS updates. Additionally, Norton® Internet Security (OEM)
provides enhanced protection.
Compact
and Durable Design
With a compact Micro ATX form factor
(22.6cm x 17.4cm), the H410M H fits easily into smaller cases without
compromising functionality. Backed by a 3-year warranty, it offers a
dependable and durable solution for diverse computing needs.
The Gigabyte H410M H is an
excellent choice for budget-conscious users who demand reliability, efficiency,
and modern features in a compact design.
