Gigabyte H310M M.2 2.0 Intel LGA 1151 8th & 9th Gen Micro ATX Motherboard
Key Specification
§ Intel®
H310 Express Chipset
§ 8th
& 9th Gen CPU Support
§ 2x
DDR4- 2666MHz Support (Maximum 32GB)
§ 1x
HDMI & 1x D-Sub Output
§ Micro
ATX From Factor
Product Specification
PRODUCT
SPECIFICATION:
|
Model |
H310M M.2 2.0 |
|
CPU Support |
Support for 9th and
8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel®
Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium®
processors/Intel® Celeron® processors in the LGA1151 package |
|
Chipset |
Intel® H310 Express Chipset |
|
Form Factor |
Micro ATX Form
Factor; 22.6cm x 17.4cm |
|
Memory Support |
2 x DDR4 DIMM
sockets supporting up to 32 GB of system memory Dual channel memory
architecture Support for DDR4
2666/2400/2133 MHz memory modules Support for ECC
Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC
Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme
Memory Profile (XMP) memory modules |
|
Storage Support |
1 x M.2 connector
(Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) 4 x SATA 6Gb/s
connectors |
|
M.2 Socket |
1 x M.2 connector
(Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support) |
|
Graphics |
1 x D-Sub port,
supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port,
supporting a maximum resolution of 4096x2160@30 Hz |
|
Network |
Realtek® GbE LAN
chip (10/100/1000 Mbit) |
|
PCI |
1 x PCI Express x16
slot, running at x16 2 x PCI Express x1
slots |
|
Internal
Connectors |
1 x 24-pin ATX main
power connector 1 x 4-pin ATX 12V
power connector 4 x SATA 6Gb/s
connectors 1 x CPU fan header 1 x system fan header 1 x front panel
header 1 x front panel
audio header 1 x USB 3.1 Gen 1
header 1 x USB 2.0/1.1
header 1 x Trusted Platform
Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS
jumper |
|

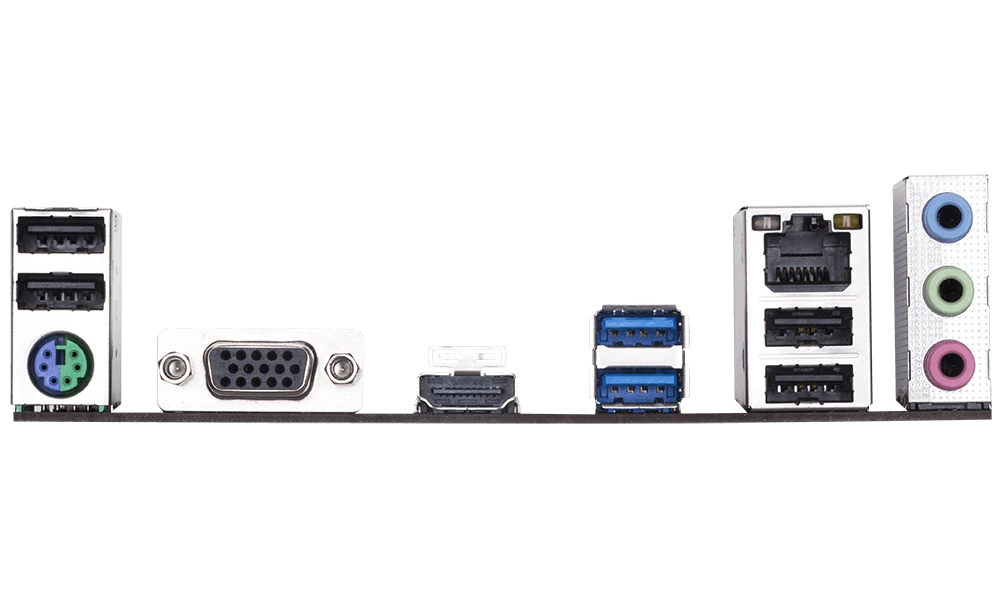

Back Panel Ports |
1 x PS/2 keyboard/mouse
port 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1
ports 4 x USB 2.0/1.1
ports 1 x RJ-45 port 3 x audio jacks |
|
Audio |
Realtek® Audio codec High-Definition
Audio 2/4/5.1/7.1-channel |
|
USB |
4 x USB 3.1 Gen 1
ports (2 ports on the back panel, 2 ports available through the internal USB
header) 6 x USB 2.0/1.1
ports (4 ports on the back panel, 2 ports available through the internal USB
header) |
|
BIOS |
1 x 128 Mbit flash Use of licensed AMI
UEFI BIOS PnP 1.0a, DMI 2.7,
WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Special Features |
iTE® I/O Controller
Chip |
|
Software
Features |
APP Center Q-Flash Norton® Internet
Security (OEM version) Realtek® 8118 Gaming
LAN Bandwidth Control Utility |
|
Warranty |
3 Years |
Product Details
Gigabyte H310M M.2 2.0 motherboard is an excellent choice for users seeking a
reliable and feature-rich solution for building or upgrading their computer
system. Its compact Micro ATX form factor, combined with robust performance and
advanced features, makes it an ideal choice for various computing needs, from
daily use to gaming and productivity.
Processor
Compatibility
The motherboard supports 9th and
8th Generation Intel® Core™, Pentium®, and Celeron® processors in the LGA1151
socket, offering excellent performance and scalability. Whether you're
using a high-end Intel® Core™ i9 processor or a cost-effective Intel®
Celeron® processor, this board delivers outstanding performance.
High-Speed
Memory Support
Equipped with 2 DDR4 DIMM slots,
the Gigabyte H310M M.2 2.0 supports up to 32GB of system memory with
speeds of up to 2666MHz. It also supports ECC and non-ECC Un-buffered
DIMM modules (operating in non-ECC mode) and Extreme Memory Profile
(XMP) for optimized memory performance.
Flexible
Storage Options
This motherboard features 1 M.2
connector (Socket 3, M key) compatible with SATA and PCIe x2 SSDs, allowing
for high-speed storage solutions. Additionally, 4 SATA 6Gb/s connectors
provide ample support for traditional storage drives.
Advanced
Graphics Support
For display options, the board
includes 1 HDMI port, supporting resolutions up to 4096x2160@30Hz,
and 1 D-Sub port for resolutions up to 1920x1200@60Hz. This makes
it suitable for both modern monitors and legacy displays, ensuring excellent
visual quality for various tasks.
Enhanced
Connectivity
The motherboard integrates Realtek®
GbE LAN for high-speed and reliable networking. It provides a range of
connectivity options, including 4 USB 3.1 Gen 1 ports and 6 USB
2.0/1.1 ports to connect peripherals and devices effortlessly.
Expansion
Capabilities
With 1 PCIe x16 slot (running
at x16) and 2 PCIe x1 slots, the H310M M.2 2.0 supports graphics cards,
network adapters, and other expansion cards. Internal headers include support
for USB 3.1, USB 2.0, and TPM.
Immersive
Audio
The board features Realtek®
High-Definition Audio, delivering rich and immersive sound with support for
2/4/5.1/7.1-channel configurations.
User-Friendly
Features
The APP Center provides a
centralized interface for managing system features, while Q-Flash
simplifies BIOS updates. The inclusion of Realtek® 8118 Gaming LAN
ensures optimized bandwidth for gaming and streaming.
Durability
and Warranty
The Gigabyte H310M M.2 2.0 is
built for longevity and comes with a 3-year warranty, ensuring peace of
mind and reliable performance.
This motherboard is a versatile and
budget-friendly solution for building a high-performance system, making it
perfect for gamers, professionals, and everyday users.
