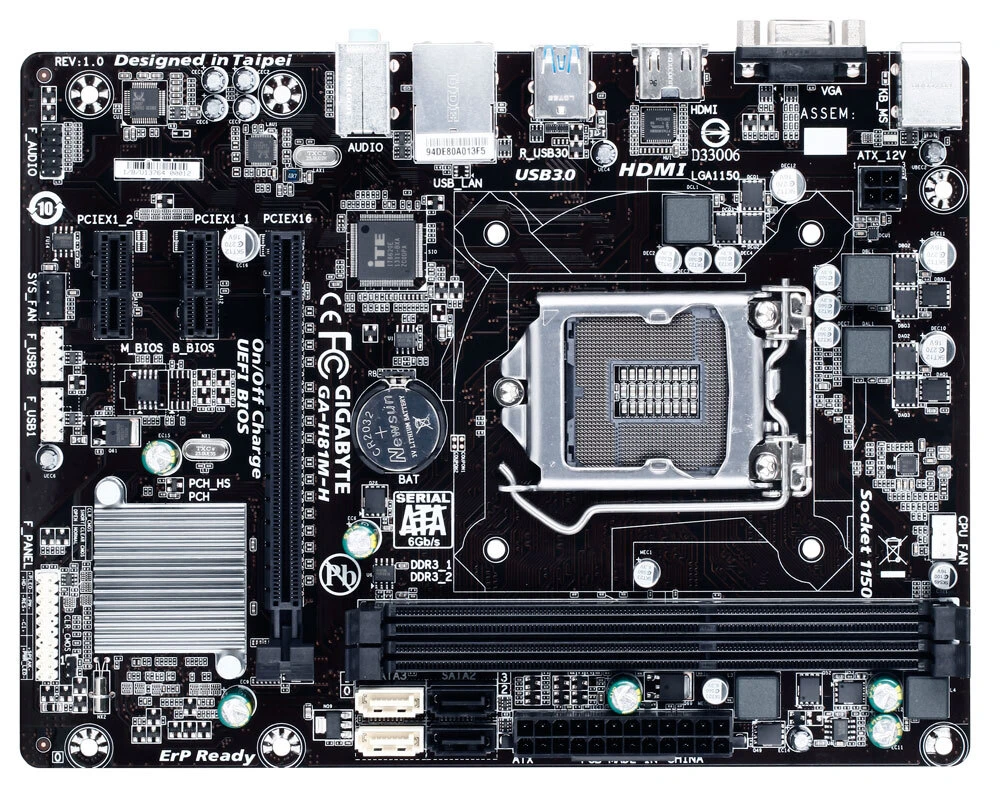

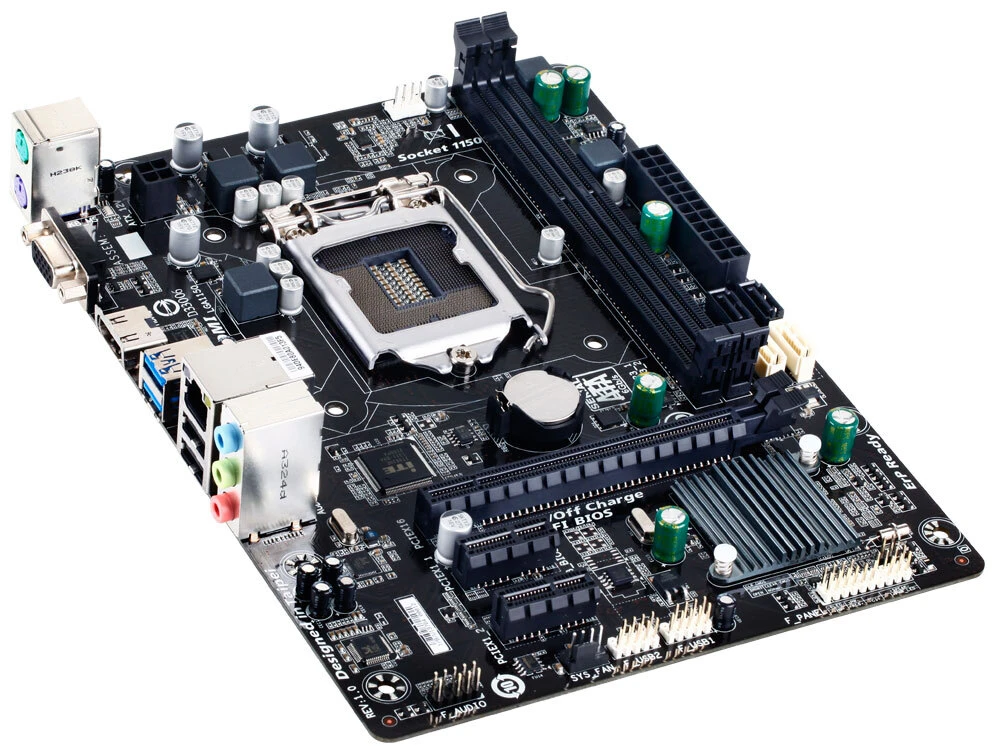

Gigabyte GA-H81M-H Intel LGA 1150 4th Gen Micro ATX Motherboard
Key Specification
§ Intel®
H81 Express Chipset
§ 4th
Gen CPU Support
§ 2x
DDR3- 1600MHz Support (Maximum 16GB)
§ 1x
HDMI & 1x D-Sub Output
§ Micro
ATX From Factor
Product Specification
|
Model |
GA-H81M-H |
|
CPU Support |
Support for Intel®
Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3
processors/Intel® Pentium® processors/Intel® Celeron® processors in the
LGA1150 package |
|
Chipset |
Intel®H81 Express Chipset |
|
Form Factor |
Micro ATX Form
Factor; 22.6cm x 17cm |
|
Memory Support |
2 x 1.5V DDR3 DIMM
sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit
operating system limitation, when more than 4 GB of physical memory is
installed, the actual memory size displayed will be less than the size of the
physical memory installed. Dual channel memory
architecture Support for DDR3
1600/1333 MHz memory modules Support for non-ECC
memory modules Support for Extreme
Memory Profile (XMP) memory modules |
|
Storage Support |
2 x SATA 6Gb/s
connectors (SATA3 0/1) 2 x SATA 3Gb/s
connectors (SATA2 2/3) |
|
M.2 Socket |
No |
|
Graphics |
1 x D-Sub port,
supporting a maximum resolution of 1920x1200 1 x HDMI port,
supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz |
|
Network |
Realtek® GbE LAN
chip (10/100/1000 Mbit) |
|
PCI |
1 x PCI Express x16
slot, running at x16 2 x PCI Express x1
slots |
|
Internal
Connectors |
1 x 24-pin ATX main
power connector 1 x 4-pin ATX 12V
power connector 2 x SATA 6Gb/s
connectors 2 x SATA 3Gb/s
connectors 1 x CPU fan header 1 x system fan
header 1 x front panel
header 1 x front panel
audio header 2 x USB 2.0/1.1
headers 1 x Clear CMOS
jumper |
|
Back Panel Ports |
1 x PS/2 mouse port 1 x PS/2 Keyboard
port 1 x D-Sub port 1 x HDMI port 2 x USB 3.0/2.0
ports 2 x USB 2.0/1.1
ports 1 x RJ-45 port 3 x audio jacks
(Line In, Line Out, Mic In) |
|
Audio |
Realtek® ALC887
codec High-Definition
Audio 2/4/5.1/7.1-channel |
|
USB |
2 x USB 3.0/2.0
ports on the back panel 6 x USB 2.0/1.1
ports (2 ports on the back panel, 4 ports available through the internal USB
headers) |
|
BIOS |
1 x 32 Mbit flash Use of licensed AMI
EFI BIOS PnP 1.0a, DMI 2.7,
WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Special Features |
iTE® I/O Controller
Chip |
|
Software
Features |
APP Center Q-Flash Norton® Internet
Security (OEM version) |
|
Warranty |
3 Years |
Product Details
Gigabyte GA-H81M-H is a feature-packed, budget-friendly motherboard designed
for everyday computing and small-scale gaming setups. Built on the Intel®
H81 Express Chipset, this Micro ATX motherboard is ideal for users looking
for reliability, versatility, and efficient performance in a compact form
factor.
Processor
Compatibility
The GA-H81M-H supports a wide range
of Intel® Core™ i7, i5, and i3 processors, as well as Pentium® and
Celeron® processors in the LGA1150 package, providing ample power
for various tasks, including multitasking, productivity, and light gaming.
Memory
Support
This motherboard features 2 DDR3
DIMM sockets with support for up to 16 GB of system memory. It
supports DDR3 1600/1333 MHz memory modules, non-ECC memory, and Extreme
Memory Profile (XMP) modules, ensuring smooth and efficient performance for
most applications.
Storage
Capabilities
Equipped with 2 SATA 6Gb/s
connectors and 2 SATA 3Gb/s connectors, the GA-H81M-H offers
flexibility in storage options, allowing users to connect a combination of
high-speed SSDs and traditional HDDs for optimized performance and storage
capacity.
Graphics
and Display
For display connectivity, the board
includes 1 HDMI port, supporting resolutions up to 4096x2160 at 24Hz
or 2560x1600 at 60Hz, as well as 1 D-Sub port, supporting a
maximum resolution of 1920x1200. These options cater to both modern
monitors and legacy displays.
Enhanced
Networking and Connectivity
The Realtek® GbE LAN chip
ensures reliable and high-speed network connectivity. The motherboard also
includes 2 USB 3.0/2.0 ports for fast data transfer and 6 USB 2.0/1.1
ports for peripherals, making it easy to connect multiple devices.
Audio
Features
The integrated Realtek® ALC887
codec delivers high-definition audio, supporting 2/4/5.1/7.1-channel configurations,
making it suitable for immersive multimedia experiences.
Expansion
Slots
The GA-H81M-H is equipped with 1
PCIe x16 slot for graphics cards and 2 PCIe x1 slots for additional
expansion cards, offering scalability for future upgrades.
User-Friendly
Features
With APP Center, users can
easily manage system utilities, while Q-Flash enables straightforward
BIOS updates. It also comes with Norton® Internet Security (OEM version)
for enhanced system protection.
Compact
and Durable Design
The Micro ATX form factor
(22.6cm x 17cm) makes it suitable for small cases without compromising
performance. Backed by a 3-year warranty, the GA-H81M-H is a durable and
dependable choice for budget-conscious users seeking reliable performance.
