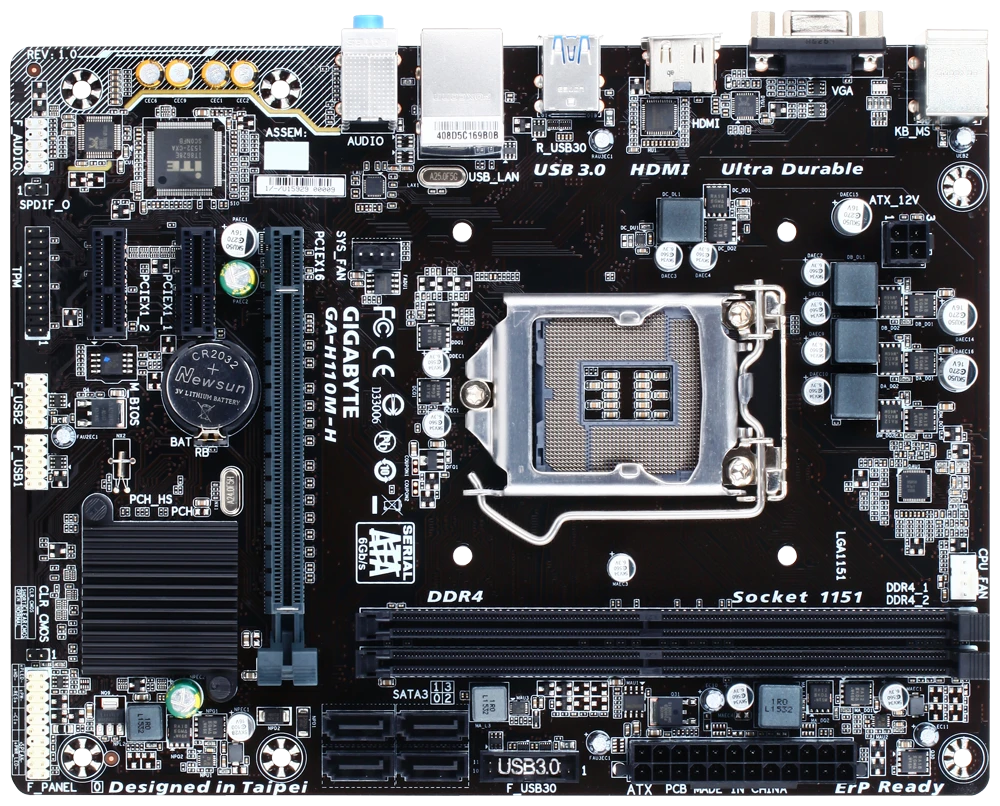

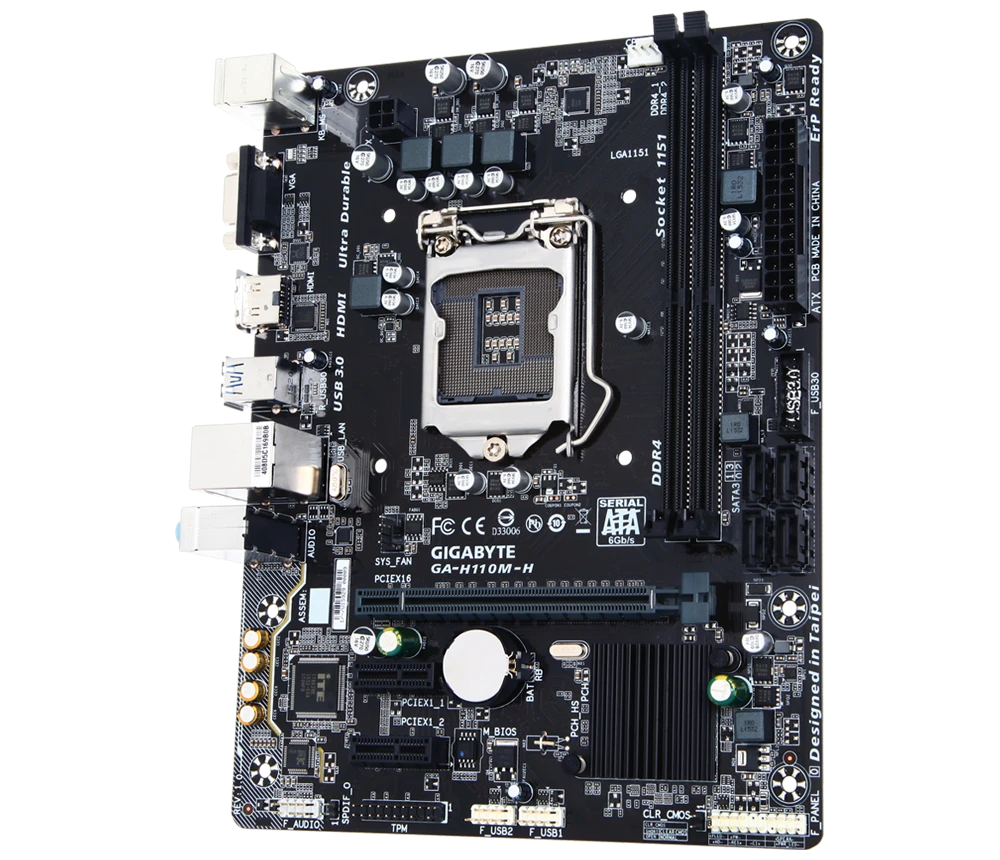

Gigabyte GA-H110M-H motherboard is a feature-packed and reliable solution designed for 7th/6th Generation Intel® Core™ processors including i7, i5, i3, Pentium®, and Celeron® in the LGA1151 socket. Powered by the Intel® H110 Express chipset, this Micro ATX motherboard offers versatility and performance, making it ideal for home and office builds or for upgrading your existing system.

With 2 x DDR4 DIMM slots, the GA-H110M-H supports up to 32 GB of system memory with speeds of up to 2400 MHz. The motherboard ensures dual-channel memory architecture for enhanced data throughput and multitasking capabilities. Additionally, it provides compatibility with ECC UDIMM and non-ECC memory for added flexibility in memory configuration, supporting both 1Rx8/2Rx8/1Rx16 memory modules.

In terms of storage, the GA-H110M-H offers 4 x SATA 6Gb/s connectors, enabling fast data transfer rates for hard drives and SSDs. While it does not have an M.2 socket, the SATA ports provide ample options for efficient data storage and retrieval. For graphics, the board includes a D-Sub port supporting a resolution of 1920x1200@60 Hz and an HDMI port that supports 4096x2160@24 Hz, offering clear, sharp visuals for various media tasks, with a maximum shared memory of 1024 MB.

Networking is handled by the Realtek® GbE LAN chip, ensuring reliable and fast network connectivity with 1 Gbit/100 Mbit support. The motherboard also includes expansion options, with 1 x PCI Express x16 slot (PCIe 3.0) for high-speed graphics cards and 2 x PCI Express x1 slots for additional expansion cards.

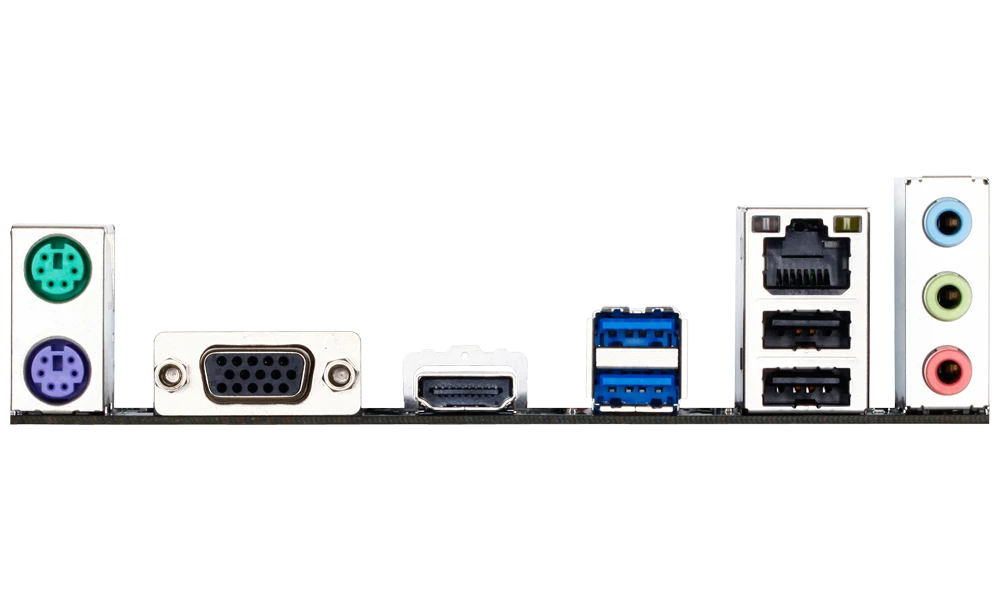

The GA-H110M-H is packed with connectivity options for ease of use, featuring USB 3.0/2.0, USB 2.0/1.1, and audio jacks, making it versatile for various peripherals. It also supports S/PDIF Out for high-quality audio output. Onboard features include a TPM header, clear CMOS jumper, and a variety of internal connectors such as a front panel header, CPU fan header, and more.

The Gigabyte GA-H110M-H motherboard comes with licensed AMI UEFI BIOS and is protected by a 3-year warranty, ensuring long-lasting reliability and customer support. Its iTE® I/O controller chip and LAN bandwidth management software enhance system performance, providing a complete and efficient solution for users who demand a high-quality, budget-friendly motherboard.
