Gigabyte B860M D3HP DDR5 (Intel Core Ultra LGA1851 Socket) Motherboard
Key Specification
Product Specification
|
Brand |
Gigabyte |
|
Model |
Gigabyte
B860M D3HP |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B860 Sockets
Supported: LGA1851 Built-in
Processor: N/A Supported
CPUIntel Core Ultra Processors Generation:
Ultra |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 9066(O.C)/ 8800(O.C)/ 8600(O.C)/
8400(O.C)/ 8266(O.C)/ 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/
7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400/
5600 MT/s Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage
Info |
Storage
Interface: 6Gb/s, M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion : 2 x M.2 (1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0
x4/x2 SSD support)(M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2280
PCIe 4.0 x4/x2 SSD support)(M2Q_SB)) |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCI Express x16 slot,
supporting PCIe 5.0 and running at x16, 2 x PCI Express x1 slots, supporting
PCIe 3.0 and running at x1 |
|
Audio
& Video |
Audio
Chipset: Realtek Audio CODEC High Definition Audio Audio
Channel –2/4/5.1/7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek GbE LAN chip LAN Speed (Mbps): 10/ 100/ 1000Mbps |
|
Ports Data |
USB
Port: 3 x USB 2.0/1.1 Type-A, 3 x USB 3.2 Gen 1 Type-A VGA
Port: N/A HDMI
Port: 1 Display:
1 TPM: 1 SATA
Port: 4 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 2 x RGB LED strip header Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / Windows 11 Compatible
Products: Compatible with LGA1851 Core Ultra Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Gigabyte
B860M D3HP DDR4 Micro-ATX Motherboard

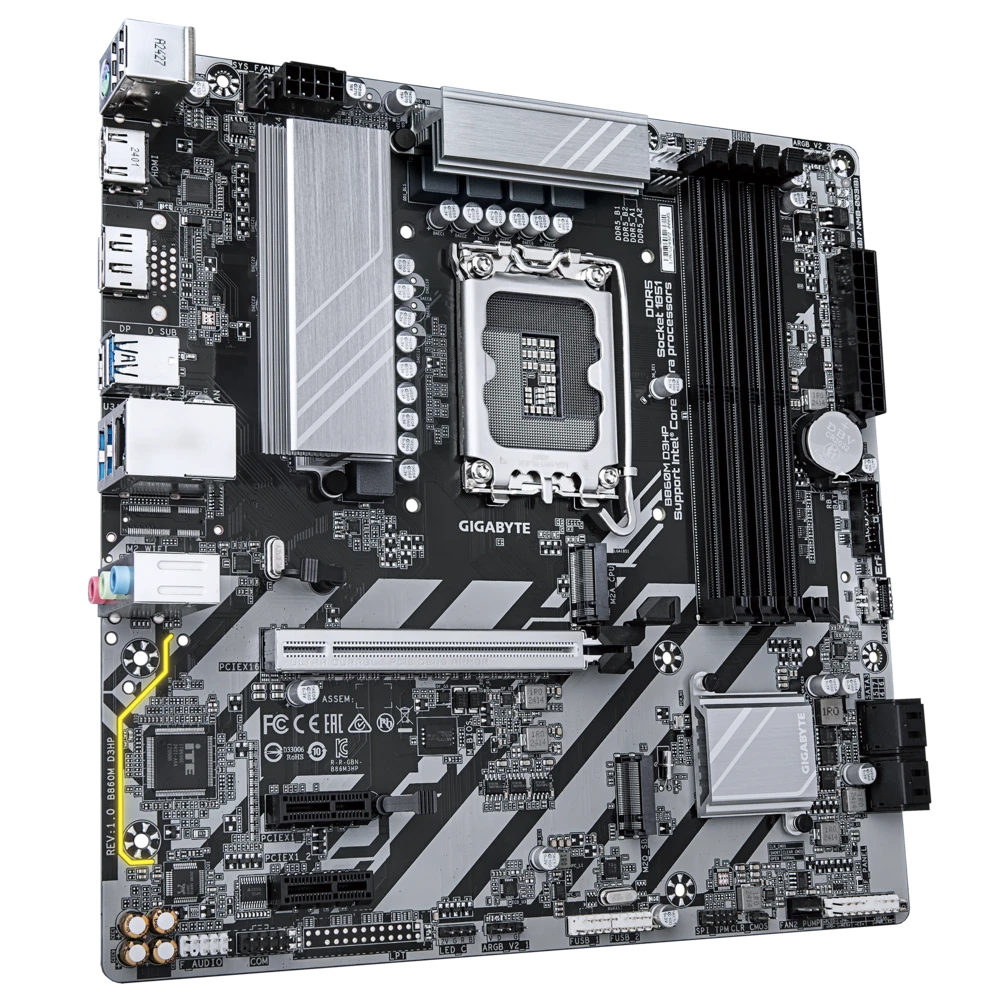

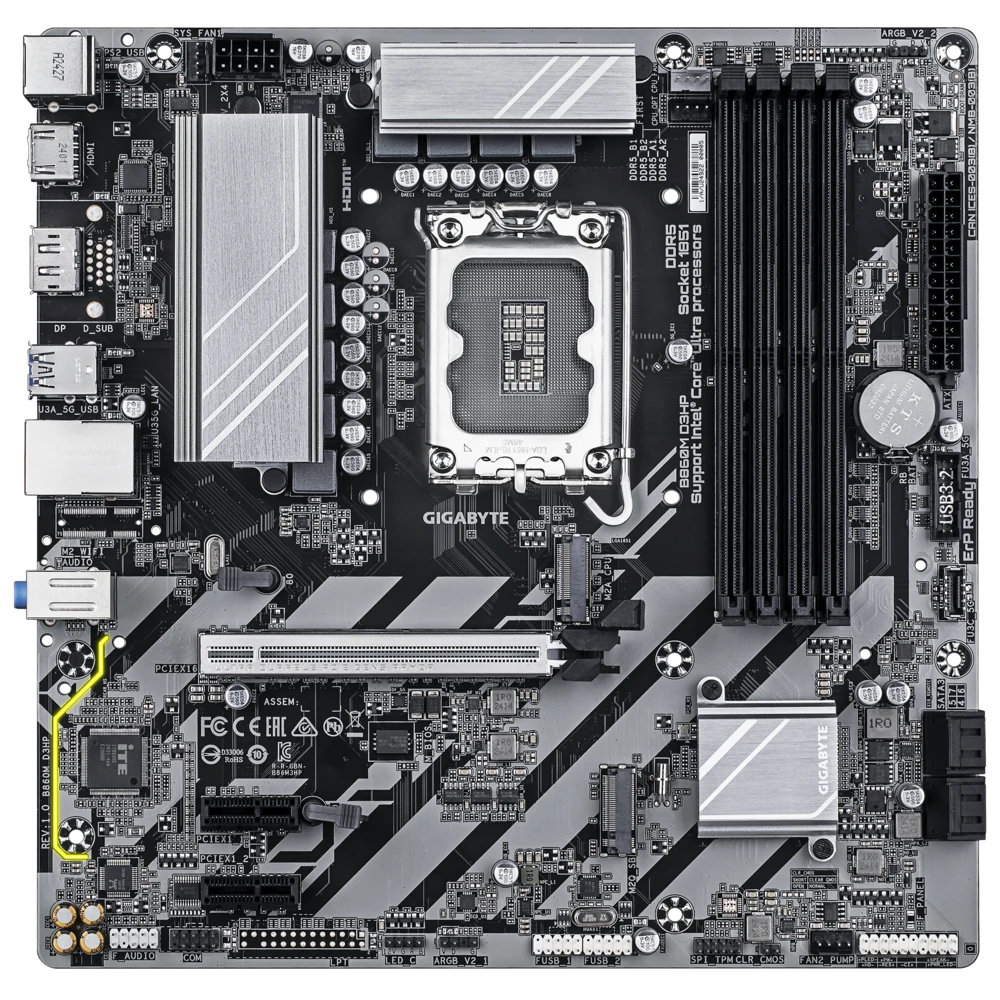

The Gigabyte B860M D3HP is a
powerful Micro-ATX motherboard built to support Intel’s latest
LGA1851 Core Ultra processors. Powered by the Intel B860 chipset, it
brings modern functionality with robust memory overclocking, advanced PCIe
5.0 support, dual M.2 slots, and customizable ARGB lighting.
Whether you're a gamer, content creator, or enthusiast, this board offers
excellent reliability and high-performance potential for compact builds.
Features
Supports Intel Core Ultra
processors on LGA1851 socket
Built on the Intel B860 chipset
Supports DDR4 memory up to 256GB and speeds up to 9066MT/s
(OC)
Includes 2 x M.2 PCIe 4.0 x4/x2 slots
Equipped with a PCIe 5.0 x16 slot for modern GPUs
Delivers high-definition audio via Realtek Audio CODEC
Stable Gigabit LAN with Realtek GbE chip
Customizable ARGB lighting with 2 x RGB headers
Memory
Support
Memory Type: DDR4
Memory Speeds: 9066(O.C), 8800(O.C), 8600(O.C), 8400(O.C), 8266(O.C),
8200(O.C), 8000(O.C), 7950(O.C), 7900(O.C), 7800(O.C), 7600(O.C), 7400(O.C),
7200(O.C), 7000(O.C), 6800(O.C), 6600(O.C), 6400, 5600 MT/s
Memory Slots: 4
Memory Channel: Dual
Maximum Capacity: 256GB
Storage
and Expansion
SATA Ports: 4 x SATA 6Gb/s
M.2 Slots:
- 1 x M.2 (Socket 3, M key, type 2280) PCIe 4.0
x4/x2 (M2A_CPU)
- 1 x M.2 (Socket 3, M key, type 2280) PCIe 4.0
x4/x2 (M2Q_SB)
Graphics
and PCIe Slots
1 x PCIe 5.0 x16 slot (runs
at x16)
2 x PCIe 3.0 x1 slots
1 x HDMI port
Multi-GPU support: Not available
Audio
and Networking
Audio Chipset: Realtek High Definition Audio CODEC
Audio Channels: 2/4/5.1/7.1
LAN Chipset: Realtek GbE
LAN Speed: 10/100/1000 Mbps

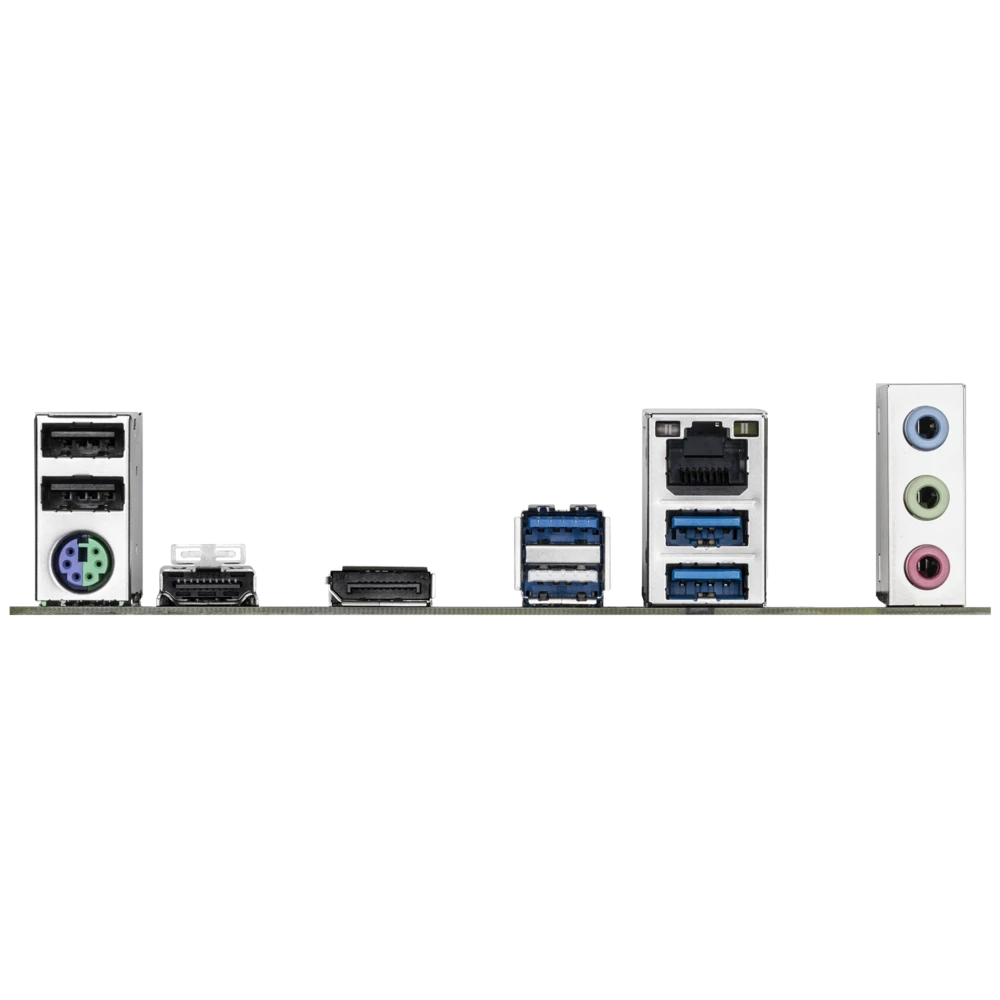

Connectivity
Options
3 x USB 2.0/1.1 Type-A
3 x USB 3.2 Gen 1 Type-A
1 x TPM header
2 x RGB LED strip headers (supports ARGB)
Design
and Build
Form Factor: Micro-ATX
Color: Black
Heatsink: Included
Cable Management: Front
RGB Support: Yes
Power Consumption: Approx. 60W
Compatibility
Operating System: Windows 10 / Windows 11
CPU Compatibility: Intel Core Ultra processors (LGA1851 socket)
Warranty
Information
3-year official warranty
Price
and Availability
Available now at Computer Village
Agrabad, Chattogram, Bangladesh
.
