Gigabyte B860M AORUS ELITE (Wi-Fi 6E) DDR5 (Intel Core Ultra LGA1851 Socket) Gaming Motherboard #B860M A ELITE WIFI6E / B860M AORUS ELITE WIFI6E
Key Specification
Product Specification
|
Brand |
Gigabyte |
|
Model |
Gigabyte
B860M AORUS ELITE (Wi-Fi 6E) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B860 Sockets
Supported: LGA1851 Built-in
Processor: N/A Supported
CPU: Intel Core Ultra Processors Generation:
Ultra |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 9200(O.C)/ 8800(O.C)/ 8600(O.C)/
8400(O.C)/ 8266(O.C)/ 8200(O.C)/ 8000(O.C)/ 7950(O.C)/ 7900(O.C)/ 7800(O.C)/
7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/ 6800(O.C.)/ 6600(O.C.)/ 6400/
5600 MT/s ECC , non-ECC, Un-buffered DIMM. Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage
Info |
Storage
Interface: 6Gb/s, M.2/SSD
Expansion Slot: 3 M.2/SSD
Expansion : 3 x M.2 (1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe
5.0 x4/x2 SSD support), 1 x M.2 connector (Socket 3, M key, type 2280 PCIe
4.0 x4/x2 SSD support), 1 x M.2 connector (Socket 3, M key, type
25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support)) |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCI Express x16 slot,
supporting PCIe 5.0 and running at x16 (PCIEX16), 1 x PCI Express x16 slot,
supporting PCIe 4.0 and running at x4 (PCIEX4) |
|
Audio
& Video |
Audio
Chipset: Realtek Audio CODEC Audio
Channel – 2/4/5.1/7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 2.5GbE LAN Speed (Mbps): 10/ 100/ 1000/ 2500Mbps WiFi: Yes WiFi Technology: Intel Wi-Fi 6E AX211 Bluetooth: Bluetooth 5.3 |
|

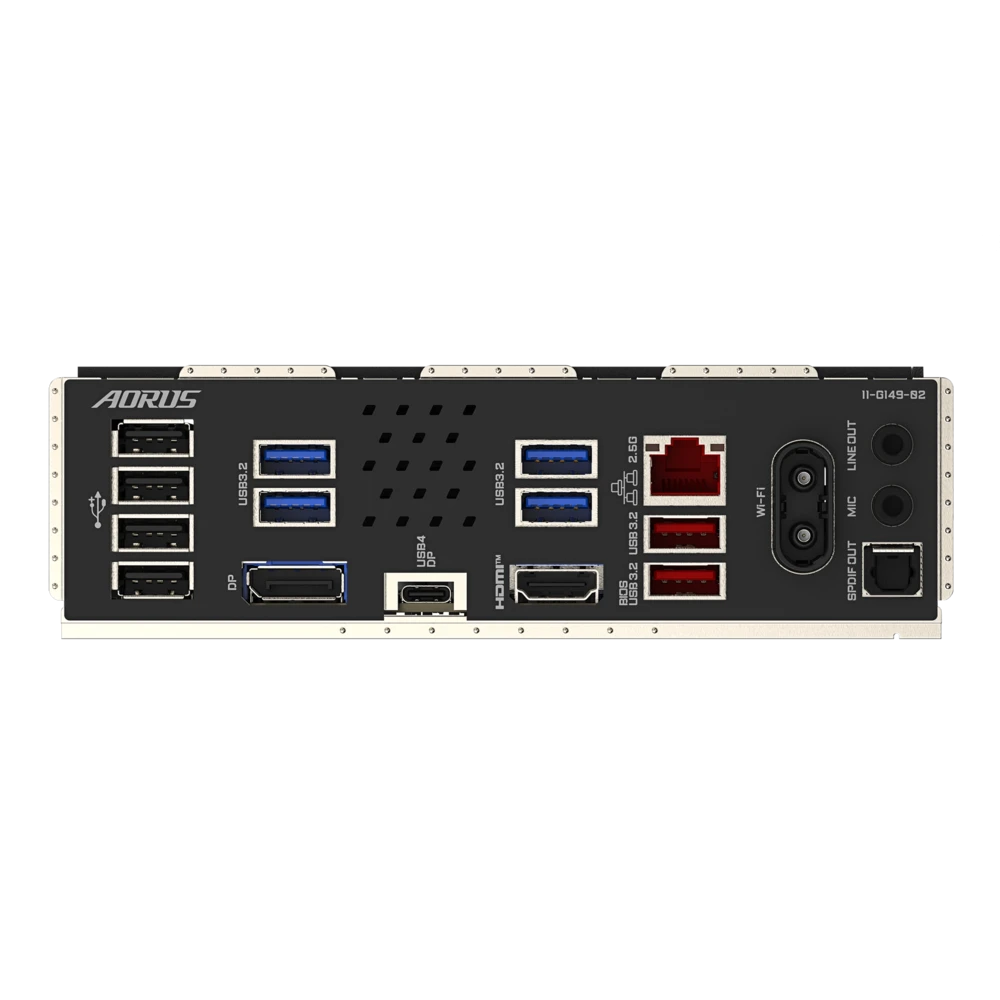

Ports Data |
USB
Port: 4 x USB 2.0/1.1 Type-A, 4 x USB 3.2 Gen 1 Type-A, 1 x USB 4 Type-C, 2 x
USB 3.2 Gen 2 Type-A VGA
Port: N/A HDMI
Port: 1 Display:
1 TPM: 1 SATA
Port: 4 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 3 x addressable RGB Gen2 LED
strip headers, 1 x RGB LED strip header Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / Windows 11 Compatible
Products: LGA1851 socket: Support for Intel Core Ultra Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Gigabyte
B860M AORUS ELITE (Wi-Fi 6E) DDR5 Micro-ATX Motherboard

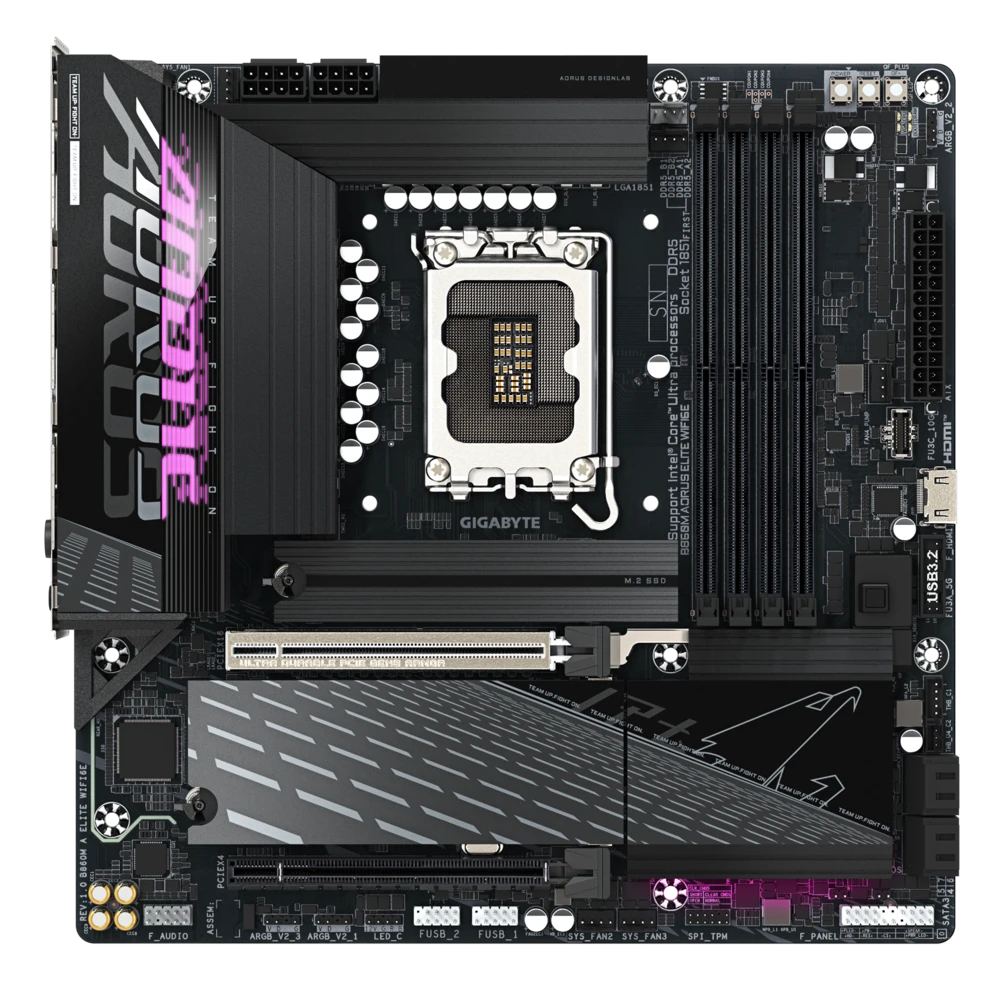

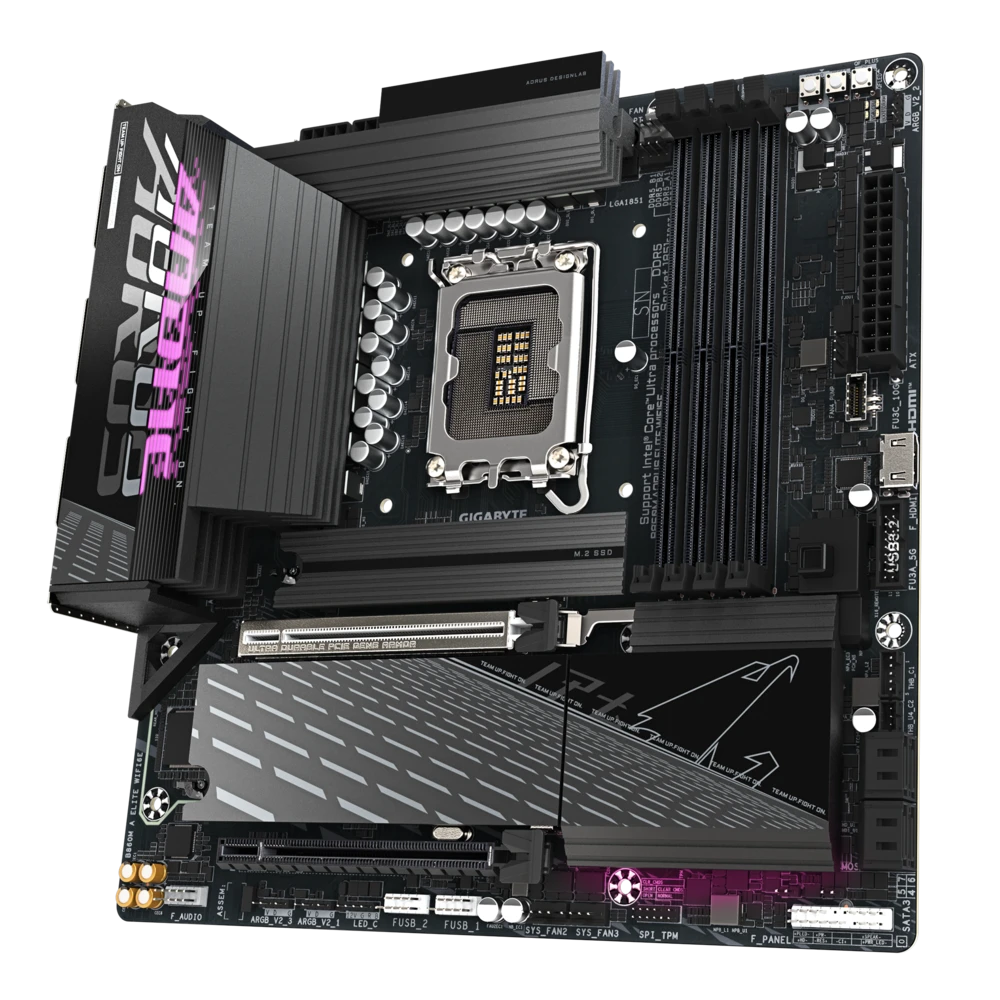

The Gigabyte B860M AORUS ELITE
(Wi-Fi 6E) motherboard offers premium features and performance, making it
an ideal choice for gamers, content creators, and power users. With support for
Intel Core Ultra processors and the Intel B860 chipset, this
motherboard ensures excellent performance for both everyday computing and
demanding applications.
Features
The Gigabyte B860M AORUS ELITE
motherboard supports the latest Intel Core Ultra processors using the LGA1851
socket, offering cutting-edge performance for demanding tasks. It supports DDR5
memory, with a maximum speed of 9200MHz (OC), and offers multiple
overclocking options down to 5600MT/s. The motherboard provides 4
DIMM slots for a total memory capacity of up to 256GB, giving you
ample room for intensive multitasking and large workloads.
Storage
and Expansion
This motherboard is equipped with 3
M.2 slots for ultra-fast storage solutions, offering support for both PCIe
5.0 and PCIe 4.0 SSDs. The first M.2 slot supports PCIe
5.0 x4 speeds, ideal for the latest SSDs, while the other two M.2 slots
support PCIe 4.0 x4 speeds, offering high-performance storage options
for games, applications, and data. The 6Gb/s storage interface also
supports SATA devices for additional storage flexibility.
Graphics
and Expansion
The Gigabyte B860M AORUS ELITE
motherboard comes with 2 PCIe slots: a PCIe 5.0 x16 slot for the
latest graphics cards, and a PCIe 4.0 x4 slot for additional expansion
cards. The motherboard is not designed for multi-GPU setups, but the available PCIe
5.0 x16 slot ensures compatibility with modern high-performance graphics
cards for gaming and professional work.
Networking
and Audio
For high-speed networking, the
motherboard features Realtek 2.5GbE LAN, providing fast, stable, and
reliable wired connections. The Wi-Fi 6E technology, powered by the Intel
Wi-Fi 6E AX211, ensures fast and reliable wireless connections, ideal for
gaming, streaming, and large file transfers. Additionally, with Bluetooth
5.3 support, you can connect your devices wirelessly without the need for
additional adapters.
The Realtek Audio CODEC
onboard provides 7.1-channel high-definition audio, ensuring a rich and
immersive sound experience for gaming, media consumption, and content creation.
Build
and Design
The Gigabyte B860M AORUS ELITE
features a black design, complemented by RGB support. The
motherboard comes with 3 addressable RGB Gen2 LED strip headers and 1
RGB LED strip header, allowing for extensive customization of your system’s
lighting. The inclusion of heatsinks ensures efficient cooling of
critical components, preventing thermal throttling during high-demand tasks.
Warranty
and Compatibility
This motherboard is compatible with Windows
10 and Windows 11, offering flexibility for your operating system
needs. It supports Intel Core Ultra processors with the LGA1851
socket, providing future-proofing for upcoming Intel processors. The Gigabyte
B860M AORUS ELITE motherboard is backed by a 3-year warranty,
ensuring reliable long-term performance.
Price
and Availability
The Gigabyte B860M AORUS ELITE
(Wi-Fi 6E) motherboard is available for purchase at Computer Village
Agrabad, Chattogram, Bangladesh. Please check for the latest pricing
and availability.
