Gigabyte B850M GAMING X (Wi-Fi 6E) DDR5 AMD AM5 Socket Motherboard #B850M GAMING X WF6E / B850M GAMING X WIFI6E
Key Specification
Product Specification
|
Brand |
Gigabyte |
|
Model |
Gigabyte
B850M GAMING X (Wi-Fi 6E) |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: AMD Chipset:
AMD B850 Sockets
Supported: AM5 Built-in
Processor: N/A Supported
CPU: AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors Generation:
N/A |
|
Memory Support |
Memory Type: DDR5 Memory MHz: 8200(O.C)/ 8000(O.C)/ 7950(O.C)/
7900(O.C)/ 7800(O.C)/ 7600(O.C.)/ 7400(O.C.)/ 7200(O.C.)/ 7000(O.C.)/
6800(O.C.)/ 6600(O.C.)/ 6400(O.C)/ 6200(O.C)/ 6000(O.C)/ 5800(O.C)/ 5600(O.C)/
5200/ 4800/ 4400 MT/s Memory Channel: Dual Memory Slot: 4 Memory Max: 256GB |
|
Storage
Info |
Storage
Interface: 6.0Gb/s M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion: 2 x M.2 (1 x M.2 connector (M2A_CPU), integrated in the CPU,
supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen
9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen 8000
Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000
Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs, 1 x M.2 connector
(M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type
25110/22110/2580/2280 SSDs: AMD Ryzen 9000/7000 Series Processors support
PCIe 4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe
4.0 x4/x2 SSDs AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2
SSDs) |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCI Express x16 slot
(PCIEX16), 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4
(PCIEX4) |
|
Audio
& Video |
Audio Chipset:
Realtek 7.1 Surround Sound High Definition Audio CODEC Audio
Channel – 2/4/5.1/7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 2.5GbE LAN chip LAN Speed (Mbps): 10/ 10/ 1000/ 2500Mbps WiFi: Yes WiFi Technology: Realtek Wi-Fi 6E RTL8852CE Bluetooth: Bluetooth 5.3 |
|
Ports Data |
USB
Port: 4 x USB 2.0/1.1 Type-A, 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2
Type-A, 1 x USB Type-C port, with USB 3.2 Gen 2 VGA
Port: N/A HDMI
Port: 1 Display:
2 TPM: 1 SATA
Port: 4 |
|
Technical Data |
Cable Management: Front Heatsink: Yes RGB Support: ARGB RGB Connector: 3 x addressable RGB Gen2 LED
strip headers, 1 x RGB LED strip header Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 11, Windows 10 Supported
Operating System: AMD Socket AM5, support for: AMD Ryzen 9000/ 8000/ 7000
Series Processors. |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Gigabyte

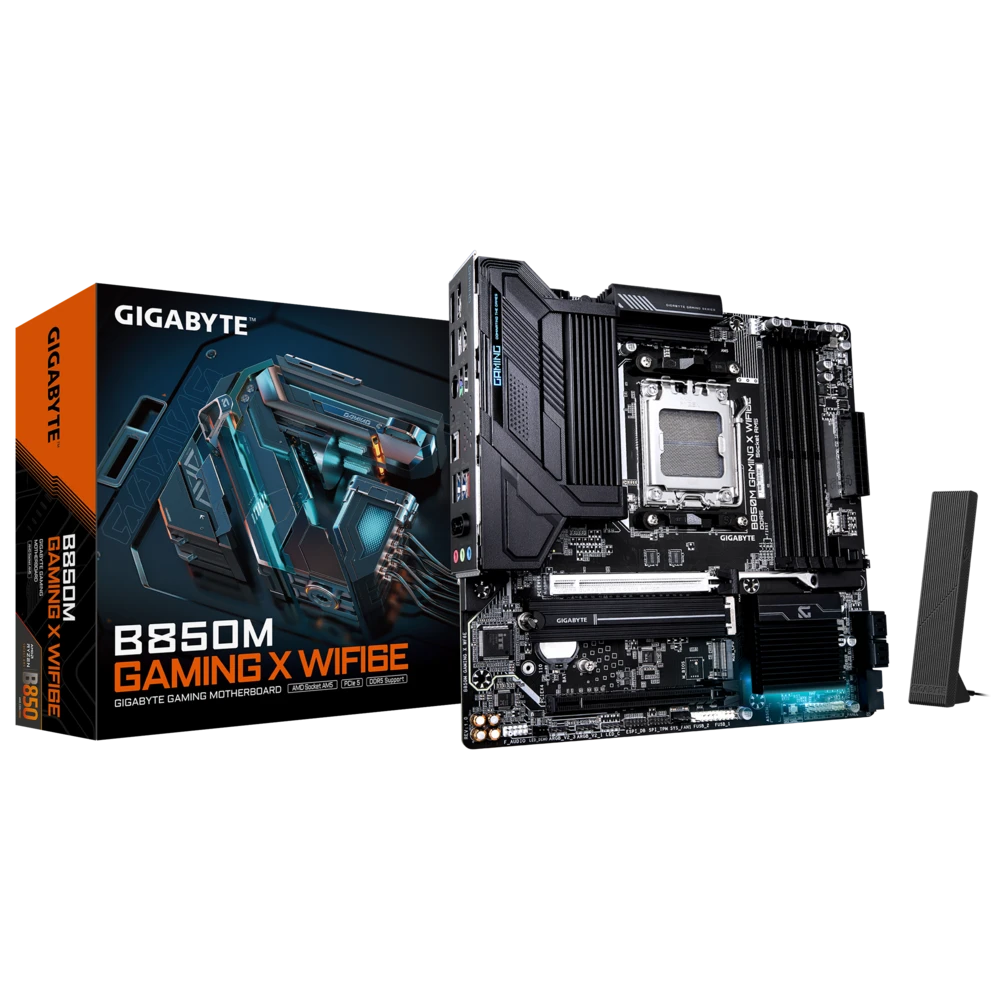

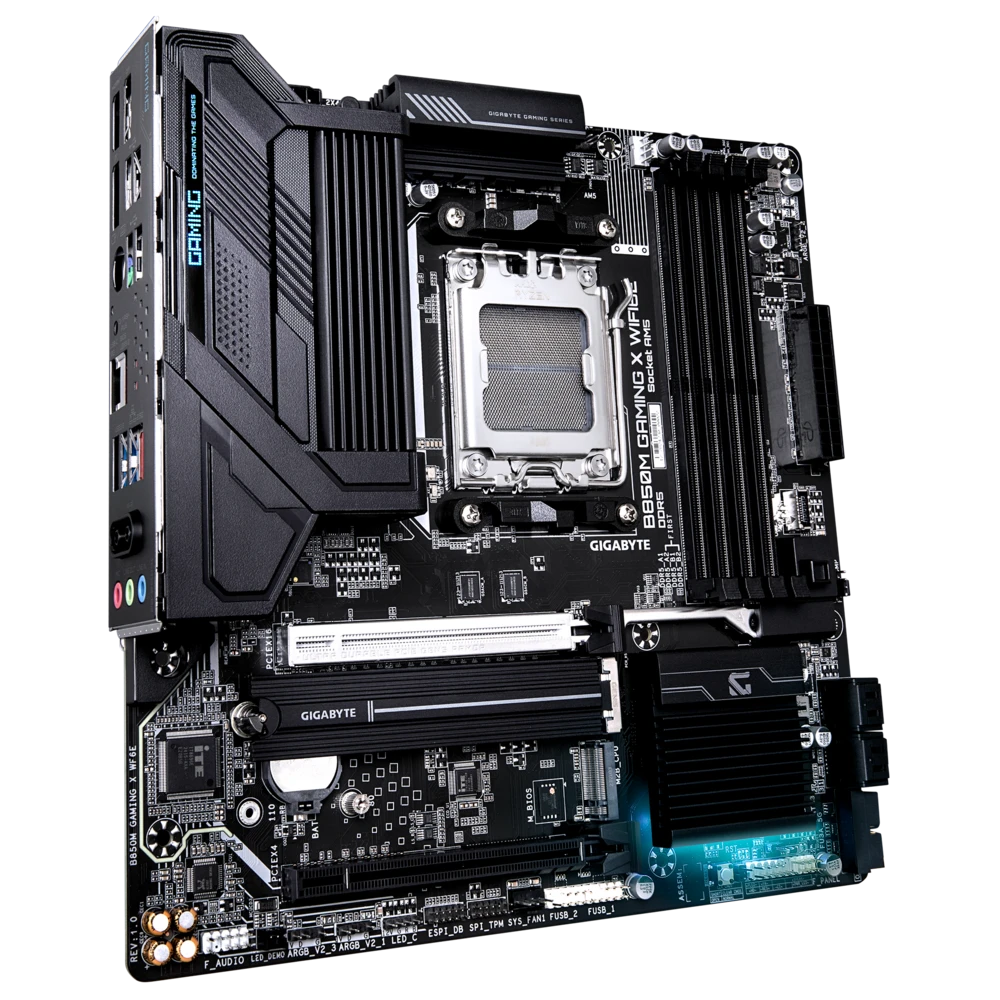

B850M GAMING X (Wi-Fi 6E) Micro-ATX Motherboard
The Gigabyte B850M GAMING X
motherboard, based on the AMD B850 chipset, offers outstanding
performance for gamers and content creators with support for AMD Ryzen 7000,
8000, and 9000 Series processors. This micro-ATX motherboard
supports DDR5 memory and PCIe 4.0 for fast, high-performance
computing. It also includes the latest Wi-Fi 6E and Bluetooth 5.3
for seamless connectivity.
Features
- Chipset:
AMD B850 chipset provides solid performance and future-proofing for
high-speed data transfer.
- Socket:
AM5 socket supports AMD Ryzen 7000/8000/9000 Series processors.
- Memory Support:
- DDR5 memory
with speeds up to 8200MHz (OC).
- Dual-channel memory architecture with 4 DIMM slots supporting up to 256GB
of non-ECC, un-buffered DIMM memory.
Storage
and Expansion
- Storage Interface:
- 6.0Gb/s SATA III
for reliable data transfer.
- 2 x M.2 slots:
- M2A_CPU:
Supports PCIe 5.0 x4/x2 SSDs for AMD Ryzen 9000/7000 Series
processors.
- M2B_CPU:
Supports PCIe 4.0 x4/x2 SSDs for AMD Ryzen 8000 Series-Phoenix
processors.
- Expansion Slots:
- 1 x PCIe x16 slot (PCIEX16) for a graphics card.
- 1 x PCIe x16 slot (PCIEX4) for additional expansion.

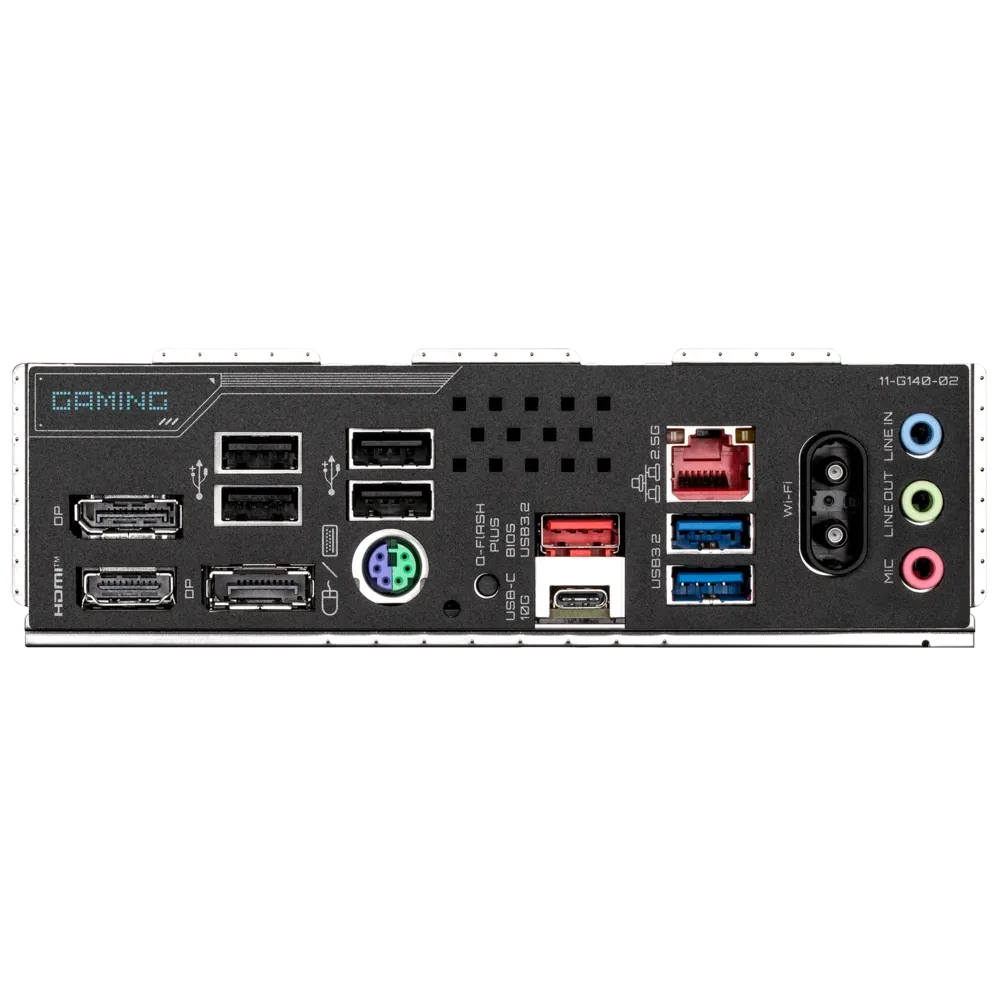

Connectivity
Options
- USB Ports:
- 1 x USB Type-C port
with USB 3.2 Gen 2 for fast data transfer.
- 2 x USB 3.2 Gen 1 Type-A and 4 x USB 2.0/1.1 Type-A for various
devices.
- Networking:
- Realtek 2.5GbE LAN
for 10/100/1000/2500Mbps wired networking.
- Wi-Fi 6E
via Realtek RTL8852CE for faster wireless connectivity.
- Bluetooth 5.3
for reliable wireless peripherals.
- Video Outputs:
- 1 x HDMI port
for video output.
- 2 x Display ports
for multi-display setups.
Audio
and Video
- Audio Codec:
- Realtek 7.1 Surround Sound High Definition Audio CODEC with support for 2/4/5.1/7.1 audio channels
for immersive sound.
Design
and Build
- Form Factor:
Micro-ATX for compact yet powerful builds.
- Heatsink:
Includes a heatsink for efficient cooling.
- RGB Support:
- 3 x addressable RGB Gen2 LED strip headers.
- 1 x RGB LED strip header for customizable lighting effects.
Power
and Efficiency
- Power Consumption:
Approximately 60W for energy-efficient performance.
- Compatibility:
Fully compatible with AMD Ryzen 9000/8000/7000 Series processors
and Windows 10/11 operating systems.
Warranty
Information
- 3-year warranty,
ensuring reliability and longevity.
- Note: Product may vary with different kit or version.
Included
Accessories
- 1 x Gigabyte B850M GAMING X (Wi-Fi 6E) Micro-ATX
Motherboard
- 1 x I/O Shield
- 1 x User Manual
Price
and Availability
- Available now at Computer Village Agrabad,
Chattogram, Bangladesh.
