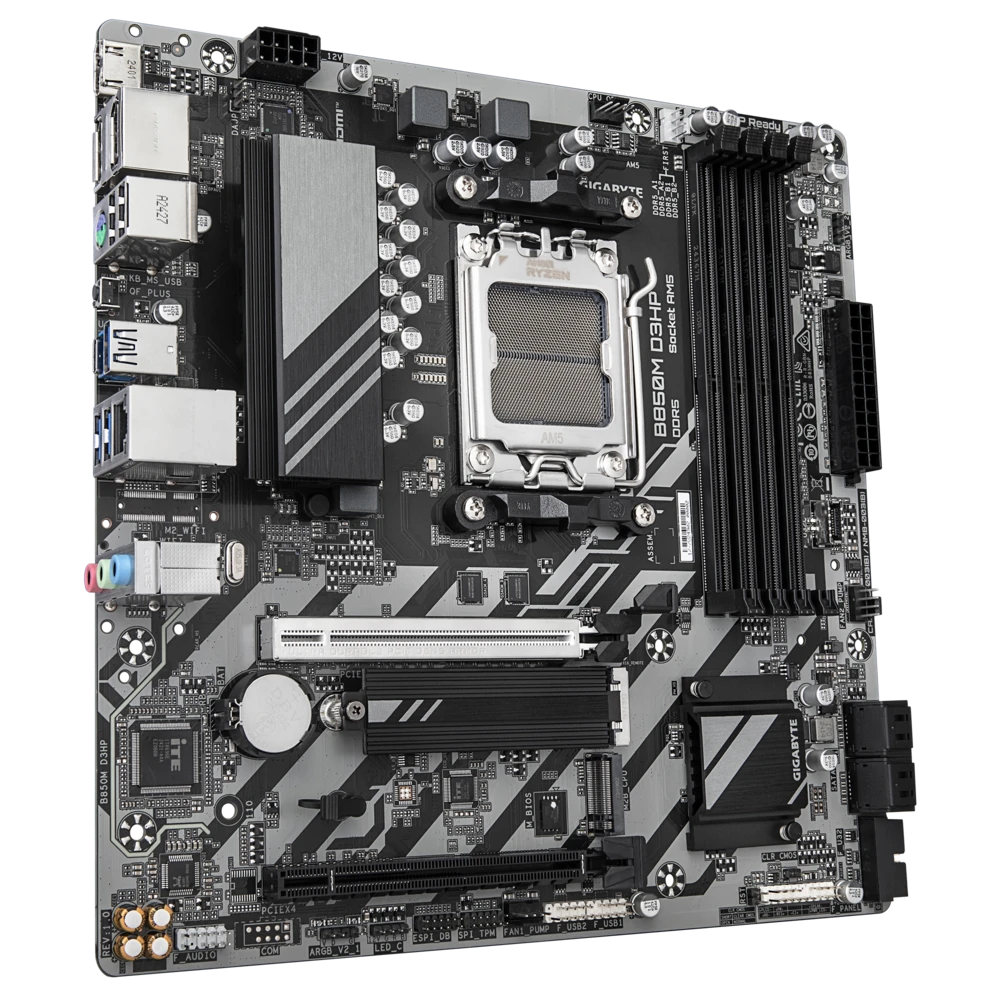

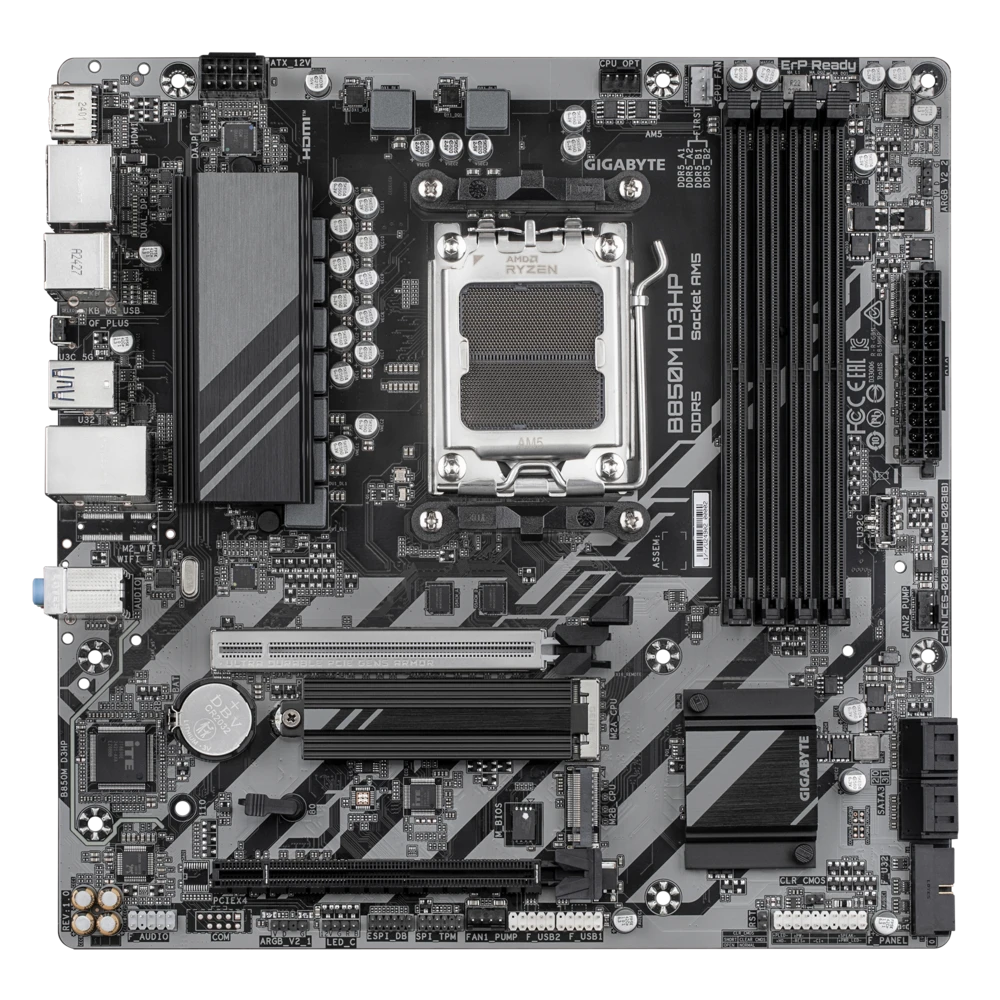

Gigabyte B850M D3HP Micro-ATX Motherboard

The Gigabyte B850M D3HP motherboard offers a robust platform for high-performance computing, featuring the AMD B850 chipset and supporting the latest AMD Ryzen 7000, 8000, and 9000 Series processors. With DDR5 memory support, PCIe 5.0 compatibility, and fast 2.5Gb Ethernet, this motherboard is perfect for users who demand speed, stability, and cutting-edge technology in a compact Micro-ATX form factor.

Features

• Chipset: AMD B850 chipset provides excellent performance with PCIe 5.0 and PCIe 4.0 support, ideal for next-gen GPUs and high-speed storage.
• Socket: AM5 socket supports the latest AMD Ryzen 7000/8000/9000 Series processors.
• Memory Support:
• DDR5 memory with speeds up to 8000MHz (overclocked), offering optimal bandwidth for intensive tasks.
• Dual-channel architecture with 4 memory slots, supporting up to 256GB of non-ECC and un-buffered memory.

Storage and Expansion

• Storage Interface:
• 6.0Gb/s SATA III for reliable data transfer with traditional storage devices.
• 2 x M.2 slots:
• 1 x M.2 PCIe 5.0 x4 slot supporting M.2 Type 2242/2260/2280 SSD modules.
• 1 x M.2 PCIe 4.0 x4 slot supporting M.2 Type 2242/2260/2280 SSD modules.
• Expansion Slots:
• 1 x PCIe 5.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 3.0 x4 slot for additional expansion cards.

Connectivity Options

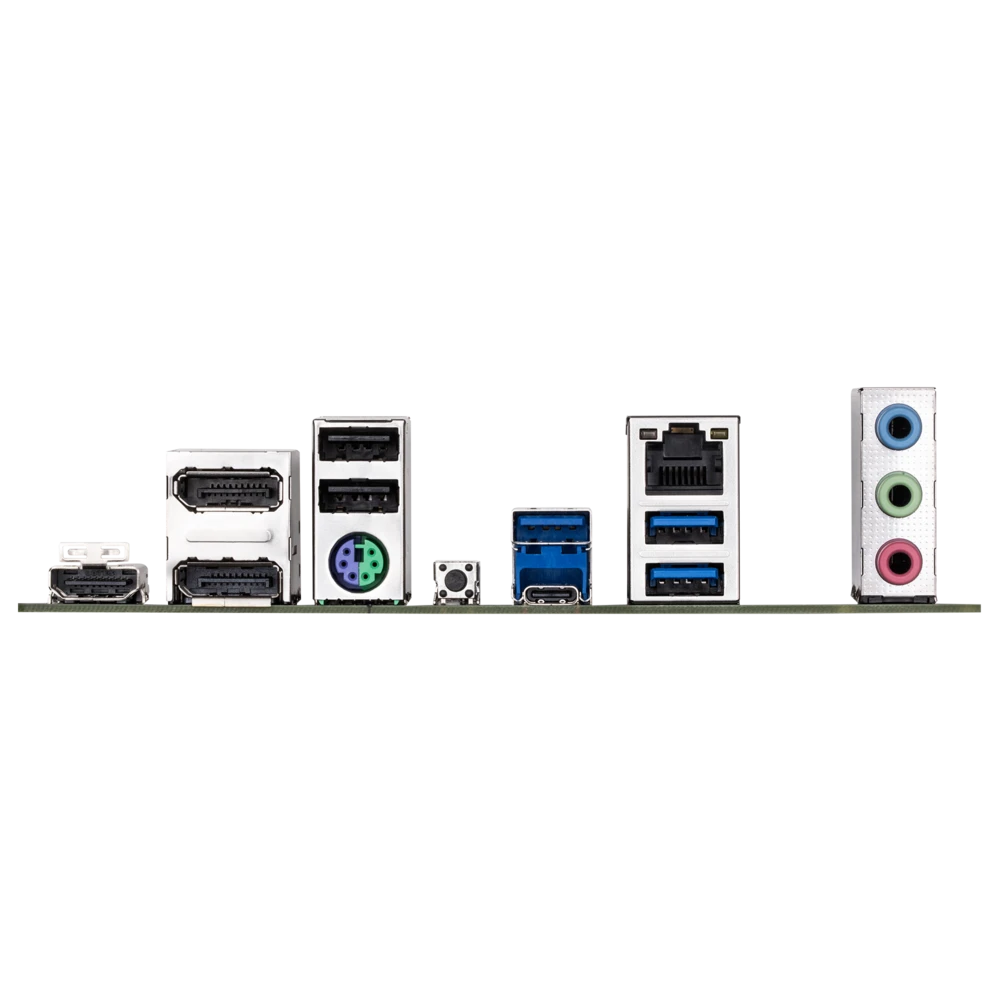

• USB Ports:
• 1 x USB Type-C port (with USB 3.2 Gen 1 support) for high-speed data transfer.
• 3 x USB 3.2 Gen1 ports for fast data connections.
• 2 x USB 2.0/1.1 ports for legacy devices.
• Video Outputs:
• 1 x HDMI port for video output to compatible displays.
• 2 x Display outputs for multi-monitor setups.
• Networking:
• Realtek 2.5Gb Ethernet chipset for reliable and fast wired networking (10/100/1000/2500Mbps).

Audio and Video

• Audio Codec:
• Realtek 7.1 Surround Sound High Definition Audio CODEC, providing 2/4/5.1/7.1 channels for immersive audio experiences.

Design and Build

• Form Factor: Micro-ATX, offering a compact design with ample expansion options for performance components.
• RGB Support: Features RGB LED strip header, allowing for customizable lighting effects to match your system’s aesthetics.
• Heatsink: Integrated heatsink for enhanced cooling and stability.

Power and Efficiency

• Power Consumption: Approximately 60W, providing an efficient yet powerful motherboard setup.
• Compatibility: Fully compatible with AMD Ryzen 7000/8000/9000 Series processors and Windows 10/11 operating systems.

Warranty Information

• 3-year warranty, ensuring a reliable and long-lasting investment for your build.
• Note: Product may vary with different kit or version.

Included Accessories

• 1 x Gigabyte B850M D3HP Micro-ATX Motherboard
• 1 x I/O Shield
• 1 x User Manual

Price and Availability

• Available now at Computer Village Agrabad, Chattogram, Bangladesh.
