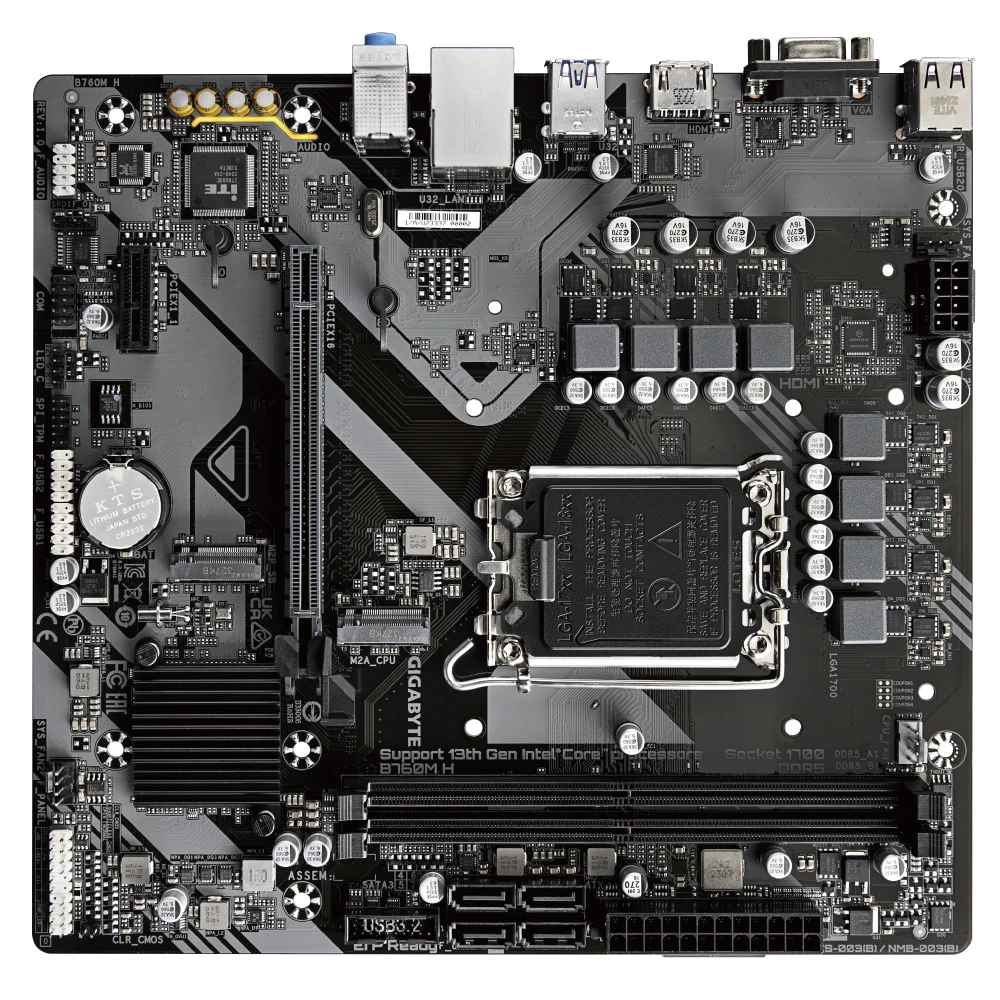

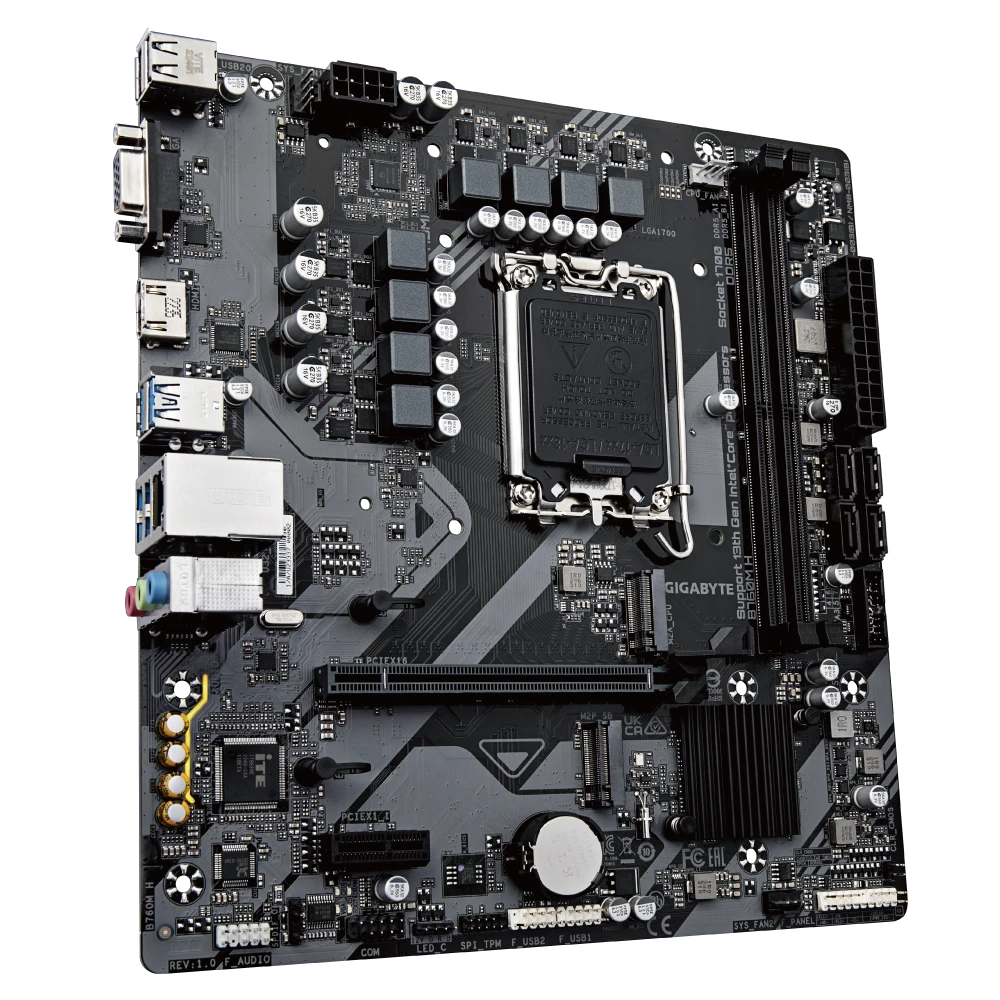

Gigabyte B760M H Intel LGA 1700 12th, 13th & 14th Gen Micro ATX Motherboard
Key Specification
§ Intel®
B760 Express Chipset
§ 12th,
13th & 14th Gen CPU Support
§ 2x
DDR5- 8000MHz Support (Maximum 128GB)
§ 1x
HDMI & 1x D-Sub Output
§ Micro
ATX From Factor
Product Specification
|
Model |
B760M H |
|
CPU Support |
LGA1700 socket:
Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold
and Celeron® Processors |
|
Chipset |
Intel ® B760 Express Chipset |
|
Form Factor |
Micro ATX Form
Factor; 23.0cm x 21.5cm |
|
Memory Support |
Support for DDR5
8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.)
/6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.)
/ 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 2 x DDR5 DIMM
sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory
architecture Support for ECC
Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC
Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme
Memory Profile (XMP) memory modules |
|
Storage Support |
1 x M.2 connector
(Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector
(Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s
connectors |
|
M.2 Socket |
2 x M.2 connector
(Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) |
|
Graphics |
1 x D-Sub port,
supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port,
supporting a maximum resolution of 4096x2160@60 Hz |
|
Network |
Realtek® GbE LAN
chip (1 Gbps/100 Mbps/10 Mbps) |
|
PCI |
1 x PCI Express x16
slot, supporting PCIe 4.0 and running at x16 1 x PCI Express x1
slot, supporting PCIe 3.0 and running at x1 |
|
Internal
Connectors |
1 x 24-pin ATX main
power connector 1 x 8-pin ATX 12V
power connector 1 x CPU fan header 2 x system fan
headers 1 x RGB LED strip
header 2 x M.2 Socket 3
connectors 4 x SATA 6Gb/s
connectors 1 x front panel
header 1 x front panel
audio header 1 x S/PDIF Out
header 1 x USB 3.2 Gen 1
header 2 x USB 2.0/1.1
headers 1 x Trusted Platform
Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port
header 1 x Clear CMOS
jumper |
|
Back Panel Ports |
2 x USB 2.0/1.1
ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1
ports 1 x RJ-45 port 3 x audio jacks |
|
Audio |
Realtek® Audio CODEC High-Definition
Audio 2/4/5.1/7.1-channel |
|
USB |
6 x USB 3.2 Gen 1
ports (4 ports on the back panel, 2 ports available through the internal USB
header) 6 x USB 2.0/1.1
ports (2 ports on the back panel, 4 ports available through the internal USB
headers) |
|
BIOS |
1 x 128 Mbit flash Use of licensed AMI
UEFI BIOS PnP 1.0a, DMI 2.7,
WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
Special Features |
iTE® I/O Controller
Chip |
|
Software
Features |
GIGABYTE Control
Center (GCC) Q-Flash Norton® Internet Security
(OEM version) LAN bandwidth
management software |
|
Warranty |
3 Years |
Product Details
Gigabyte B760M H motherboard is designed for users seeking a
high-performance, reliable, and future-proof solution for their computing
needs. With the Intel® B760 Express Chipset and LGA1700 socket
support, this motherboard is compatible with 14th, 13th, and 12th Generation
Intel® Core™ processors, as well as Pentium® Gold and Celeron®
processors. Whether you’re building a gaming PC, content creation workstation,
or general-purpose computer, this motherboard offers a range of features to
meet your requirements.
Exceptional
Memory Support
The B760M H supports DDR5 memory
with impressive overclocking capabilities, allowing for speeds up to 8000
MT/s (O.C.), with lower-speed configurations ranging down to 4800 MT/s.
With 2 DIMM slots and the ability to support up to 128 GB of system
memory (64 GB per DIMM), it ensures smooth multitasking and high-speed
memory performance. The motherboard also features dual-channel memory
architecture and supports ECC Un-buffered DIMM memory modules,
offering stability for users running demanding applications. Additionally, Extreme
Memory Profile (XMP) support enables easy memory overclocking for optimized
performance.
High-Speed
Storage and Connectivity
This motherboard offers two M.2
connectors (Socket 3, M key) that support PCIe 4.0 x4/x2 SSDs,
providing faster data access and transfer speeds for high-performance storage.
Additionally, 4 SATA 6Gb/s connectors ensure ample space for additional
drives. This combination of M.2 and SATA connectors ensures that you have all
the storage options necessary for running multiple high-speed drives and large
storage volumes.
Graphics
and Audio Excellence
The B760M H motherboard
features a D-Sub port supporting up to 1920x1200@60Hz and an HDMI
port capable of handling resolutions up to 4096x2160@60Hz, making it
suitable for users who require high-definition video output. Whether you're
gaming or watching movies, the Realtek® Audio CODEC provides high-definition
audio with 2/4/5.1/7.1-channel audio configurations, offering a rich and
immersive sound experience.
Networking
and Expansion
For networking, the Realtek® GbE
LAN chip provides fast and reliable internet speeds, supporting 1 Gbps,
100 Mbps, and 10 Mbps connections, ensuring a stable connection
for online gaming or streaming. Additionally, the motherboard features a PCIe
x16 slot for high-speed graphics cards and a PCIe x1 slot for
additional expansion cards, offering flexibility for future upgrades.
Additional
Features
With 6 USB 3.2 Gen 1 ports
and 6 USB 2.0/1.1 ports, this motherboard offers extensive connectivity
options for external devices. GIGABYTE Control Center (GCC) software
simplifies system management, while Q-Flash allows for easy BIOS
updates. The inclusion of Norton® Internet Security and LAN bandwidth
management software ensures a secure and optimized computing environment.
The Gigabyte B760M H
motherboard is backed by a 3-year warranty, providing peace of mind for
long-term reliability and performance. Whether you're building a powerful
workstation or a gaming setup, this motherboard delivers the features and
reliability needed for today and the future.
