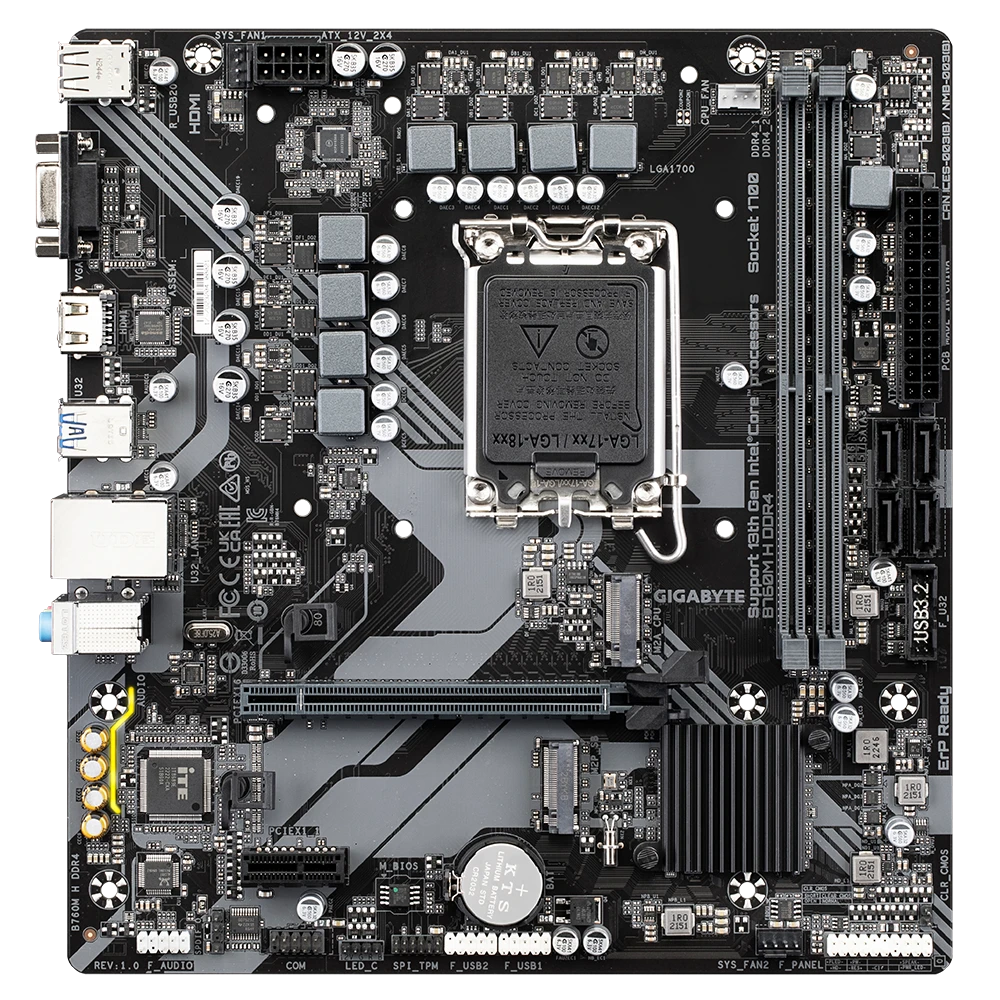

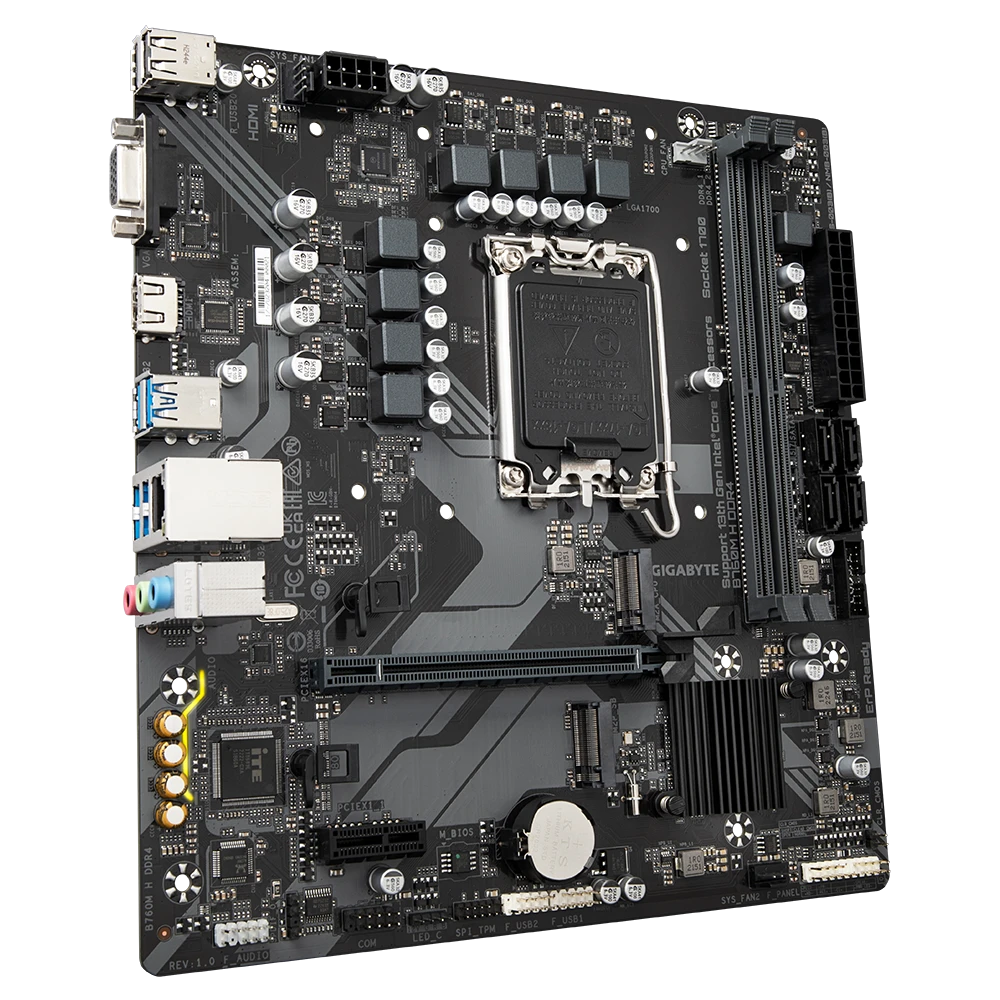

Gigabyte B760M H DDR4 motherboard offers robust features and advanced technology in a compact Micro ATX form factor (23.0cm x 21.5cm), making it an excellent choice for building high-performance PCs for gaming, content creation, or daily computing. With support for Intel® 14th, 13th, and 12th Generation Core™, Pentium® Gold, and Celeron® processors using the LGA1700 socket, this motherboard provides a versatile foundation for a wide range of applications.

Processor and Memory Support

Equipped with the Intel® B760 Express Chipset, the GA-B760M H DDR4 motherboard is compatible with DDR4 memory modules, supporting speeds of 3200/3000/2933/2666/2400/2133 MT/s. The motherboard offers 2 DDR4 DIMM sockets, allowing for a maximum of 64GB of system memory (32GB per DIMM). With dual-channel memory architecture and support for ECC Un-buffered DIMM memory modules (operating in non-ECC mode), the motherboard ensures smooth and efficient multitasking. The inclusion of Extreme Memory Profile (XMP) support allows for optimized memory performance, making it perfect for gamers, power users, and professionals.

Storage and Connectivity

This motherboard offers two M.2 connectors (Socket 3, M key) for PCIe 4.0 x4/x2 SSD support (M2A_CPU, M2P_SB), providing lightning-fast data transfer speeds. Additionally, 4 SATA 6Gb/s connectors ensure ample storage options for hard drives and SSDs. Whether you're storing large media files or running demanding applications, the B760M H DDR4 ensures you have the storage capacity you need.

Graphics and Audio

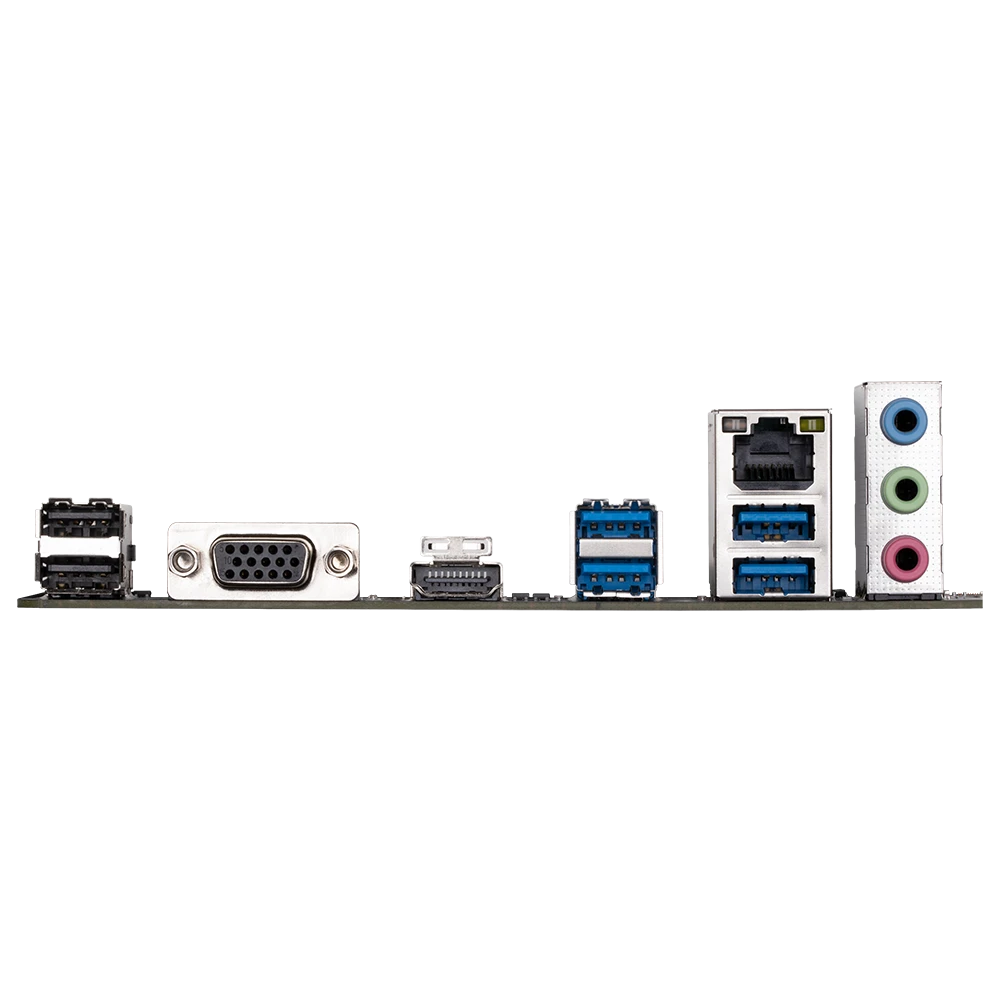

The GA-B760M H DDR4 comes with an integrated Realtek® Audio CODEC, supporting high-definition audio with 2/4/5.1/7.1-channel configurations. Whether you’re gaming, watching movies, or working on professional audio projects, you’ll enjoy clear and immersive sound. For video output, the motherboard provides a D-Sub port supporting resolutions up to 1920x1200@60Hz and an HDMI port supporting up to 4096x2160@60Hz for a high-quality visual experience.

Expansion and Networking

For expansion, the motherboard includes a PCIe x16 slot supporting PCIe 4.0, ensuring high-speed connectivity for dedicated graphics cards or other PCIe devices. It also features a PCIe x1 slot for additional peripherals. The Realtek® GbE LAN chip ensures fast and stable 1 Gbps network connectivity, ideal for gaming, streaming, and file transfers.

Convenient Features and Software

The GA-B760M H DDR4 is designed for ease of use with GIGABYTE Control Center (GCC) software for system management, Q-Flash for easy BIOS updates, and LAN bandwidth management software for optimizing network performance. It also includes Norton® Internet Security (OEM version) for added protection. The motherboard’s 3-year warranty offers peace of mind for long-term reliability.

With a range of modern connectivity, exceptional memory support, and fast storage options, the Gigabyte B760M H DDR4 is a perfect choice for building a powerful and future-proof computing system.
