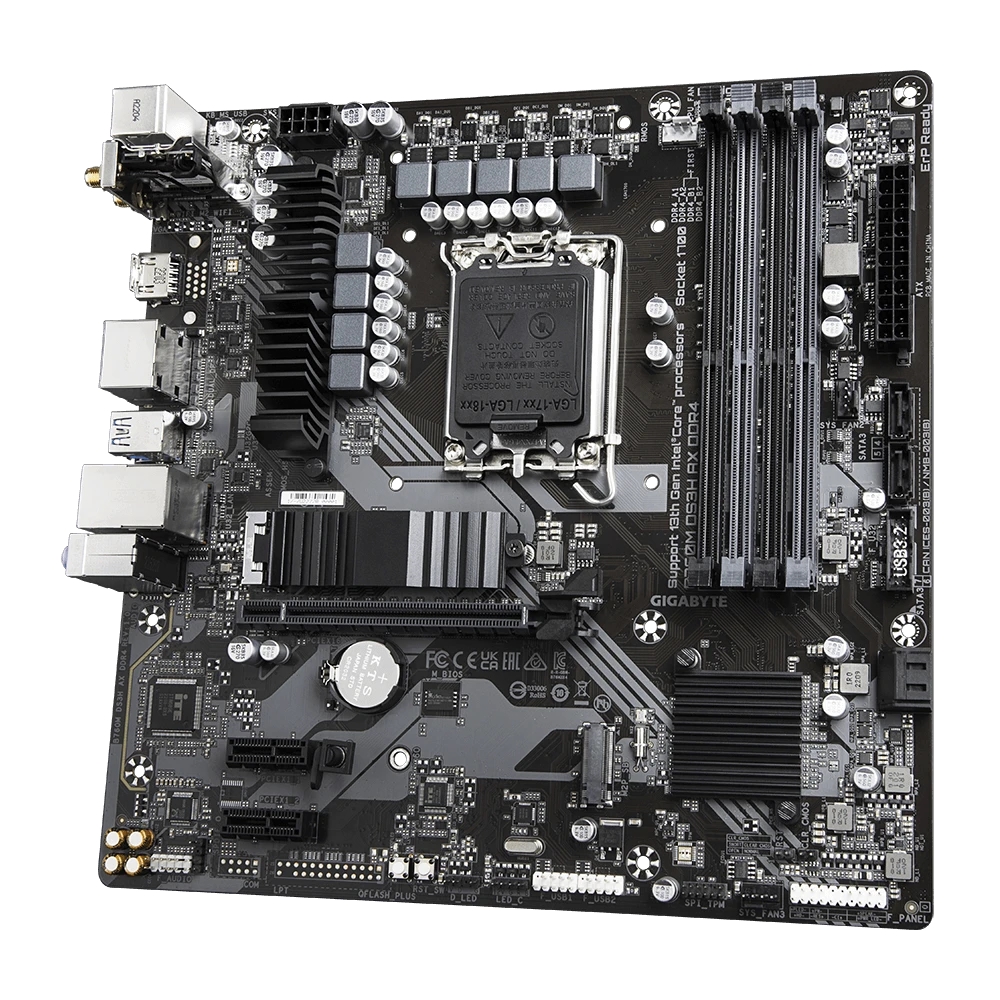

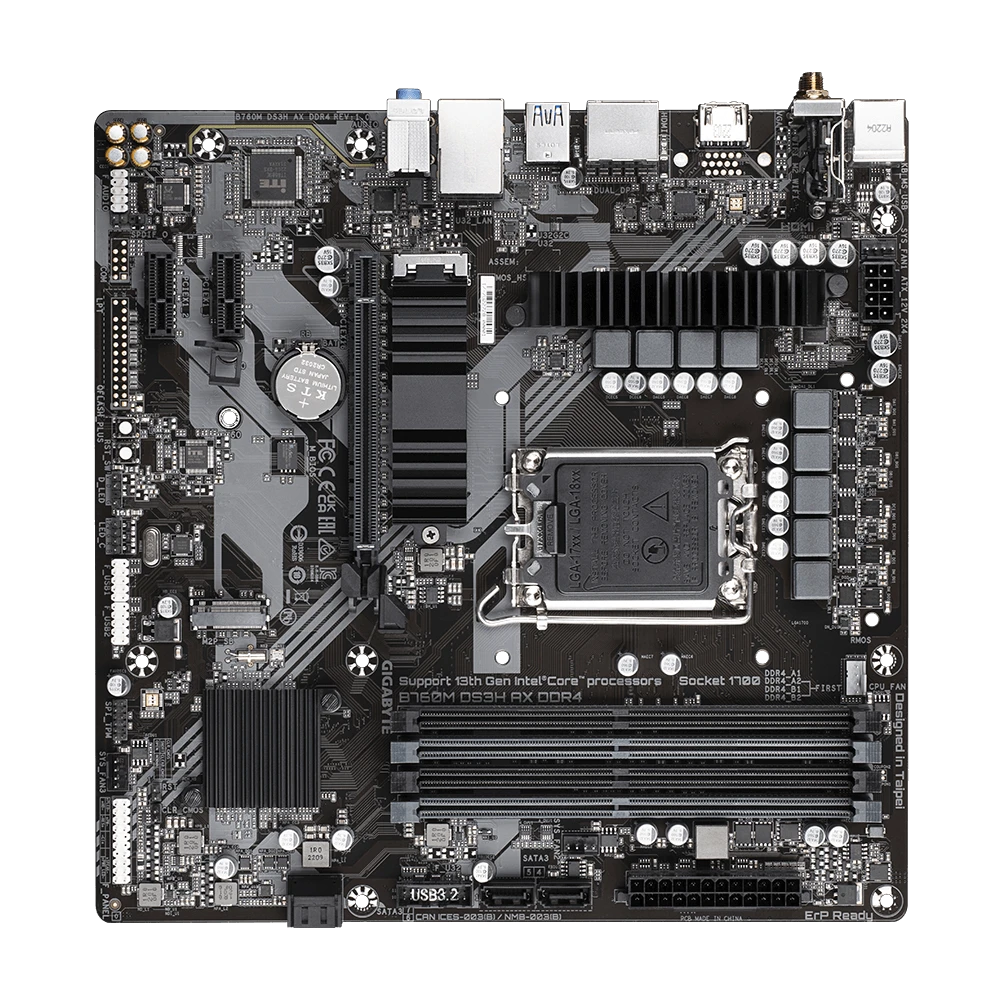

Gigabyte B760M DS3H AX (Wi-Fi 6E) DDR4 Intel Motherboard
Key Specification
Product Specification
|
Brand |
Gigabyte |
|
Model |
Gigabyte
B760M DS3H AX DDR4 |
|
Color |
Black |
|
CPU Data |
Chipset
Brand: Intel Chipset:
Intel B760 Sockets
Supported: LGA1700 Built-in
Processor: N/A Supported
CPU: 12th / 13th / 14th Generation Intel Core i9/ i7/ i5/ i3 processors and
Intel Pentium processors/ Intel Celeron processors. Generation:
12th/13th/14th |
|
Memory Support |
Memory Type: DDR4 Memory MHz: 5333(O.C.)/ 5133(O.C.)/
5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/
4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/
3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/
3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s non-ECC
Un-buffered DIMM Memory Channel: Dual Memory Slot: 4 Memory Max: 128GB |
|
Storage
Info |
Storage
Interface: 6Gb/s, M.2/SSD
Expansion Slot: 2 M.2/SSD
Expansion : 2 x M.2, ((1 x M.2, type 2280 PCIe 4.0 x4/x2 SSD support),(1 x
M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)) |
|
Graphics Info |
Multi-GPU Support: N/A PCI Express Slot: 1 x PCI Express x16, 2 x
PCI Express x1 |
|
Audio
& Video |
Audio
Chipset: Realtek Audio CODEC High Definition Audio Audio
Channel –7.1 |
|
Network & Connectivity |
LAN Chipset: Realtek 2.5GbE LAN LAN Speed (Mbps): 10/100/1000/2500 Mb/s WiFi: Yes WiFi Technology: Wi-Fi 6E 802.11ax Bluetooth: Bluetooth 5.3 |
|

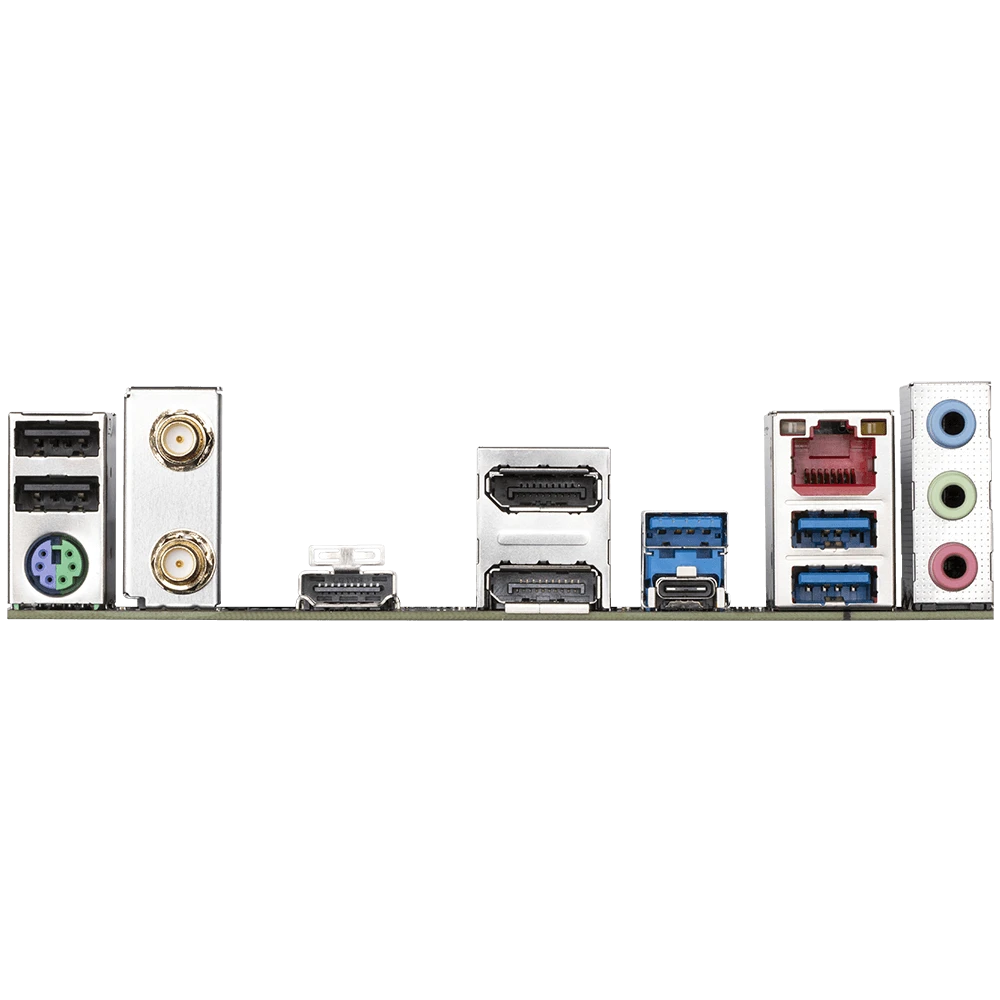

Ports Data |
USB
Port: 2 x USB 2.0/1.1, 3 x USB 3.2 Gen 1, 1 x USB Type-C, with USB 3.2 Gen 2
support VGA
Port: N/A HDMI
Port: 1 Display:
2 TPM: 1 SATA
Port: 4 |
|
Technical Data |
Cable Management: Front RGB Support: RGB RGB Connector: 1 x RGB LED strip header Approx. Power Consumption: 60W Form Factor: Micro-ATX |
|
Compatibility |
Supported
Operating System: Windows 10 / Windows 11 Compatible
Products: 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron
Processors |
|
Warranty |
3 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Gigabyte
B760M DS3H DDR5 Micro-ATX Motherboard
The Gigabyte B760M DS3H is a
cutting-edge Micro-ATX motherboard designed to deliver robust
performance, enhanced connectivity, and long-term durability for PC builders
using 12th, 13th, or 14th Gen Intel processors. Built around the Intel
B760 chipset and supporting LGA1700 socket CPUs, it brings high-end
features to mainstream users, making it an excellent foundation for gaming,
content creation, and productivity-focused systems.
With native DDR5 memory support,
ultra-fast PCIe 4.0 connectivity, and integrated 2.5GbE LAN, this
motherboard is built to maximize performance while offering great flexibility
and value. The B760M DS3H is packed with Gigabyte’s signature
reliability and features, making it a popular choice among power users and PC
enthusiasts who demand more from a compact form factor.
Features
- LGA1700 Socket Support: Compatible with Intel 12th, 13th, and 14th Gen
Core, Pentium, and Celeron processors.
- Intel B760 Chipset:
Delivers balanced performance and energy efficiency for everyday computing
and gaming.
- Advanced DDR5 Memory Support: Achieve speeds up to 7600MHz (OC) across four
DIMM slots, with total capacity up to 192GB.
- Dual M.2 NVMe Slots:
Offers high-speed PCIe 4.0 SSD support for lightning-fast boot and load
times.
- Realtek 2.5GbE LAN:
Ensures ultra-fast and stable networking for online gaming and streaming.
Memory
Support
- Memory Type:
DDR5 only
- Memory Speeds:
7600(O.C.), 7400(O.C.), 7200(O.C.), 7000(O.C.), 6800(O.C.), 6600(O.C.),
6400(O.C.), 6200(O.C.), 6000(O.C.), 5800(O.C.), 5600(O.C.), 5400(O.C.),
5200(O.C.), 4800, 4000MHz
- Slots:
4 x DIMM
- Maximum Capacity:
Up to 192GB
- Support for ECC & Non-ECC Un-buffered Modules
- Dual-Channel Architecture
Storage
and Expansion
- SATA Ports:
4 x SATA 6Gb/s connectors
- M.2 Slots:
- 2 x M.2 PCIe 4.0 x4/x2 (Type 2280, M Key), supporting
ultra-fast NVMe SSDs
Graphics
and PCIe Slots
- PCI Express Slots:
- 1 x PCIe x16 slot (PCIe 4.0)
- 2 x PCIe x1 slots (PCIe 3.0)
- Integrated Display Output:
- 1 x HDMI port
- 1 x DisplayPort
- Multi-GPU Support:
Not supported
Audio
and Networking
- Audio Codec:
Realtek High Definition Audio CODEC
- Audio Channel Support:
2/4/5.1/7.1-channel audio configurations
- LAN Chipset:
Realtek 2.5GbE
- LAN Speed:
10/100/1000/2500 Mbps
Connectivity
Options
- USB Ports:
- 1 x USB 3.2 Gen 2 Type-C
- 3 x USB 3.2 Gen 1
- 2 x USB 2.0
- TPM Header:
Included for hardware-based security
Design
and Build
- Form Factor:
Micro-ATX
- Color:
Sleek black PCB with silver and grey accents
- Power Efficiency:
Approx. 60W consumption
- RGB Lighting Support:
Includes 1 x RGB LED strip header for custom lighting setups
- Cable Management:
Front-access optimized layout
Compatibility
- Operating Systems:
Fully compatible with Windows 10 and Windows 11
- Compatible CPUs:
Intel Core i9 / i7 / i5 / i3, Pentium, and Celeron processors from the 12th,
13th, and 14th generations, using the LGA1700 socket
Warranty
Information
- 3-Year Official Manufacturer Warranty
Price
and Availability
- Available at:
Computer Village Agrabad, Chattogram, Bangladesh
