‣  Chipset -  Intel B760

‣  Sockets Supported - LGA1700

‣  Supported CPU - 13th/14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

‣  Generation – 12th/13th/14th

‣  Memory Slot - 4

‣  Memory Max - 192GB

‣  Form Factor - Micro-ATX

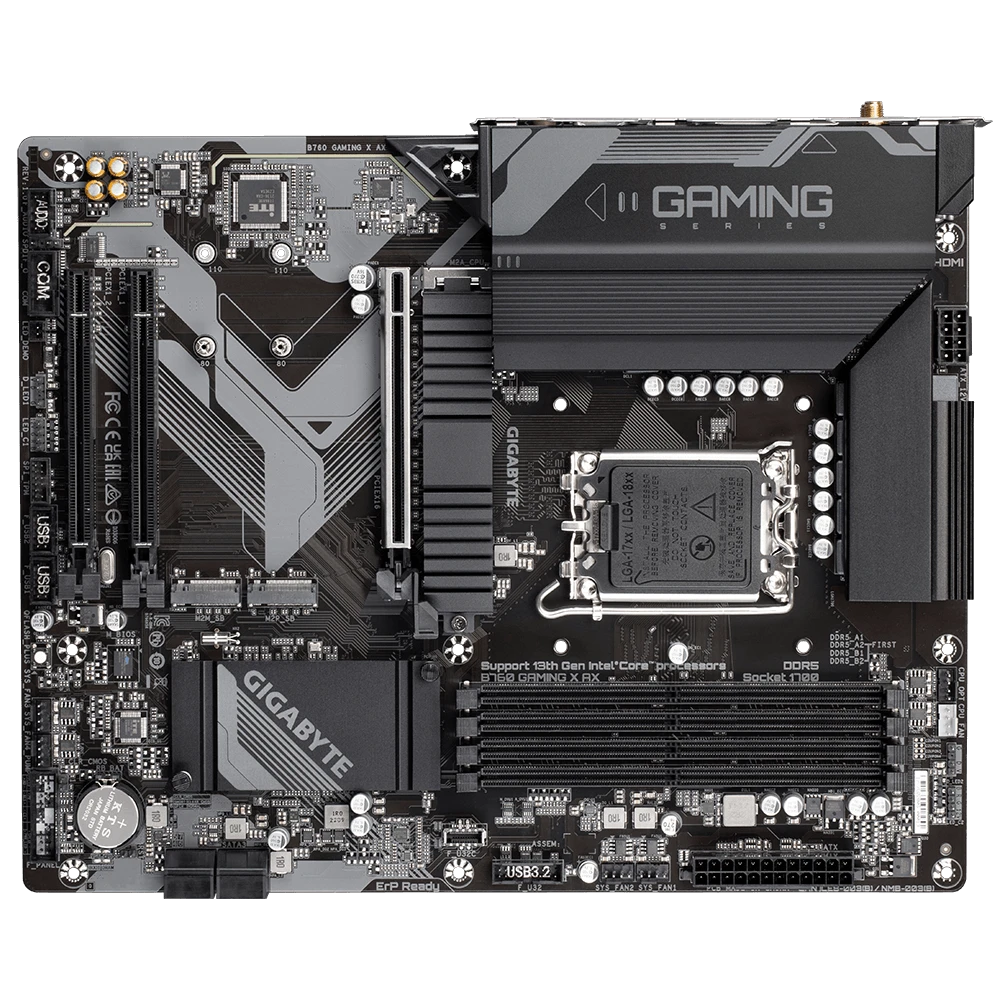

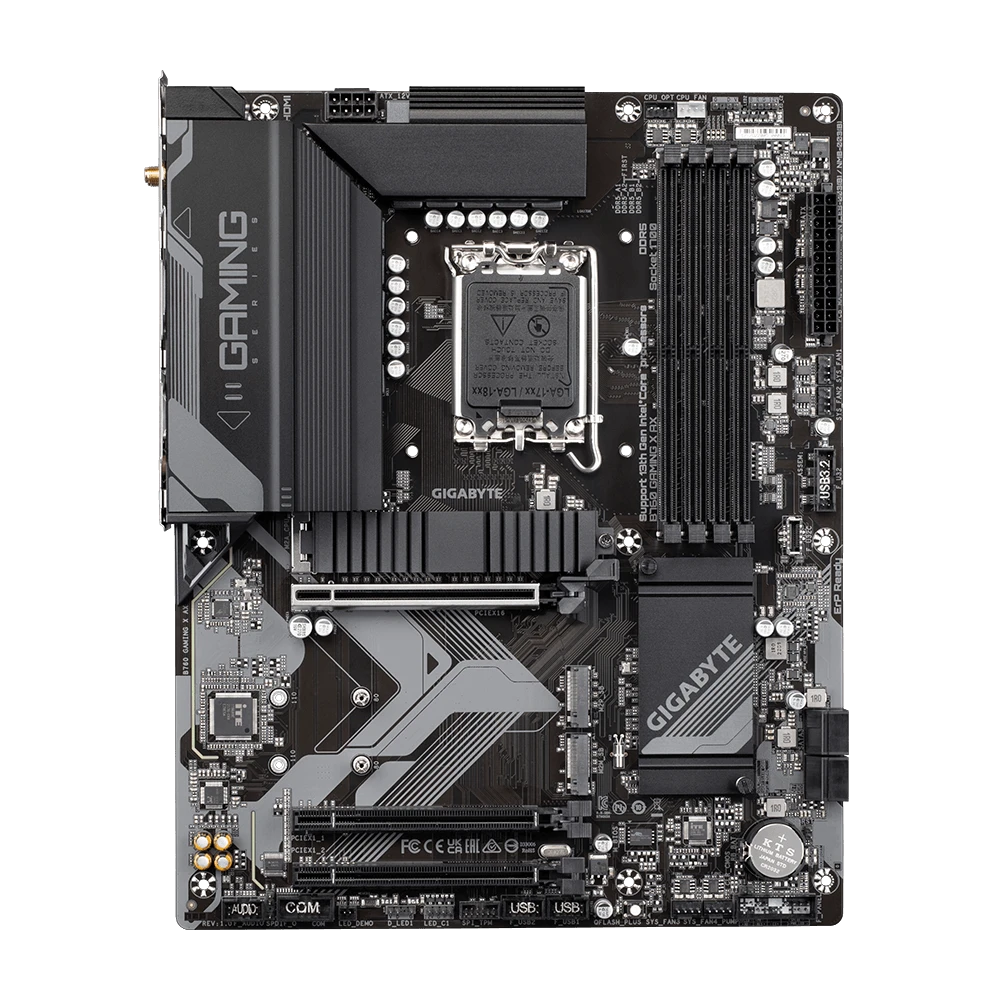

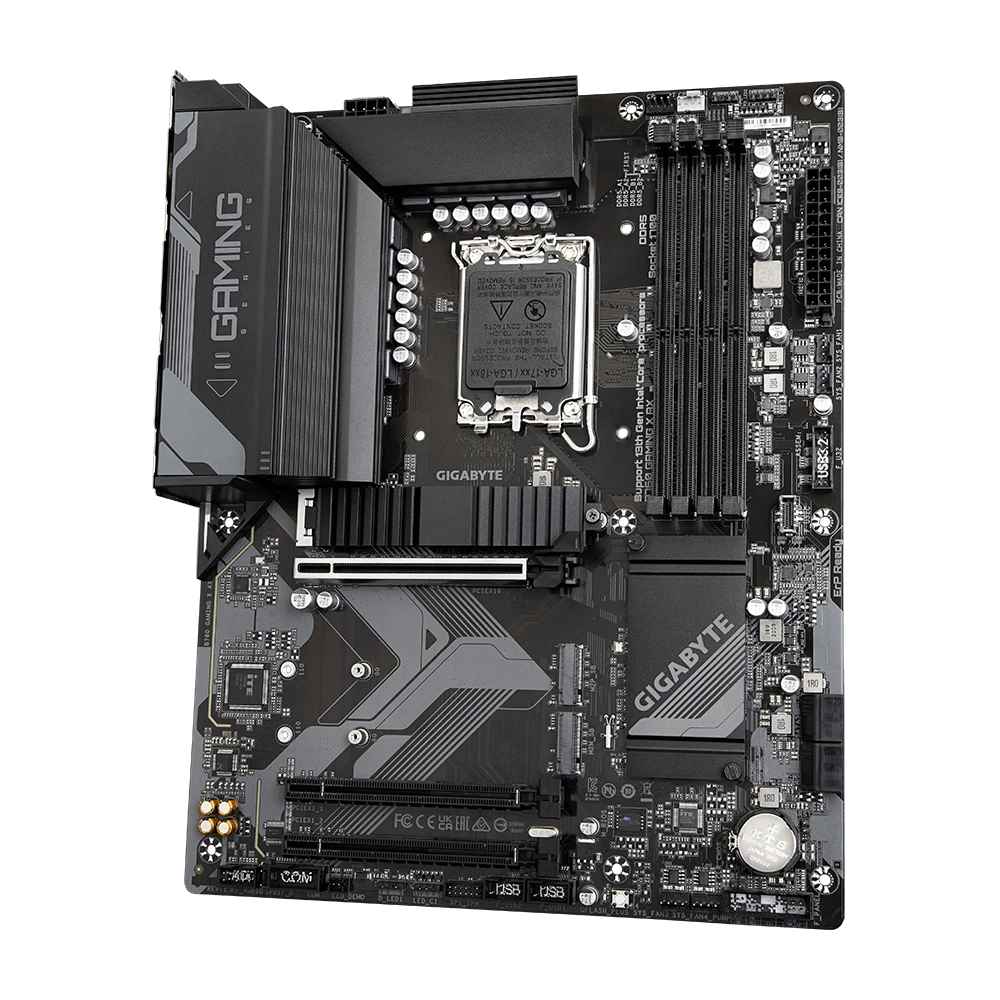

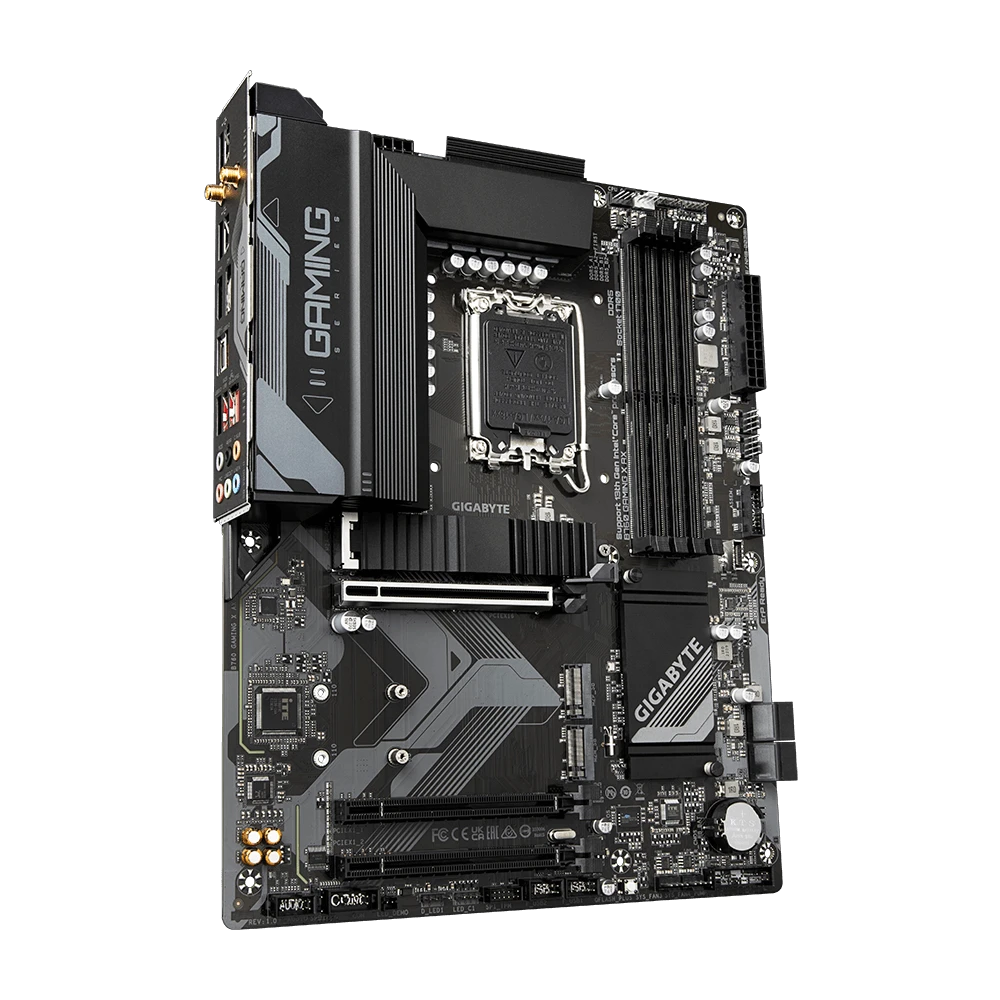

Gigabyte B760M GAMING X AX DDR5 Micro-ATX Motherboard (Wi-Fi 6E)

The Gigabyte B760M GAMING X AX is a robust and feature-rich motherboard that delivers excellent performance, high-speed connectivity, and enhanced thermal design. Engineered for gamers and power users, it brings support for Intel’s latest 12th, 13th, and 14th Gen processors, blazing-fast DDR5 memory, and modern wireless standards like Wi-Fi 6E and Bluetooth 5.3. Whether you're building a high-end gaming PC or a future-ready workstation, this motherboard combines top-tier specifications with smart design enhancements to meet all demands.

Features

• Supports Intel 12th, 13th, and 14th Gen Core / Pentium Gold / Celeron Processors
• Equipped with the Intel B760 Chipset and LGA1700 socket
• High-speed DDR5 memory support up to 192GB and 7600MHz (OC)
• Advanced wireless technology including Wi-Fi 6E and Bluetooth 5.3
• 2 M.2 slots for ultra-fast PCIe 4.0 NVMe SSDs
• 2 RGB LED strip headers for customizable lighting
• PCIe 4.0 x16 slot for next-gen GPUs and PCIe 3.0 x4 slot for expandability
• Realtek 2.5GbE LAN for ultra-fast wired networking
• Integrated I/O shield design for easier installation and better aesthetics

CPU & Chipset Support

• Socket: LGA1700
• Chipset: Intel B760
• Compatible CPUs: Intel Core i9, i7, i5, i3 / Pentium Gold / Celeron (12th, 13th, and 14th Gen)
• Integrated Processor: Not included

This board offers a future-proof foundation, ensuring support for upcoming CPUs within the LGA1700 socket range.

Memory Configuration

• Memory Type: DDR5
• Memory Capacity: Up to 192GB
• Memory Slots: 4 DIMMs, Dual Channel
• Supported Speeds:
• OC Frequencies: 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200 MHz
• Standard: 4800 / 4000 MHz
• Format: Non-ECC, Un-buffered

Storage Options

• SATA Ports: 4 x SATA 6Gb/s for HDDs or SATA SSDs
• M.2 Expansion:
• 1 x M.2 (Socket 3, M key, type 2280, PCIe 4.0 x4/x2 – M2A_CPU)
• 1 x M.2 (Socket 3, M key, type 22110/2280, PCIe 4.0 x4/x2 – M2P_SB)

Perfect for gamers and creators who need fast storage and rapid data access.

Graphics Expansion

• PCIe Slots:
• 1 x PCIe 4.0 x16 (graphics card support)
• 1 x PCIe 3.0 x16 (runs at x4)
• Multi-GPU Support: Not supported
• Video Output: 1 x HDMI Port

Audio & Networking

• Audio: Realtek High Definition Audio CODEC
• Supports 2/4/5.1/7.1 channel configurations
• Wired LAN: Realtek 2.5GbE LAN chip (10/100/1000/2500 Mbps)
• Wireless:
• Wi-Fi: Built-in Wi-Fi 6E
• Bluetooth: Version 5.3

These ensure smooth online gaming, streaming, and file transfers without latency.

USB and Connectivity

• USB Ports:
• 5 x USB 2.0/1.1 Type-A
• 3 x USB 3.2 Gen 1 Type-A
• Thunderbolt: 2 connectors for high-speed peripheral support
• RGB Support: 2 x RGB LED strip headers
• TPM Header: Included for hardware-level security

Build and Design

• Form Factor: Micro-ATX
• Color: Black
• Cooling: Enhanced with heatsinks for key components
• Cable Management: Front-oriented design
• Power Consumption: Approx. 60W

Built to fit in compact builds without compromising thermal performance or expandability.

Operating System Compatibility

• Supports Windows 10 and Windows 11
• Full compatibility with all LGA1700-based Intel Core series CPUs and variants

Warranty Information

• Comes with a 3-year official warranty
• Local support available in Bangladesh

Price and Availability

Available now at Computer Village Agrabad, Chattogram, Bangladesh
