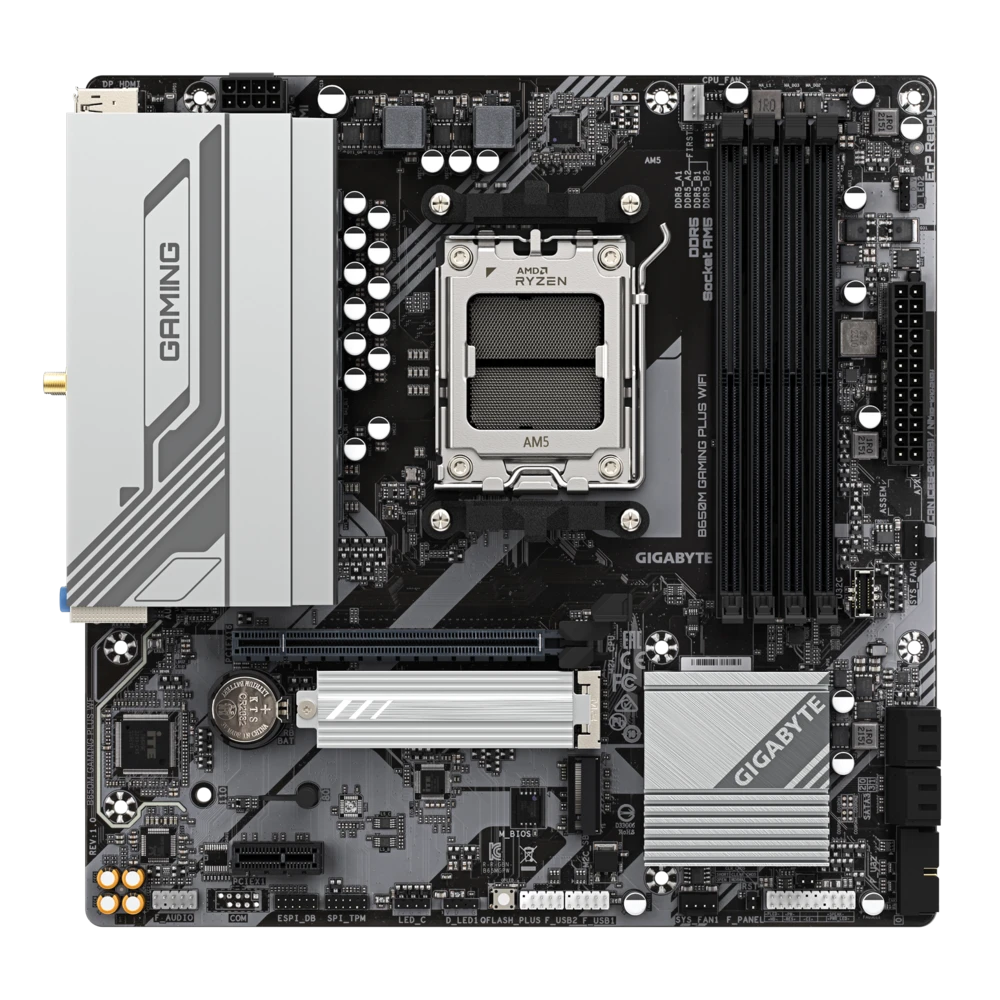

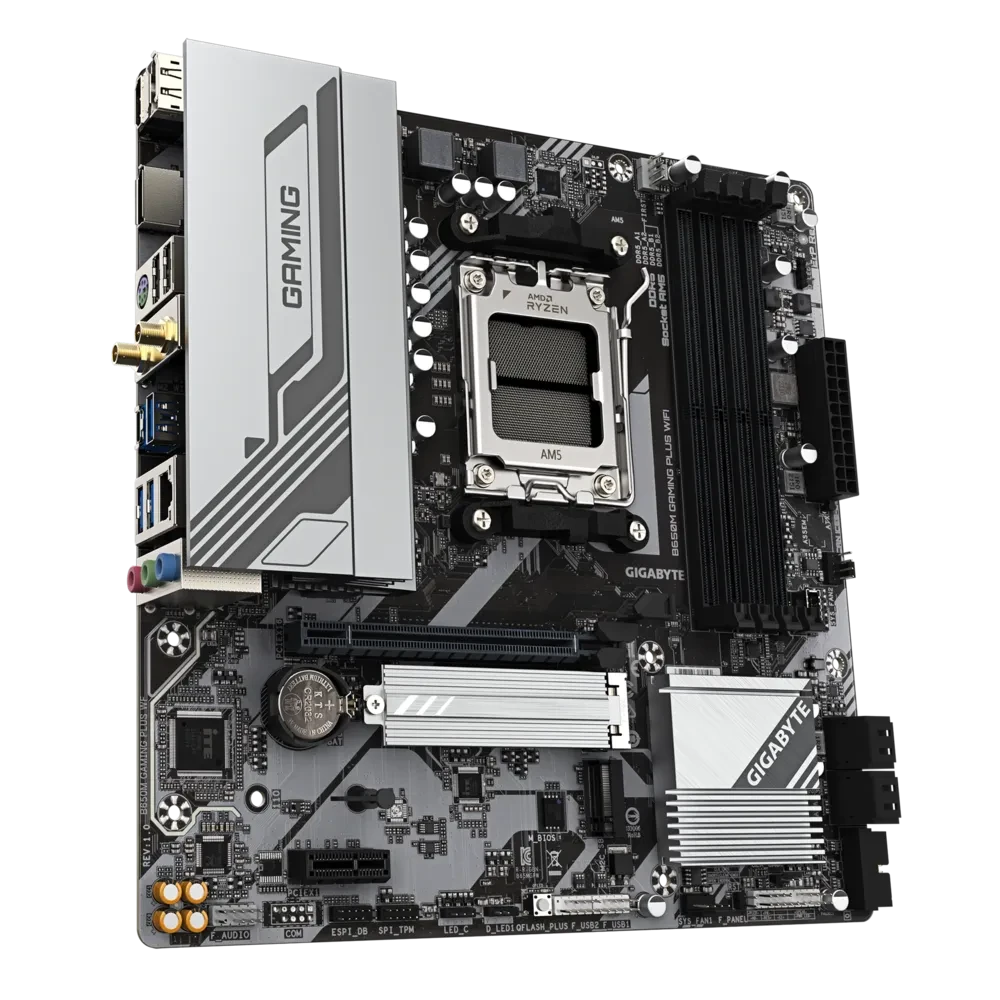

Gigabyte B650M GAMING PLUS (Wi-Fi 6E) Micro-ATX Motherboard

The Gigabyte B650M GAMING PLUS is a Micro-ATX motherboard designed for high-performance gaming and computing. Powered by the AMD B650 chipset, this motherboard supports the latest AMD Ryzen 7000, 8000, and 9000 Series processors via the AM5 socket. With DDR5 memory support and cutting-edge features like Wi-Fi 6E and PCIe 5.0, the B650M GAMING PLUS ensures exceptional speed and connectivity for both gaming enthusiasts and power users.

Features

• Chipset: AMD B650 chipset provides support for PCIe 5.0 and PCIe 4.0, offering excellent performance for modern GPUs and storage devices.
• Socket: AM5 socket for AMD Ryzen 7000, 8000, and 9000 Series processors.
• Memory Support:
• DDR5 memory support with speeds up to 8000MHz (overclocked), delivering superior bandwidth for performance-intensive tasks.
• Dual-channel architecture with 4 memory slots, supporting up to 256GB of non-ECC and un-buffered memory.

Storage and Expansion

• Storage Interface:
• 6.0Gb/s SATA III interface for reliable data storage connections.
• 2 x M.2 slots:
• 1 x M.2 PCIe 5.0 x4 slot supporting M.2 Type 2242/2260/2280 SSD modules.
• 1 x M.2 PCIe 4.0 x4 slot supporting M.2 Type 2242/2260/2280 SSD modules.
• Expansion Slots:
• 1 x PCIe 4.0 x16 slot for GPUs or high-performance cards.
• 1 x PCIe 3.0 x1 slot for additional expansion.

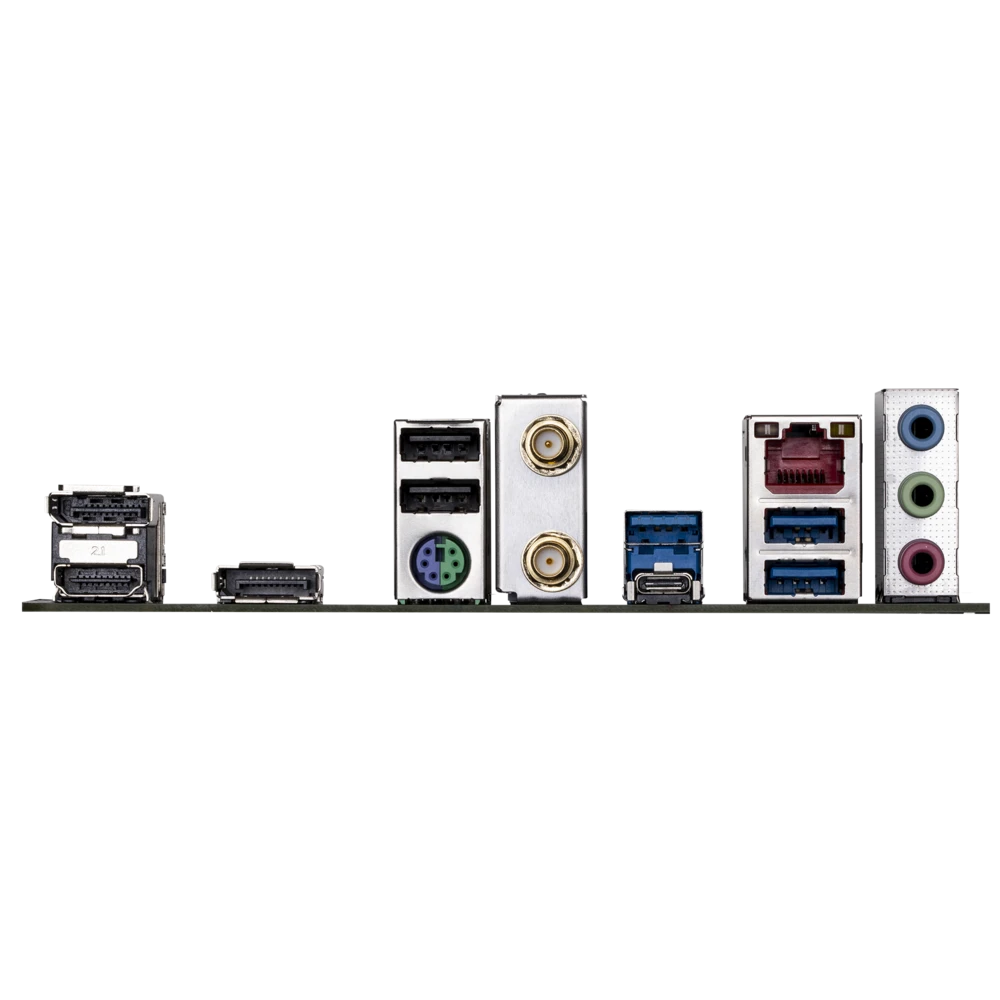

Connectivity Options

• USB Ports:
• 1 x USB Type-C port (with USB 3.2 Gen 1 support) for faster connectivity.
• 3 x USB 3.2 Gen1 ports for quick data transfer.
• 2 x USB 2.0/1.1 ports for legacy device support.
• Video Outputs:
• 1 x HDMI port for video output to compatible monitors.
• 2 x Display outputs for multi-monitor setups.
• Networking:
• Realtek 2.5Gb Ethernet chipset for fast and stable wired network connections (10/100/1000/2500Mbps).
• Wi-Fi 6E (RTL8852CE) for high-speed wireless networking and improved range.
• Bluetooth 5.3 for seamless wireless peripheral connectivity.

Audio and Video

• Audio Codec:
• Realtek 7.1 Surround Sound High Definition Audio CODEC, supporting 2/4/5.1/7.1 channels, providing immersive audio experiences.

Design and Build

• Form Factor: Micro-ATX, offering a compact size while still providing ample expansion options for high-performance components.
• RGB Support: RGB LED strip header for customizable lighting to match your build's aesthetics.
• Cable Management: Front cable management ensures a clean and organized setup.

Power and Efficiency

• Power Consumption: Approximately 60W, making this motherboard energy-efficient while delivering strong performance.
• Compatibility: Fully compatible with AMD Ryzen 7000/8000/9000 Series processors and Windows 10/11 operating systems.

Warranty Information

• 3-year warranty, ensuring reliability and peace of mind with your purchase.
• Note: Product may vary with different kit or version.

Included Accessories

• 1 x Gigabyte B650M GAMING PLUS Micro-ATX Motherboard
• 1 x I/O Shield
• 1 x User Manual

Price and Availability

• Available now at Computer Village Agrabad, Chattogram, Bangladesh.
