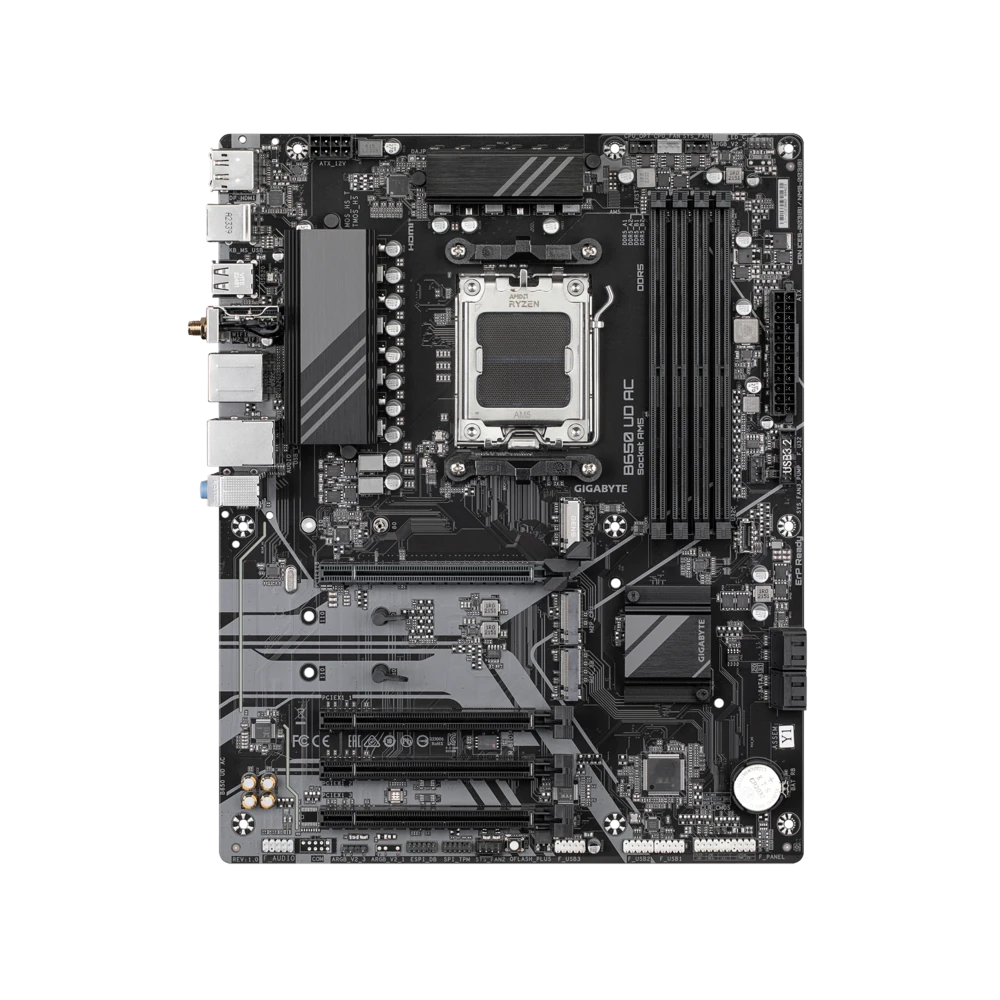

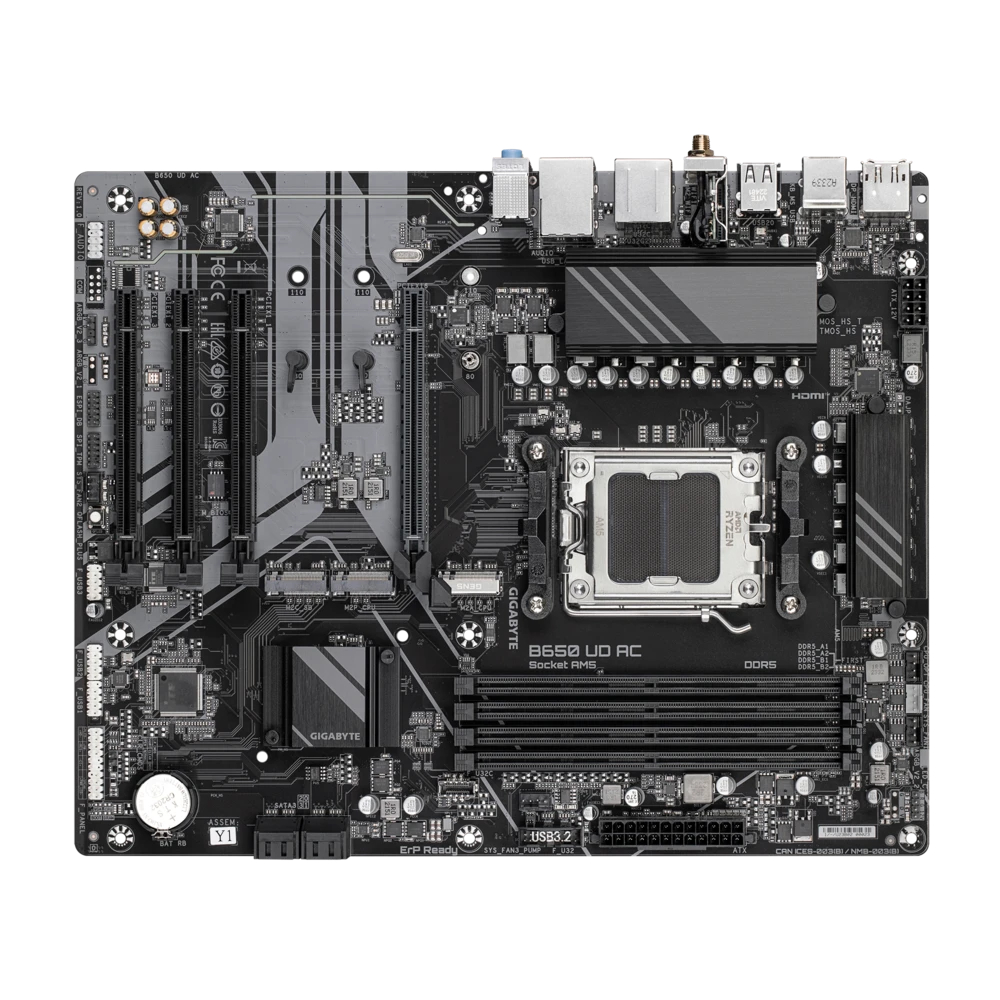

Gigabyte B650 UD AC ATX Motherboard

The Gigabyte B650 UD AC motherboard, based on the AMD B650 chipset, provides exceptional performance for users building high-end systems using AMD Ryzen 7000, 8000, or 9000 Series processors. With support for DDR5 memory and PCIe 4.0, it ensures a stable, fast platform for demanding workloads, gaming, and content creation. The ATX form factor offers ample space for expansion, including 3 M.2 slots, and Realtek GbE LAN for reliable networking.

Features

• Chipset: AMD B650 chipset offers a high-performance foundation with PCIe 4.0 support, ideal for the latest graphics cards and storage solutions.
• Socket: AM5 socket is designed for AMD Ryzen 7000/8000/9000 Series processors.
• Memory Support:
• DDR5 memory with speeds up to 7600MHz (overclocked), supporting high-performance applications.
• Dual-channel architecture with 4 memory slots, supporting up to 192GB of non-ECC, un-buffered DIMM memory.

Storage and Expansion

• Storage Interface:
• 6.0Gb/s SATA III for reliable data transfer with conventional storage devices.
• 3 x M.2 slots:
• 1 x M.2 type 25110/22110/2580/2280 SSD slot for fast storage options.
• 1 x M.2 type 22110/2280 SSD slot.
• 1 x M.2 type 22110/2280 PCIe 4.0 x4/x2 SSD slot for top-tier SSD performance.
• Expansion Slots:
• 1 x PCIe x16 slot (PCIEX16) for high-performance graphics cards.
• 2 x PCIe x16 slots for additional expansion capabilities.

Connectivity Options

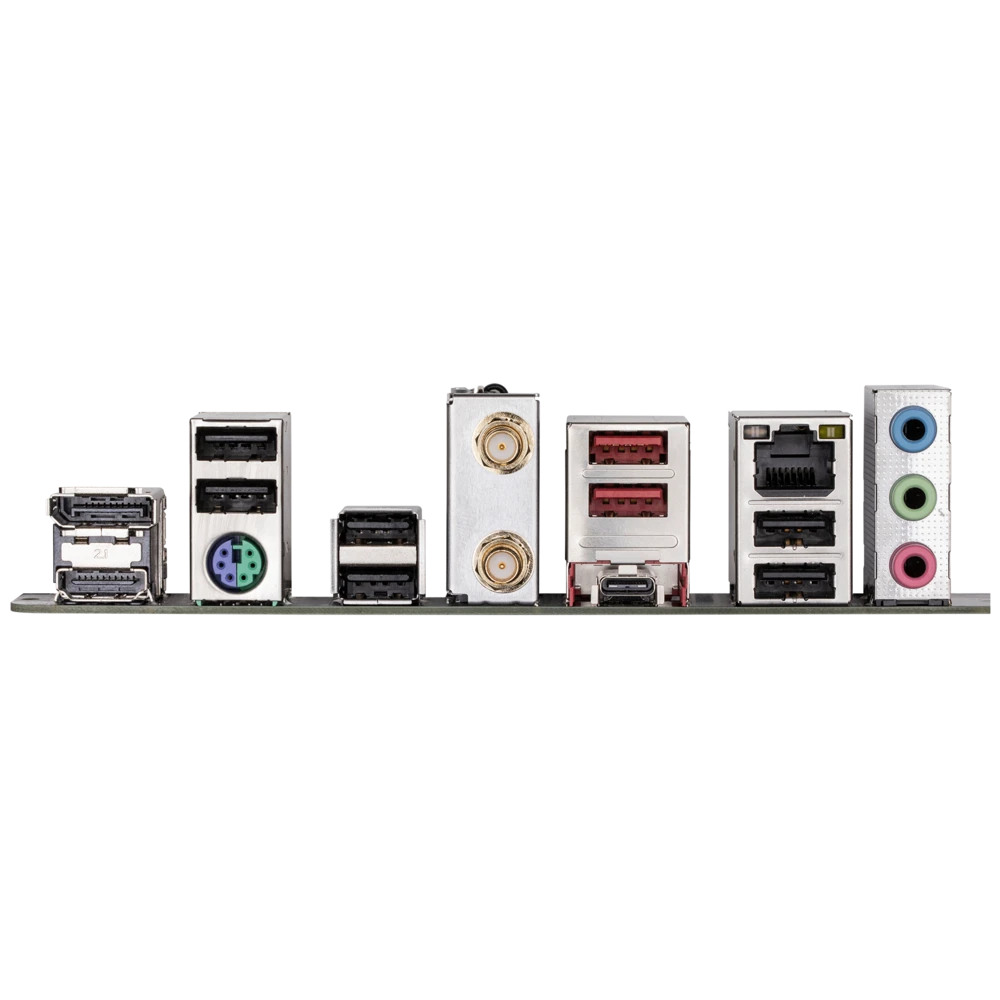

• USB Ports:
• 1 x USB Type-C port with USB 3.2 Gen 1 support for high-speed data transfer.
• 3 x USB 3.2 Gen 1 ports for fast connectivity.
• 2 x USB 2.0/1.1 ports for legacy devices.
• Video Outputs:
• 1 x HDMI port for video output to compatible displays.
• 1 x Display port for multi-monitor setups.
• Networking:
• Realtek GbE LAN for 10/100/1000/2500Mbps wired networking.

Audio and Video

• Audio Codec:
• Realtek 7.1 Surround Sound High Definition Audio CODEC with support for 2/4/5.1/7.1 audio channels.

Design and Build

• Form Factor: ATX form factor with sufficient space for multiple components and efficient airflow.
• Heatsink: Features a built-in heatsink for better cooling, ensuring stable performance.
• RGB Support: Includes RGB LED strip header for customizable lighting effects to match your system.

Power and Efficiency

• Power Consumption: Approximately 70W, offering a balance between high performance and efficient power use.
• Compatibility: Fully compatible with AMD Ryzen 7000/8000/9000 Series processors and Windows 10/11 operating systems.

Warranty Information

• 3-year warranty, ensuring longevity and reliability in your system build.
• Note: Product may vary with different kit or version.

Included Accessories

• 1 x Gigabyte B650 UD AC ATX Motherboard
• 1 x I/O Shield
• 1 x User Manual

Price and Availability

• Available now at Computer Village Agrabad, Chattogram, Bangladesh.
