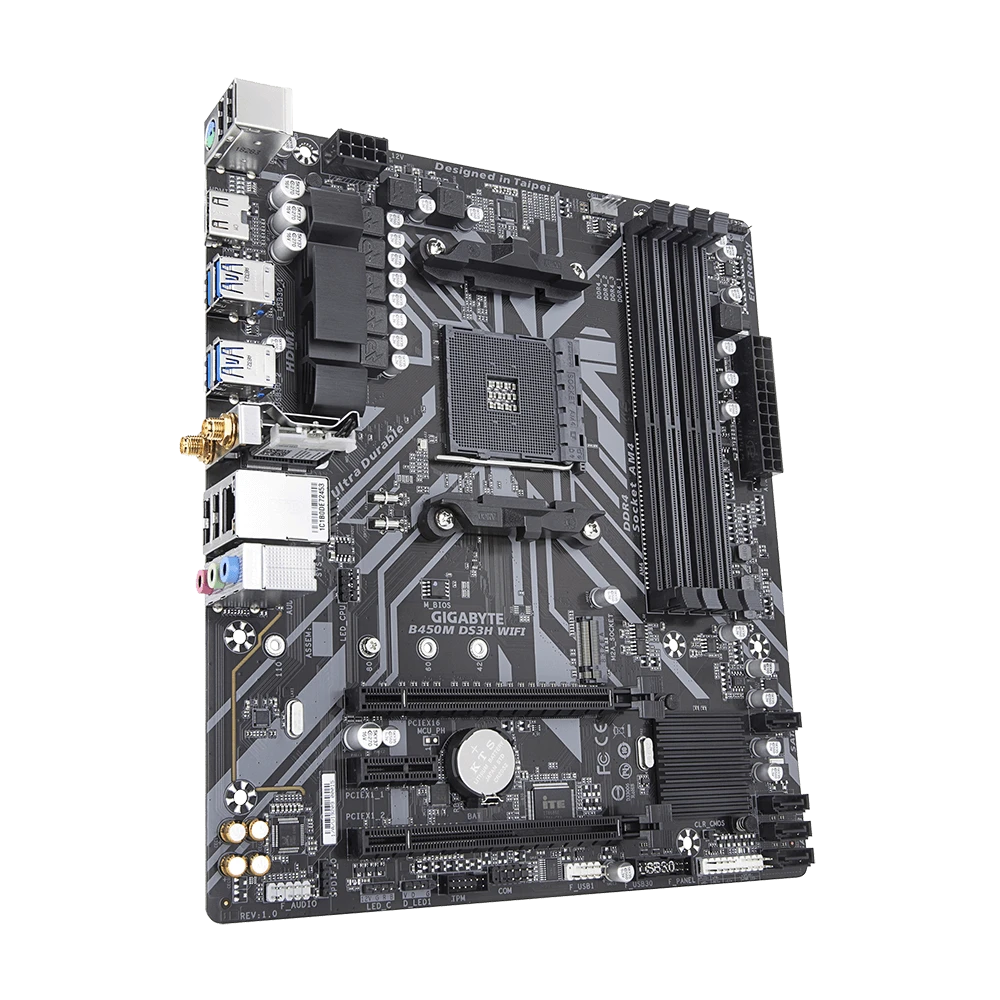

Gigabyte B450M DS3H WIFI motherboard is a powerful, versatile, and budget-friendly option for those looking to build a high-performance PC system. With support for AMD Ryzen™ 5000 series, Ryzen™ 4000 series, and 3rd Gen to 1st Gen Ryzen™ processors with Radeon™ Vega Graphics, this motherboard provides exceptional flexibility and performance for gaming, productivity, and content creation.

CPU and Chipset Compatibility

The B450M DS3H WIFI is equipped with an AM4 socket, providing compatibility with a wide range of AMD Ryzen™ processors, including the latest Ryzen™ 5000 series and earlier generations. This makes it an ideal choice for users who want to upgrade their system without having to replace the motherboard. The AMD B450 chipset offers stable and efficient performance, allowing for smooth operation in both everyday tasks and intensive workloads.

Memory Support

This motherboard features 4 x DDR4 DIMM sockets, with support for up to 128 GB of system memory, ensuring that users can run demanding applications and multitask efficiently. It supports DDR4 memory speeds of up to 3600 MHz (O.C.), allowing for high-speed memory performance. The dual-channel memory architecture enhances bandwidth for better overall system performance. It also supports Extreme Memory Profile (XMP) for easy memory overclocking, and is compatible with both ECC and non-ECC Un-buffered DIMMs.

Storage and Expansion

The B450M DS3H WIFI is equipped with 1 x M.2 connector (Socket 3, M key), which supports SATA and PCIe x4/x2 SSDs for faster storage options, as well as 4 x SATA 6Gb/s connectors. These connectors allow users to connect multiple storage devices, including hard drives and SSDs, while supporting RAID 0, RAID 1, and RAID 10 configurations for optimized data management. The flexibility in storage options makes this motherboard ideal for users who need a reliable and fast storage solution.

Graphics and Display

The motherboard features 1 x HDMI port capable of supporting a maximum resolution of 4096x2160@60Hz, with HDMI 2.0 and HDCP 2.2 support. It allows users to connect high-definition displays for gaming, multimedia, or productivity tasks. With a maximum shared memory of 16GB, this board ensures seamless graphics performance for casual gaming and video streaming.

Network and Connectivity

The B450M DS3H WIFI is designed for modern network needs with the inclusion of Realtek® GbE LAN chip (1 Gbps/100 Mbps) for stable wired internet connections. Additionally, it includes the Realtek® Wi-Fi RTL8821CE, which supports Wi-Fi 802.11a/b/g/n/ac dual-band (2.4/5 GHz) wireless connectivity and Bluetooth 5.0 support. This provides a reliable and high-speed wireless connection for gaming, streaming, and general internet browsing.

USB and I/O Ports

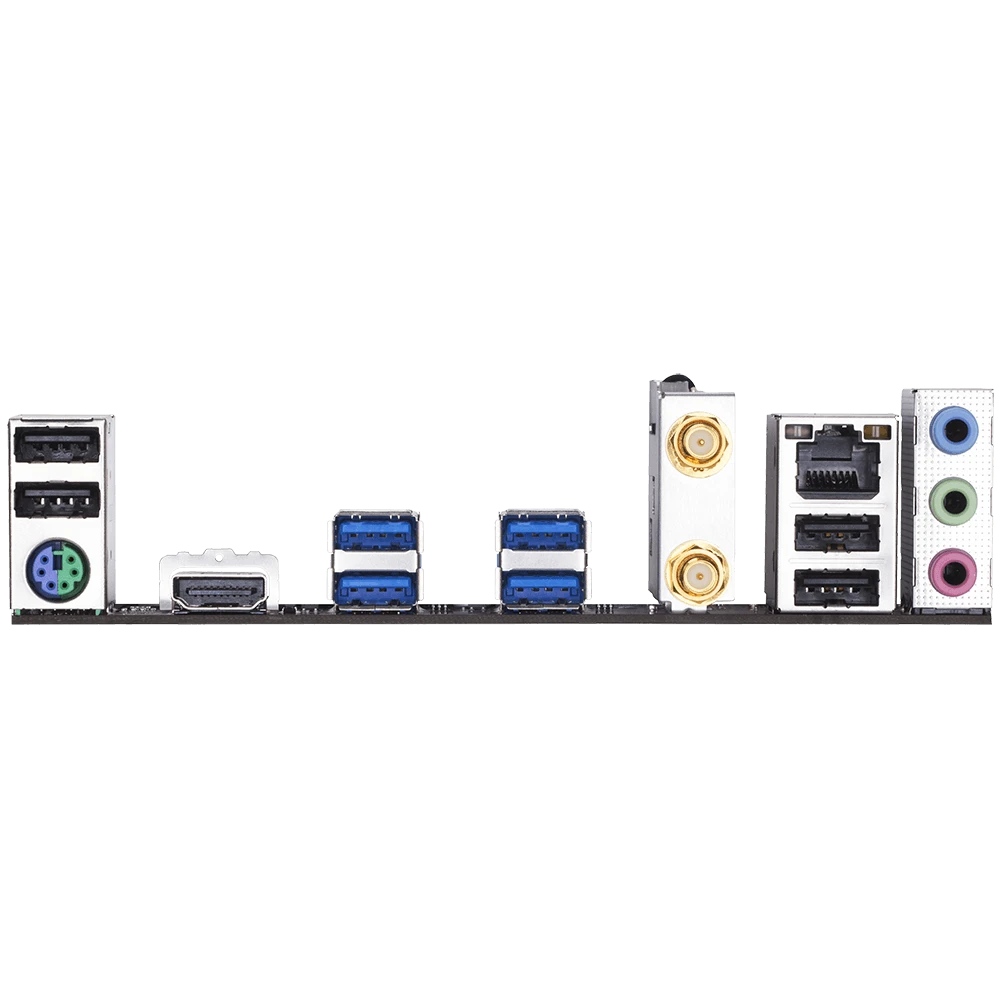

This motherboard includes an abundance of I/O options, including 4 x USB 3.1 Gen 1 ports and 4 x USB 2.0/1.1 ports on the back panel, plus additional internal USB headers for more connectivity options. The 2 x SMA antenna connectors ensure stable wireless connectivity, while the RJ-45 port allows for wired network access. With 3 audio jacks and S/PDIF Out support, this motherboard provides excellent sound capabilities.

BIOS and Software Features

The B450M DS3H WIFI uses 128 Mbit flash BIOS with licensed AMI UEFI BIOS, ensuring a user-friendly interface for managing system settings. Features like Q-Flash Plus enable easy BIOS updates, while the APP Center and cFosSpeed software ensure system optimization and enhanced network performance. Norton® Internet Security (OEM version) offers additional security for your system.

Additional Features and Warranty

With iTE® I/O Controller Chip and RGB LED strip headers, this motherboard also supports aesthetic customization with lighting, allowing users to personalize their build. The 3-year warranty ensures durability and peace of mind for long-term use.

In conclusion, the Gigabyte B450M DS3H WIFI is a feature-packed motherboard offering a solid foundation for users who want a high-performance system with reliable connectivity, fast storage options, and modern features, all at an affordable price point. Whether you're building a gaming rig or a workstation, this motherboard will meet your needs with ease.
