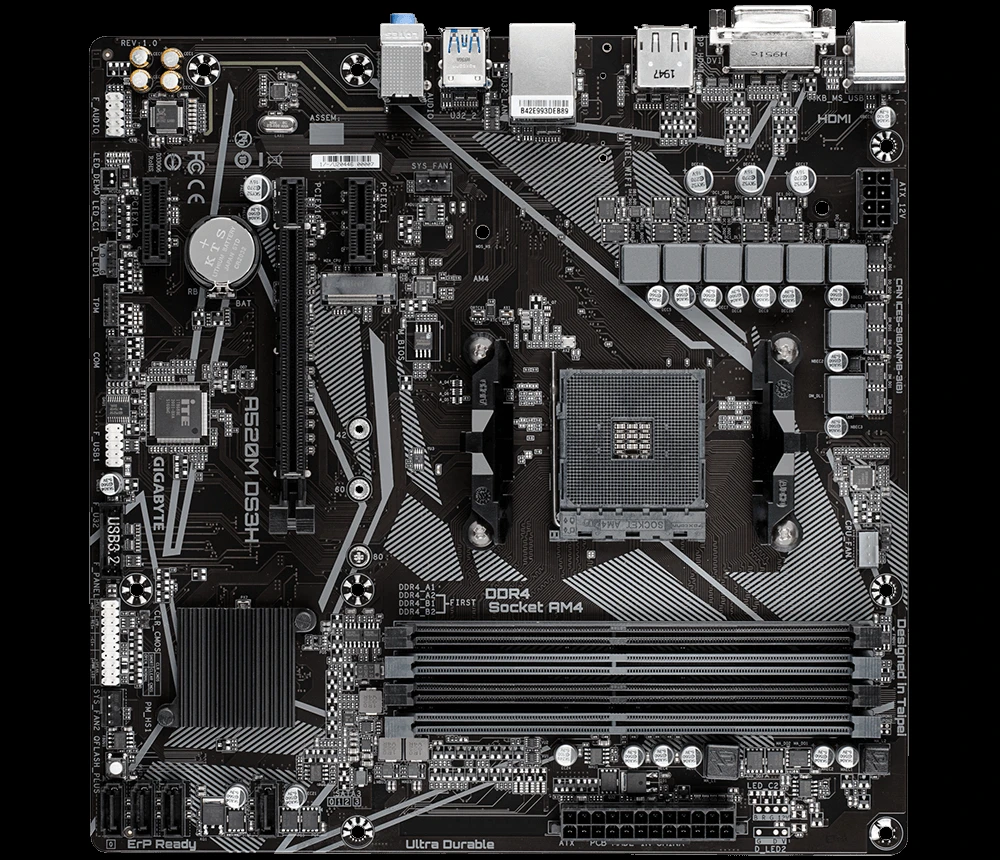

Gigabyte A520M DS3H motherboard offers exceptional performance and reliability, designed for users building systems with AMD's Ryzen™ 3000, Ryzen™ 4000 G-series, and Ryzen™ 5000 series processors. With its AMD A520 chipset and Socket AM4 compatibility, this motherboard is an ideal choice for building budget-conscious yet high-performance systems that cater to both general productivity and light gaming needs.

Performance and Memory Support

The A520M DS3H supports up to 128GB of DDR4 system memory with 4 DIMM sockets, allowing for efficient multitasking and demanding workloads. It supports a wide range of memory speeds including DDR4 4400(O.C.), 4000(O.C.), 3866(O.C.), 3800(O.C.), 3733(O.C.), and many others, making it a versatile option for overclocking enthusiasts. Additionally, the motherboard supports Dual Channel memory architecture and is compatible with Extreme Memory Profile (XMP) for enhanced memory performance. Whether you're working on resource-intensive applications or casual gaming, the A520M DS3H ensures your system operates with smooth performance.

Storage and Expansion

The motherboard features 1 x M.2 socket for SATA and PCIe 3.0 x4/x2 SSDs, offering high-speed data transfer and the flexibility to expand storage capabilities. Alongside the M.2 connector, 4 x SATA 6Gb/s connectors provide ample space for additional storage devices, with support for RAID 0, RAID 1, and RAID 10 configurations for better data management and redundancy. The versatility in storage options ensures that users can build a high-performance storage setup with optimal speed and reliability.

Graphics and Display

The A520M DS3H comes equipped with multiple display outputs for enhanced visual performance, making it ideal for multitaskers and media enthusiasts. It features 1 x DVI-D port (max resolution of 1920x1200@60Hz), 1 x DisplayPort (up to 5120x2880@60Hz), and 1 x HDMI port (max resolution of 4096x2160@60Hz), supporting up to 3 displays simultaneously. The motherboard supports HDR, HDCP 2.3, and provides a maximum shared memory of 16 GB, ensuring excellent visual quality and flexibility for gaming, video editing, and other multimedia tasks.

Network and Connectivity

Connectivity is handled through the Realtek® GbE LAN chip, offering 1 Gbps/100 Mbps speeds for reliable and fast network connections. Whether for online gaming, video streaming, or general internet browsing, this motherboard ensures stable and uninterrupted connectivity. It also includes multiple PCI slots: 1 x PCI Express x16 slot for a dedicated GPU, and 2 x PCI Express x1 slots, offering flexibility for additional expansion cards.

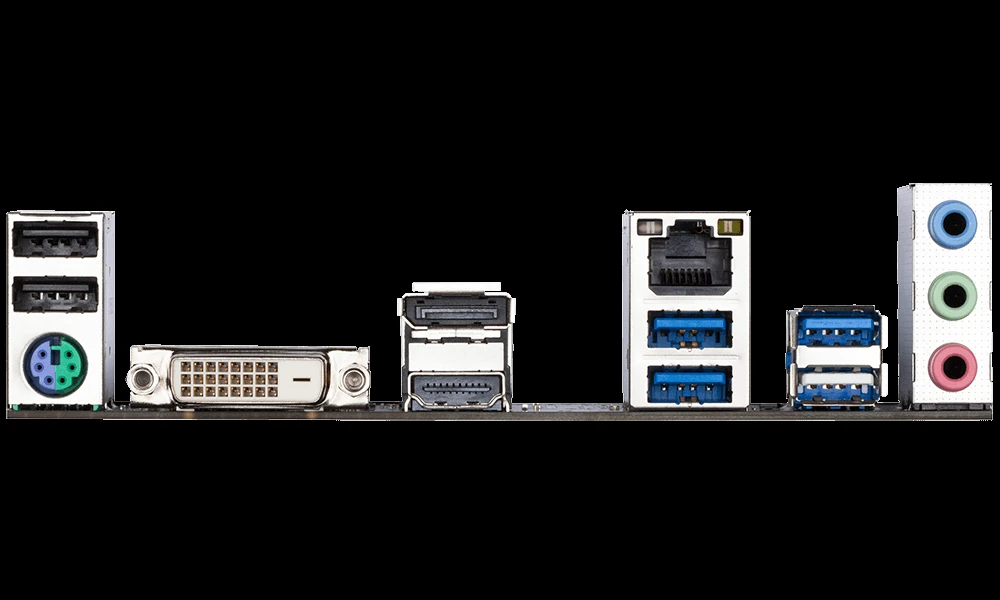

USB and I/O Ports

The A520M DS3H is equipped with 4 x USB 3.2 Gen 1 ports and 2 x USB 2.0/1.1 ports on the back panel, along with additional USB headers for internal connectivity. This gives users ample connectivity for various peripherals, such as storage devices, keyboards, mice, and other USB-powered devices. With a PS/2 keyboard/mouse port and RJ-45 LAN port, it also supports legacy devices and ensures backward compatibility.

Audio and BIOS Features

The motherboard uses the Realtek® Audio CODEC, offering high-definition audio with support for 2/4/5.1/7.1-channel audio configurations. Whether you're gaming, listening to music, or working with multimedia projects, the A520M DS3H delivers clear and immersive sound. The 128 Mbit BIOS comes with UEFI BIOS support, offering an intuitive interface for system management and updates. The Q-Flash Plus feature allows for BIOS updates without the need for a CPU or memory installed, simplifying maintenance.

Additional Features and Software

With the iTE® I/O Controller Chip and built-in LAN bandwidth management software, this motherboard provides additional stability and enhanced control over your network. The APP Center and Norton® Internet Security (OEM version) ensure system optimization and security, protecting your data while enhancing the user experience.

Warranty

The Gigabyte A520M DS3H motherboard comes with a 3-year warranty, ensuring durability and peace of mind.

With its robust features, including extensive memory support, advanced display outputs, and high-speed storage options, the Gigabyte A520M DS3H is an excellent choice for building an affordable yet capable system for general computing, light gaming, and multimedia tasks.
