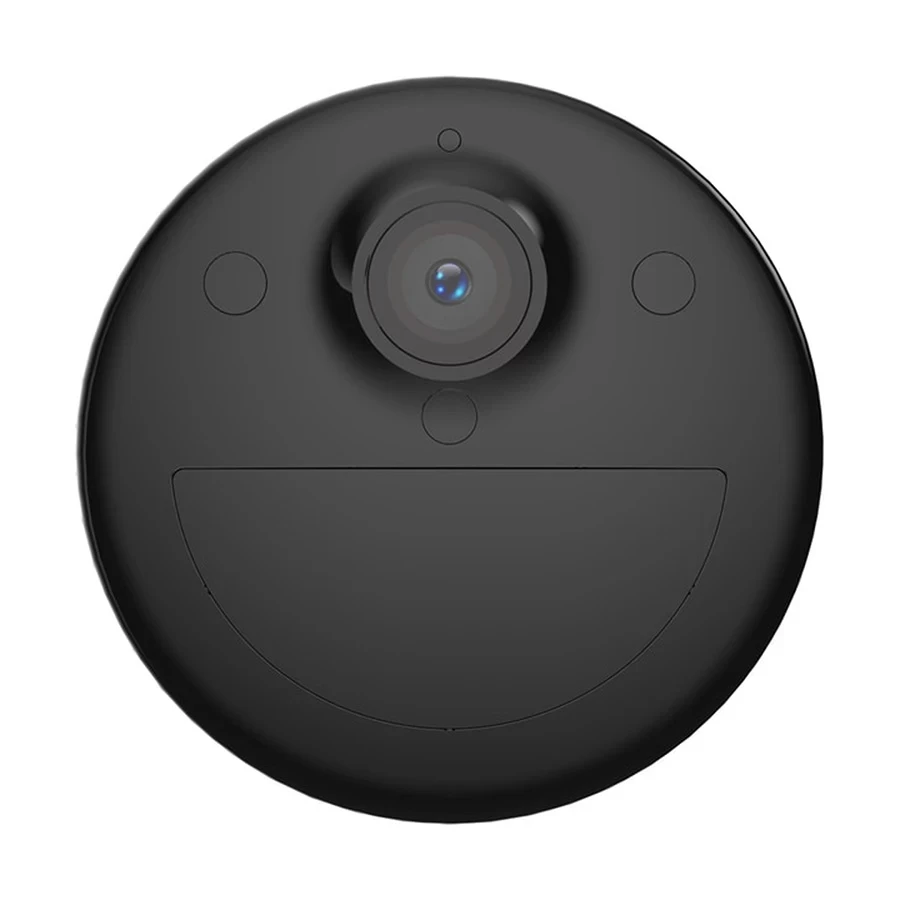

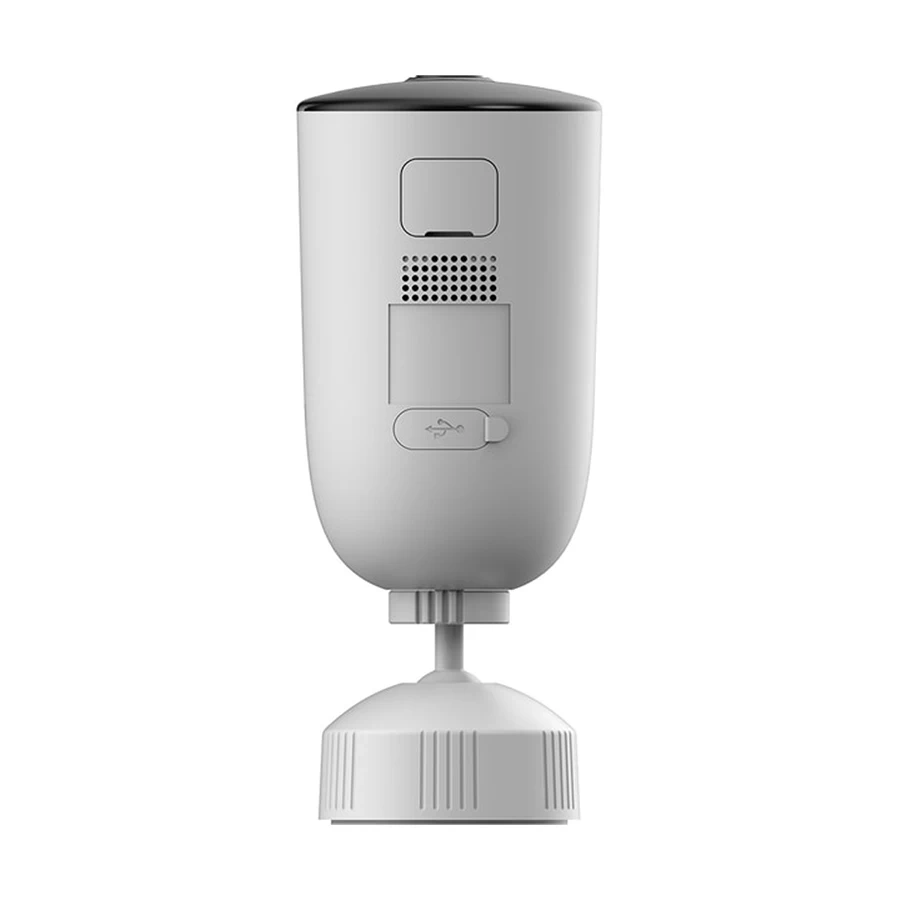

EZVIZ CS-CB3 Outdoor IP Camera

The EZVIZ CS-CB3 is a high-performance outdoor security camera designed for reliable surveillance with Full HD 1080p resolution, AI-powered human detection, and color night vision. Its wide 128° viewing angle, 8x digital zoom, and two-way audio make it an excellent choice for homes, offices, and commercial properties. With Wi-Fi connectivity, microSD storage up to 256GB, and AP pairing for easy setup, this camera ensures secure, real-time monitoring from anywhere.

Features

• Full HD 1080p Resolution: Captures sharp, clear footage with 1920 × 1080 resolution.
• Wide-Angle View: 128° diagonal coverage ensures a broader field of view.
• Color Night Vision: Provides clear nighttime footage with enhanced low-light performance.
• AI Human Detection: Reduces false alarms by detecting only human movements.
• 8x Digital Zoom: Allows users to magnify details without losing clarity.
• Two-Way Audio: Built-in microphone and speaker enable real-time communication.
• Wi-Fi Connectivity: IEEE 802.11b/g/n with AP pairing for quick and easy setup.
• Secure Encryption: Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK security.
• MicroSD Storage Support: Records and stores footage locally on a microSD card (up to 256GB).
• H.265 Compression: Saves bandwidth and storage space while maintaining high video quality.

Design & Build

• Form Factor: Compact and weather-resistant outdoor dome design.
• Lens: 2.8mm fixed lens for wide-area coverage.
• Viewing Angle: 128° diagonal for maximum visibility.
• Color: Sleek white finish.
• Material: Durable construction, suitable for outdoor conditions.
• Dimensions: 105.9 × 62.8 × 62.8mm.
• Weight: 86.8g, making it lightweight and easy to mount.

Technical Specifications

• Image Sensor: 1/2.9” Progressive Scan CMOS sensor for high-quality video output.
• Scanning System: Progressive Scan ensures smooth and sharp images.
• Frame Rate: Up to 15 FPS for clear motion capture.
• Video Format: Supports H.265 and H.264 compression for efficient storage and streaming.

Network & Connectivity

• Ethernet Port: No (Wi-Fi only).
• Wi-Fi Support: IEEE 802.11b/g/n with a strong wireless connection.
• Wireless Frequency: 2.4 GHz - 2.4835 GHz for stable network performance.
• Wi-Fi Pairing: AP pairing enables fast and easy installation.

Security & Storage

• Encryption: Supports 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK for enhanced data protection.
• Local Storage: MicroSD slot supports up to 256GB, allowing for longer recording durations.

Power & Environmental Conditions

• Power Supply: DC 5V / 1A for efficient energy use.
• Operating Temperature: -20°C to 50°C, making it suitable for extreme weather conditions.
• Operating Humidity: Up to 95% (non-condensing) for reliable outdoor performance.

Package Contents

• EZVIZ CS-CB3 Camera (x1)
• Mounting Accessories (Not Included)
• Quick Start Guide (x1)

Warranty

1-Year Warranty (Without Adapter).
