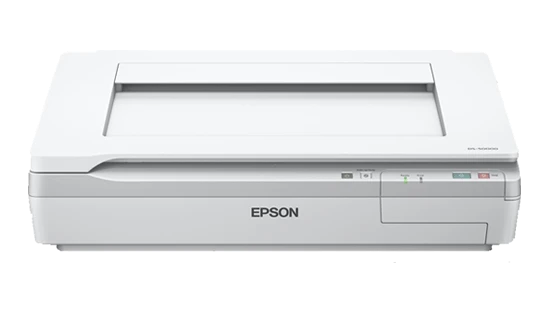

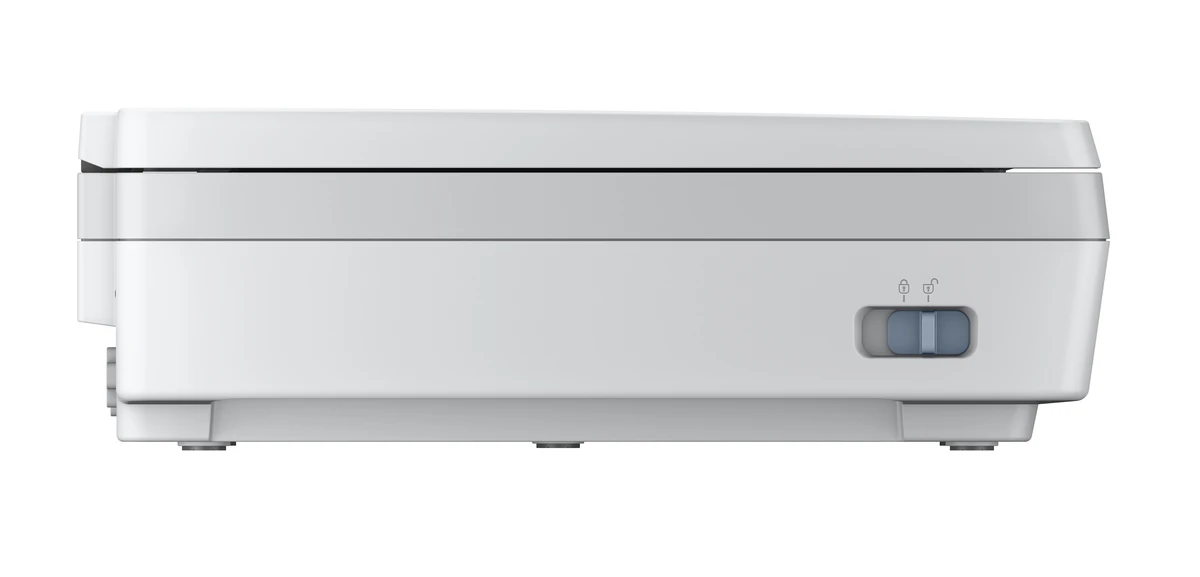

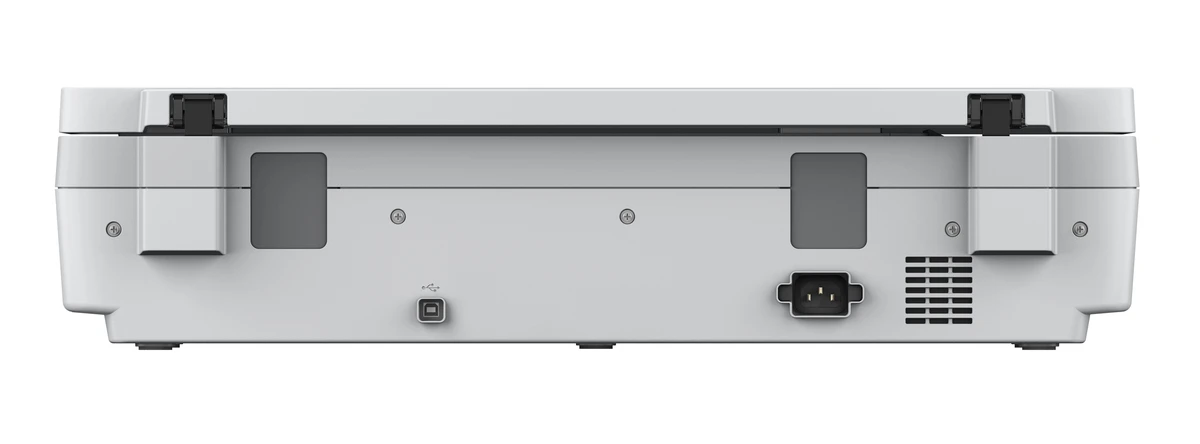

Epson WorkForce DS-50000 A3 Flatbed Scanner

The Epson WorkForce DS-50000 A3 is a high-performance flatbed scanner, ideal for businesses and professionals requiring large-format scanning. This versatile scanner combines fast speeds, high resolution, and excellent scanning capabilities, making it perfect for scanning oversized documents, artwork, and other large materials.

Scanning Performance

• Scan Technology: The DS-50000 utilizes a fixed document and moving carriage scanning technology, delivering superior image quality for large-format documents and images.
• Scanning Speed:
• Black & White (B/W): 4 seconds per page (spp)
• Color: 4 seconds per page (spp)
• Resolution: The scanner offers 600 x 600 dpi resolution, ensuring clear, detailed scans that retain the integrity of the original document.
• Color Bit Depth:
• Input: 48-bit for accurate and rich color reproduction.
• Output: 24-bit for high-quality color output.
• Grayscale Bit Depth:
• Input: 16-bit for precise grayscale scanning.
• Output: 8-bit for smooth, detailed grayscale results.

Scan Size & Capability

• Scan Sizes Supported:
• A3, A4, A5, A6, B5, Letter, Legal, Executive
• Maximum Scan Size: A3, making it ideal for oversized documents such as blueprints, large photos, and artwork.
• Color Scanning: Yes, it supports full color scanning, as well as grayscale and black & white scanning.

Paper Information

• Automatic Document Feeder (ADF): The DS-50000 does not include an ADF, as it is designed for flatbed scanning of individual, larger-format documents.
• Sheet Capacity (ADF): Not applicable, as there is no ADF.

Performance Characteristics

• Light Source: The scanner uses ReadyScan LED technology, which provides faster startup times, lower energy consumption, and consistent scanning performance without the need for warm-up.
• Control Panel: The scanner features a simple 1-button operation with Epson Scan software for easy scanning.

Storage & Interface

• Built-in Interface: The scanner is equipped with Hi-Speed USB 2.0, ensuring fast data transfer for larger files and enhanced workflow efficiency.
• Twain Compatibility: Yes, the scanner is TWAIN compatible, allowing for seamless integration with a variety of document management and imaging software.

Power Specifications

• Operating Temperature Range: Designed for use in environments between 5 - 35°C, ensuring it functions efficiently in typical office conditions.
• Power Supply: AC 100-240V, 50/60 Hz, allowing for global usage.
• Power Consumption:
• Operating Mode: Approx. 25.5W
• Standby Mode: Approx. 9.5W
• Sleep Mode: Approx. 1.5W
• Power Off: Approx. 0.5W, making it energy-efficient when not in use.

Physical Description

• Color: The scanner features a sleek white design, complementing modern office aesthetics.
• Dimensions: 640 x 156 x 468mm, making it suitable for large-format scanning tasks.
• Weight: 14.8 kg, which provides stability and durability, but may require extra space in the office or studio.

Warranty

The Epson WorkForce DS-50000 A3 comes with a 1-year warranty (excluding adapter). To claim the warranty, the original box must be retained.
