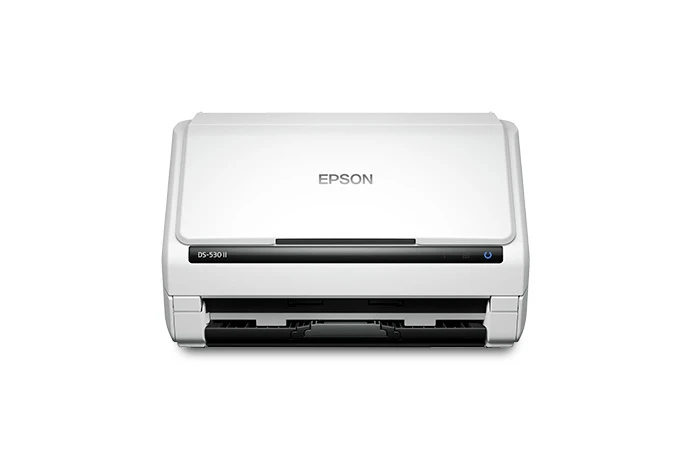

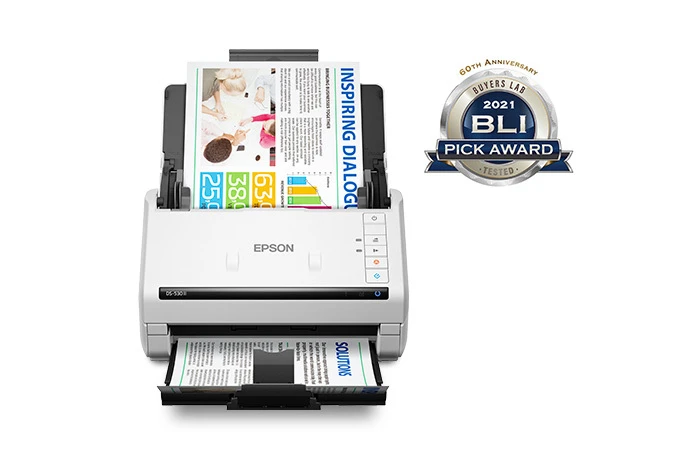

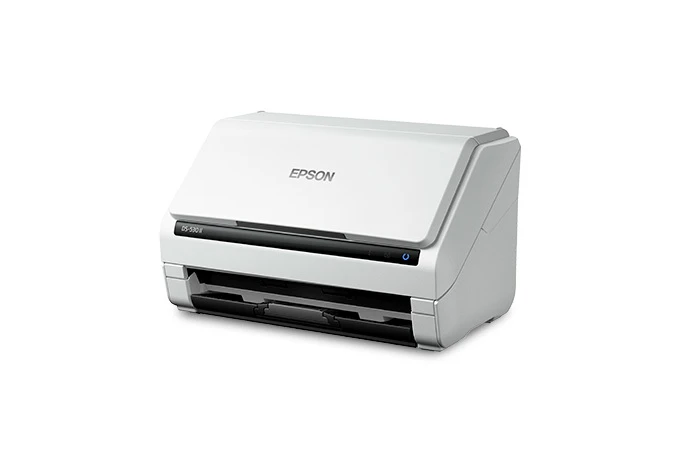

Epson DS-530 II Sheetfed Scanner

The Epson DS-530 II is a high-performance sheetfed scanner, ideal for business environments needing fast and reliable document scanning with a variety of features to improve workflow efficiency.

Scanning Performance

• Scan Technology: Contact Image Sensor (CIS), offering high-quality scanning.
• Scanning Speed:
• Black & White (B/W): 35ppm/70ipm
• Color: 35ppm/70ipm
• Resolution: 600 dpi for sharp and clear image reproduction.
• Color Bit Depth:
• Internal: 30-bit for higher accuracy and better color depth.
• External: 24-bit for color output.
• Grayscale Bit Depth:
• Internal: 30-bit
• External: 24-bit

Scan Size & Capability

• Scan Sizes Supported:
• Legal, A4, Letter, A5, A6
• Maximum Scan Size: Legal
• Color Scanning: Yes, with support for black & white, color, and grayscale scanning.

Paper Information

• Automatic Document Feeder (ADF): Yes
• ADF Sheet Capacity: 50 sheets for batch scanning.

Performance Characteristics

• Light Source: RGB LED (CIS) for consistent quality.
• Control Panel: LCD display with buttons for easy operation.

Storage & Interface

• Built-in Interface: USB 3.0 for fast data transfer.
• Twain Compatibility: Yes, supporting third-party applications for integration.

Power Specifications

• Operating Temperature Range: 5 - 35°C (When charging the battery: 8 - 35°C)
• Power Supply: 100 - 240V, 50/60 Hz
• Rated Voltage: 24V/1A
• Power Consumption:
• Maximum: 11W
• Ready Mode: 5.4W
• Sleep Mode: 1W
• Off Mode: 0.1W

Physical Description

• Color: White
• Dimensions: 294.64 x 175.26 x 167.64mm
• Weight: 3.7 kg, making it a compact and efficient scanner for office use.

Warranty

The Epson DS-530 II comes with a 1-year warranty (excluding adapter), and the original box is required for warranty claims.
