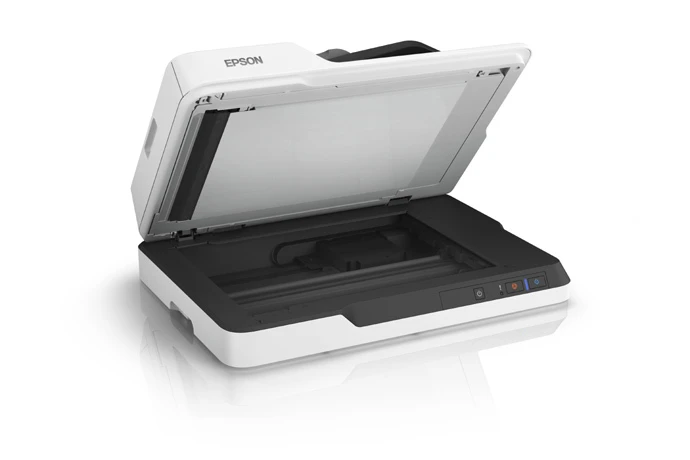

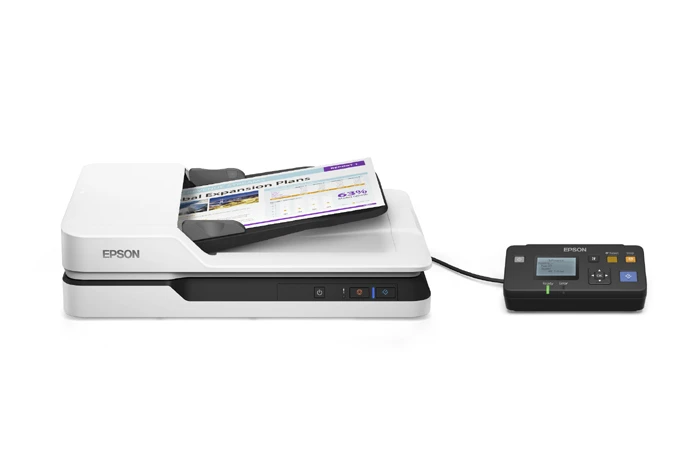

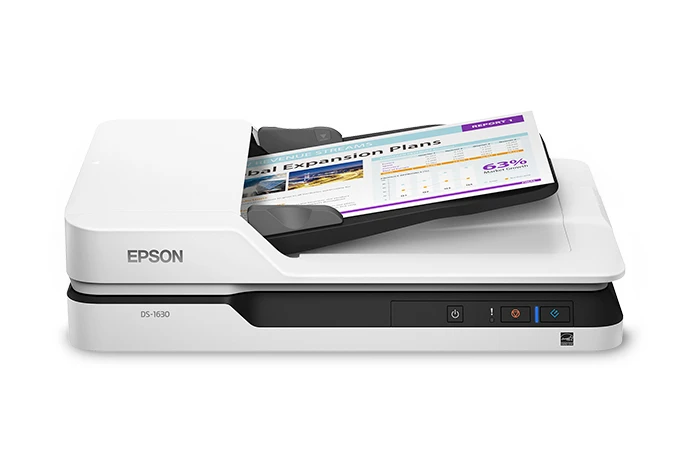

Epson DS-1630 Sheetfed & Flatbed Scanner

The Epson DS-1630 is a versatile sheetfed and flatbed scanner suitable for both home and office use. It combines the flexibility of both flatbed and sheetfed scanning, enabling users to scan a wide variety of documents and media.

Scanning Performance

• Scan Technology: Contact Image Sensor (CIS) for efficient scanning with high-quality results.
• Scanning Speed:
• Black & White (B/W): 25ppm/10ipm
• Color: 25ppm/10ipm
• Resolution:
• Flatbed: 1200 dpi
• ADF (Automatic Document Feeder): 600 dpi
• Color Bit Depth: 30-bit (internal and external) for high color accuracy.
• Grayscale Bit Depth: 8-bit per pixel (internal/external).

Scan Size & Capability

• Scan Sizes Supported:
• Legal, A4, Letter, A5, A6
• Maximum Scan Size: Legal (8.5" x 14")
• Color Scanning: Yes, supports color and grayscale scanning, along with black & white scanning.

Paper Information

• Automatic Document Feeder (ADF): Yes
• ADF Sheet Capacity: 50 sheets, allowing for bulk scanning.

Performance Characteristics

• Light Source: RGB LED (CIS) for efficient energy usage and high-quality scans.

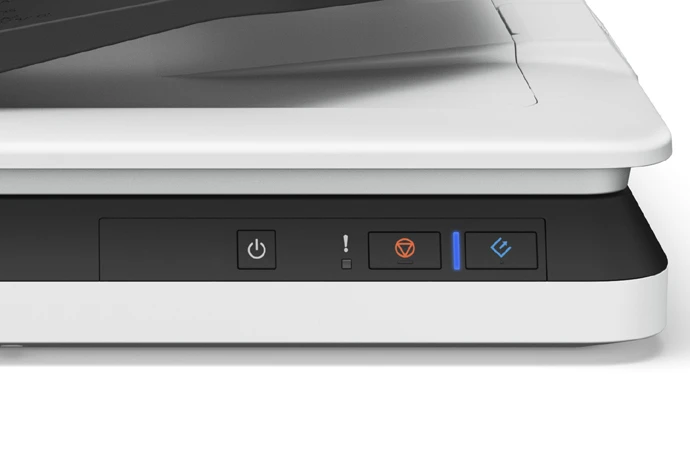

• Control Panel: Features LCD display and buttons for ease of use.

Storage & Interface

• Built-in Interface: USB 3.0, ensuring fast data transfer.
• Twain Compatibility: Yes, compatible with various third-party applications for efficient document management.

Power Specifications

• Operating Temperature Range: 5 - 35°C (When charging the battery: 8 - 35°C)
• Power Supply: AC 100 - 120V
• Power Consumption:
• Operating Mode: 11W
• Ready Mode: 5.8W
• Sleep Mode: 0.8W
• Off Mode: 0.15W

Physical Description

• Color: Black & White
• Dimensions: 317.5 x 121.92 x 297.18mm
• Weight: 4.08 kg, making it suitable for desktop and office use.

Warranty

The Epson DS-1630 comes with a 1-year warranty (excluding adapter), and the original box is required for warranty claims.
