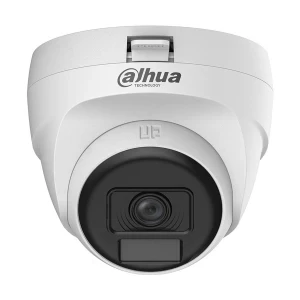

Dahua HAC-T1A21-U-IL (2.8mm) (2.0MP) Smart Dual Light HDCVI Fixed Eyeball Dome CC Camera
Key Specification
‣ Usage – Indoor
‣ Form-Factor - Dome
‣ Mega Pixels (MP) - 2.0
‣ Night Vision Mode - Black
and White
‣ Motion Detection – Unmentioned
‣ IR Range - 25 Meter
Product Specification
|
Brand |
Dahua |
|
Model |
Dahua
HAC-T1A21-U-IL |
|
Usage |
Indoor |
|
Type |
Dome CC
Camera Data |
|
Camera |
Mega Pixels (MP): 2.0 Resolution: 1080p (1920 x 1080), 960H (960 x
576/960 x 480) Max. Camera Resolution: 1920 x 1080 S/N Ratio: >65 dB Shutter Time: PAL: 1/25 s-1/100,000 s, NTSC:
1/30 s-1/100,000 s Sensor Type.: 2MP CMOS Day & Night: Auto(ICR)/Color/B/W Night Vision: Yes Night Vision Mode: Black and White |
|
Lens |
Field
of View: 100 Degree (H), 54 Degree (V), 117 Degree (D) Lens: 2.8mm Lens
Mount: M12 |
|
Image |
Wide Dynamic Range (WDR): DWDR Capture Distance: 44.7 Meter Noise Reduction: Yes Digital Noise Reduction (DNR): 2D NR |
|
Technical
Data |
Camera
Type: Fixed Video
Output: CVI/TVI/AHD/CVBS Audio: None IR
Range: 25 Meter Privacy
Mask: Off/On (8 areas, rectangle) |
|
Physical Attributes |
Form-Factor: Dome Remote (PTZ) Control: No Color: Black & White Body Material: Plastic Dimensions: 85.0 x 77.1mm Weight (gm): 110 gm |
|
Power |
Power
Supply: 12 VDC +- 30% Approx.
Power Consumption: Max 2.1 W (12 VDC, LED on) |
|
Warranty |
1 year |
|
* Product may vary with
different Kit or Version |
|
Product Details
Dahua
HAC-T1A21-U-IL Dome CC Camera
The Dahua HAC-T1A21-U-IL is a
high-definition dome CC camera designed for indoor security
applications. With a 2MP CMOS sensor, it delivers sharp and clear
Full HD (1920 x 1080) resolution for detailed surveillance. The
camera features advanced night vision, digital wide dynamic range
(DWDR), and 2D noise reduction, making it an excellent choice for reliable
monitoring in low-light conditions. Its compact and lightweight design,
combined with multiple video output options, makes it a versatile and
efficient security solution.
Features:
- Full HD Resolution:
Captures 1920 x 1080 (2MP) high-definition video for sharp and
clear footage.
- Day & Night Mode:
Supports Auto (ICR), Color, and Black & White (B/W) modes for optimal
visibility.
- Night Vision Capability: Equipped with black-and-white night vision mode
for clear footage in darkness.
- Wide Dynamic Range (DWDR): Enhances image clarity by adjusting exposure
in high-contrast scenes.
- Noise Reduction:
2D Digital Noise Reduction (DNR) reduces grainy distortion
for smoother video output.
- Capture Distance:
Supports detection up to 44.7 meters, ensuring a wide coverage
area.
- Fixed 2.8mm Lens:
Provides a 100° horizontal, 54° vertical, and 117° diagonal field of
view, covering a large area.
- Privacy Masking:
Allows up to 8 adjustable masked areas to protect sensitive
regions in surveillance footage.
Design
& Build:
- Form Factor:
Dome camera with a sleek and compact design.
- Color:
Black & White
- Body Material:
Durable plastic construction.
- Lightweight & Compact: 85.0mm x 77.1mm, weighing 110g, making
it easy to install.
Technical
Specifications:
- Camera Sensor:
2MP CMOS sensor for high-quality video output.
- Resolution:
1920 x 1080 (Full HD) and 960H (960 x 576/960 x 480).
- S/N Ratio:
>65dB, ensuring low noise and high image clarity.
- Shutter Speed:
PAL: 1/25 - 1/100000s | NTSC: 1/30 - 1/100000s for smooth video
capture.
- Video Output:
Supports CVI, TVI, AHD, and CVBS video formats for flexible
connectivity.
- IR Range:
Infrared capability up to 25 meters for enhanced night
surveillance.
- Remote PTZ Control:
Not supported.
Power
Attributes:
- Power Supply:
12V DC ±30% for stable operation.
- Power Consumption:
Maximum 2.1W (with LED on), ensuring low energy usage.
Package
Contents:
- Dahua HAC-T1A21-U-IL Camera
- Mounting Bracket
- Power Adapter
- User Manual
Warranty:
- 1-Year Warranty
for reliable after-sales support and service.
